JAC 5.5m3 garbage compactor truck

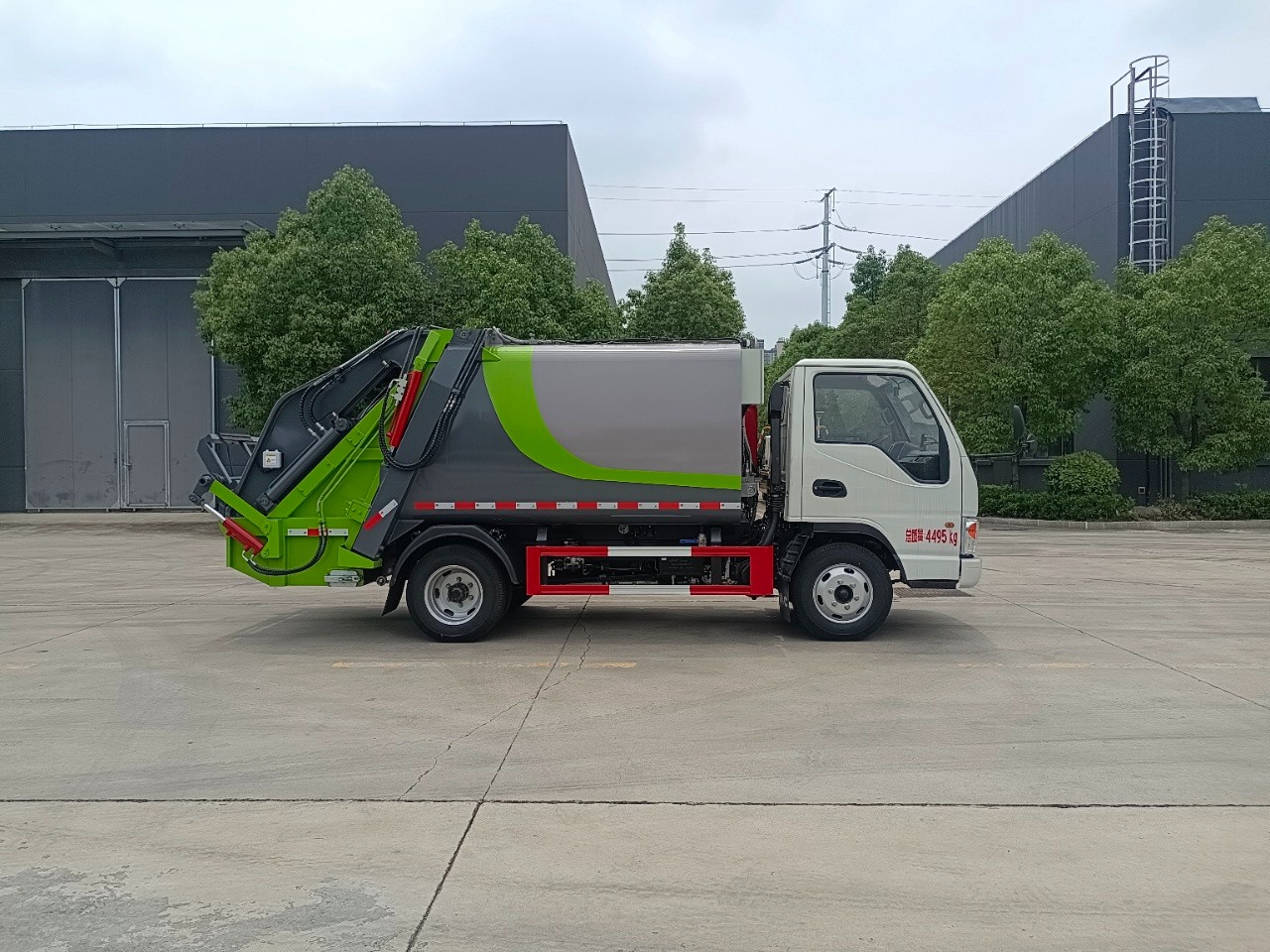

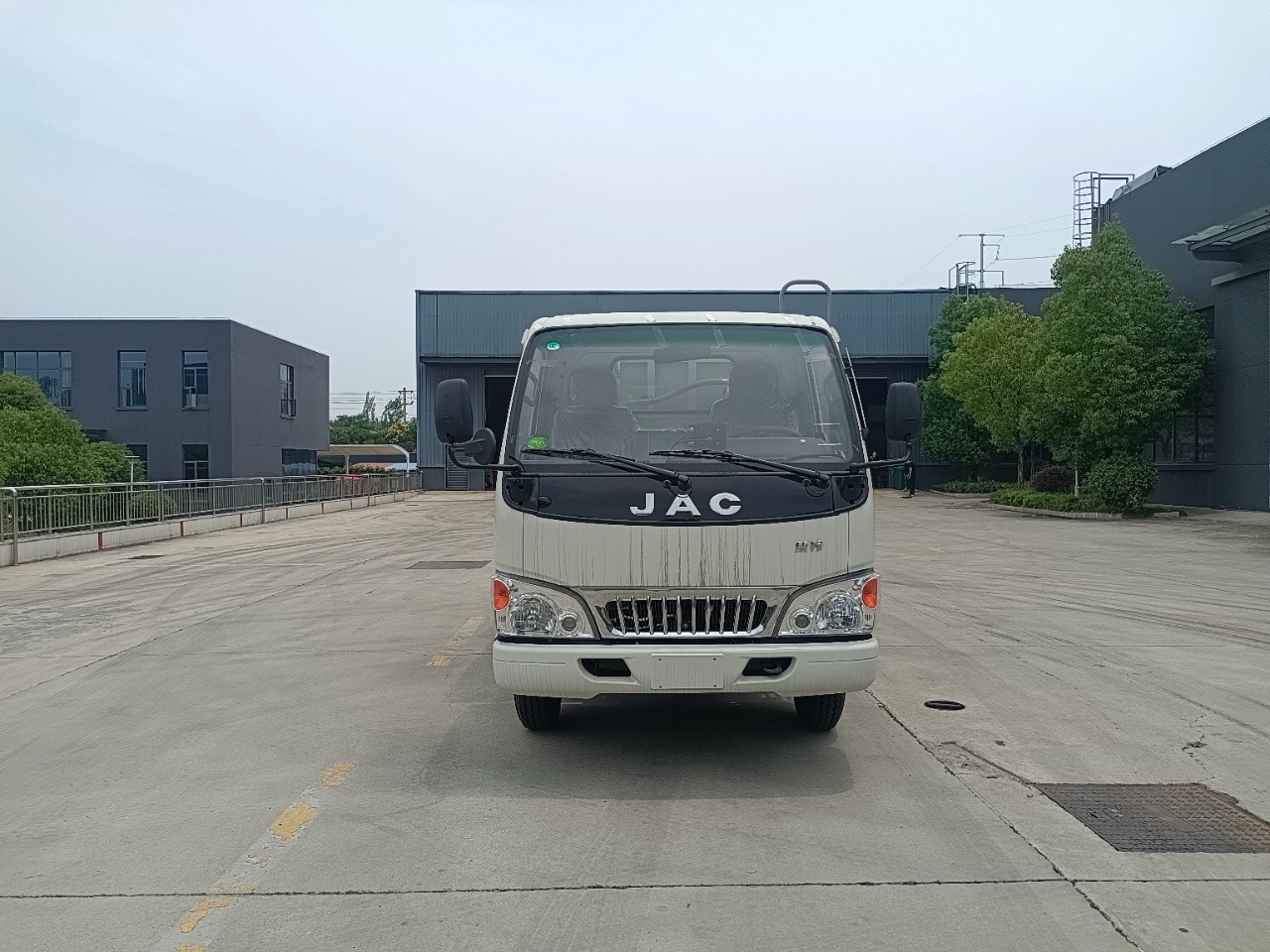

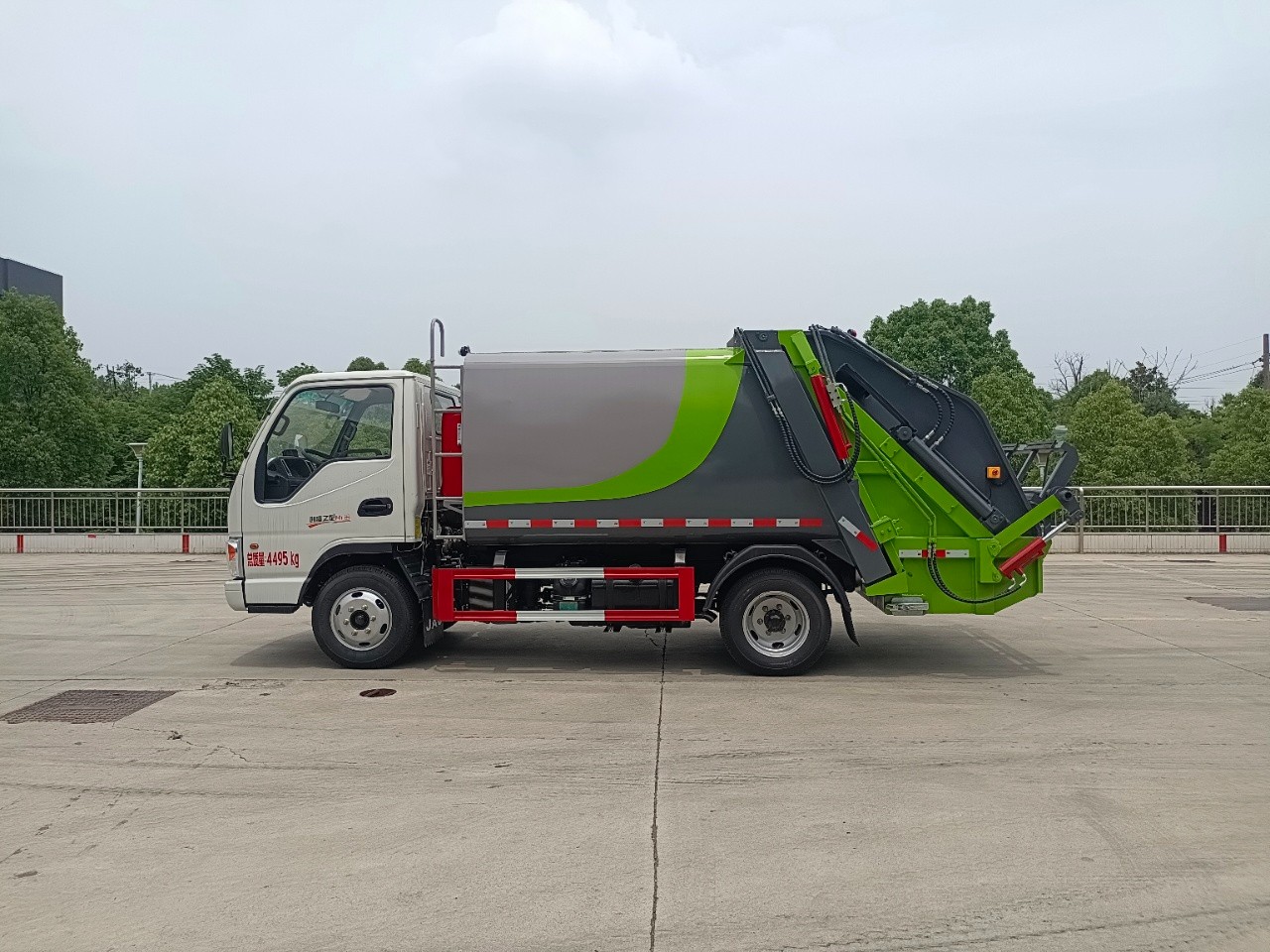

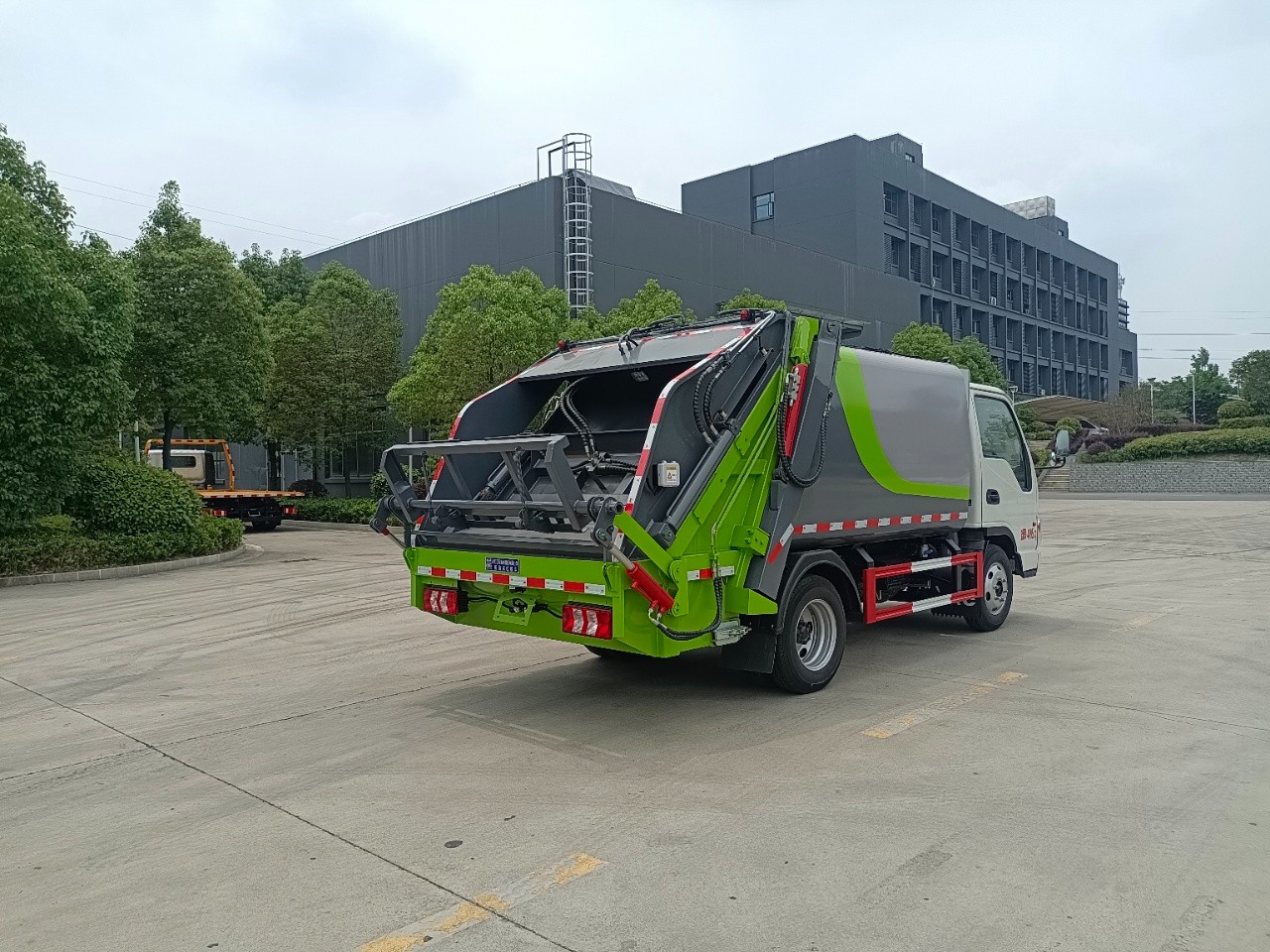

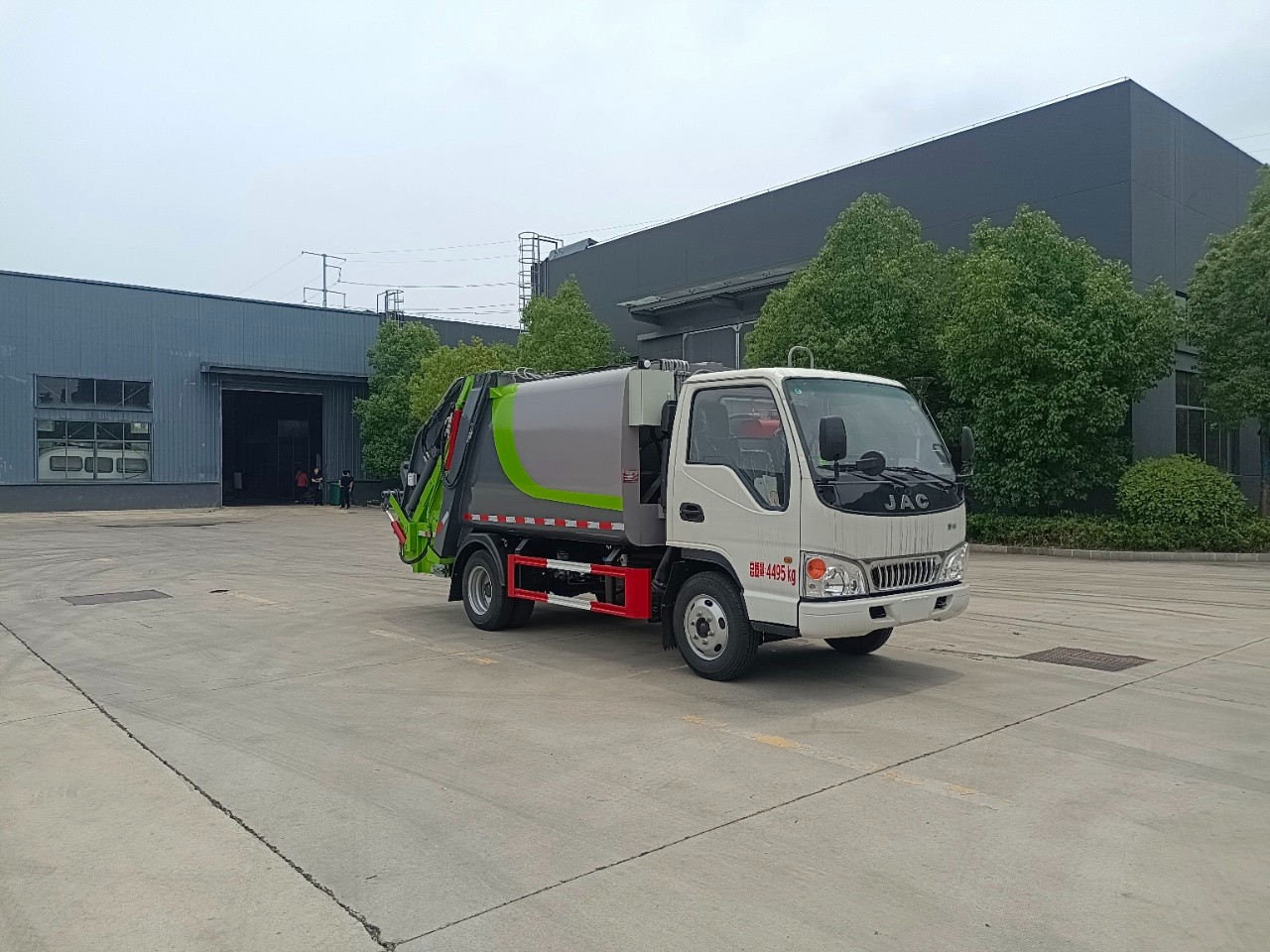

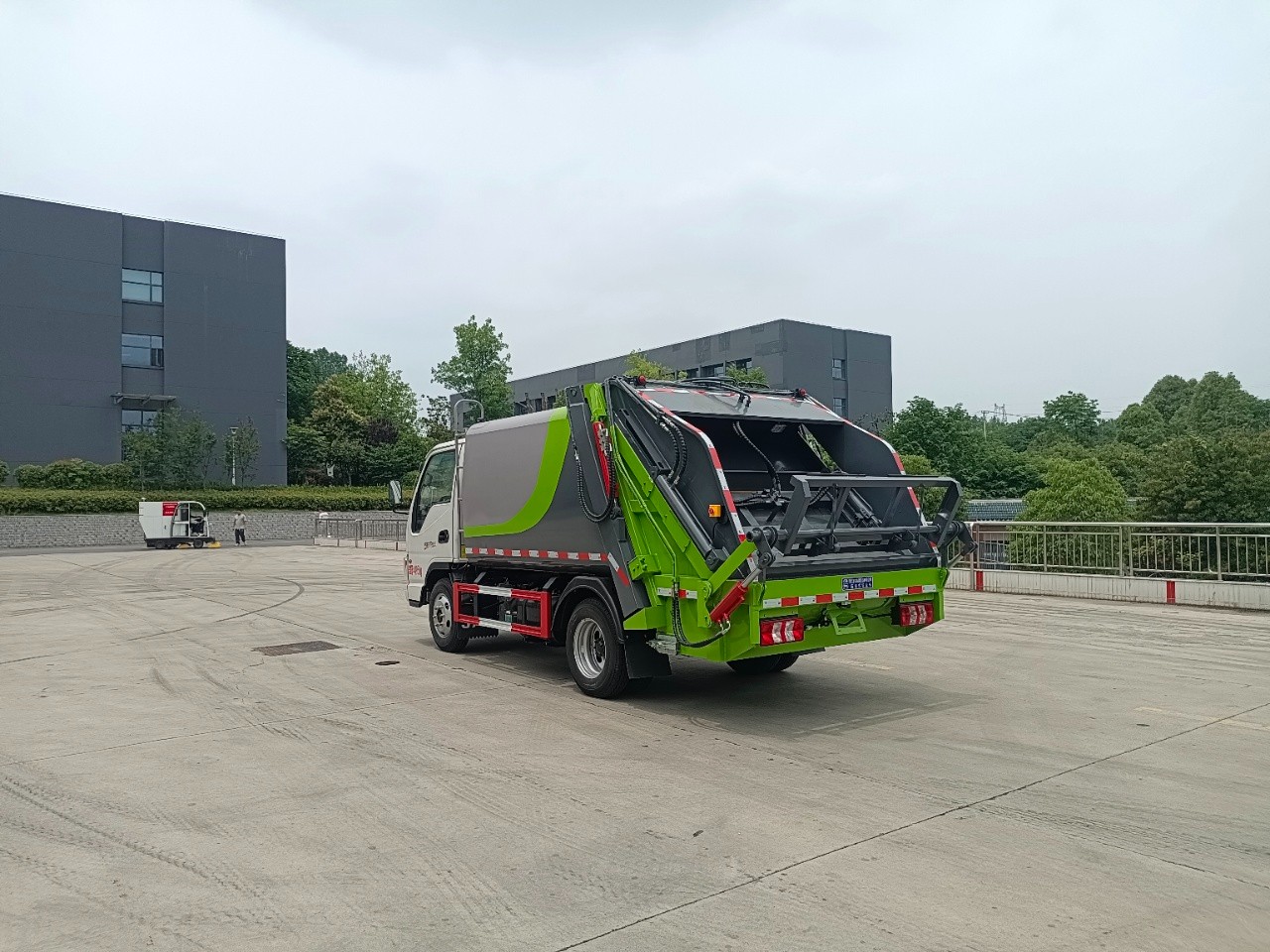

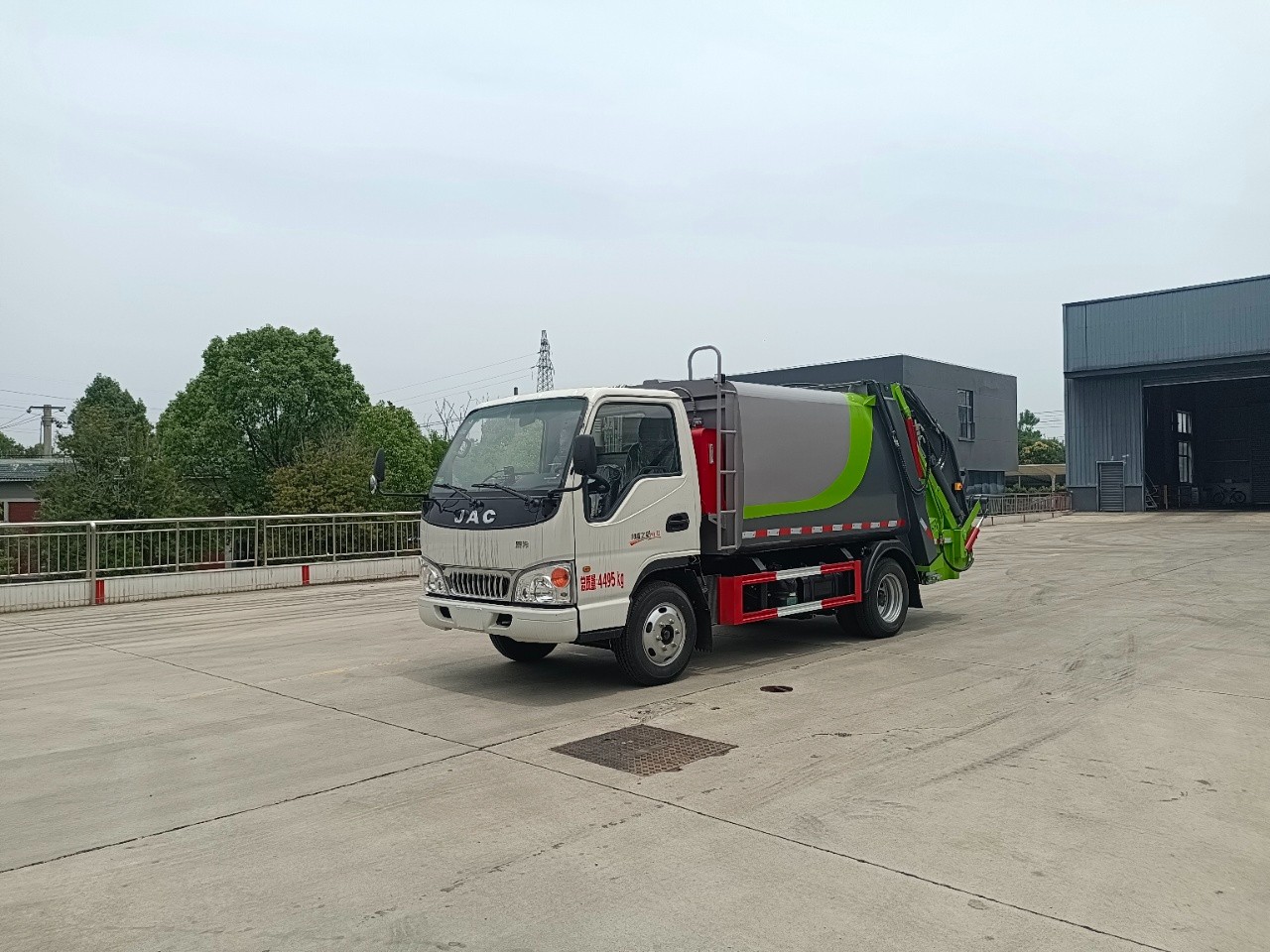

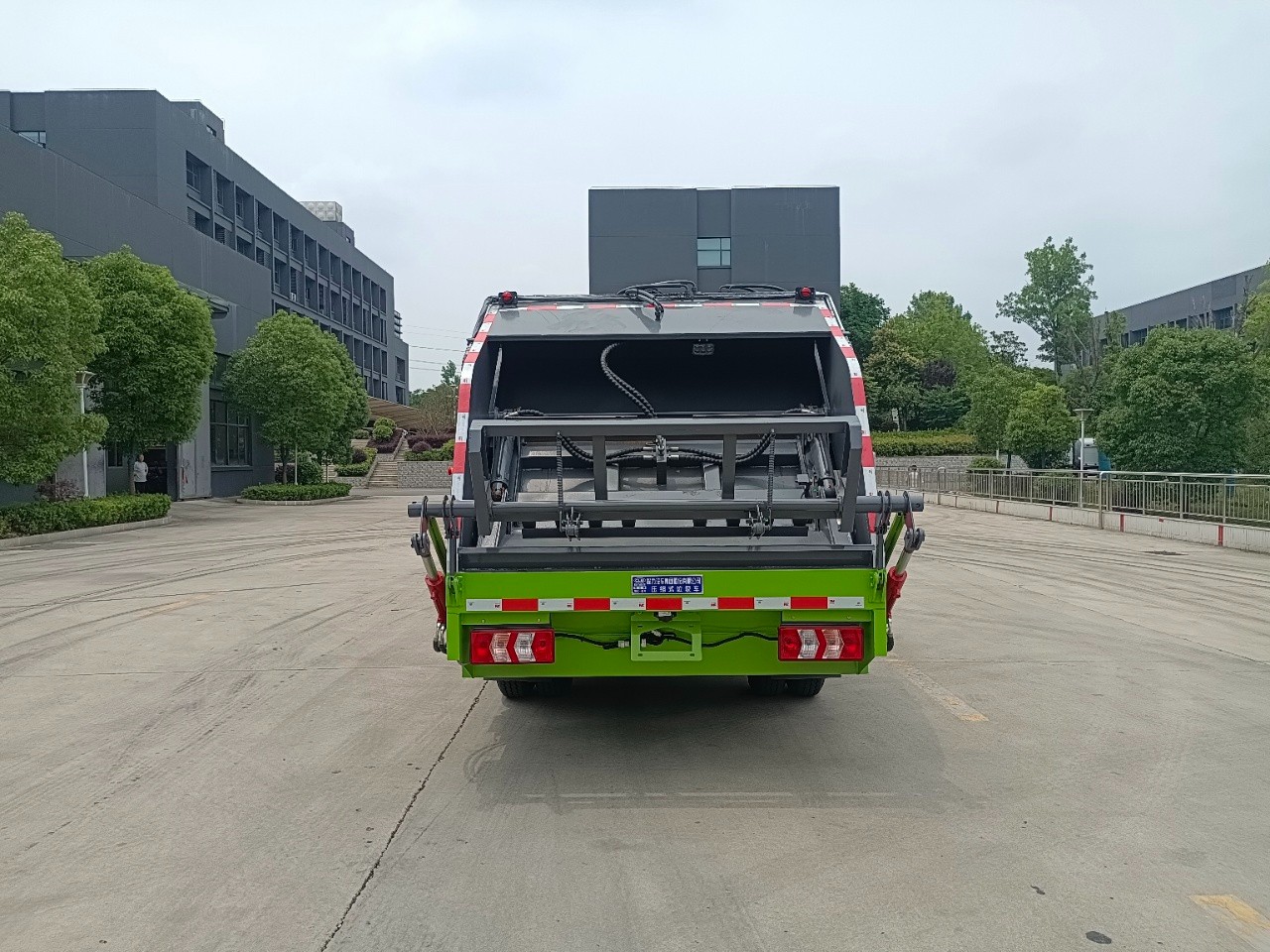

1. Pictures of the JAC 5.5m3 garbage compactor truck

2. The garbage compactor truck model is CL5043ZYS6AQC. The garbage compactor truck chassis model is HFC1041P23K1B4QZS.

The chassis configuration: New JAC Kangling H1 series,Yunnei 140hp, 5 gears transmission box, 2850mm

wheelbase, cabin 1700mm wide, 650R16 steel wire tires, 155mm wide girder, leaf spring 8/7+ 6,2.5T

front axle, 4T rear axle,with power steering, 80L fuel tank, with air brake, original air conditioning,

optional electric door and window central control lock.

3. The garbage compactor truck body configurations:

The body volume is about 5.5m3, the whole body uses T700 high-strength wear-resistant plate material,

the body matrial side plate thickness 3mm,bottom plate thickness 4mn,the rear loader side plate thickness

4mm, the bottom plate thickness 6mm.The skateboard and skating channel thickness is 10mm.Thepush shovel oil cylinder conditioning treatment with 4 levels, so that the push shovel occupies minimum

space to make the body volume maximized, garbage loading more!

4. The garbage compactor truck electric hydraulic configuration:

Zhejiang Jiasan PTO,

Hefei Anhui liquid gear pump,

Wessenboler multi-way valve, balance valve, compression valve, stop valve,

Liancheng hydraulic cylinder (all cylinders after tempering treatment, with buffer function),

Guangzhou Tianhe high pressure tubing,

global steel pipe,

hydraulic oil tank with 3 times overstress net,

all cylinder shaft pins after quenching treatment, increase hardness is not easy to bend and break,

CAN survey bus smart screen one-button operating system,

with wireless remote control,

system programs can be set on the smart screen according to the user's use conditions,

can set the automatic operation conversion time, throttle control size, with automatic fault detection,

alarm prompt function.
