Dongfeng Doric 7.5m3 garbage compactor truck

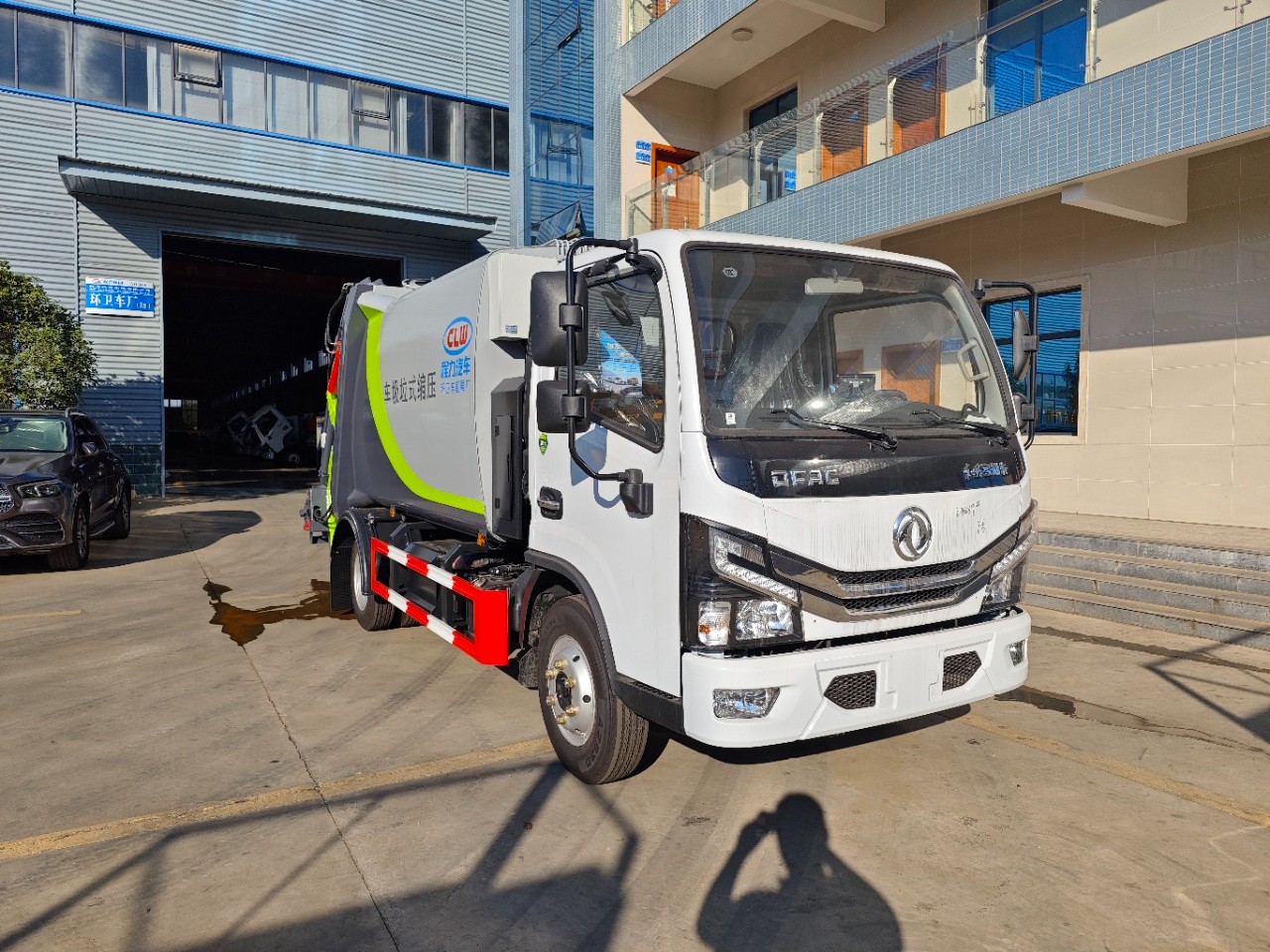

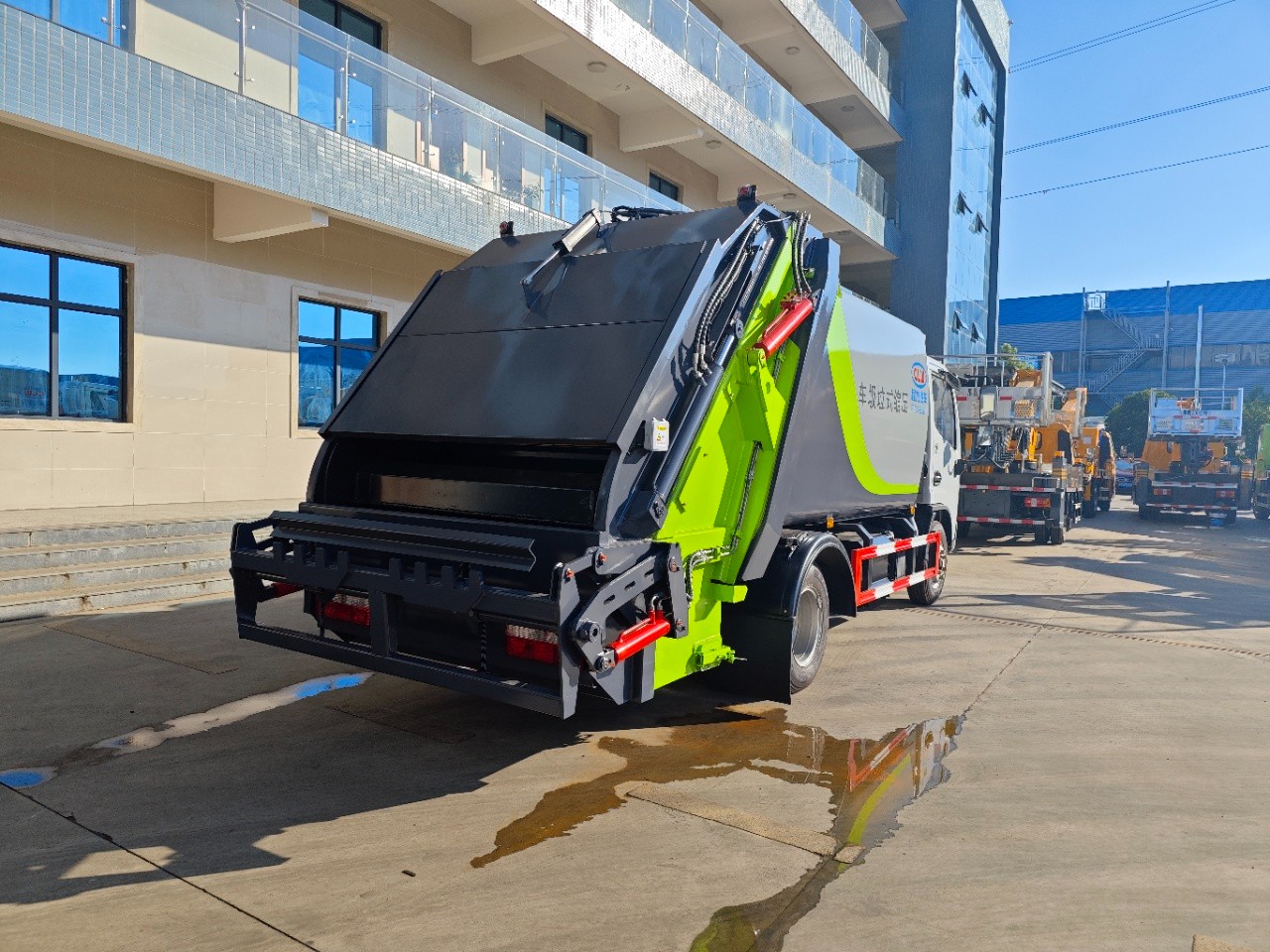

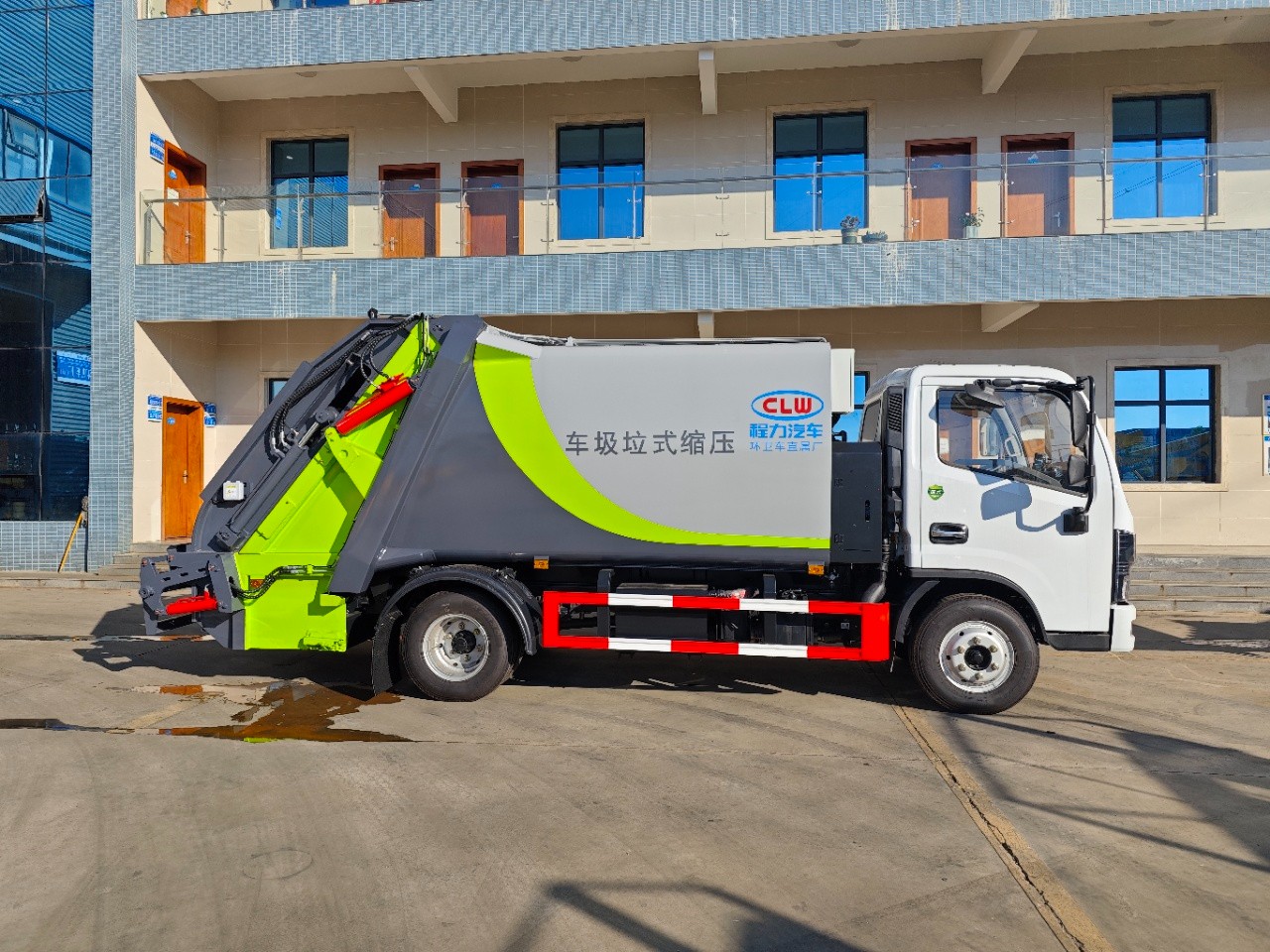

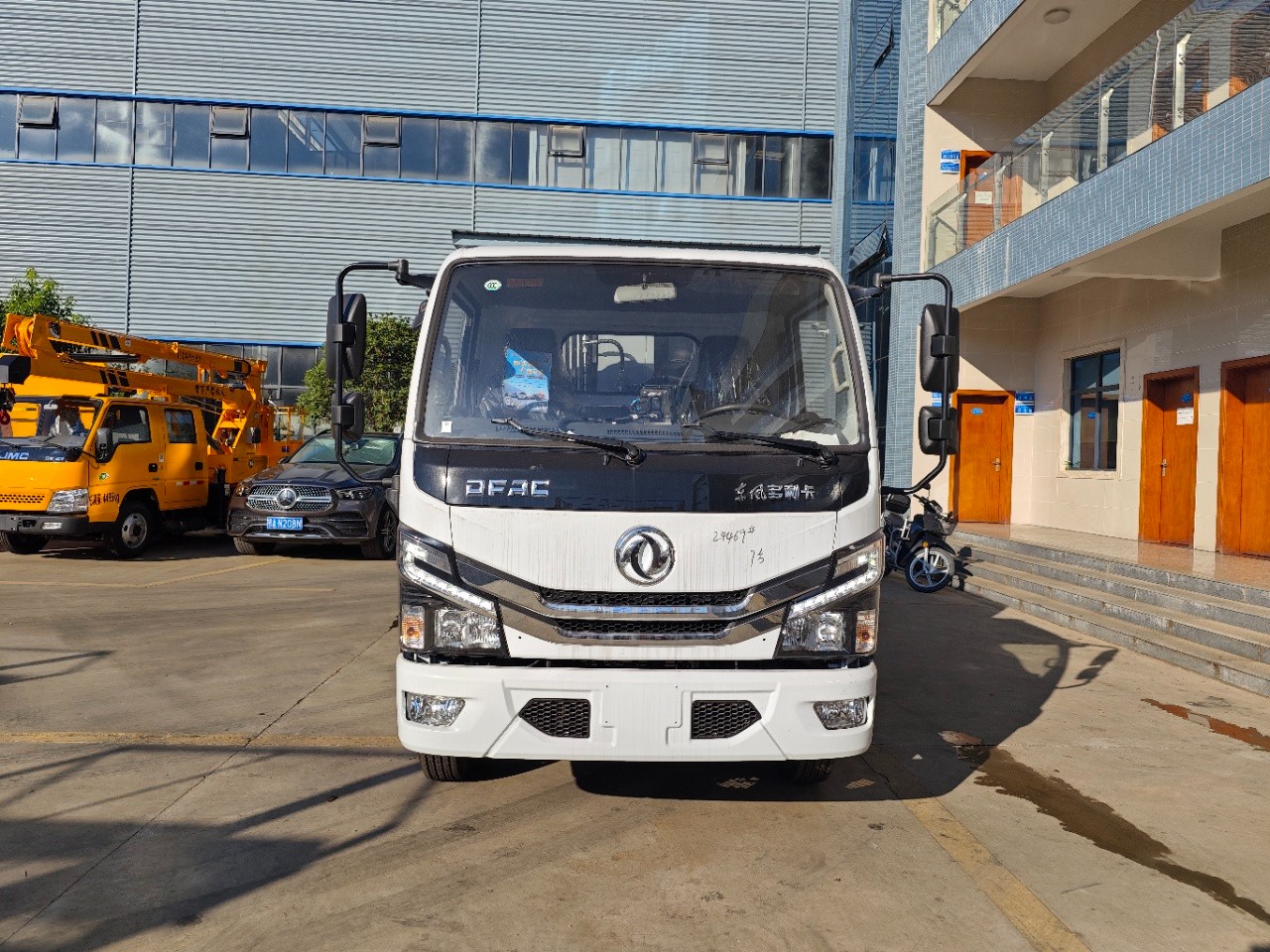

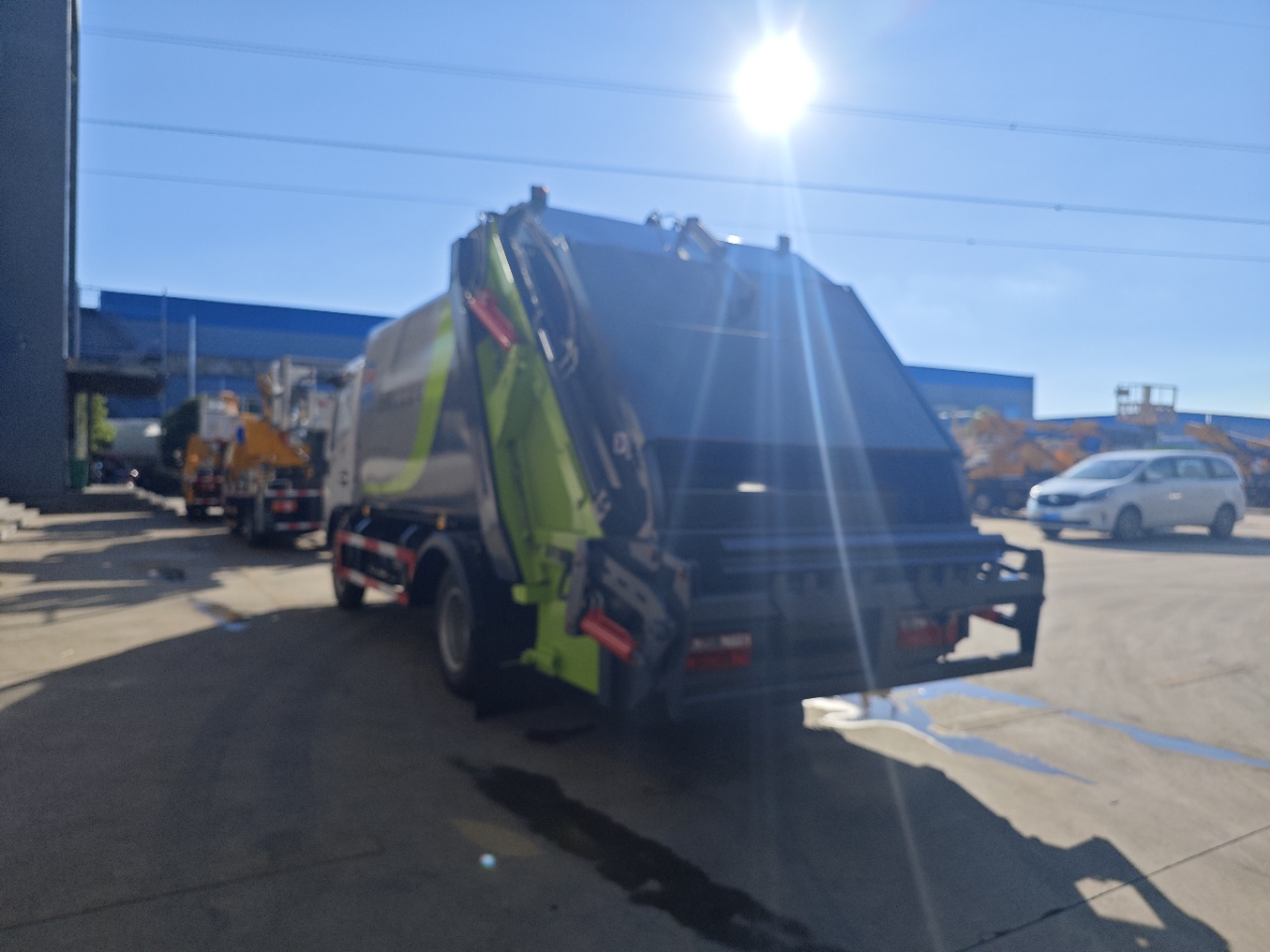

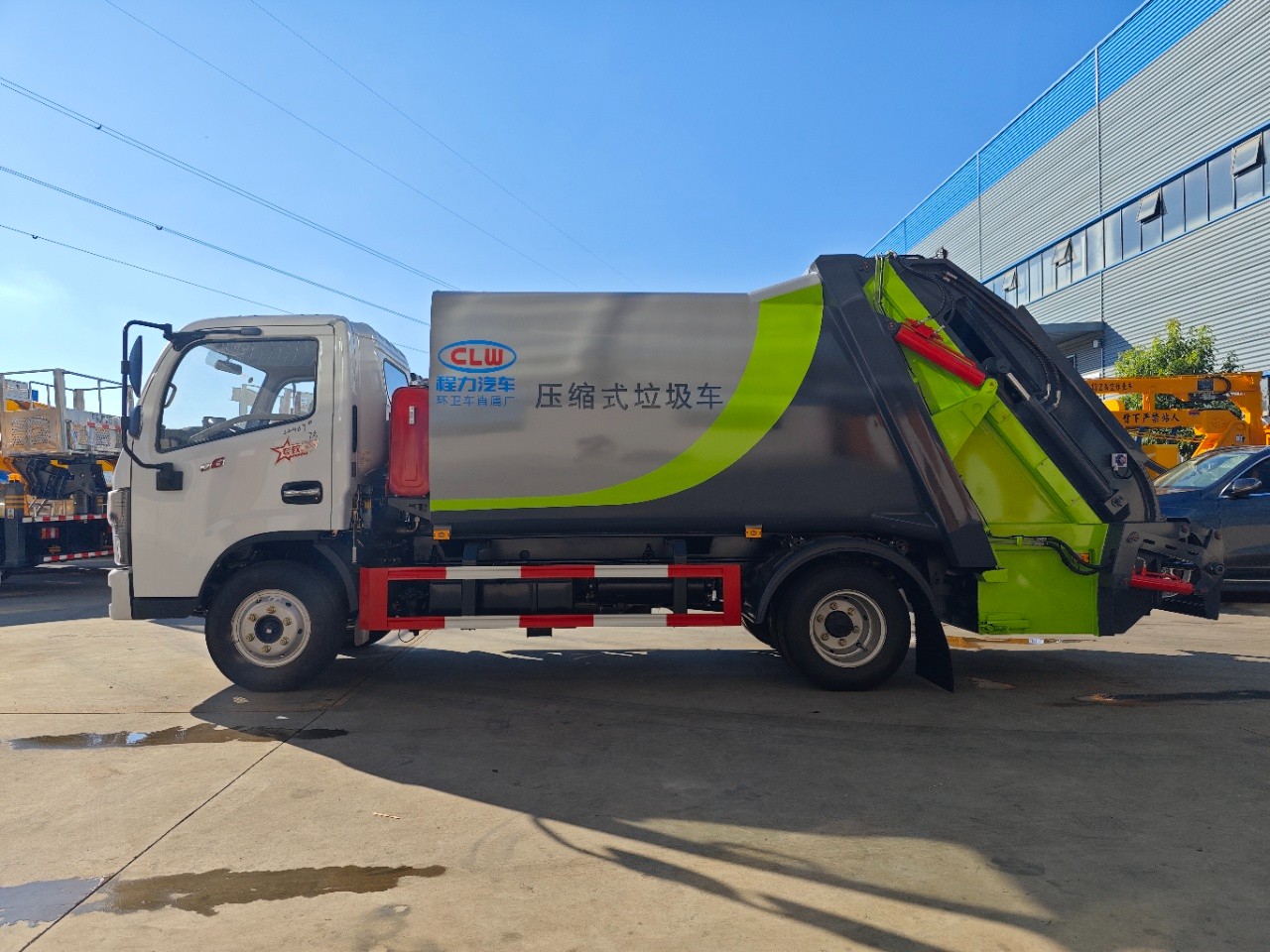

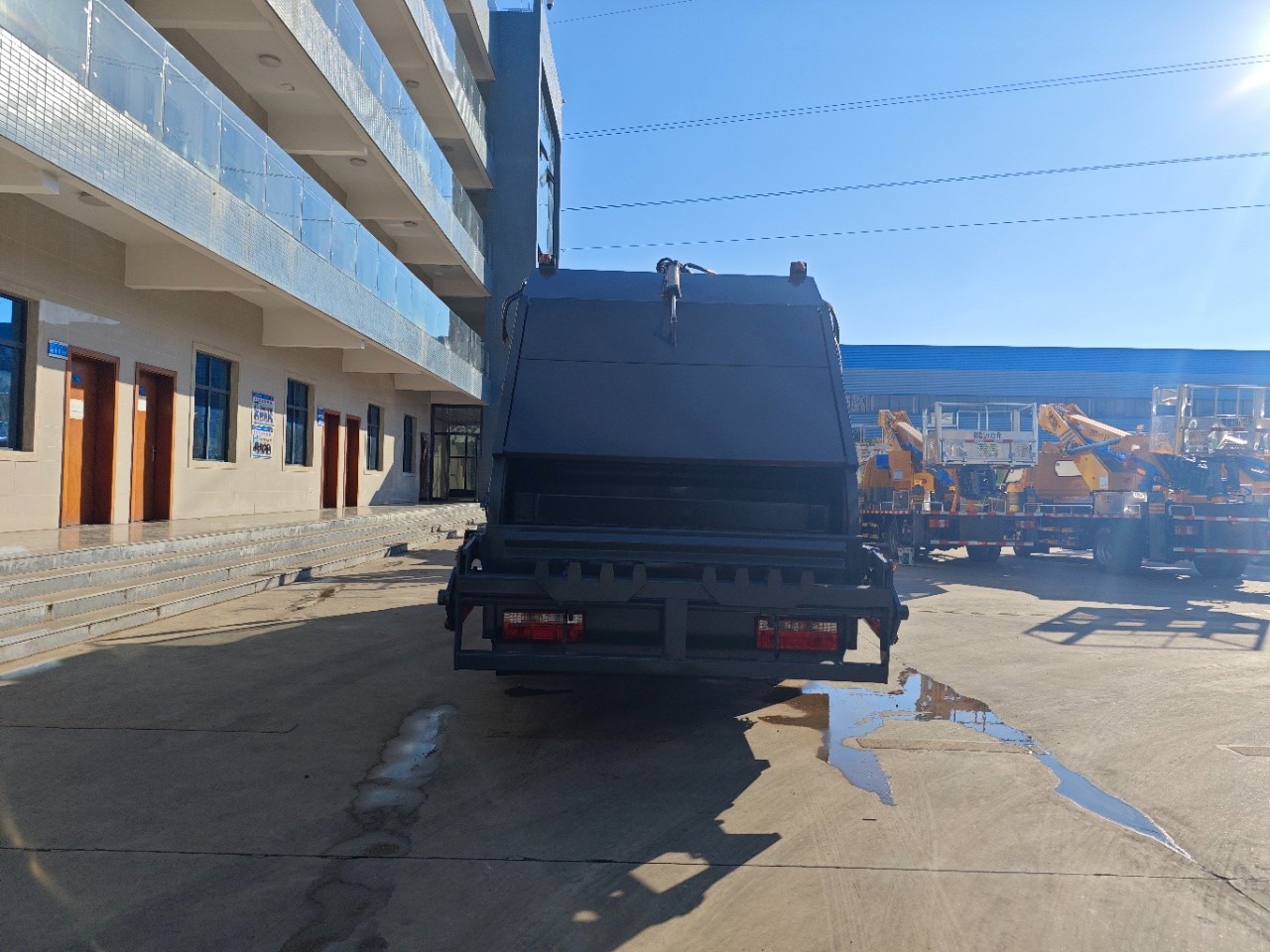

1. Pictures of the Dongfeng Doric 7.5m3 garbage compactor truck

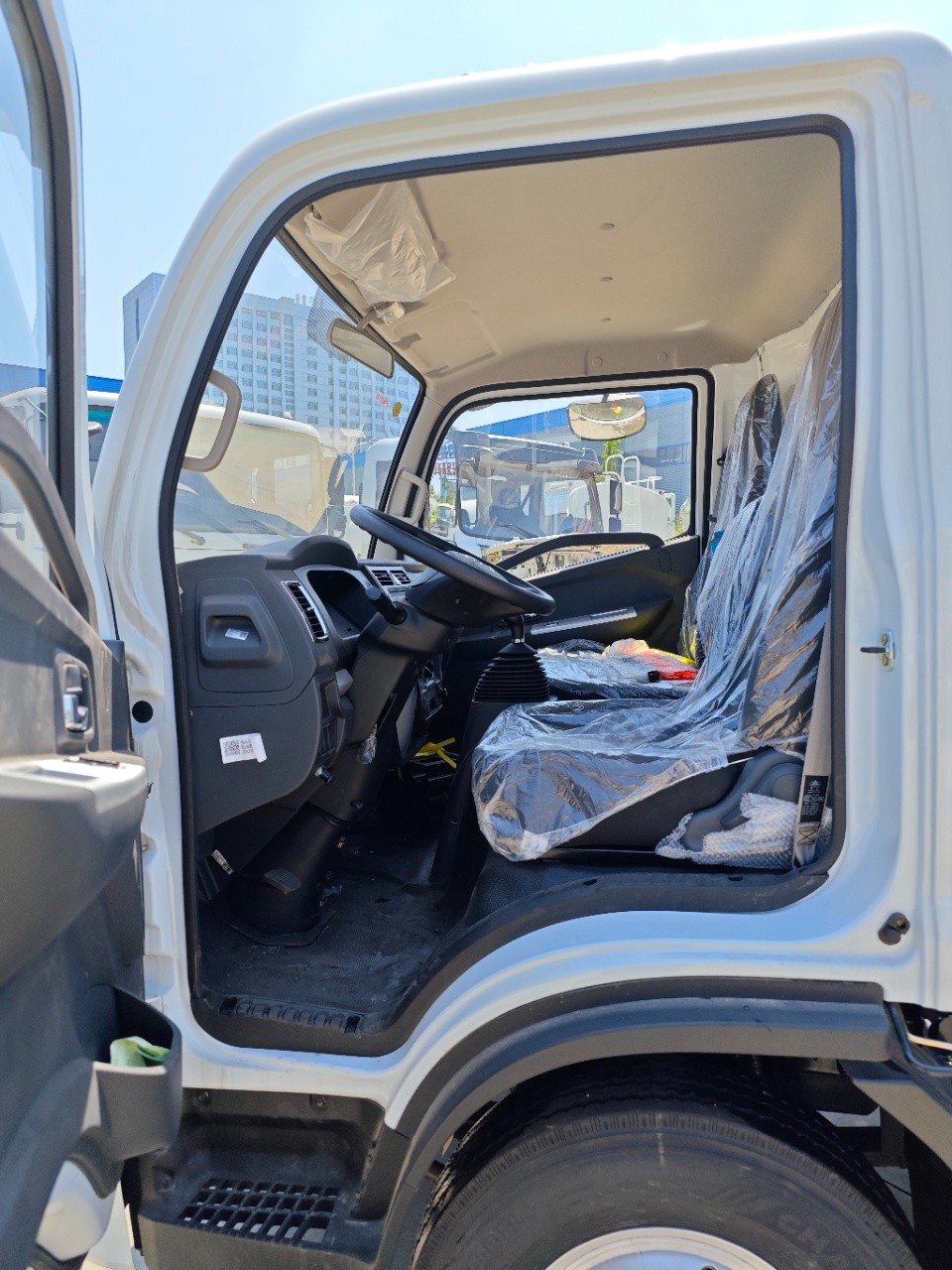

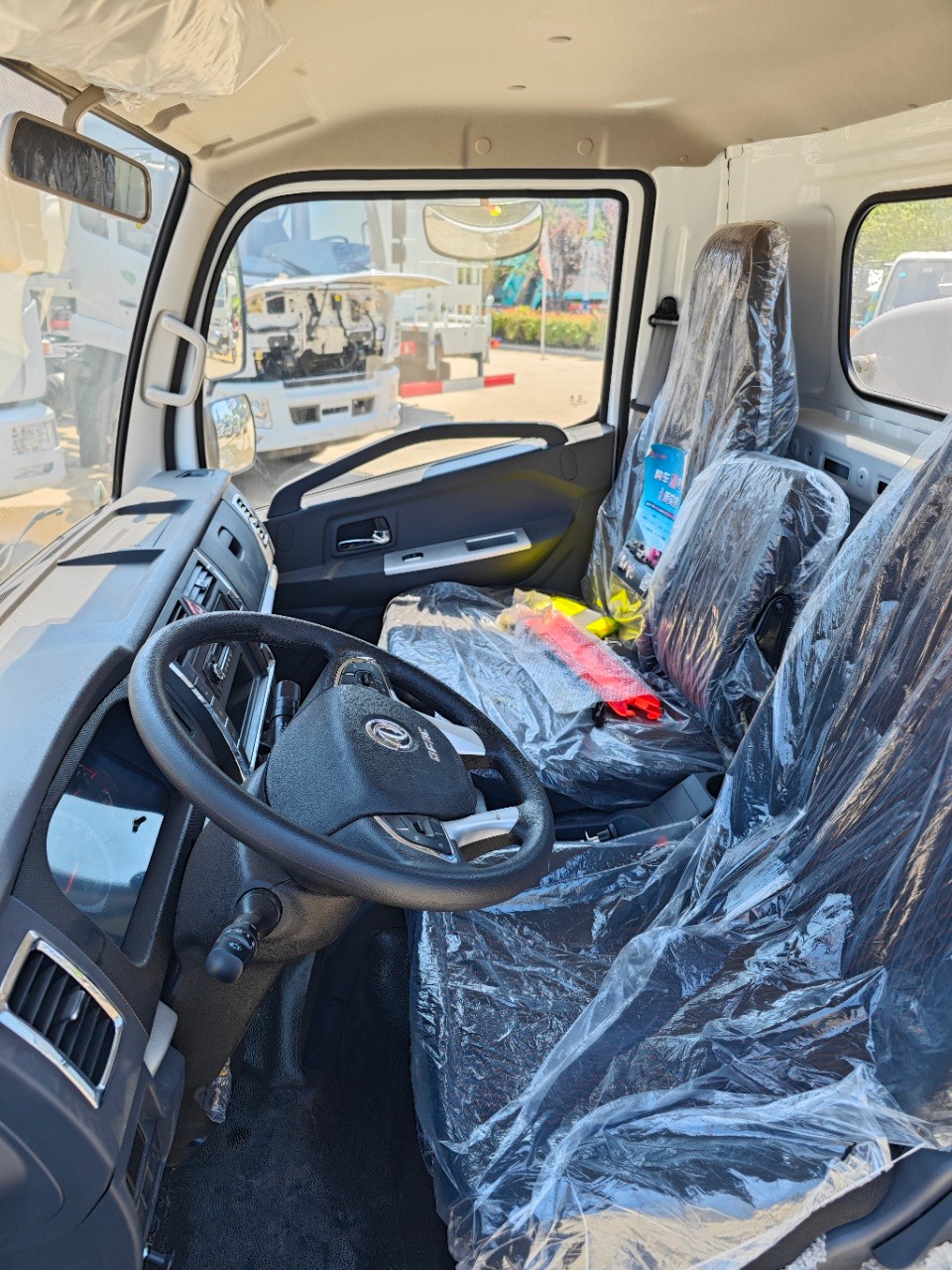

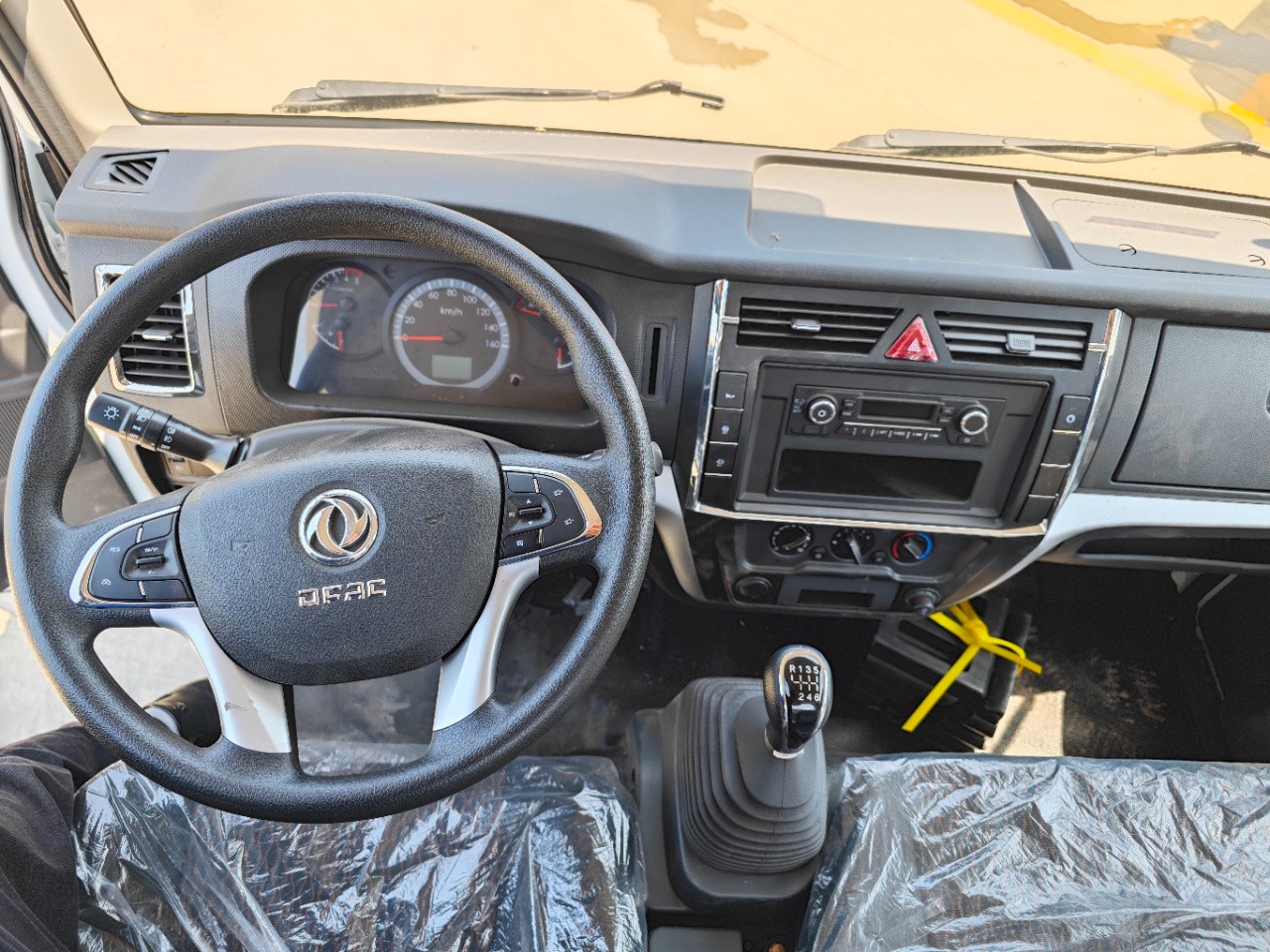

2. The garbage compactor truck adopts Dongfeng D6 cabin, width 1730/ single row, Yuchai 140hp, six speed transmission, 3308 wheelbase, electric doors and Windows, original air conditioning, direction assist, central control lock, ABS, air brake, urea tank/tank (L) 16/80, rear twin tires 7.00R16 steel tires. More details of the Dongfeng garbage compactor truck cabin pls take reference to the following pictures:

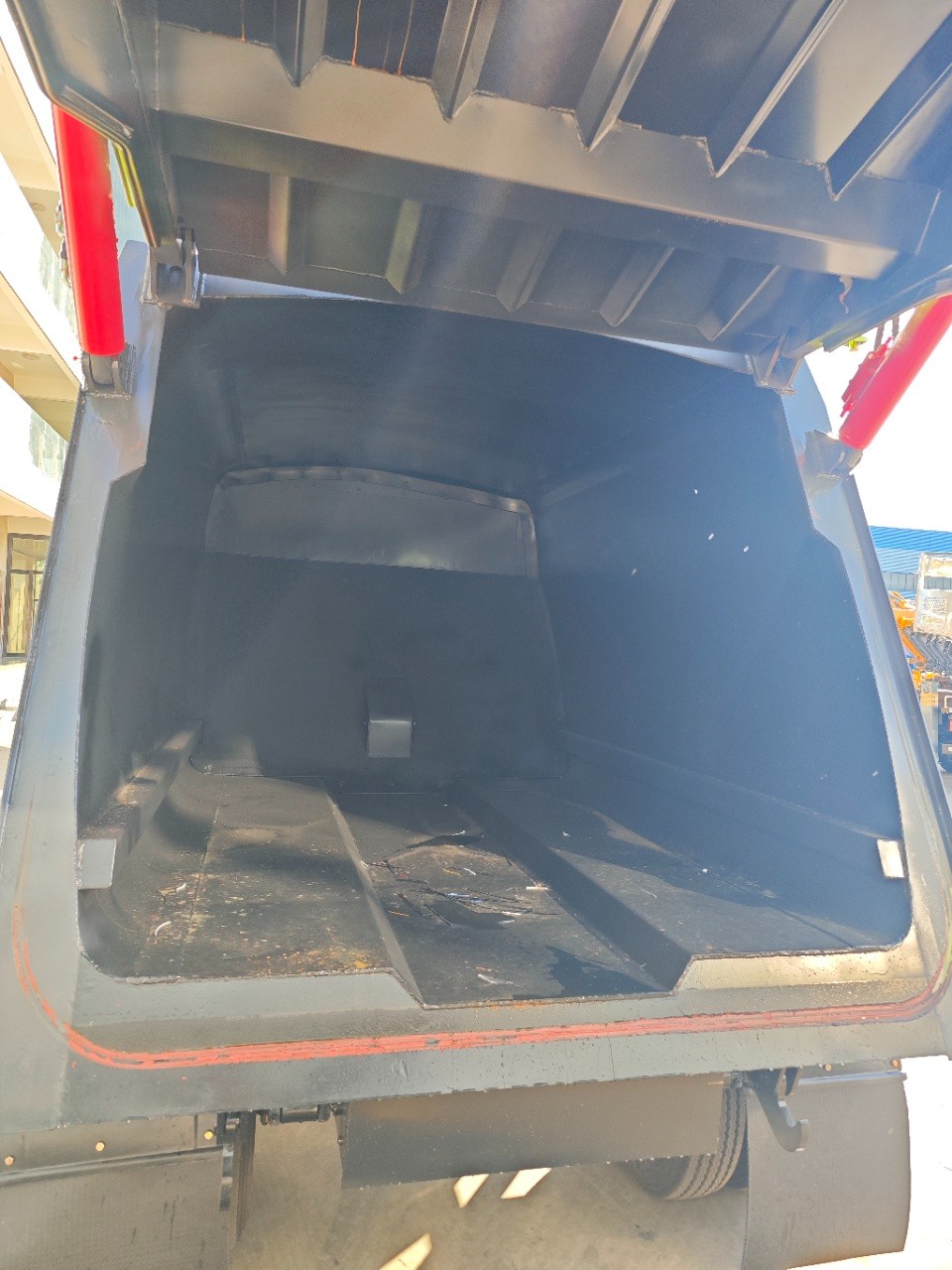

3. The garbage compactor truck body details:

The body volume is 7.5m3 which can hold 140pcs of 240L plastic bucket garbage, the whole truck uses T700 high-strength wear-resistant plate, box side 4 bottom 5 production, filler side plate 5mm bottom 8mm thick, skateboard, slide 8mm thick, box volume maximization, push and shovel oil cylinder quality control, using 3 levels of production, so that the shovel occupies the minimum space, the box volume maximization, Garbage loading more! Electric hydraulic configuration: Zhejiang Jiasan repuller, Hefei Anhui liquid gear pump, Wessenboler multi-way valve, balance valve, compression valve, stop valve, Liancheng hydraulic cylinder (all cylinders after tempering treatment, with buffer), Guangzhou Tianhe high pressure tubing, global steel pipe, hydraulic oil tank with 3 times overstress net, all cylinder shaft pins after quenching treatment, increase hardness is not easy to bend and break, CAN survey bus smart screen one-button operating system, with wireless remote control, system programs can be set on the smart screen according to the user's use conditions, can set the automatic operation conversion time, throttle control size, with automatic fault detection, alarm prompt function, other standards
