Dongfeng Doric 9.3m3 garbage compactor truck

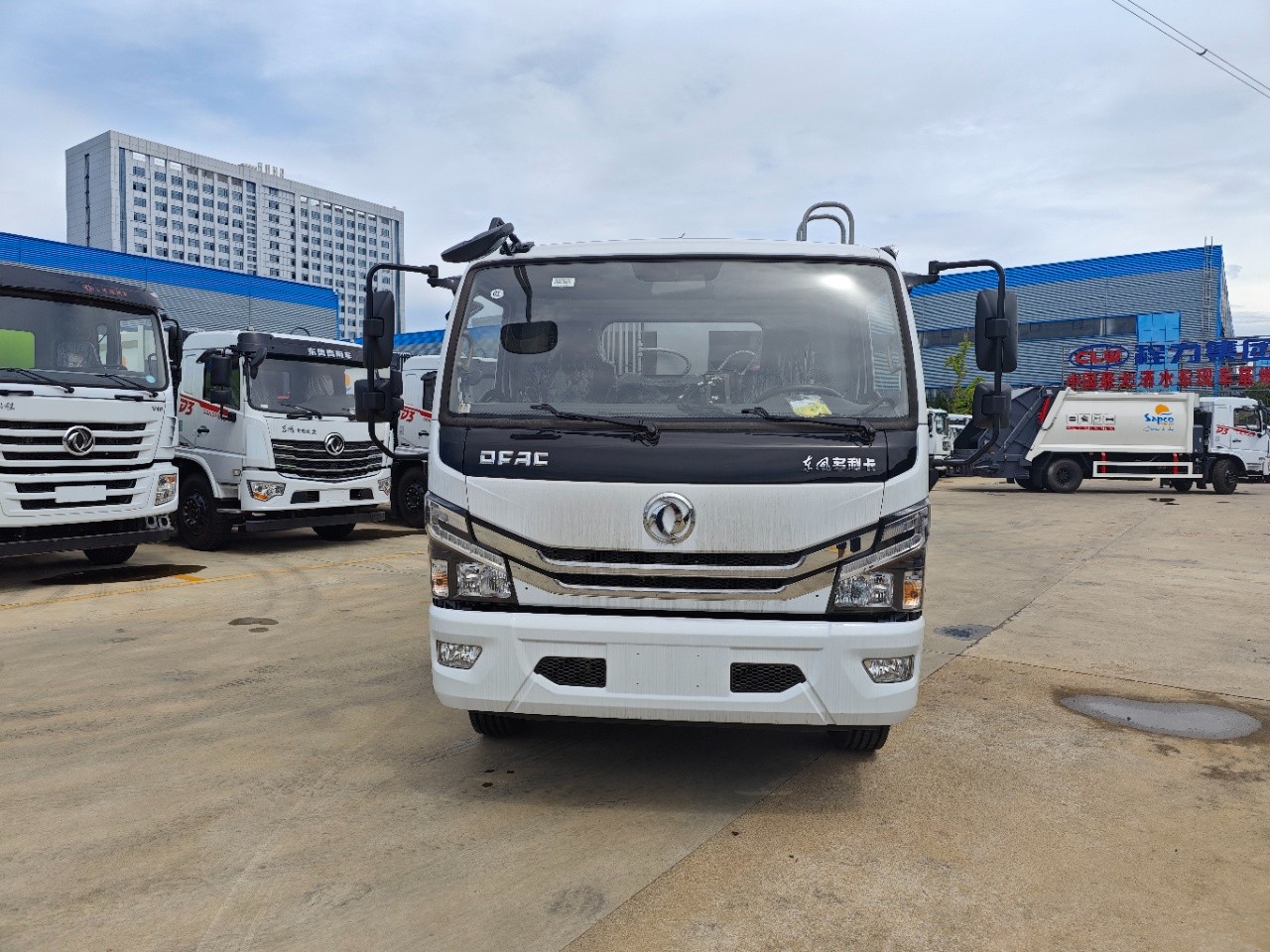

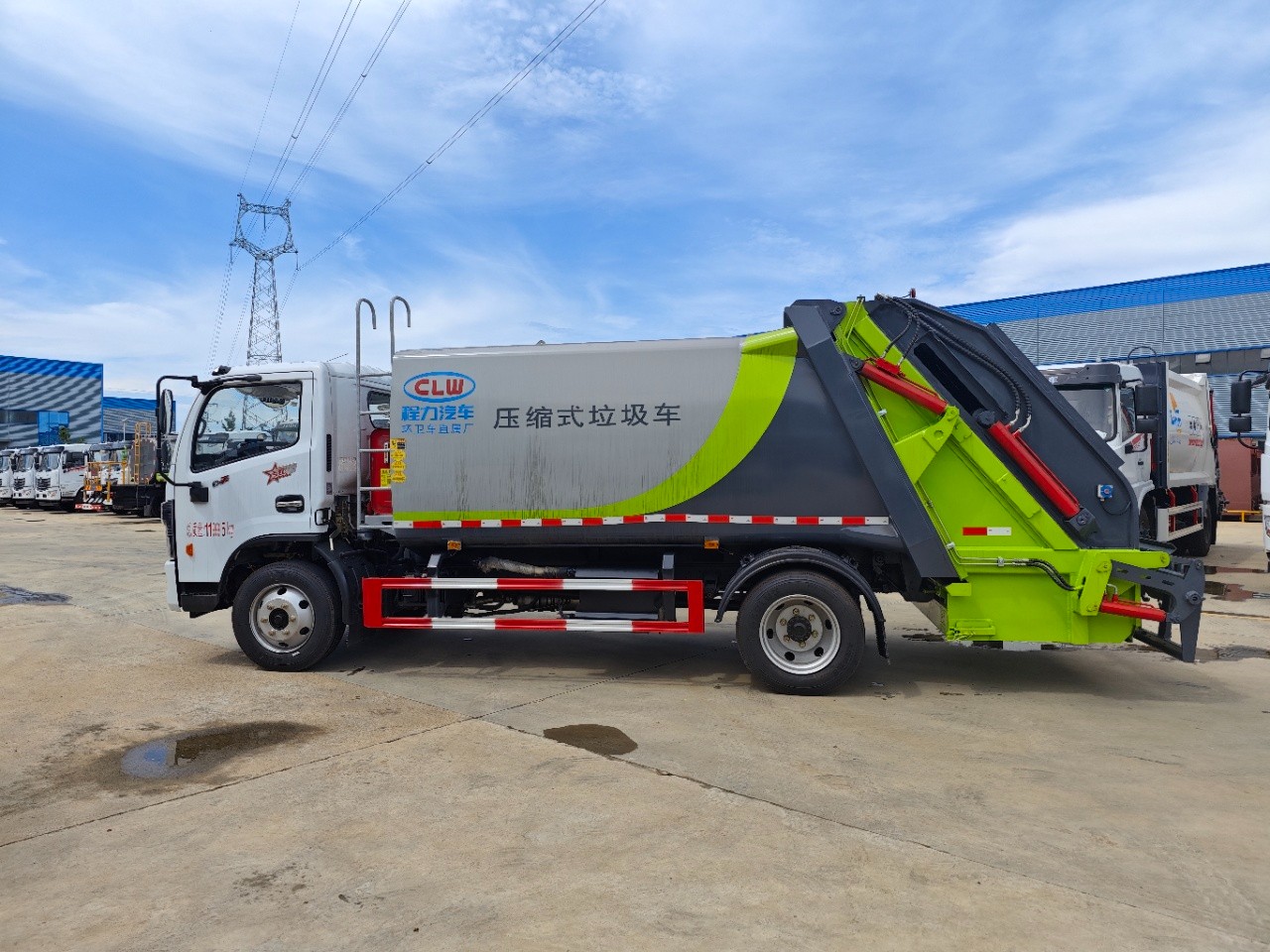

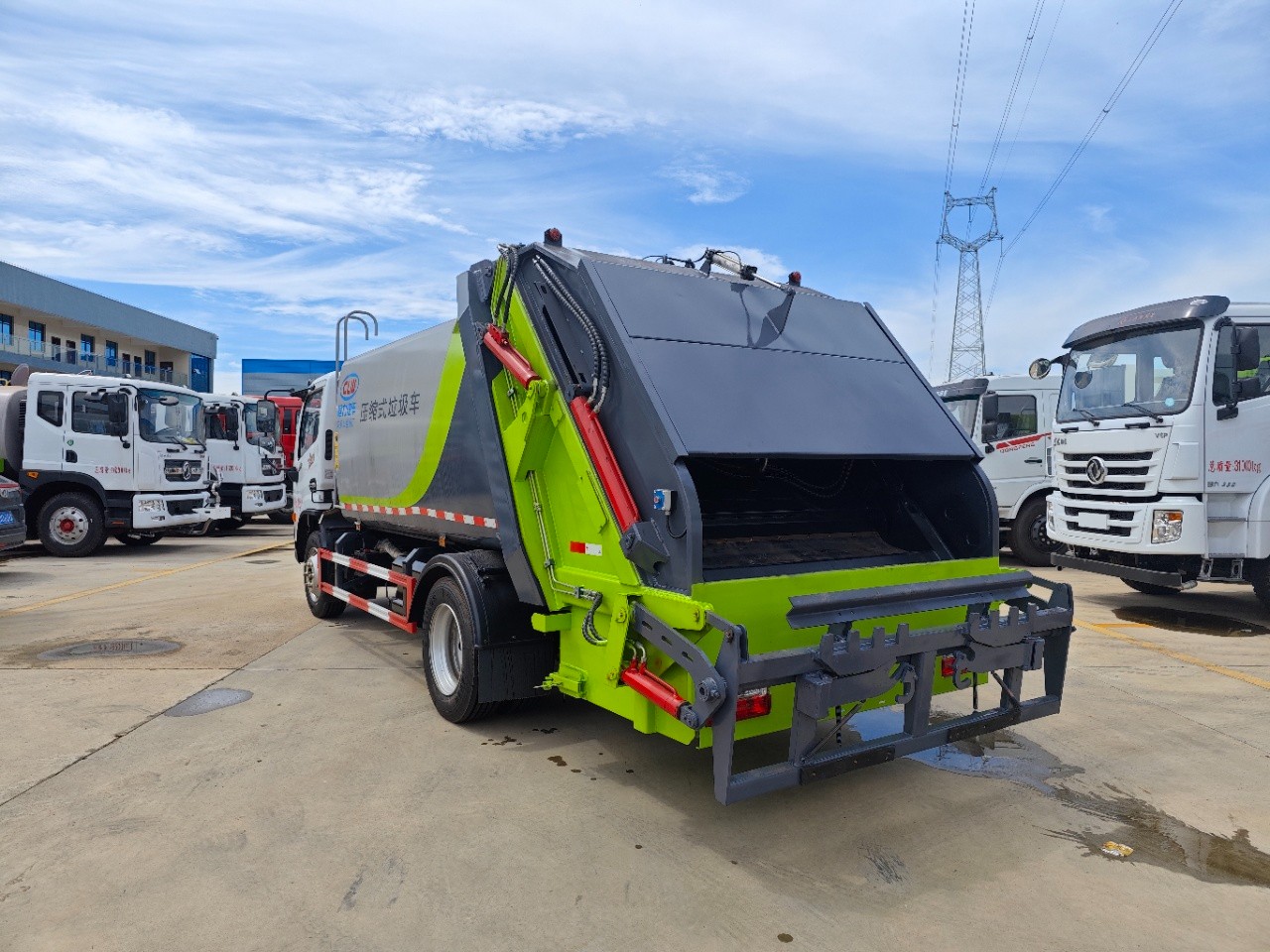

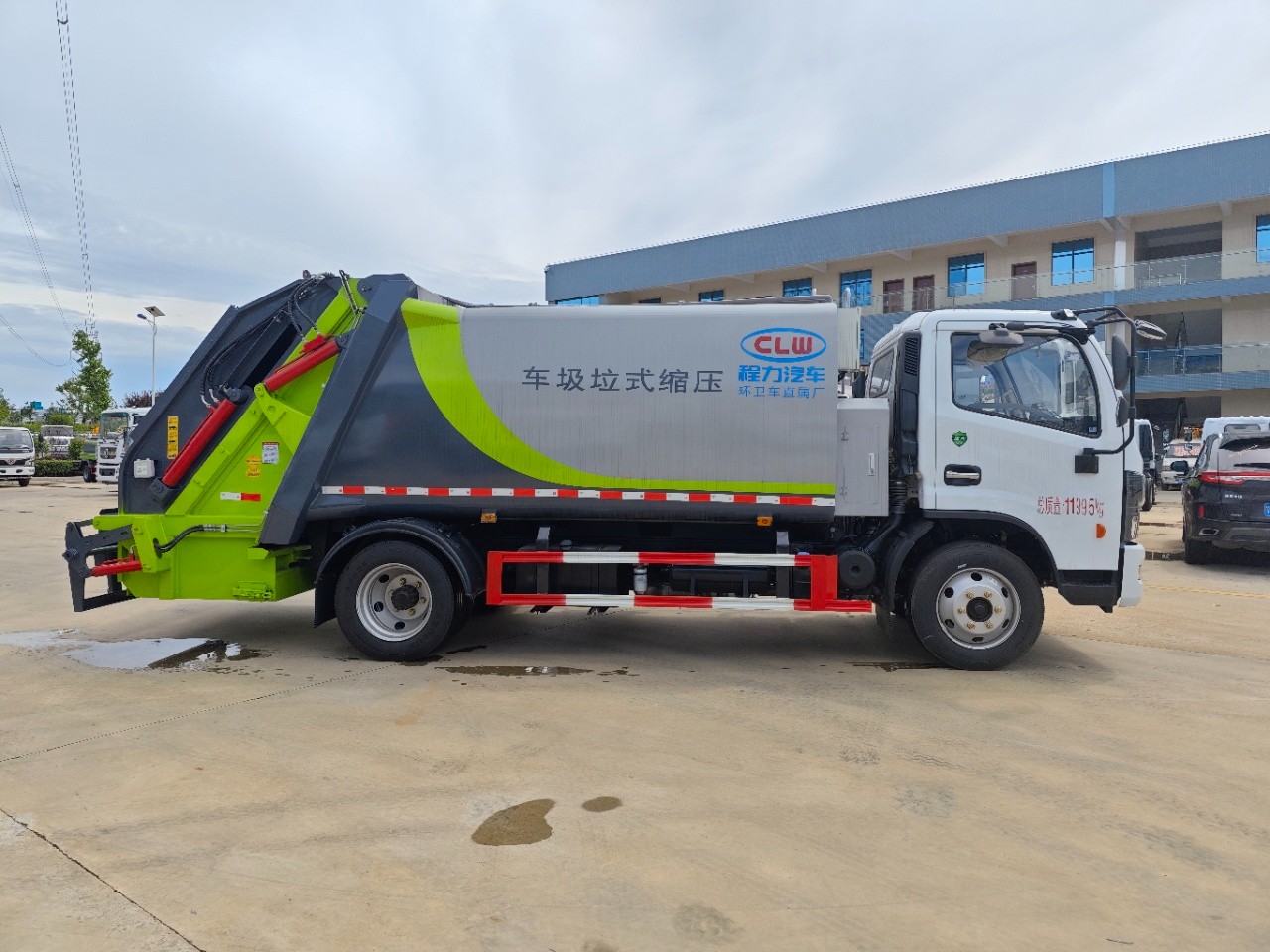

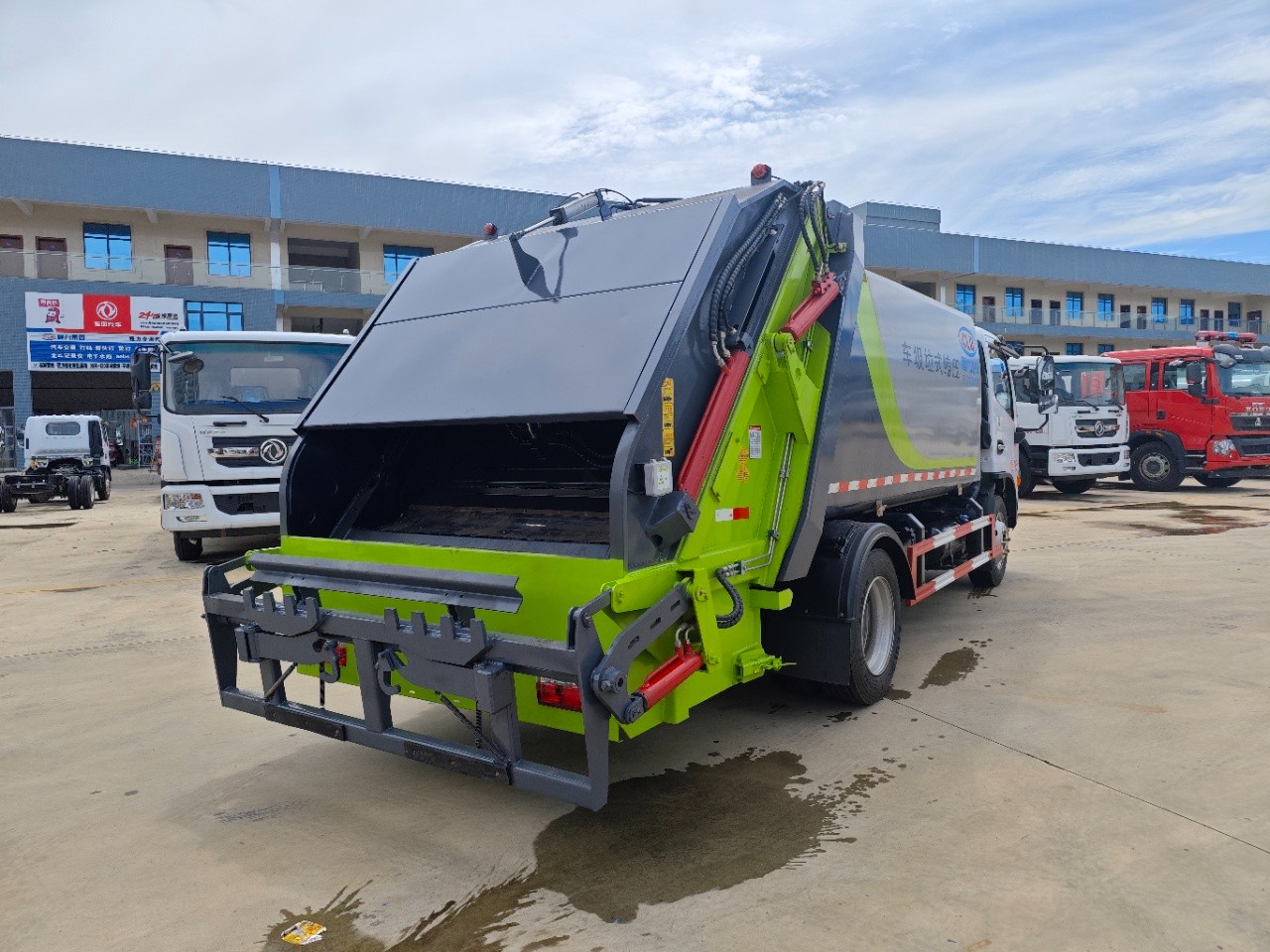

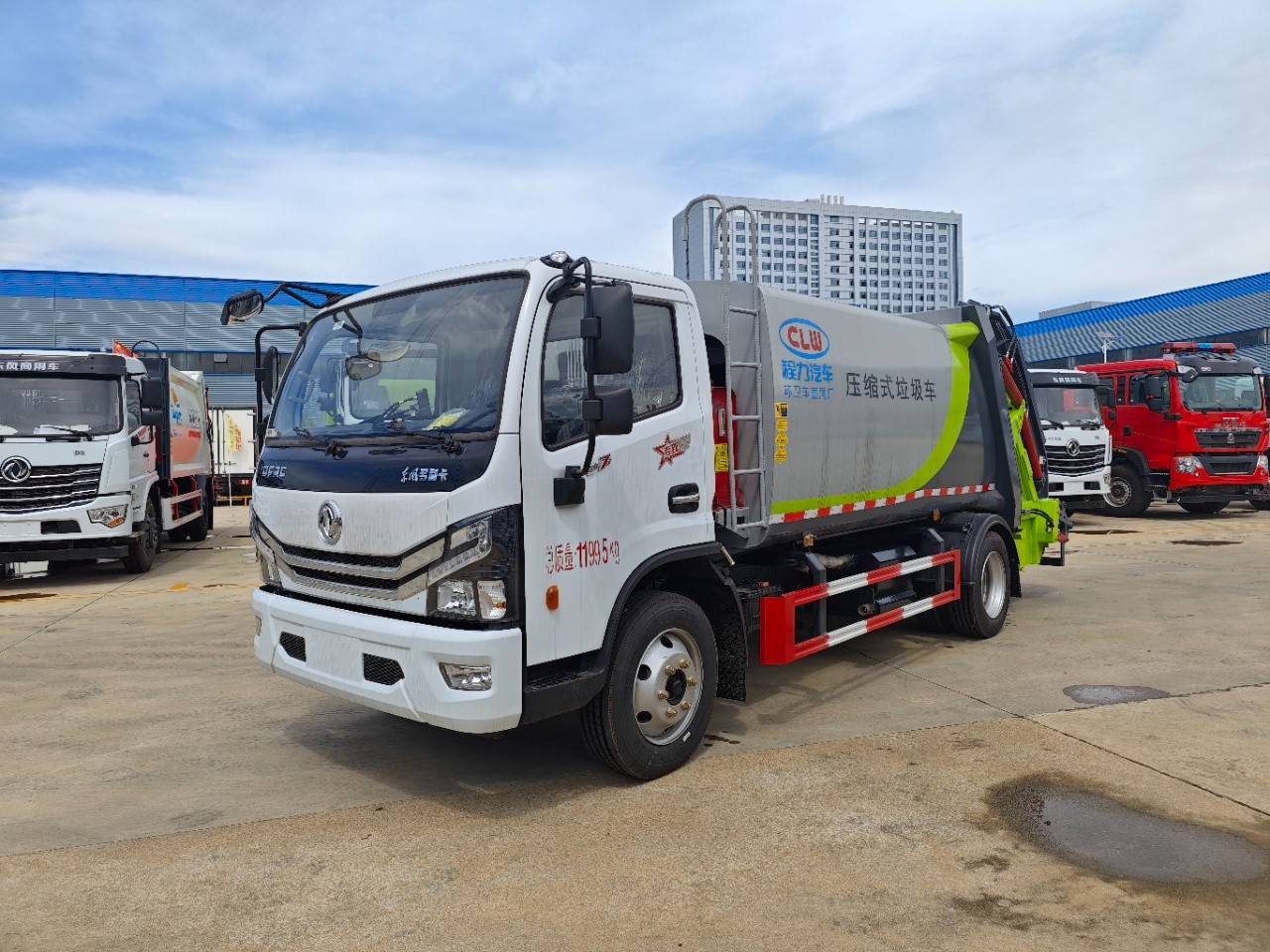

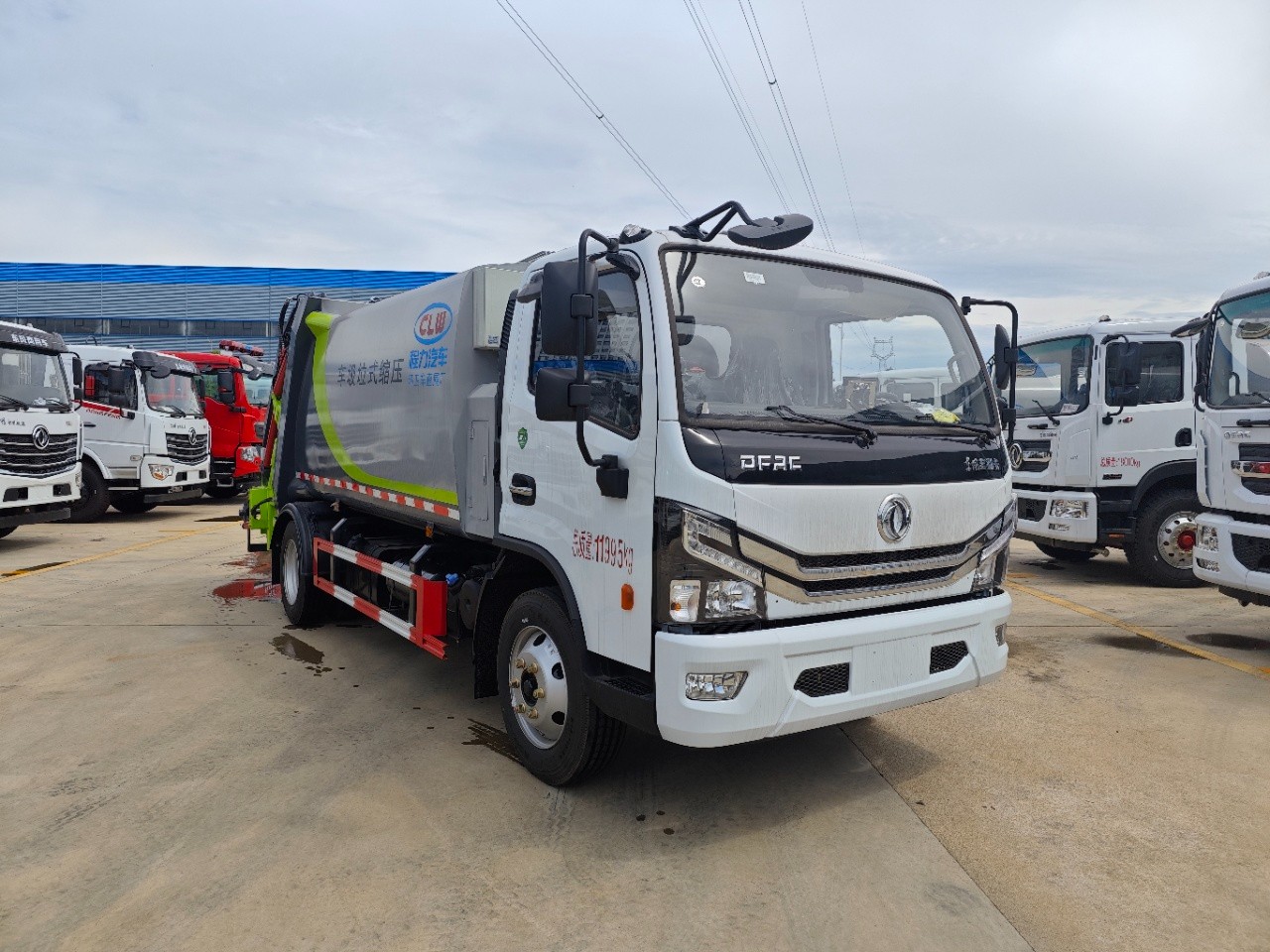

1. Pictures of the Dongfeng Doric 9.3m3 garbage compactor truck

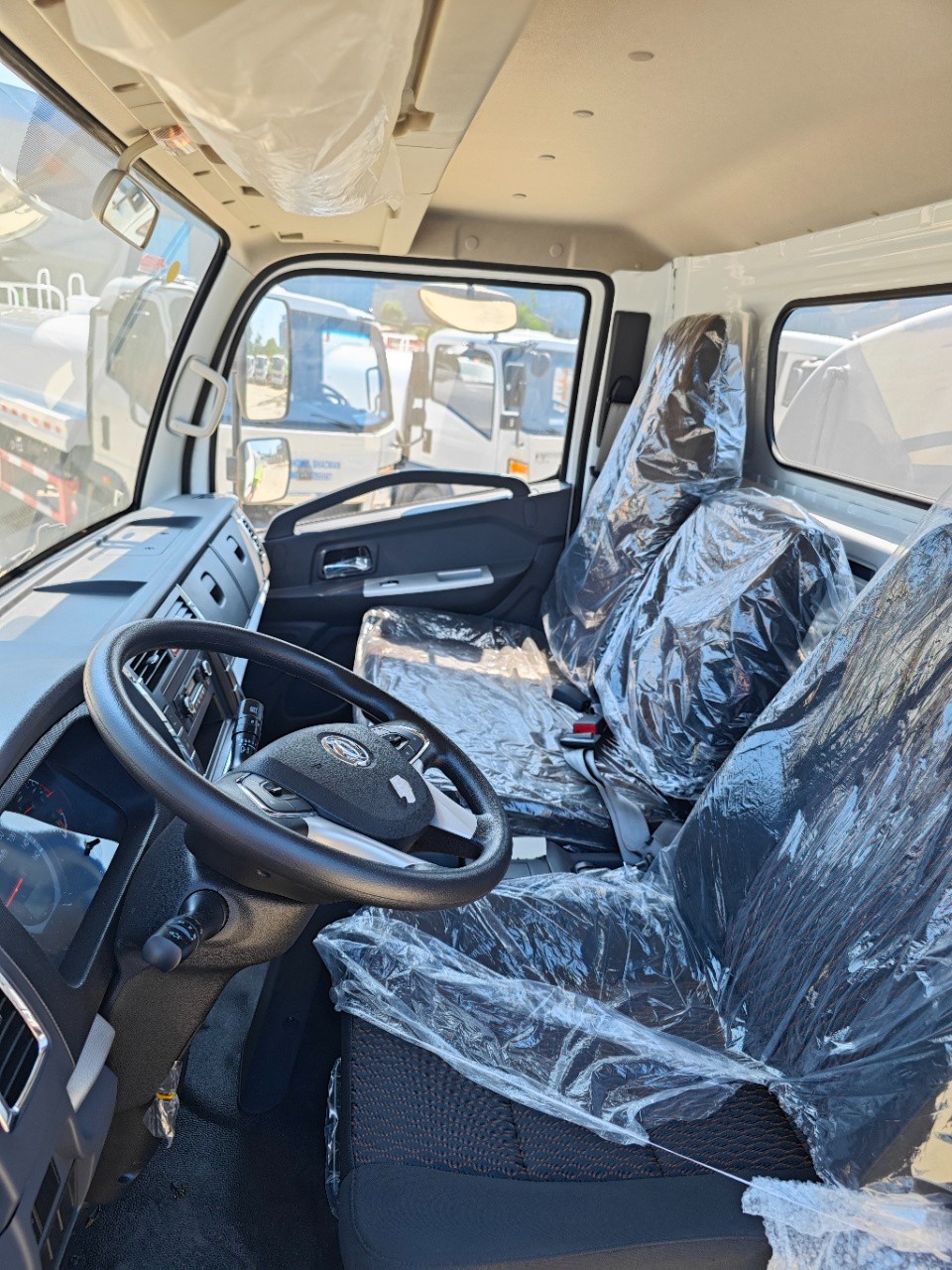

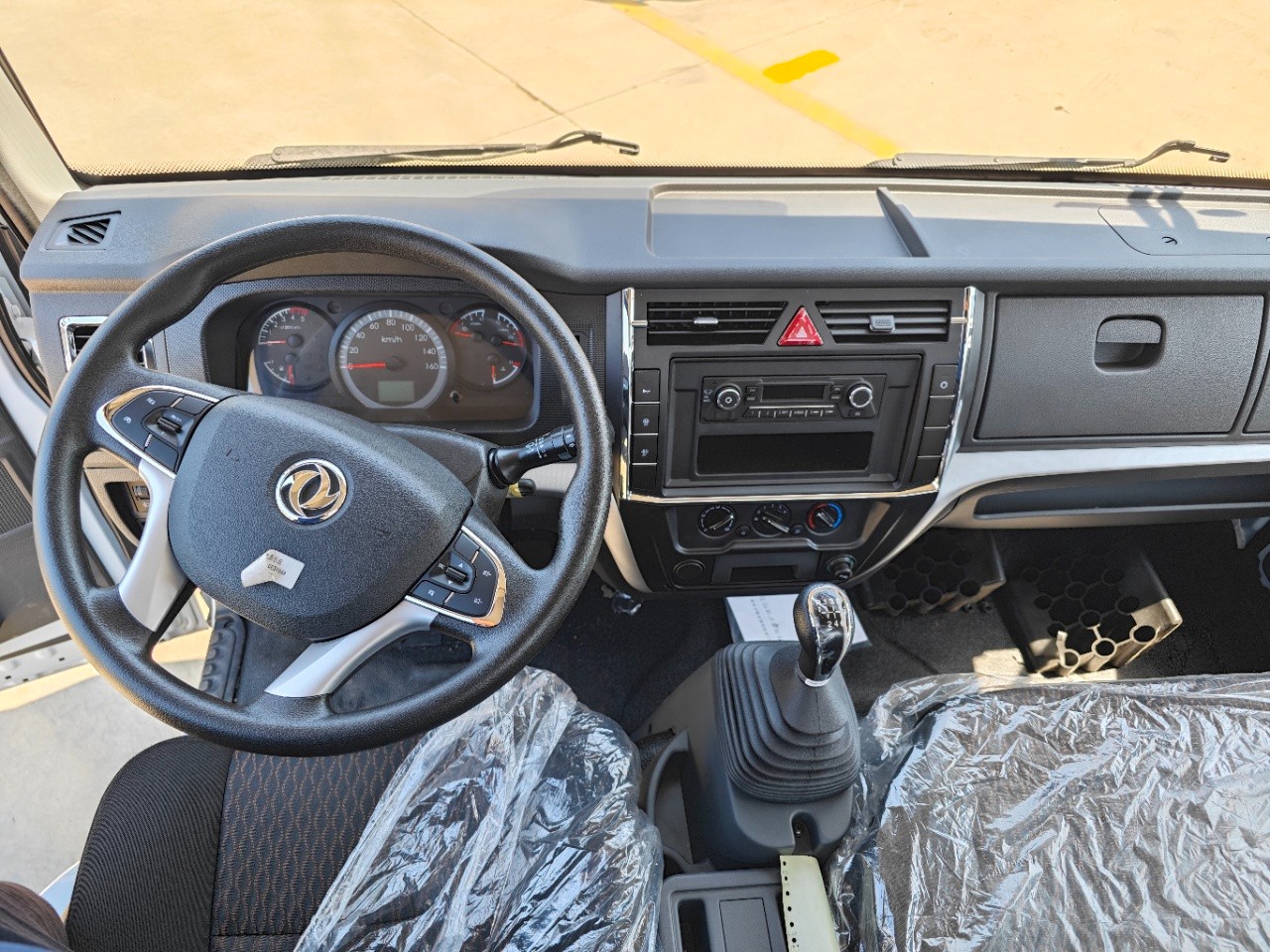

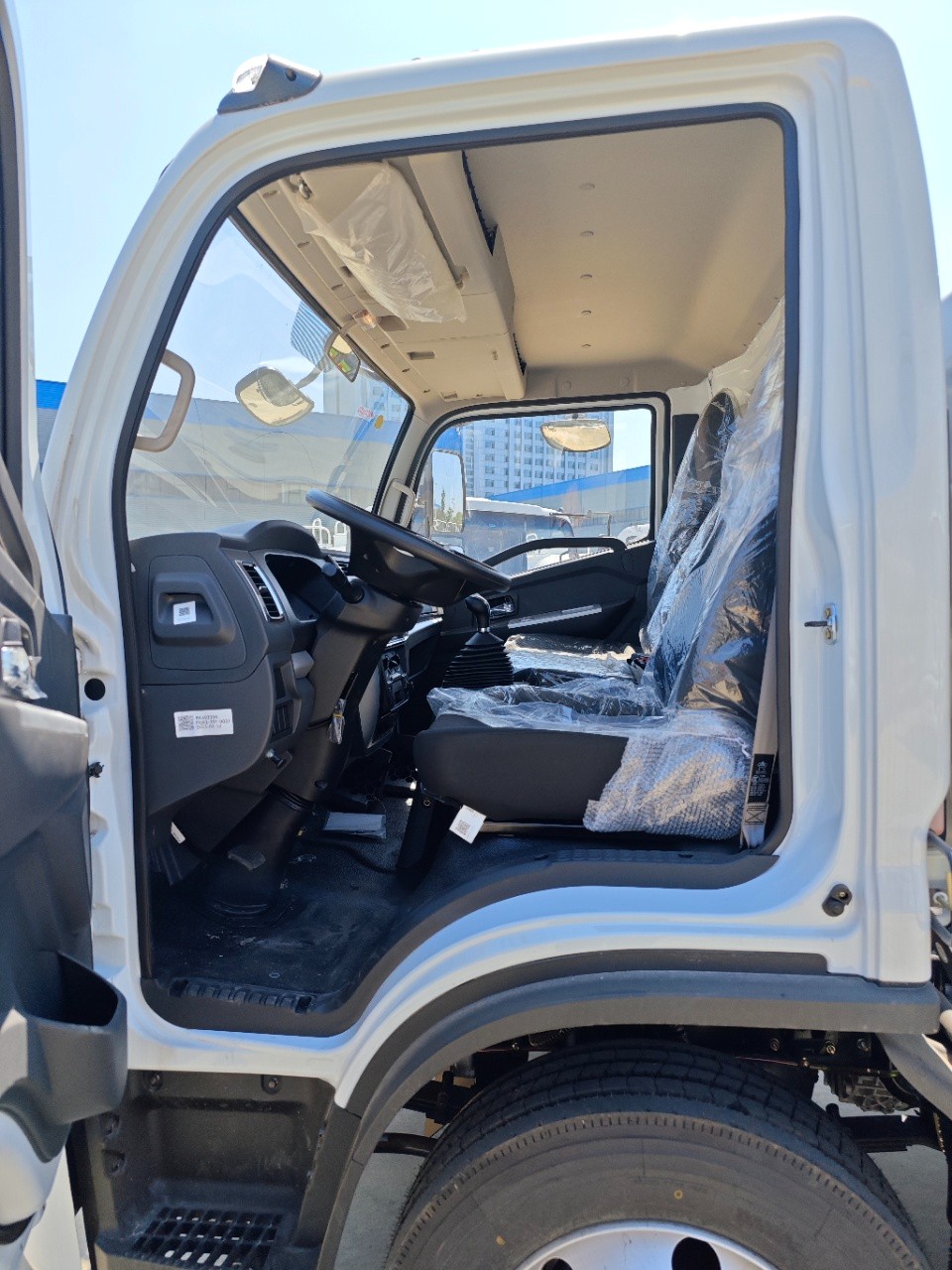

2. The garbage compactor truck adopts Dongfeng Dolica D7 cabin, wide 2030/ single row, Yuchai 165 HP engine, Wan Li Yang 6-speed transmission box, 3800mm wheelbase. with electric doors and windows, original air conditioning, power, central control lock, ABS, air brake, urea tank/tank (L) 18/200, rear twin tires 245/70R19.5 vacuum tires. More details of the garbage compactor truck chassis pls see the following pictures:

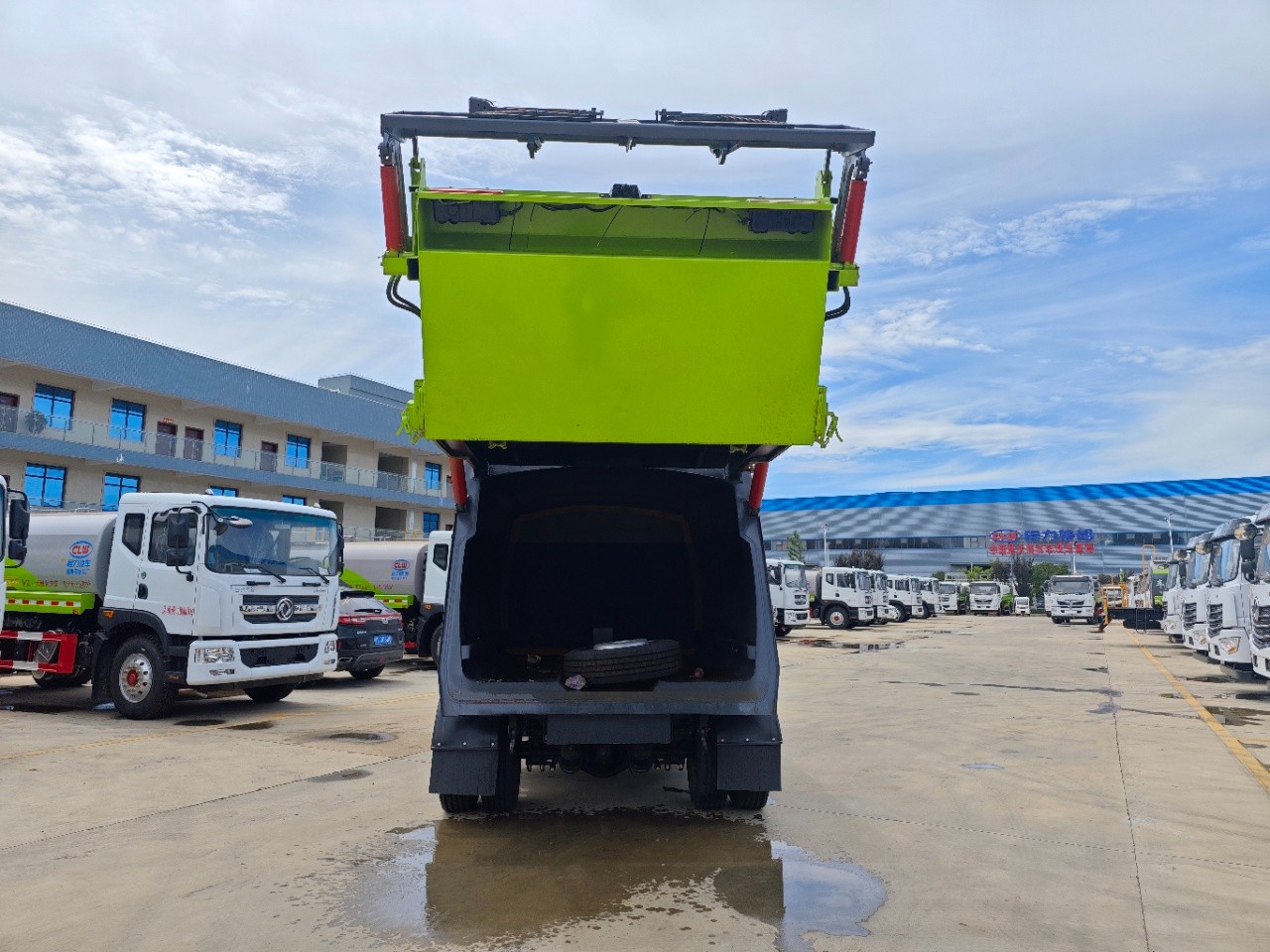

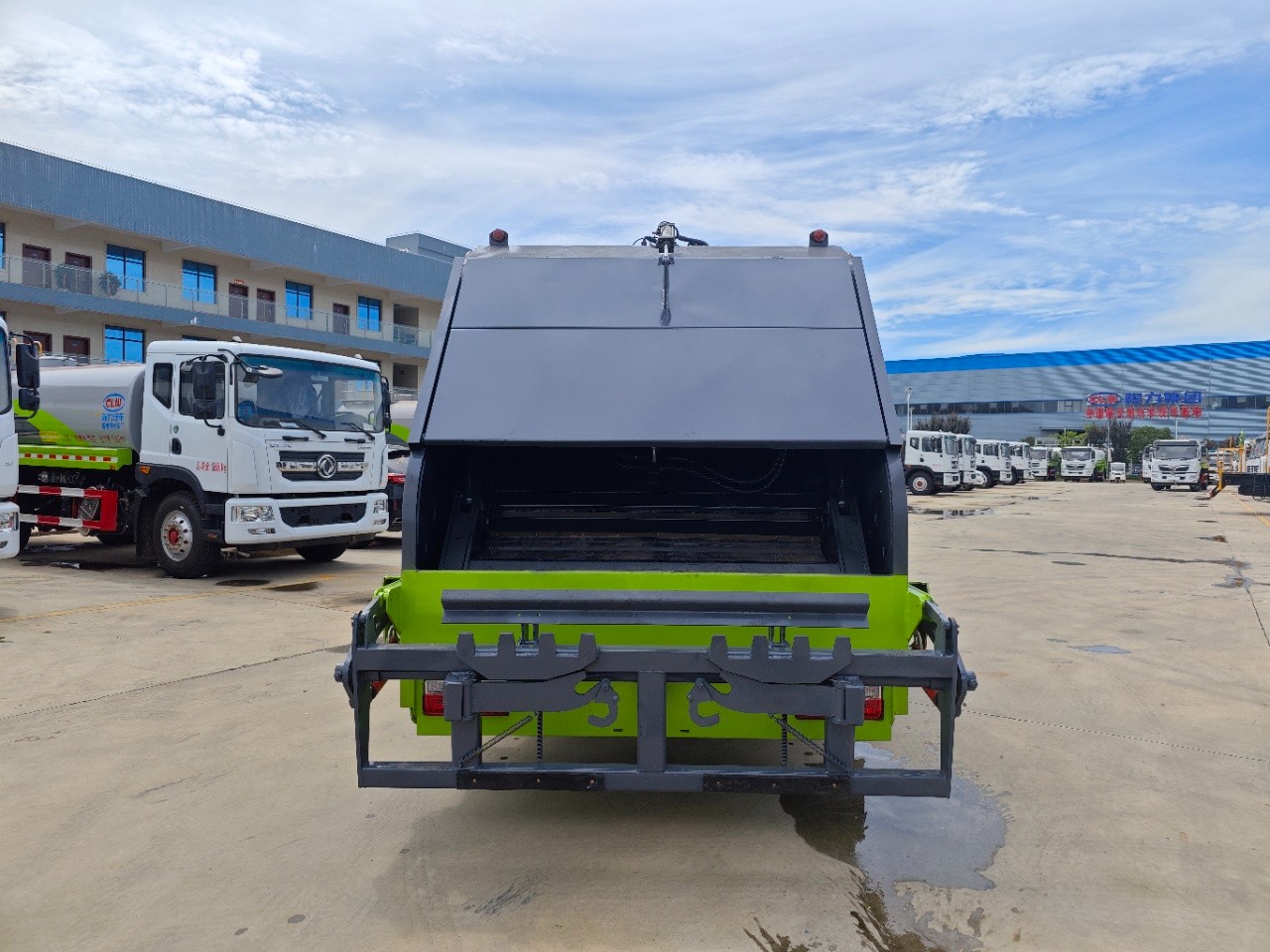

3. The garbage compactor truck body details:

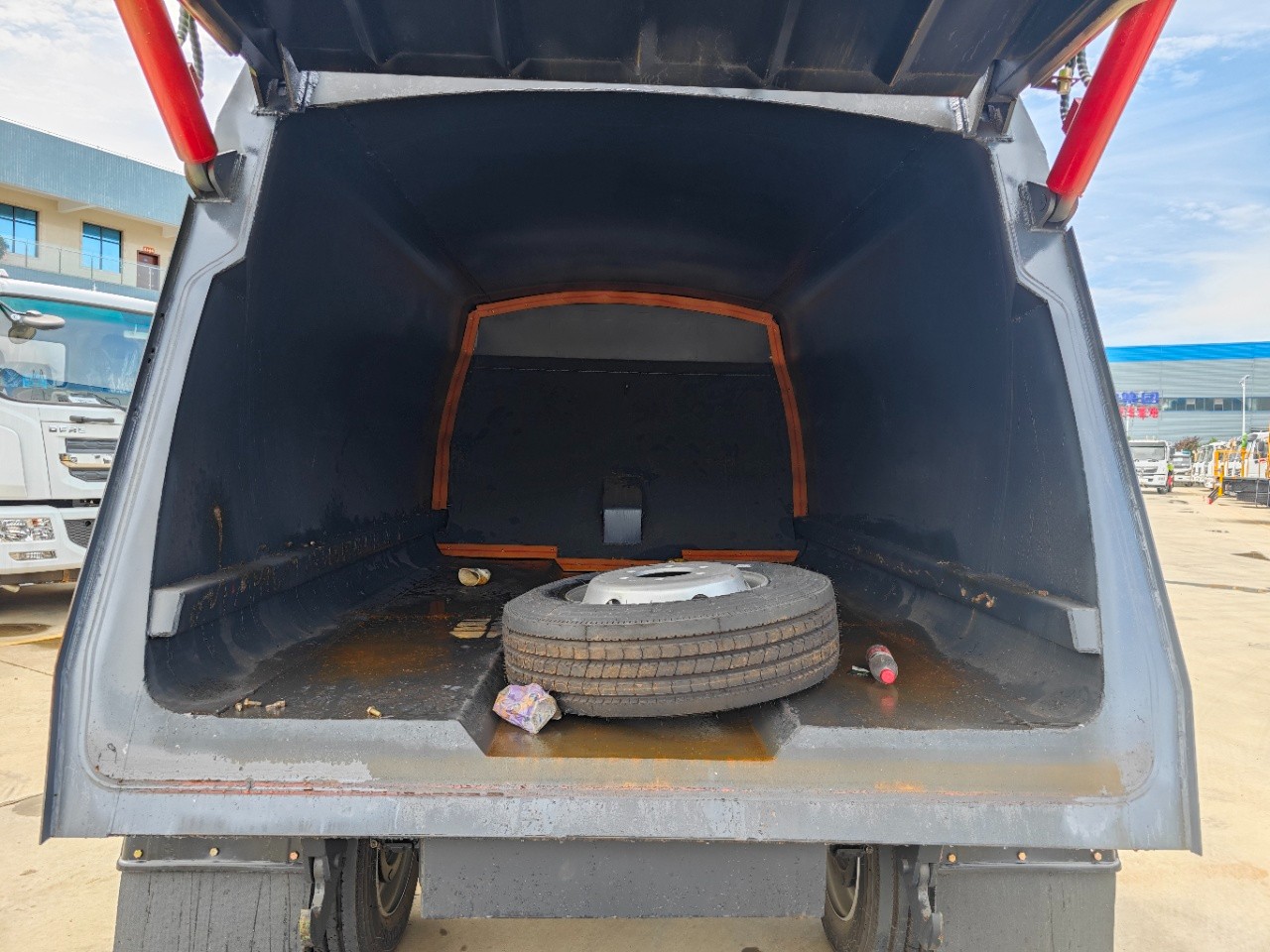

The garbage compactor truck body volume is about 9.3m3 which can hold 175pcs of 240L plastic bucket garbage, the whole truck uses T700 high-strength wear-resistant plate, box side 4 bottom 5 production, filler side plate 5mm bottom 8mm thick, skateboard, slide 8mm thick, box volume maximization, push and shovel oil cylinder conditioning treatment, the use of 3 levels of production, so that the shovel occupies the minimum space, the box volume maximization, Garbage loading more! Electric hydraulic configuration: Zhejiang Jiasan repuller, Hefei Anhui liquid gear pump, Wessenboler multi-way valve, balance valve, compression valve, stop valve, Liancheng hydraulic cylinder (all cylinders after tempering treatment, with buffer), Guangzhou Tianhe high pressure tubing, global steel pipe, hydraulic oil tank with 3 times overstress net, all cylinder shaft pins after quenching treatment, increase hardness is not easy to bend and break, CAN survey bus smart screen one-button operating system, with wireless remote control, system programs can be set on the smart screen according to the user's use conditions, can set the automatic operation conversion time, throttle control size, with automatic fault detection, alarm prompt function.
