Dongfeng Doric 11.5m3 garbage compactor truck

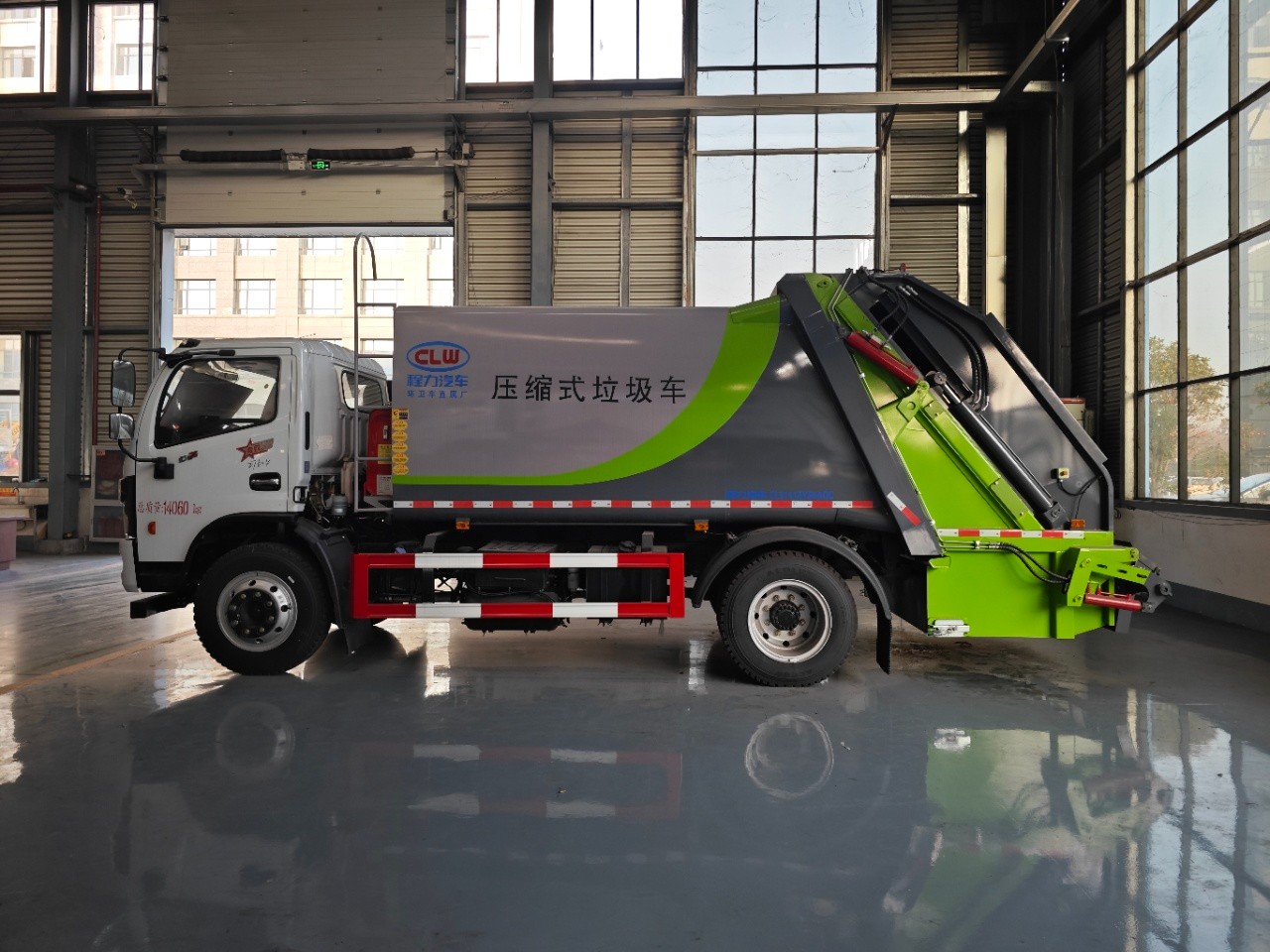

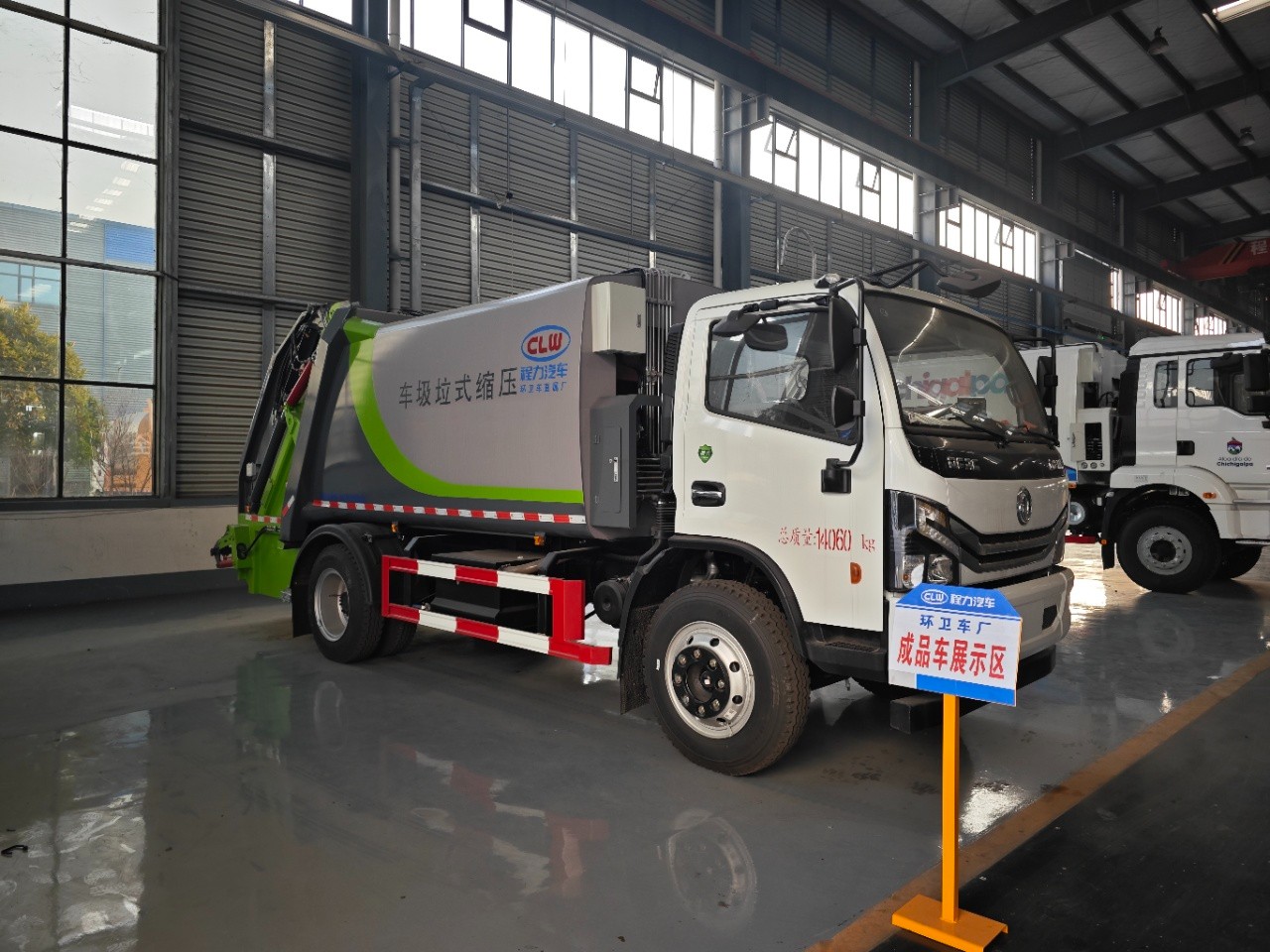

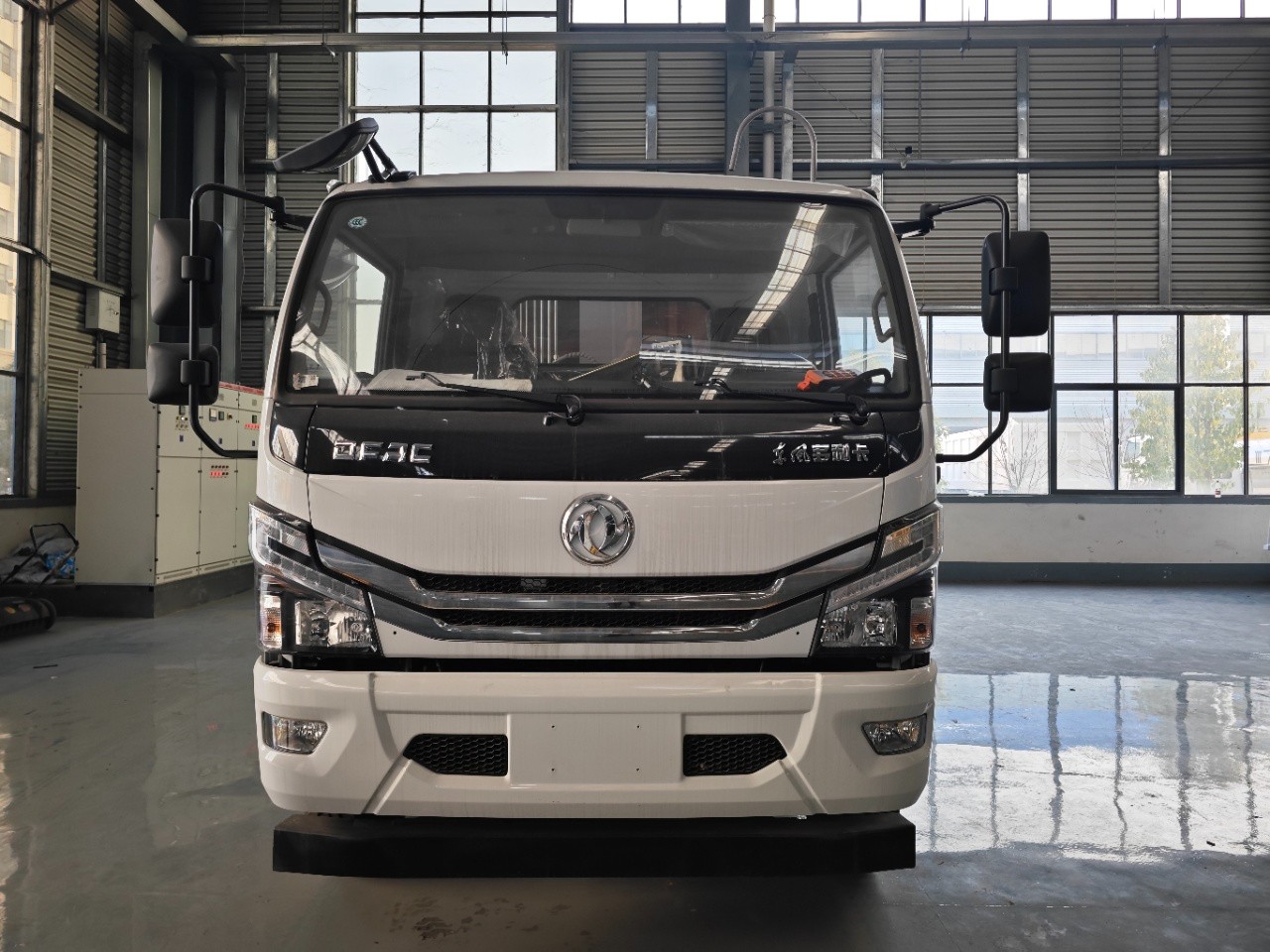

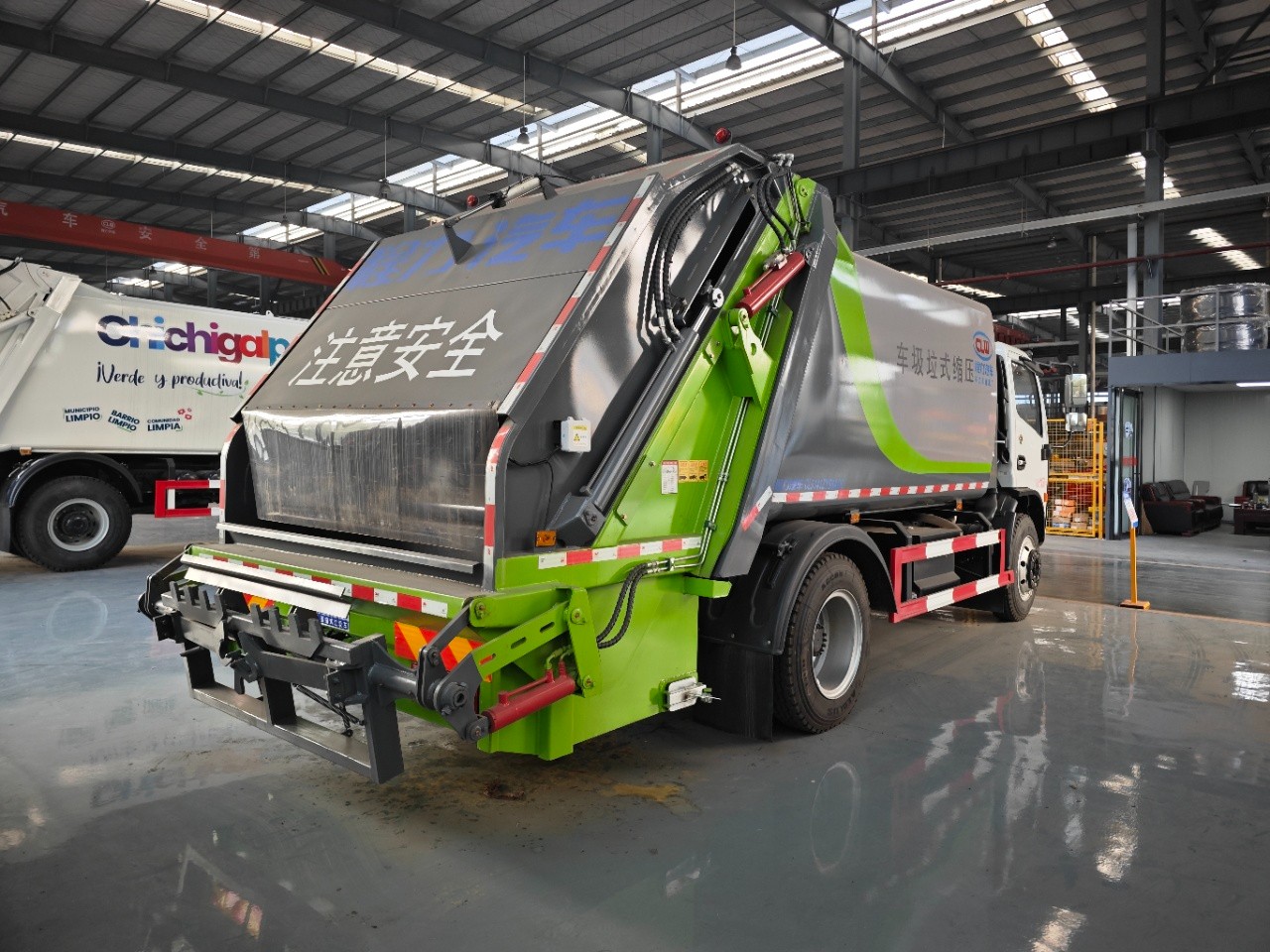

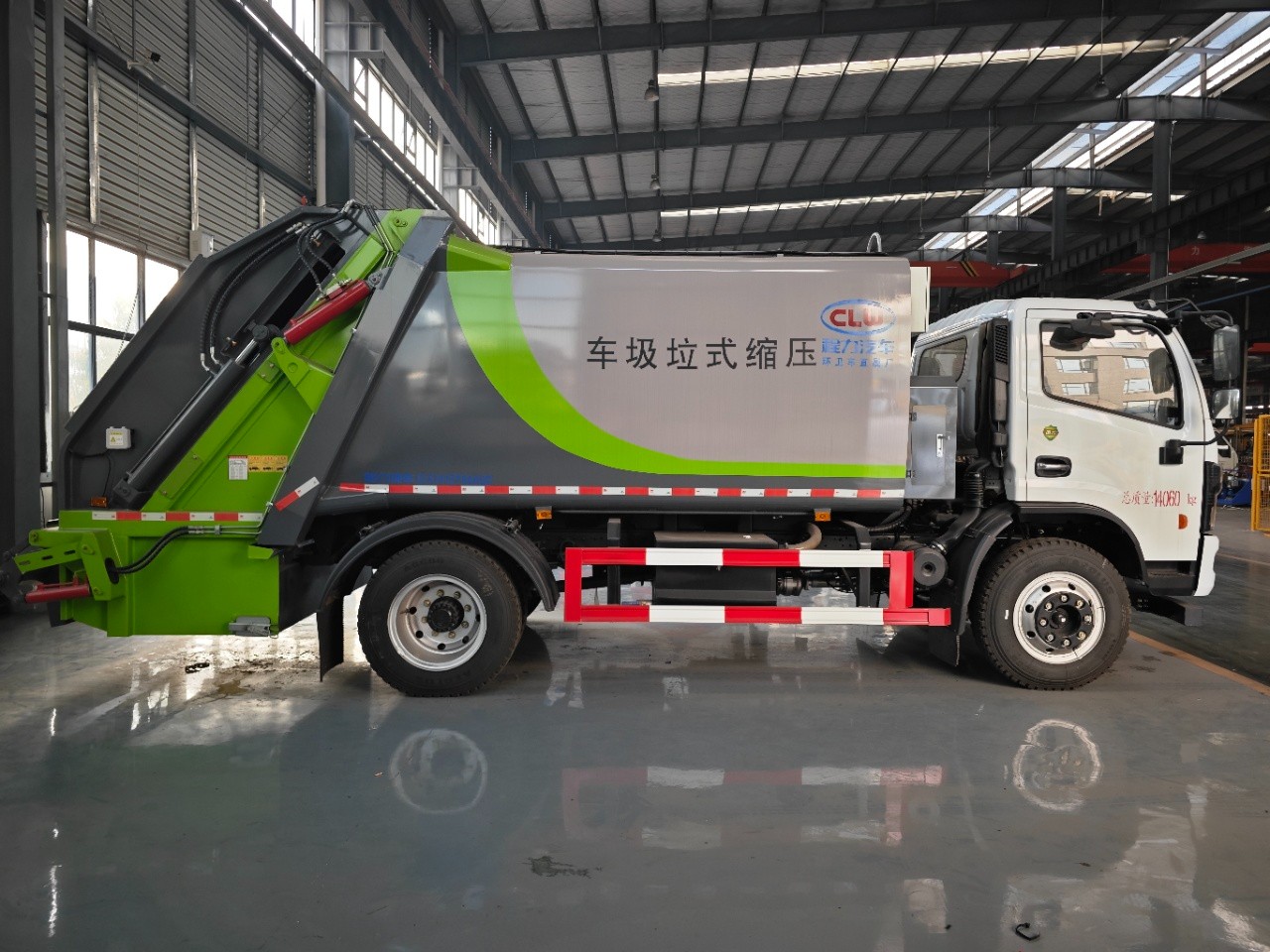

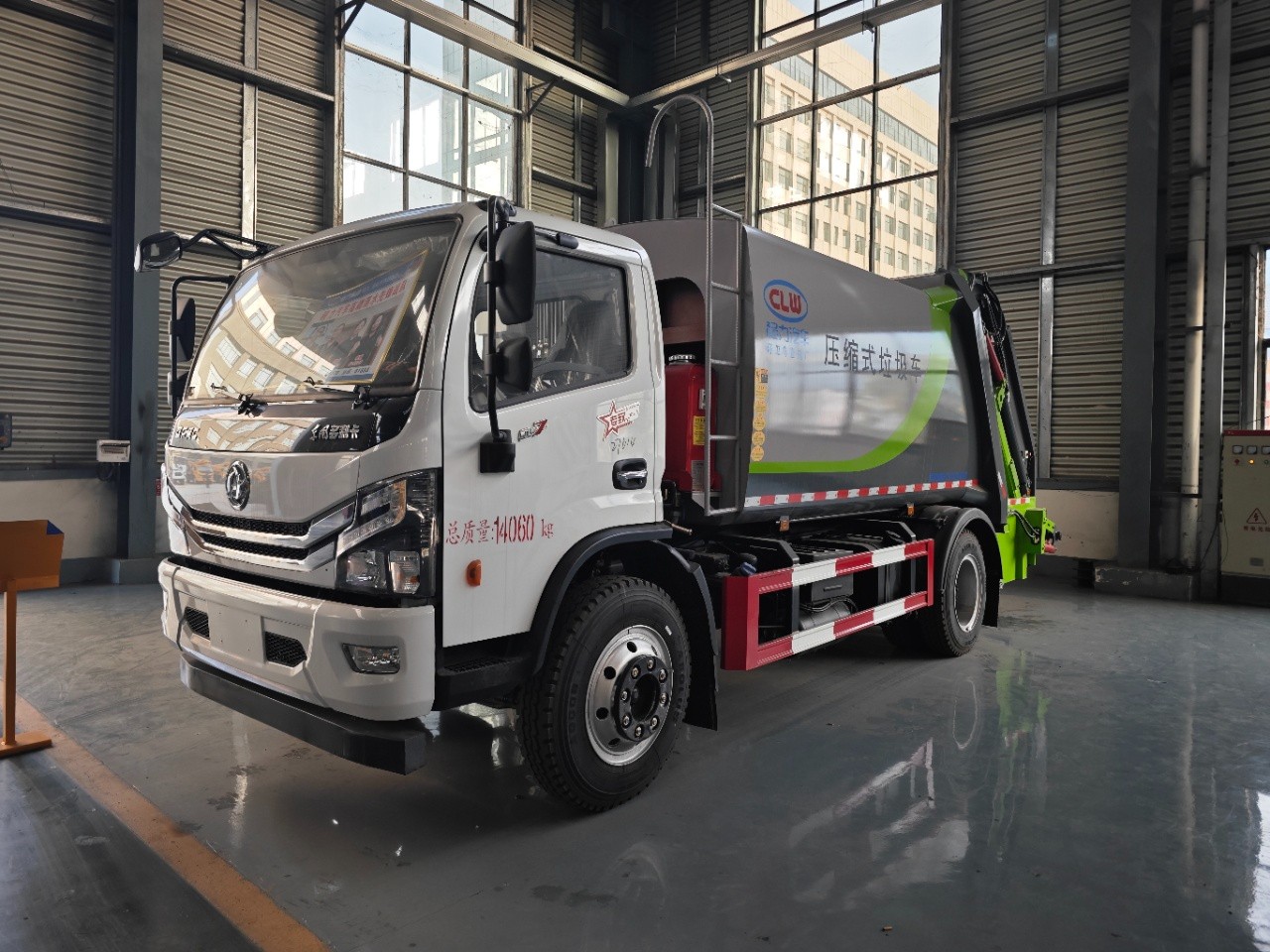

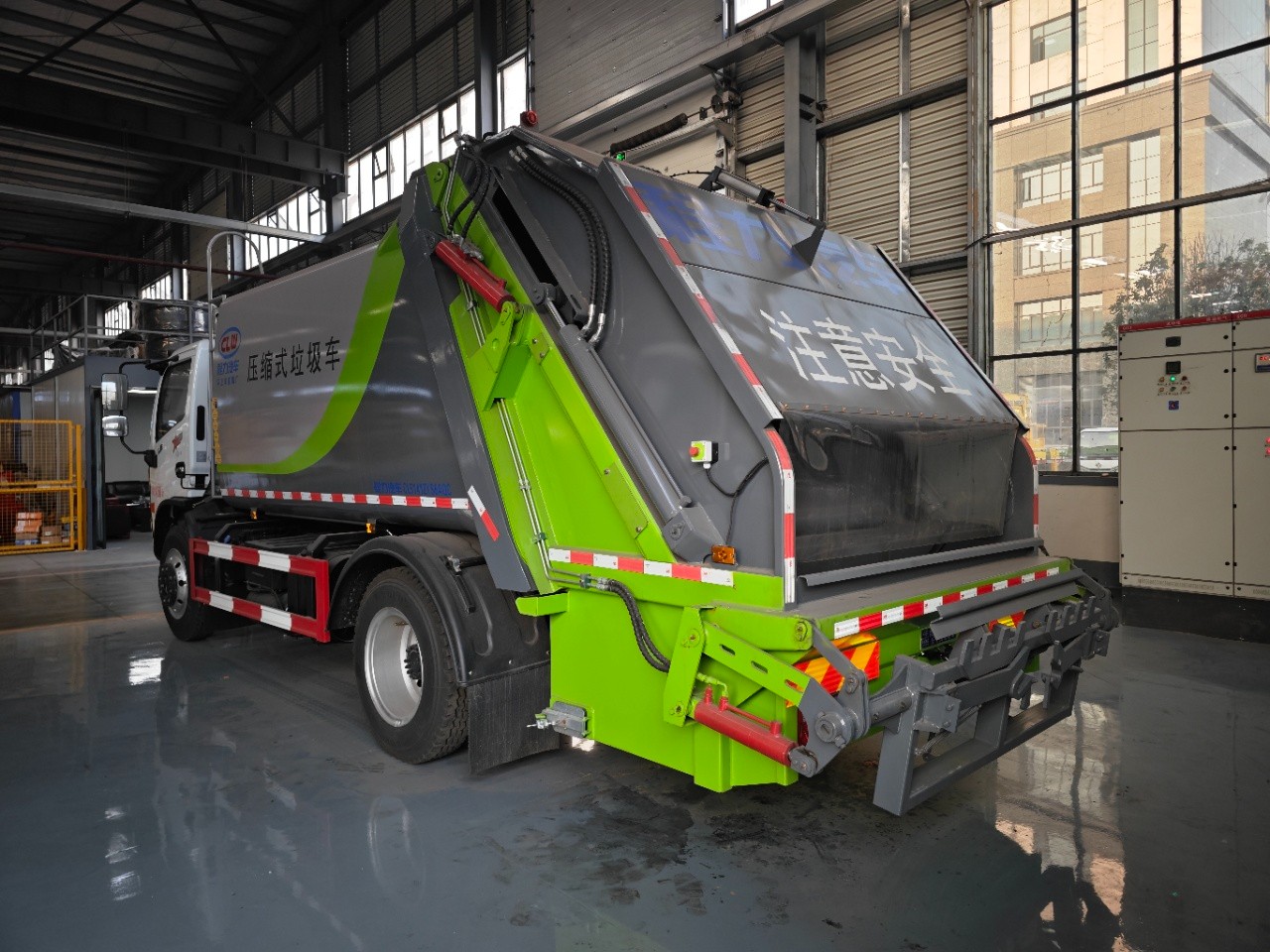

1. Pictures of the Dongfeng Doric 11.5m3 garbage compactor truck

2. The garbage compactor truck adopts Dongfeng D7 cabin, wide 2030/ single row, Yuchai 165hp engine, Faster 8-gears transmission box, 3800mm wheelbas. with electric doors and Windows, original air conditioning, power, central control lock, ABS, air brake, 8.25R20 steel tires.

3. The Dongfeng Doric 11.5m3 garbage compactor truck body details:

The net volume of the body is 11.5m3, can hold 175pcs of 240L plastic bucket garbage, Q355 high-strength manganese steel wear-resistant plate, box side 5 bottom 5 production, filler side plate 5mm bottom 8mm thick, skateboard, slide 8mm thick, box volume maximization, push and shovel cylinder quenching treatment, using 3 levels of production, so that the push and shovel occupy minimum space, maximize the box volume, Garbage loading more! Electric hydraulic configuration: Zhejiang Jiasan repuller, Hefei Anhui liquid gear pump, Wessenboler multi-way valve, balance valve, compression valve, stop valve, Liancheng hydraulic cylinder (all cylinders after tempering treatment, with buffer), Guangzhou Tianhe high pressure tubing, global steel pipe, hydraulic oil tank with 3 times overstress net, all cylinder shaft pins after quenching treatment, increase hardness is not easy to bend and break, CAN survey bus smart screen one-button operating system, with wireless remote control, system programs can be set on the smart screen according to the user's requirements, can set the automatic operation conversion time, throttle control size, with automatic fault detection, alarm prompt function
