Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

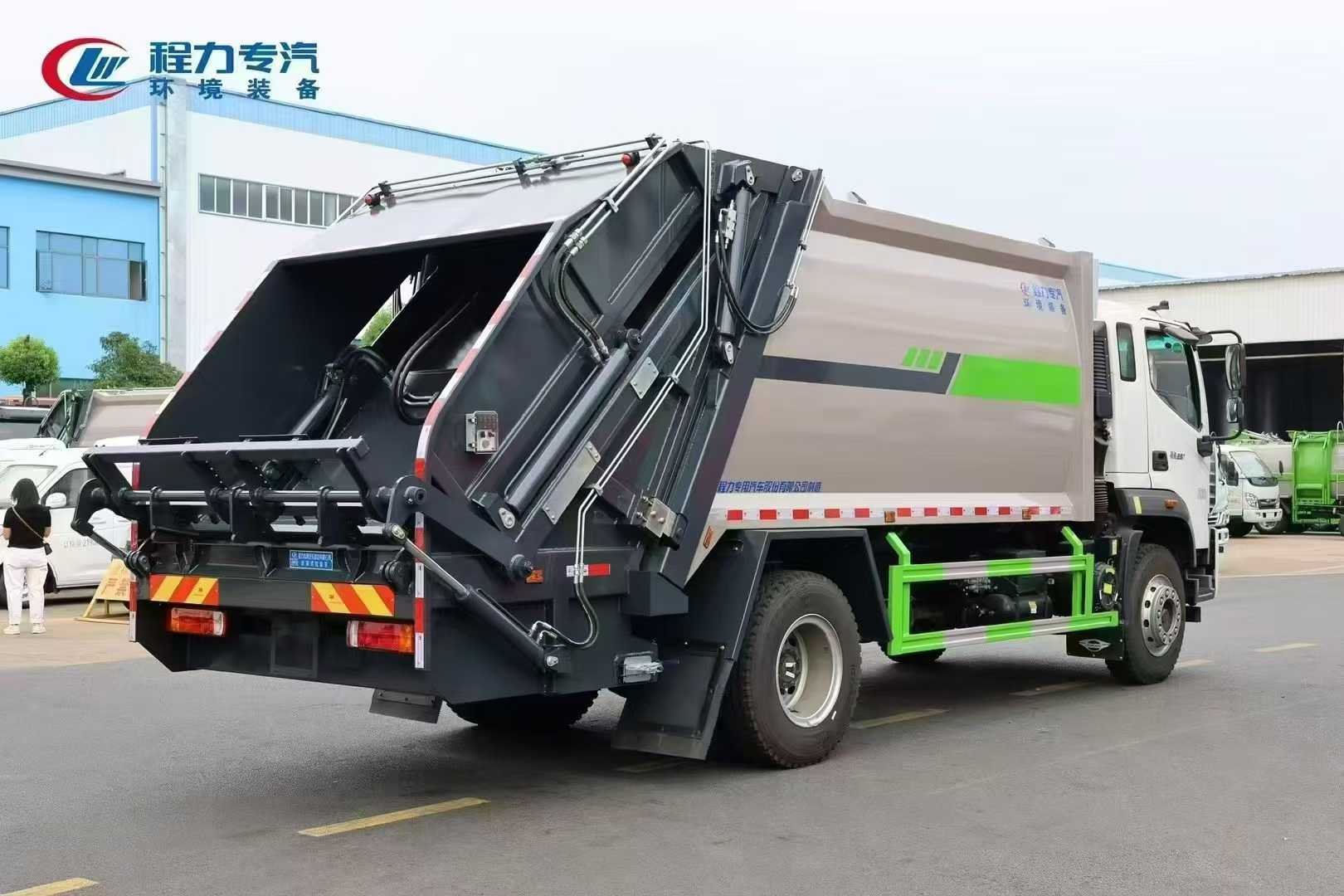

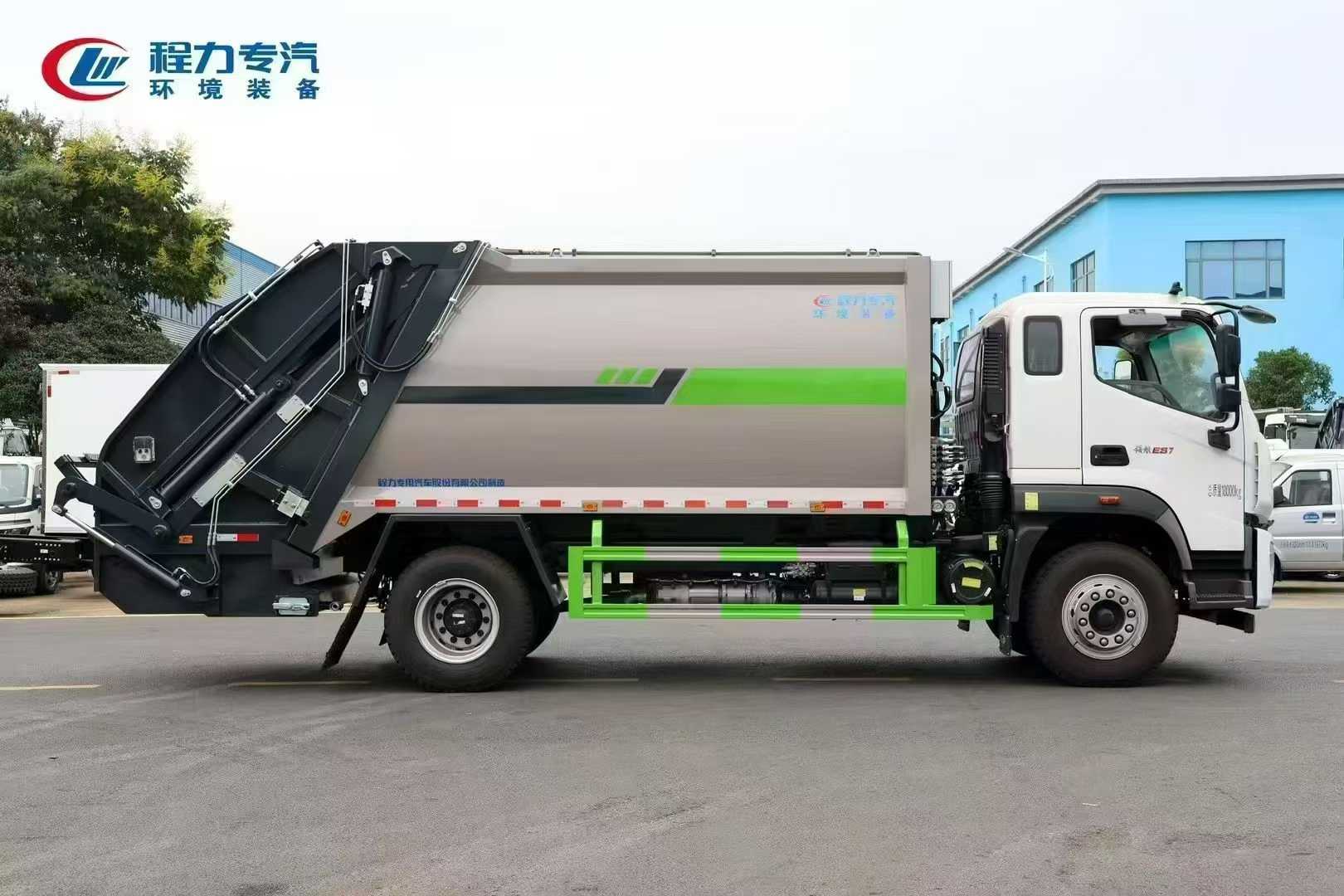

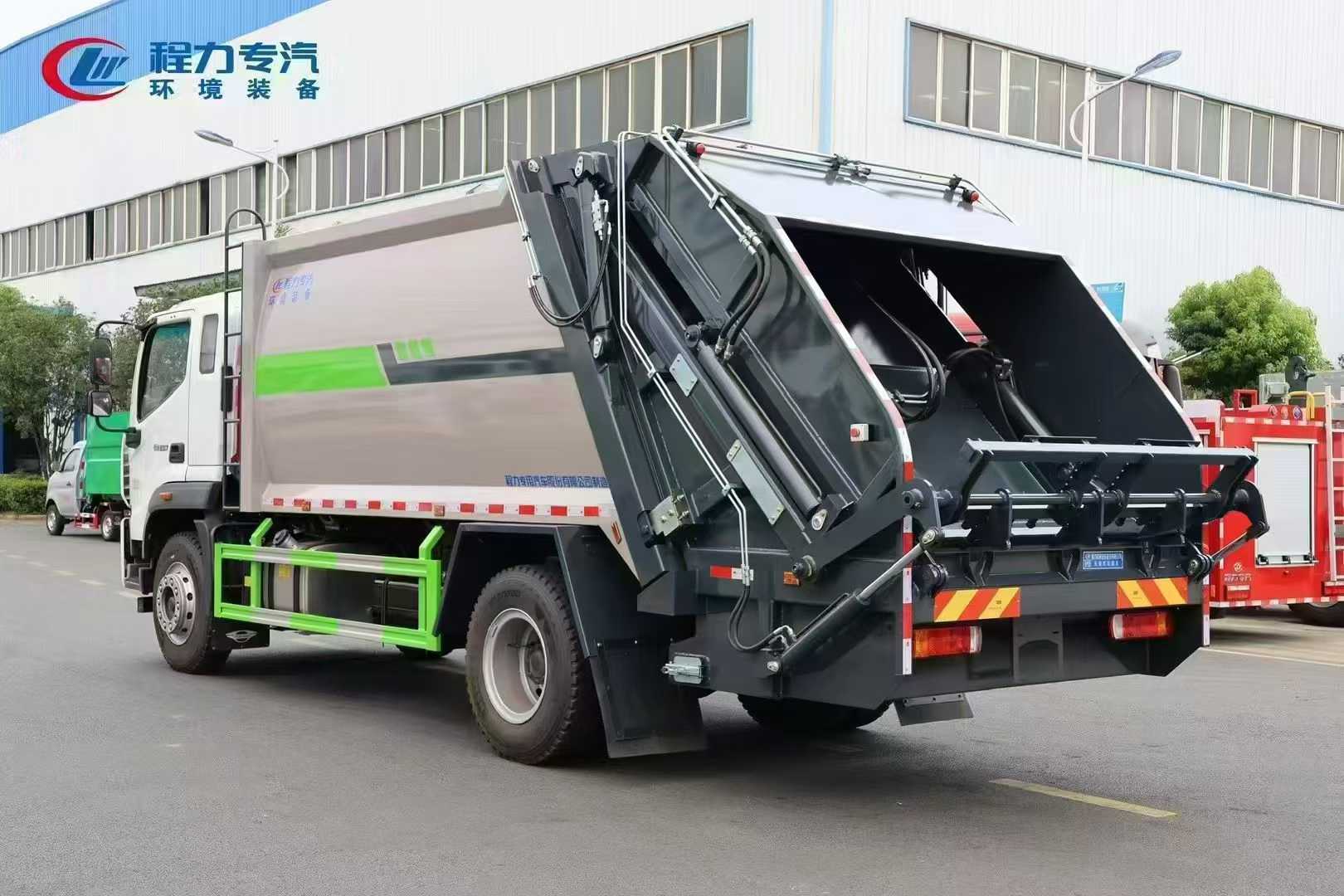

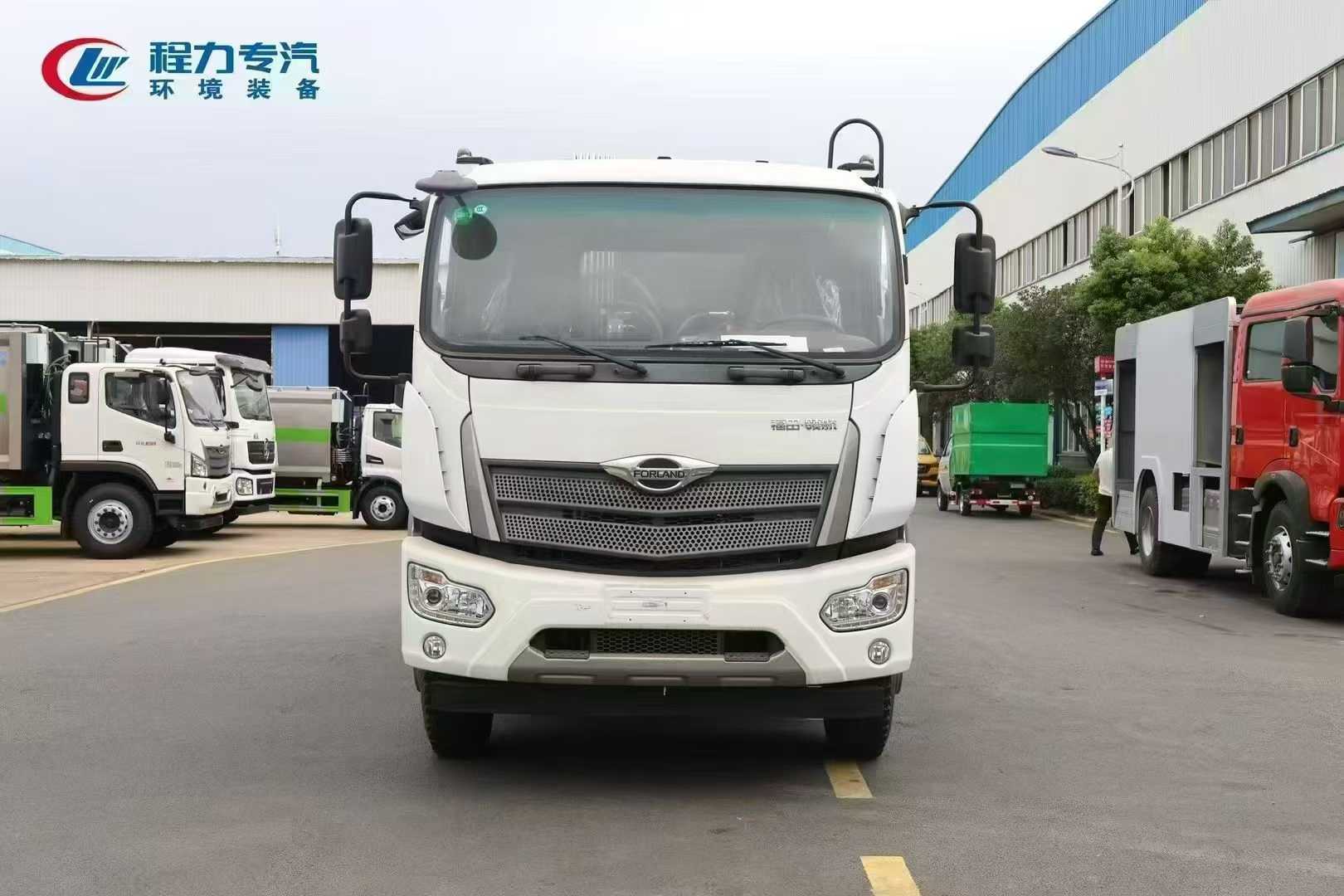

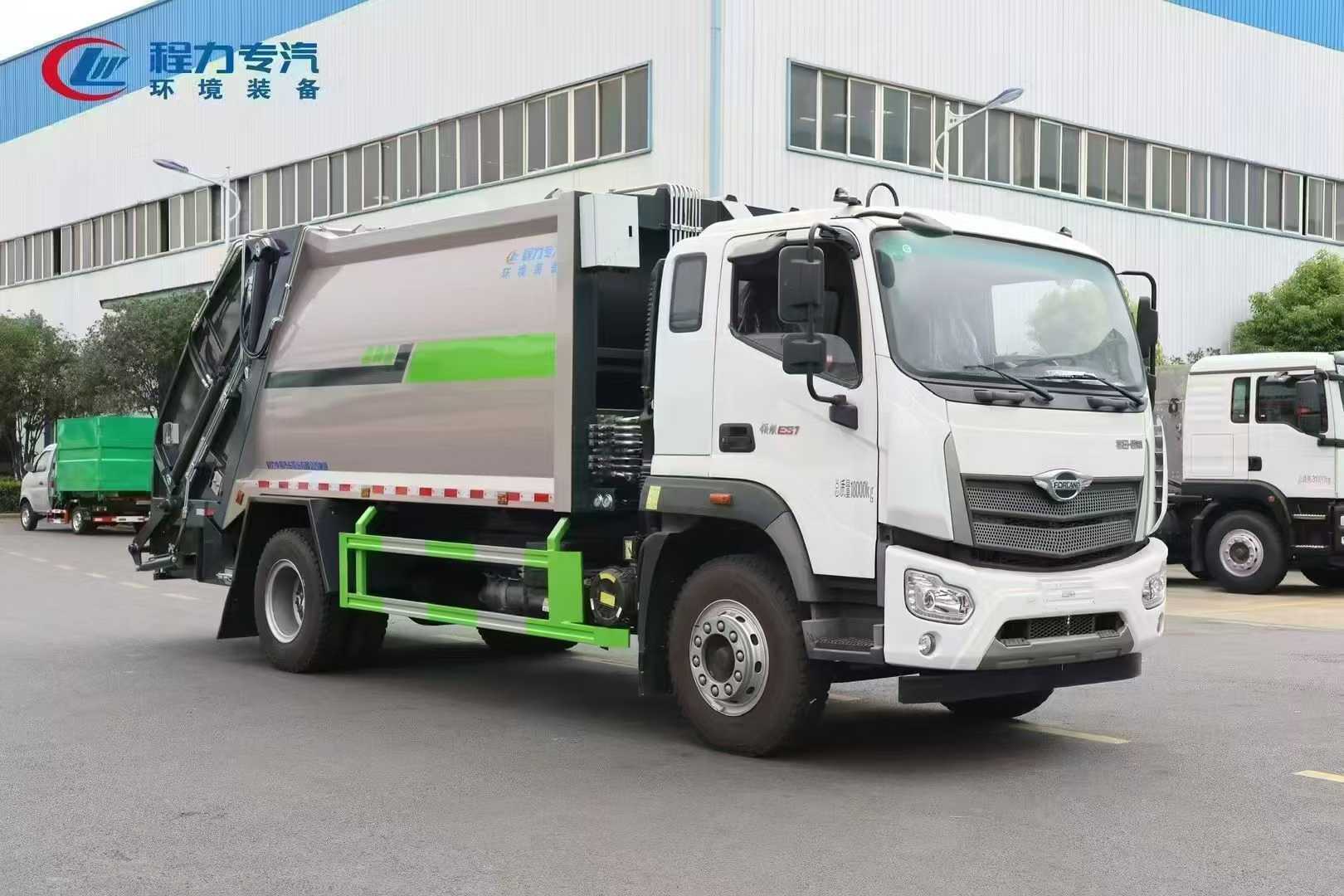

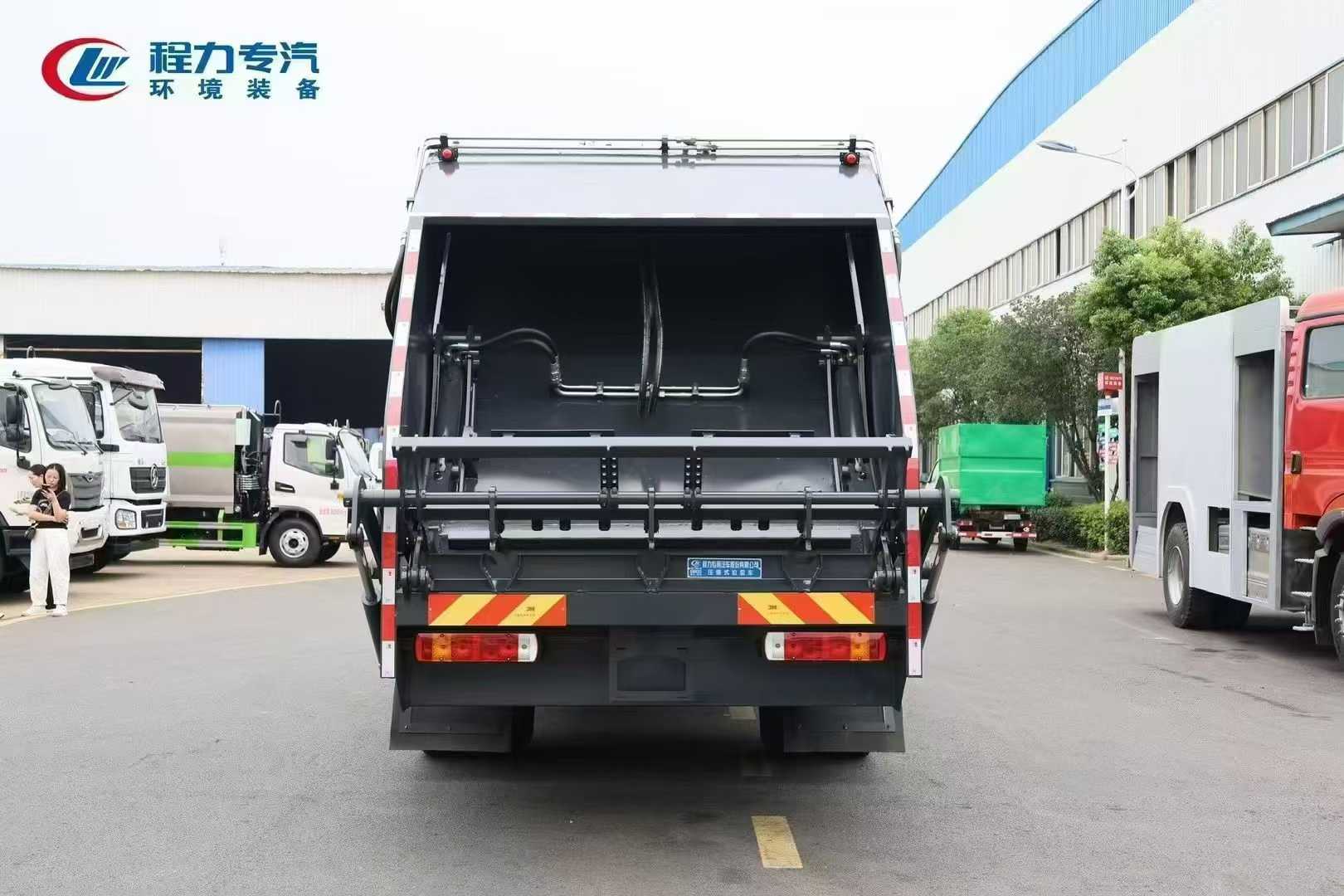

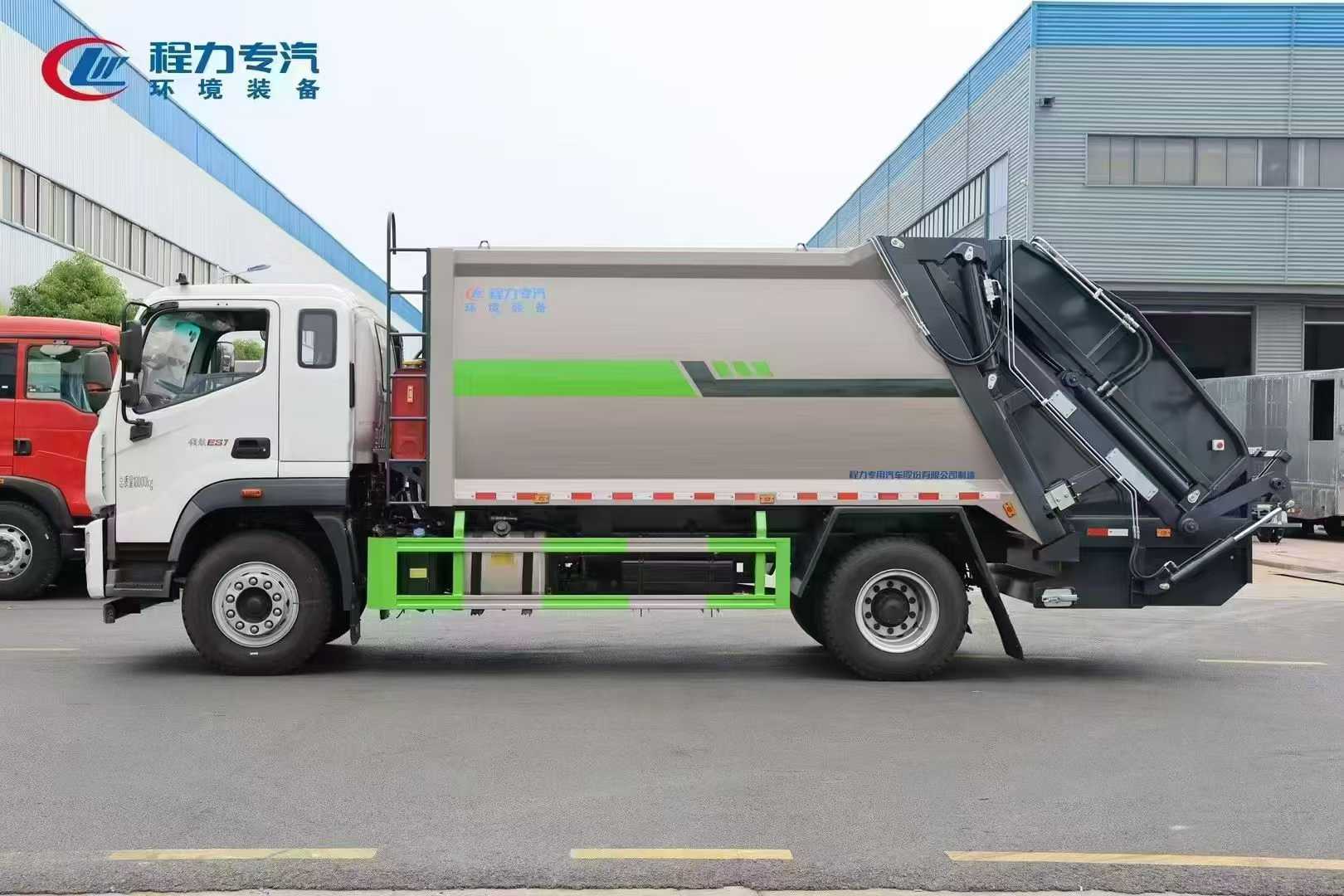

FOTON 14m3 garbage compactor truck
The most cost-effective 14m3 garbage compactor truck
Model: CLW5181ZYSAHJ

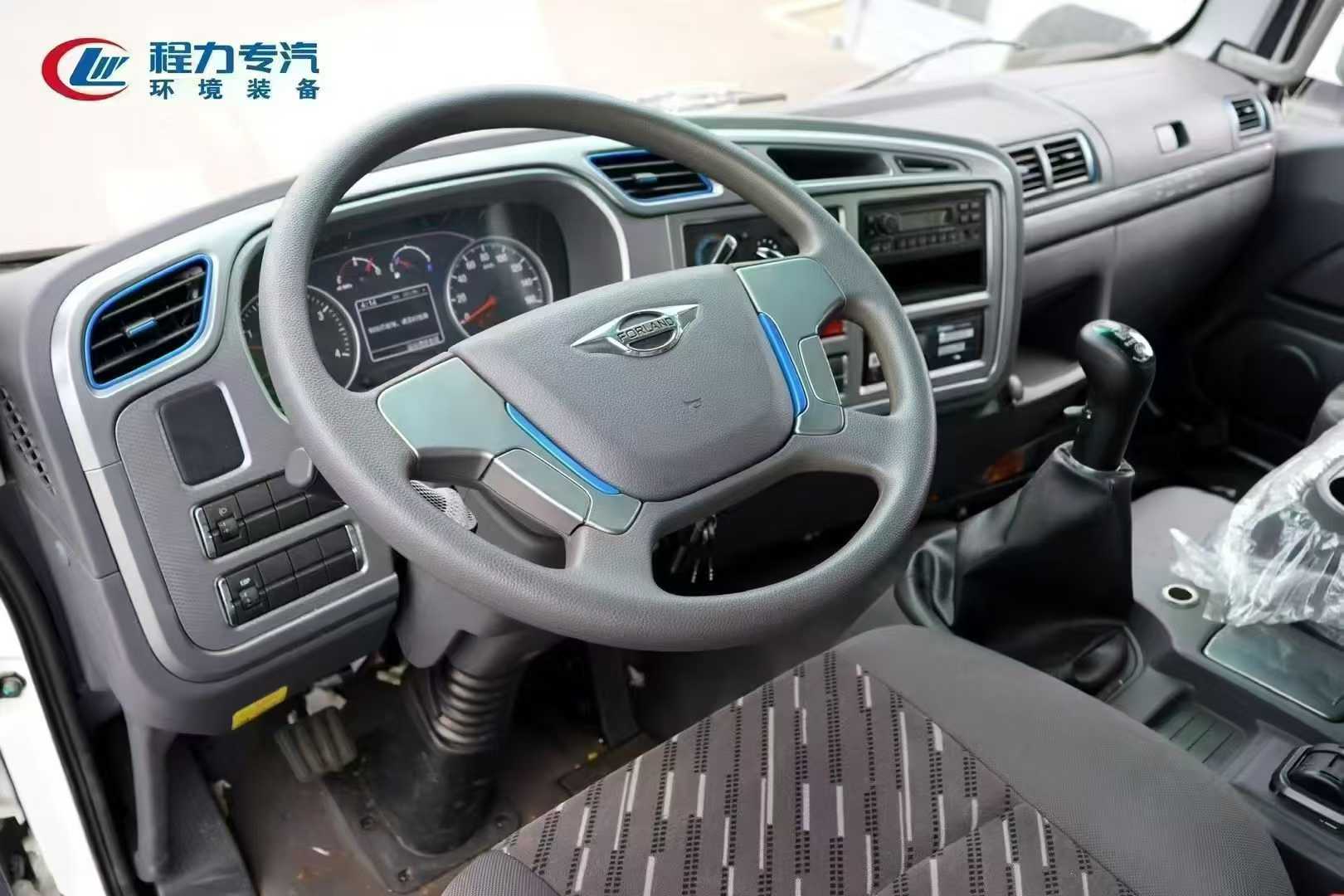

Chassis configuration: Foton Era Leader ES5, Yuchai 200 horsepower, 4500 wheelbase, four-cylinder engine, semi-enclosed cab, 2060mm body, 8-speed 8JS75E transmission, 10.00R20 tires, ABS (4S4M), power steering, 4G-T-BOX + single-channel recorder (domestic printing), central locking + power windows + remote control, air conditioning, reinforced body, cruise control, multifunctional steering wheel
Garbage compactor truck body configuration: The body box is made of Q345, the filler and local parts are made of high-strength laser-cut T70 steel. The box volume is 14-16m3. The new type of crushable scraper. Externally mounted hydraulic cylinder slide plate. Arc-shaped push plate design. The pin shaft adopts 40cr heat treatment process, bidirectional pulsating compression function. The slide plate slide track is strengthened and reinforced. Well-known domestic and foreign brand hydraulic systems (Zhongmeiduolu valve, throttle valve, compaction valve, bidirectional balance valve). Ruichen iron shell high-pressure gear pump, Jiashan high-speed clutch, British Hylite sealing parts constant force cylinder. Large-capacity cooling hydraulic oil tank. Galvanized quenched pin shaft. Scraper oil cylinder adopts rod head oil inlet, optimizes the swing angle of the pipeline, improves the service life of the pipeline. Pure copper concave head grease nipple. Graphene nylon slider. Silicone corrosion-resistant sealing strip. Tianhe multi-layer steel wire high-pressure hose. Galvanized seamless steel pipe main oil circuit. Built-in stainless steel sewage filter screen. Galvanized bilateral sealing sewage outlet. Front and rear large-diameter sewage ball valves. CAN bus remote control for inside and outside of the vehicle. LED night operation lamp. Heightened feeding port. The vehicle adopts 8.8 or above high-strength self-locking bolt assembly process. Standard 120L and 240L flip bucket frame.
The garbage compactor truck garbage collecting method is devided into triangular bucket, swing arm bucket, floor bucket, etc. Customer can choose the suitable garbage collecting method according to the real requirement.
Garbage compactor truck operation vedio:
