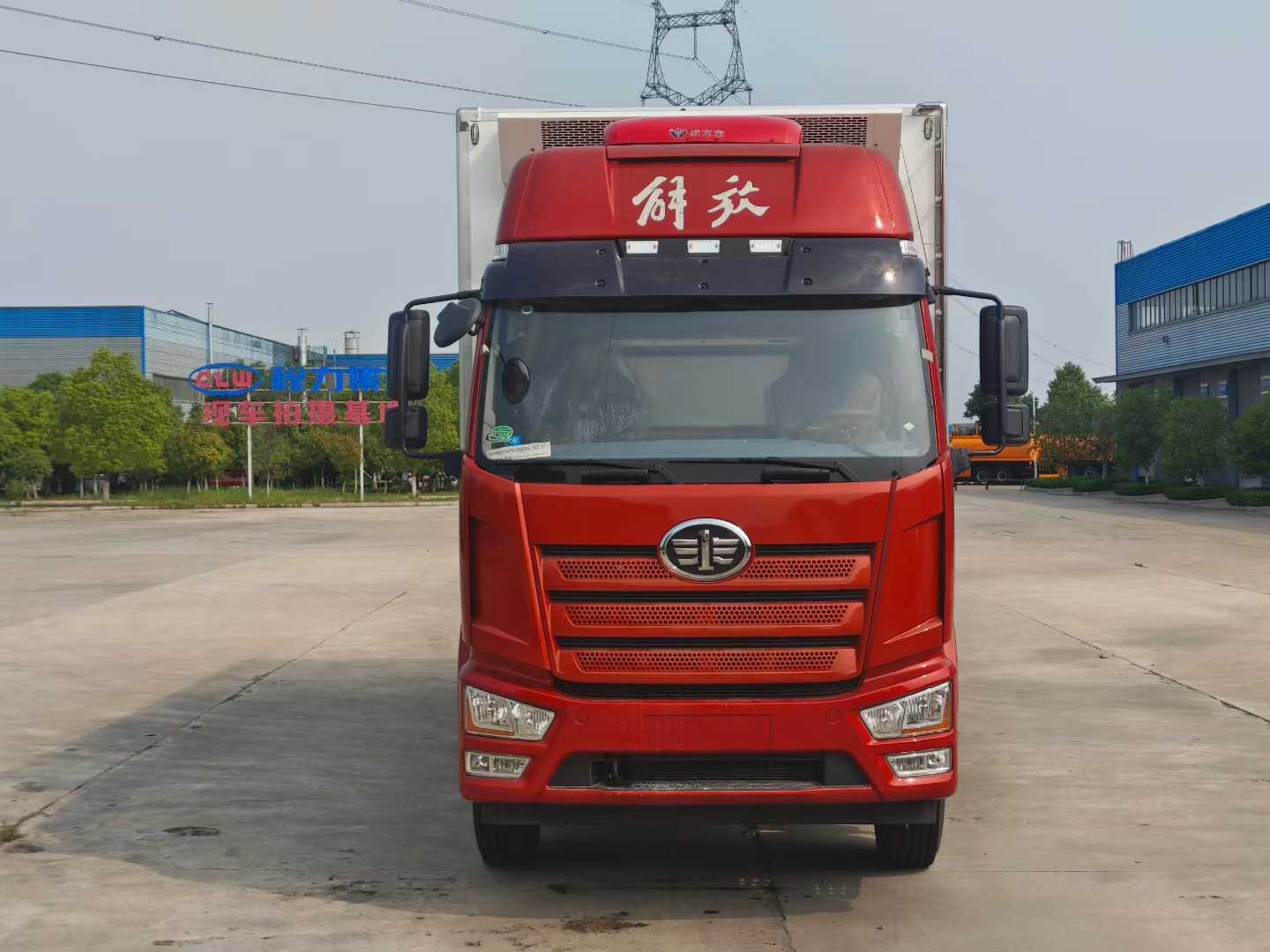

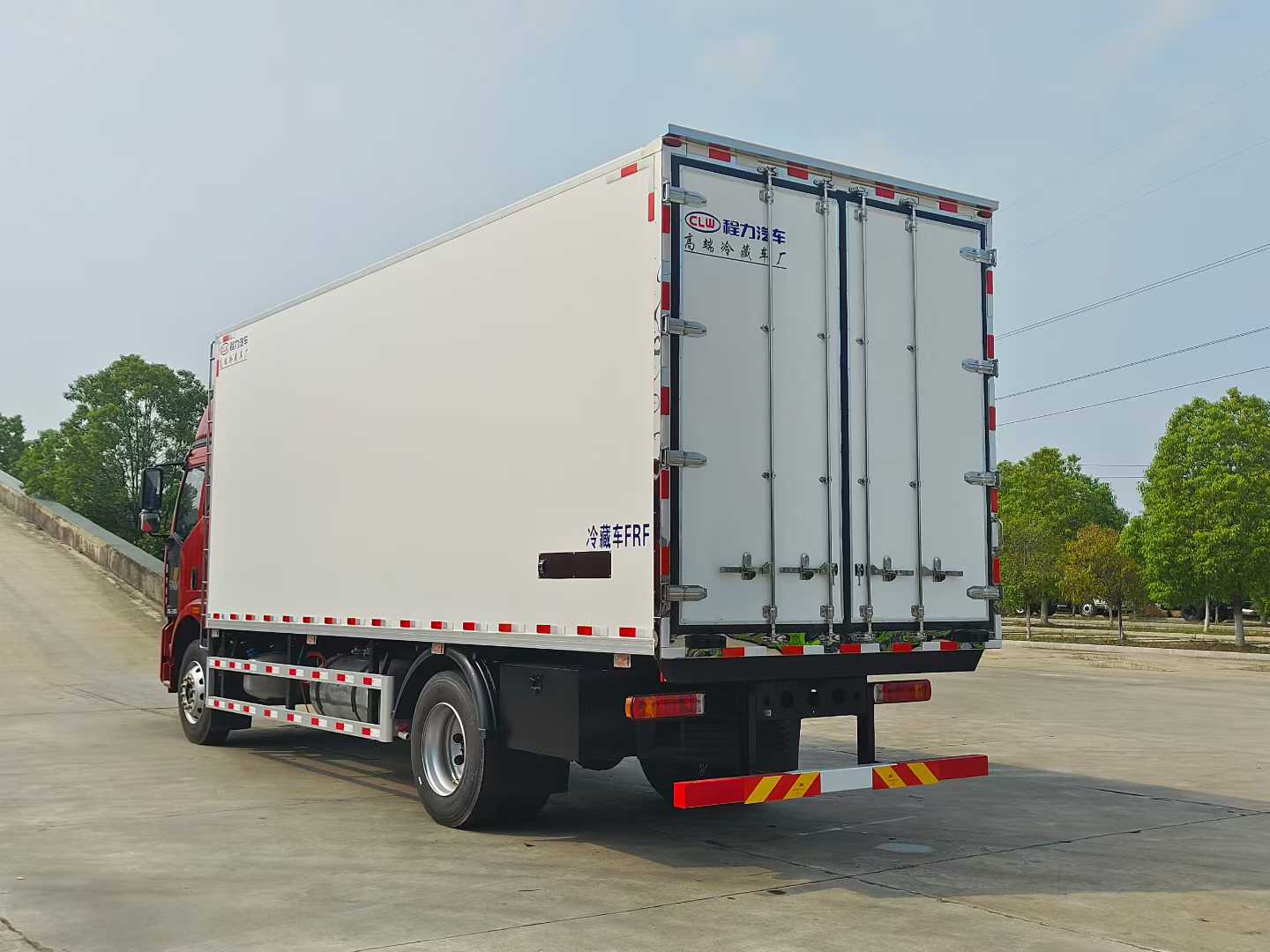

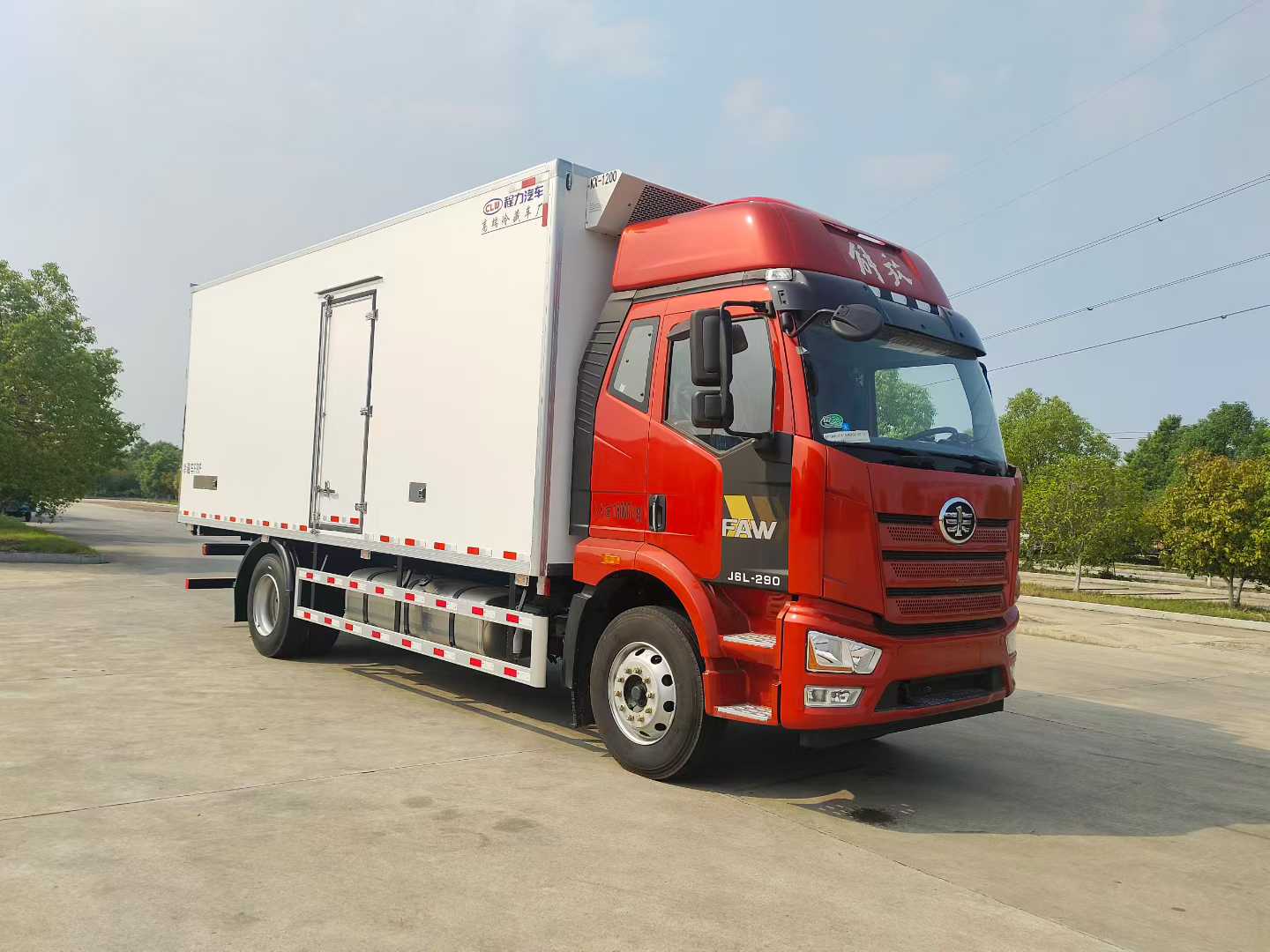

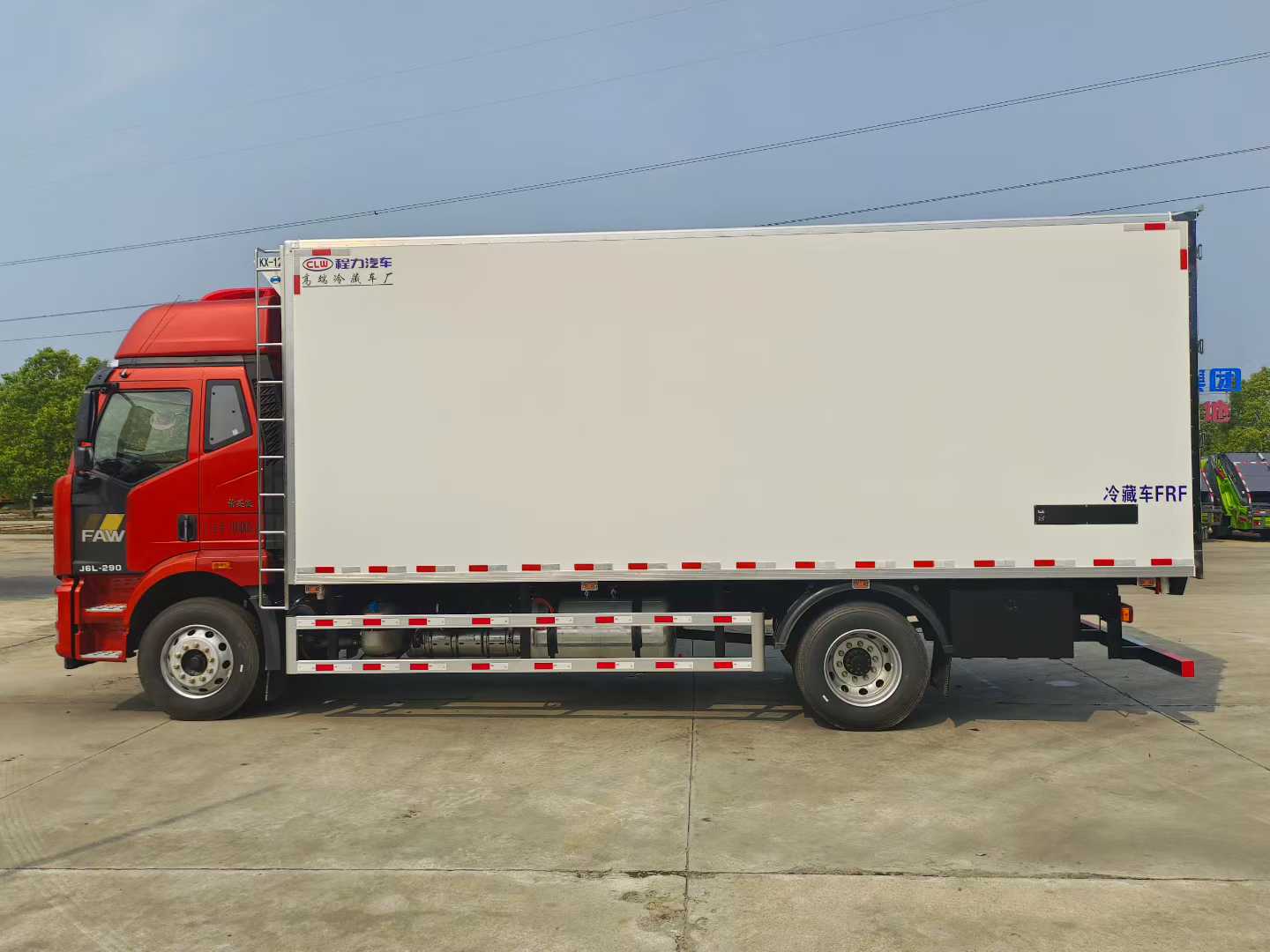

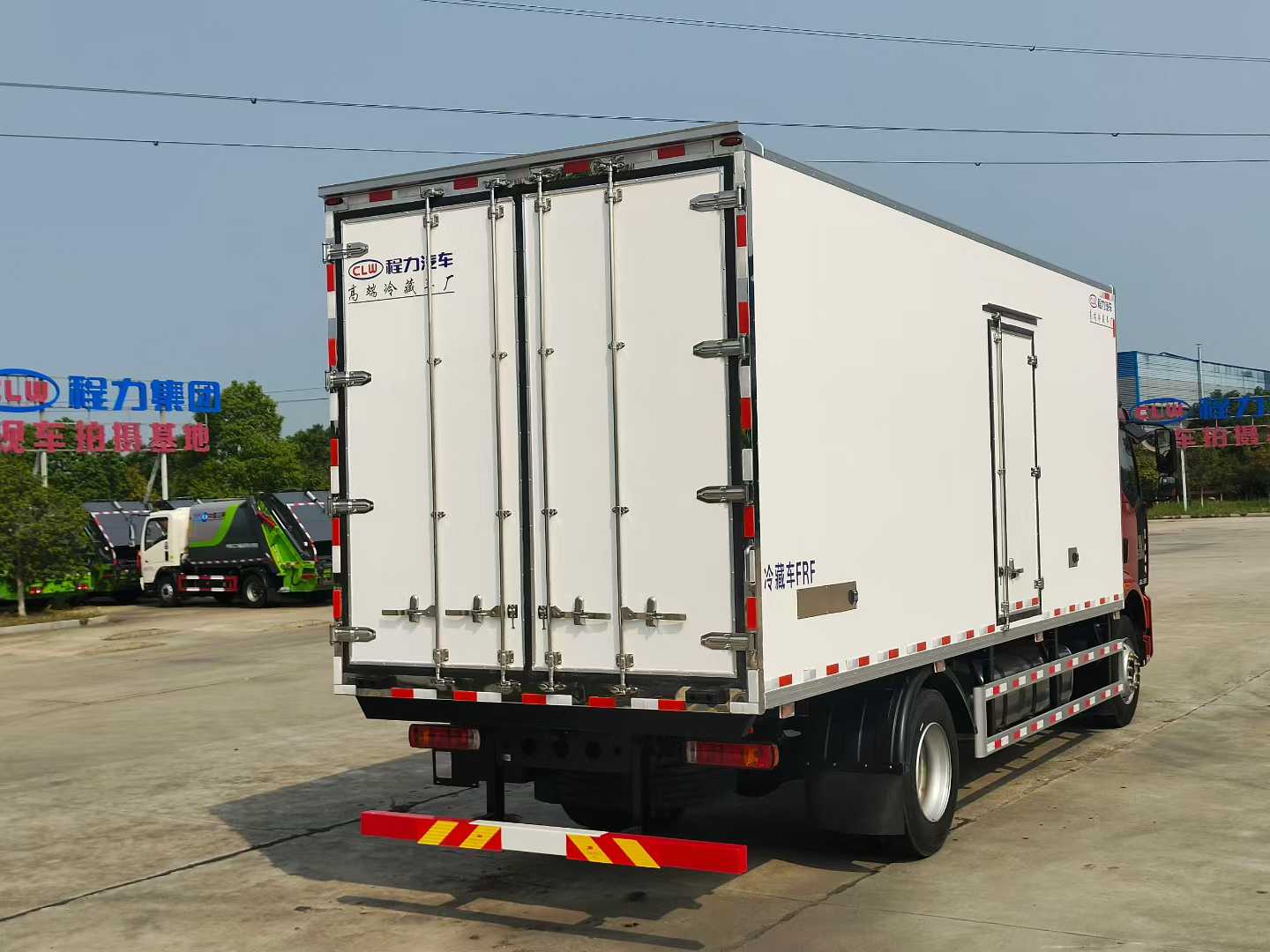

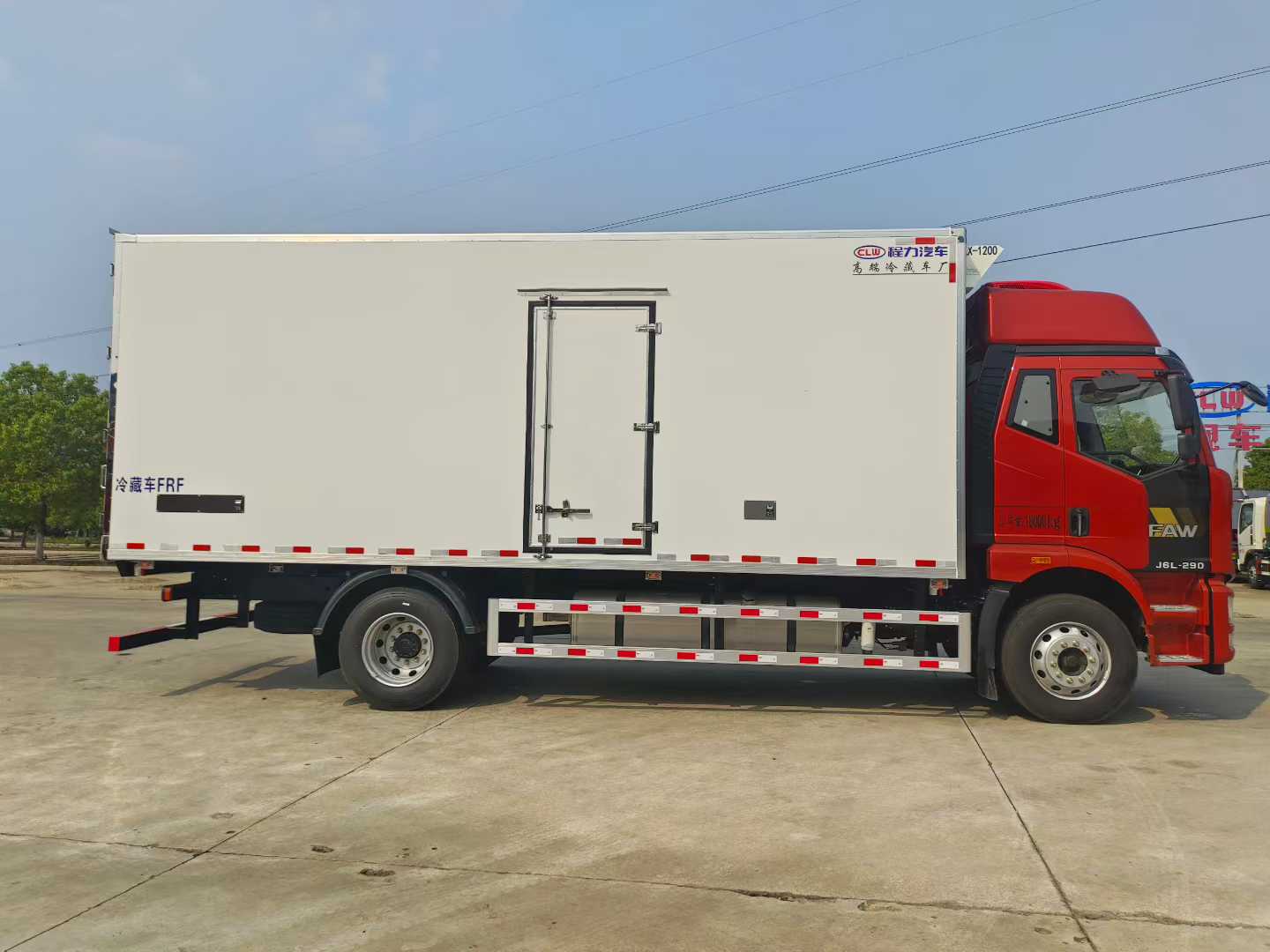

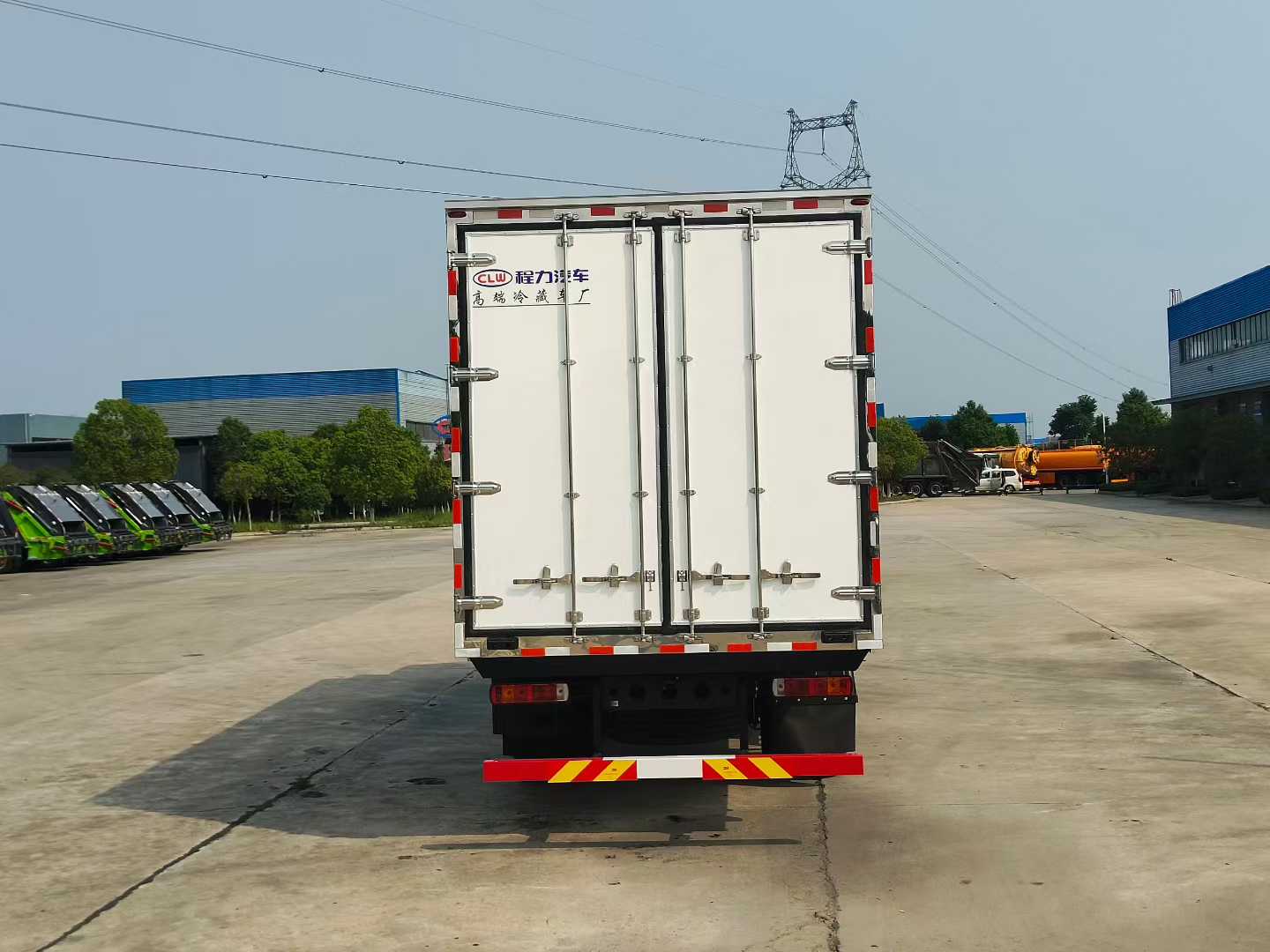

FAW J6L refrigerator truck

Truck Model: CA5181XLCP62K1L4E6

Chassis model: CA1181P62K1L4E6

Overall dimensions: 9180*2600*4000mm

Truck interior dimensions: 6800*2420*2500mm

The FAW J6L chassis is LCD instrument panel, electric glass lift, electric heated rearview mirror, driver's seat as a ventilated seat (pneumatic waist support, double armrest), USB interface, passenger seat cushion folding, 10-inch large screen integrated four-position imaging, 760mm integrated full-body bed, central locking, mobile phone holder, Dachai engine CA6DH1A29E65, transmission CA8TAX110FS1, domestic ABS, gear ratio 4.111, wheelbase 5300mm, 275/80R22.5 type 18-level pneumatic tire, automatic air conditioning, cab four-point coil spring suspension, aluminum fuel tank 600L, electric hydraulic lifting, steel air reservoir, cruise control, chassis bridge shows 10/10/10 ten-thousand-kilometer long oil change cycle, suspension 7/7+3, 120Ah battery, 75A generator, long maintenance fuel coarse filter, speed limit 89km/h, 50L urea tank, electronic fan

FAW J6L refrigerated truck body configurations:

break-through technology， 3.0 thick inner and outer fabric-based fiberglass material， 8cm thick cold chain dedicated insulation board， 304 stainless steel door frame， lock components and hinges， 5-layer triethylene rubber door skin， aluminum profile corner and edge treatment， "Z" character high-strength manganese steel workbench sub-frame， steel wire padding， right single-sided door， rear double doors， LED ceiling light， sight light， floor ventilation slot.

FAW J6L refrigerated truck advantages:

1. Chassis Performance

Equipped with the chassis of FAW, it is equipped with a high-performance engine, providing strong power

output and sufficient torque. It can handle urban, long-distance and complex road conditions, and can

maintain efficient driving even when carrying 8 tons of cargo. The chassis is made of high-strength steel and

is combined with an advanced suspension system to ensure smooth driving and reduce the risk of cargo

damage.

2. Thermal insulation design

The refrigerator truck body is made of high-density polyurethane foam material, which has a low thermal

conductivity and effectively isolates external heat, maintaining a stable low-temperature environment. At the

same time, the box body has good sealing performance, with no cold air leakage, ensuring the freshness of

the goods.

3. Refrigeration system

Equipped with an efficient refrigeration unit, it can stabilize the carriage temperature at below -20℃ in a 30℃

environment, with the lowest temperature reaching -20℃. It is suitable for transporting temperature-sensitive

items such as frozen food and perishable goods.

4. Safety

The braking system integrates ABS (Anti-lock Braking System) and EBD (Electronic Brakeforce Distribution

System), enhancing safety during emergency braking. Additionally, the vehicle has a strong overall load-bearing

capacity, reducing the failure rate and lowering operational risks.
