Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

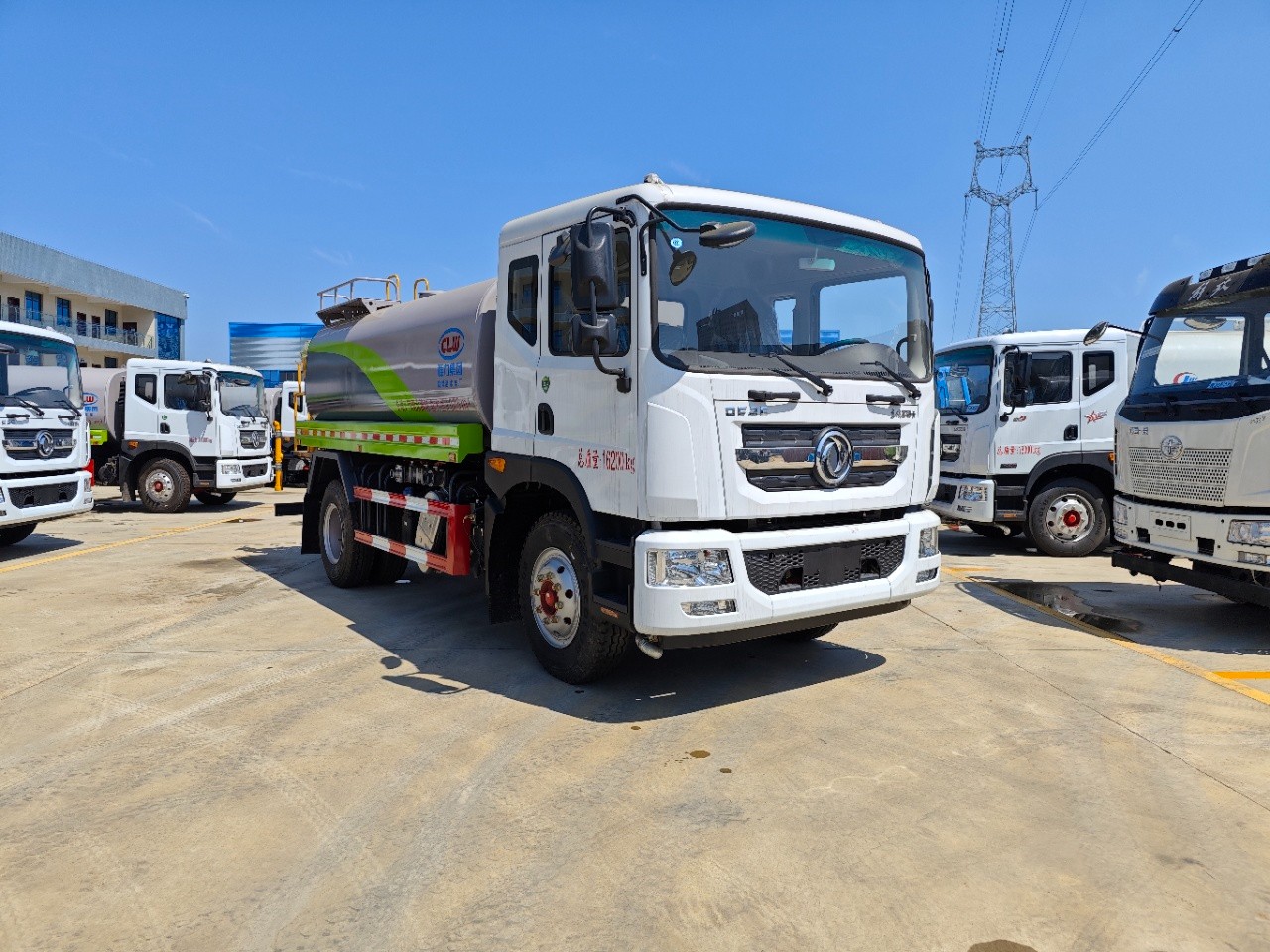

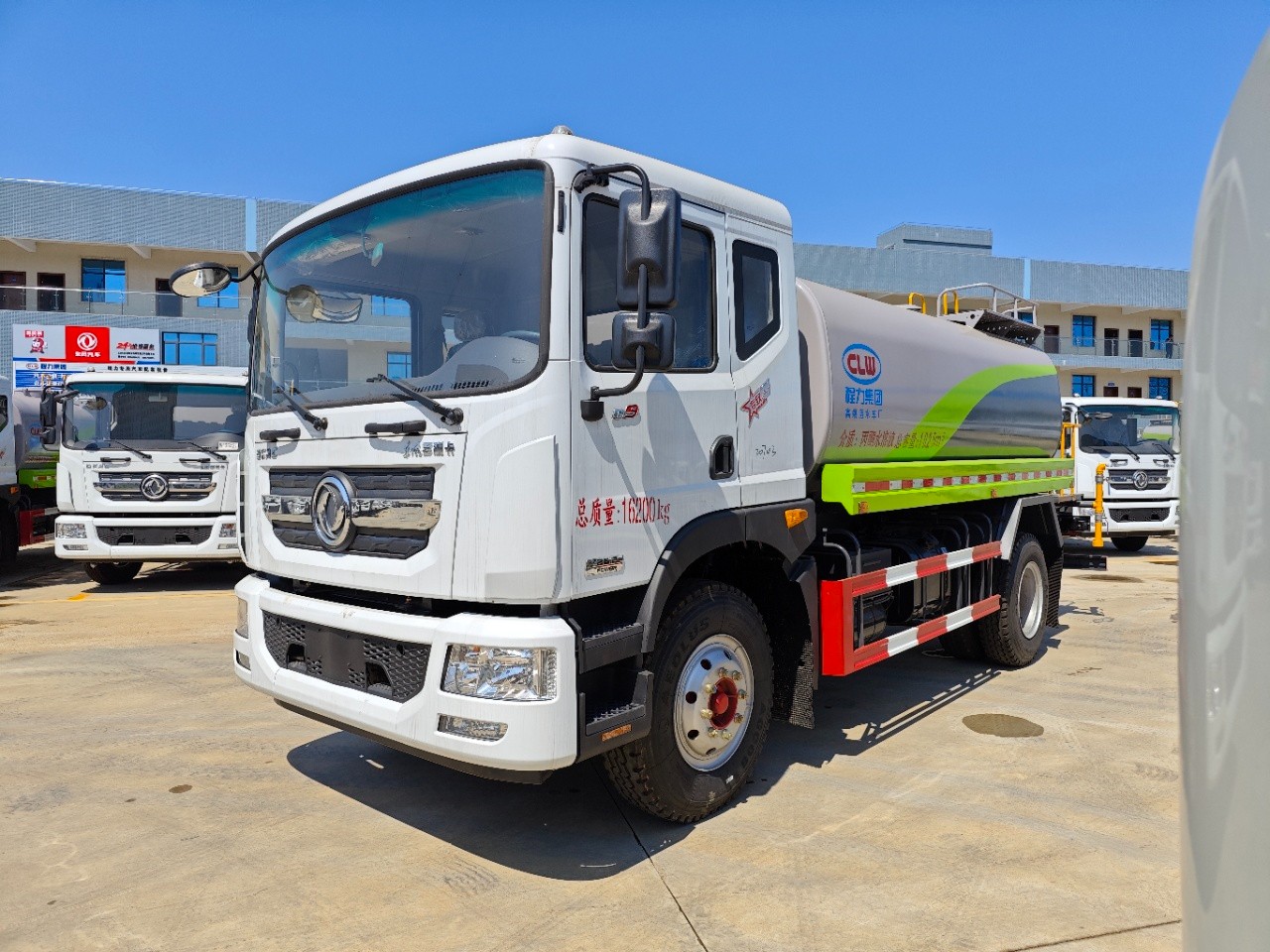

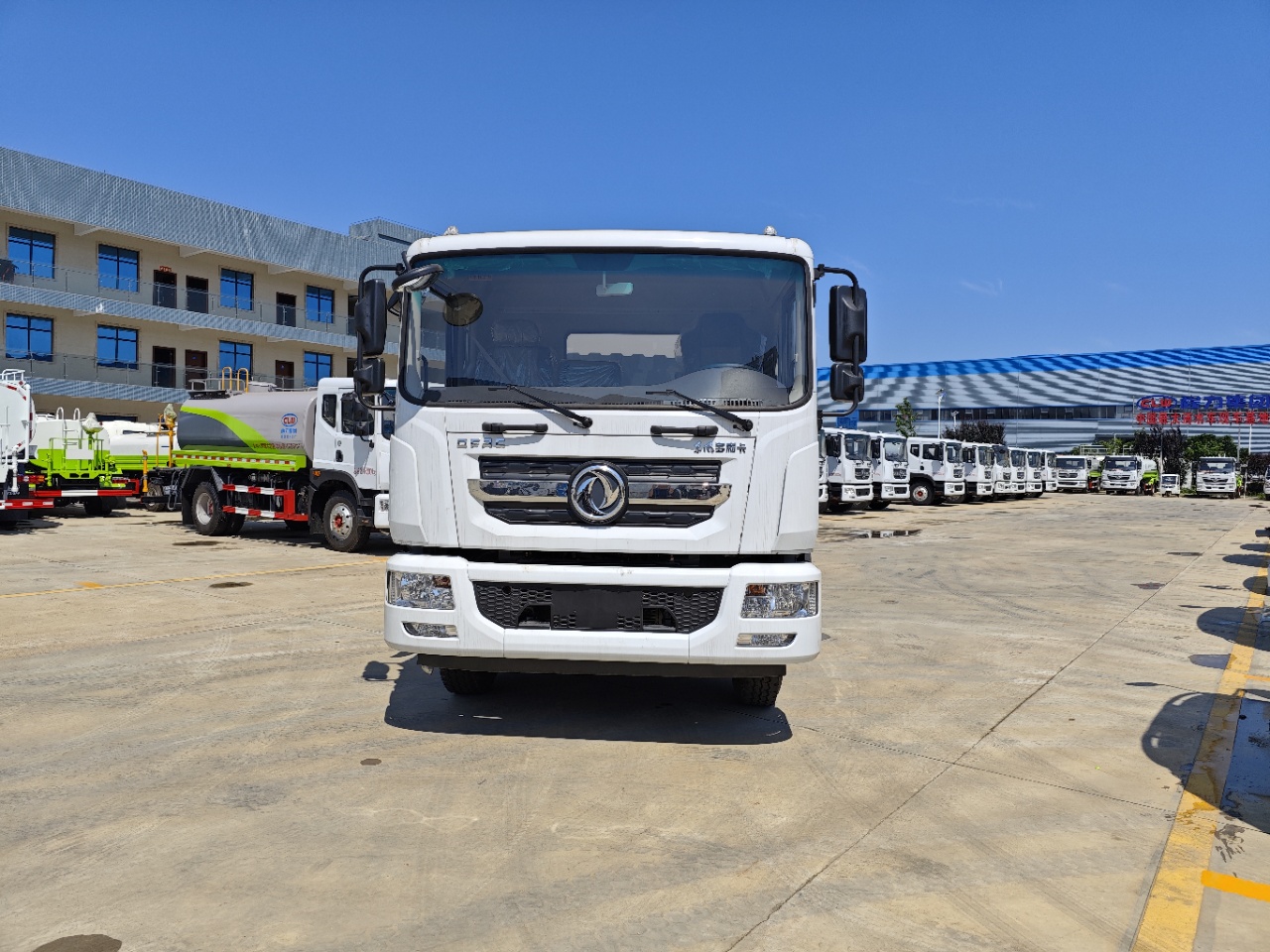

1. Front view of the Dongfeng D9 12m3 water tanker truck

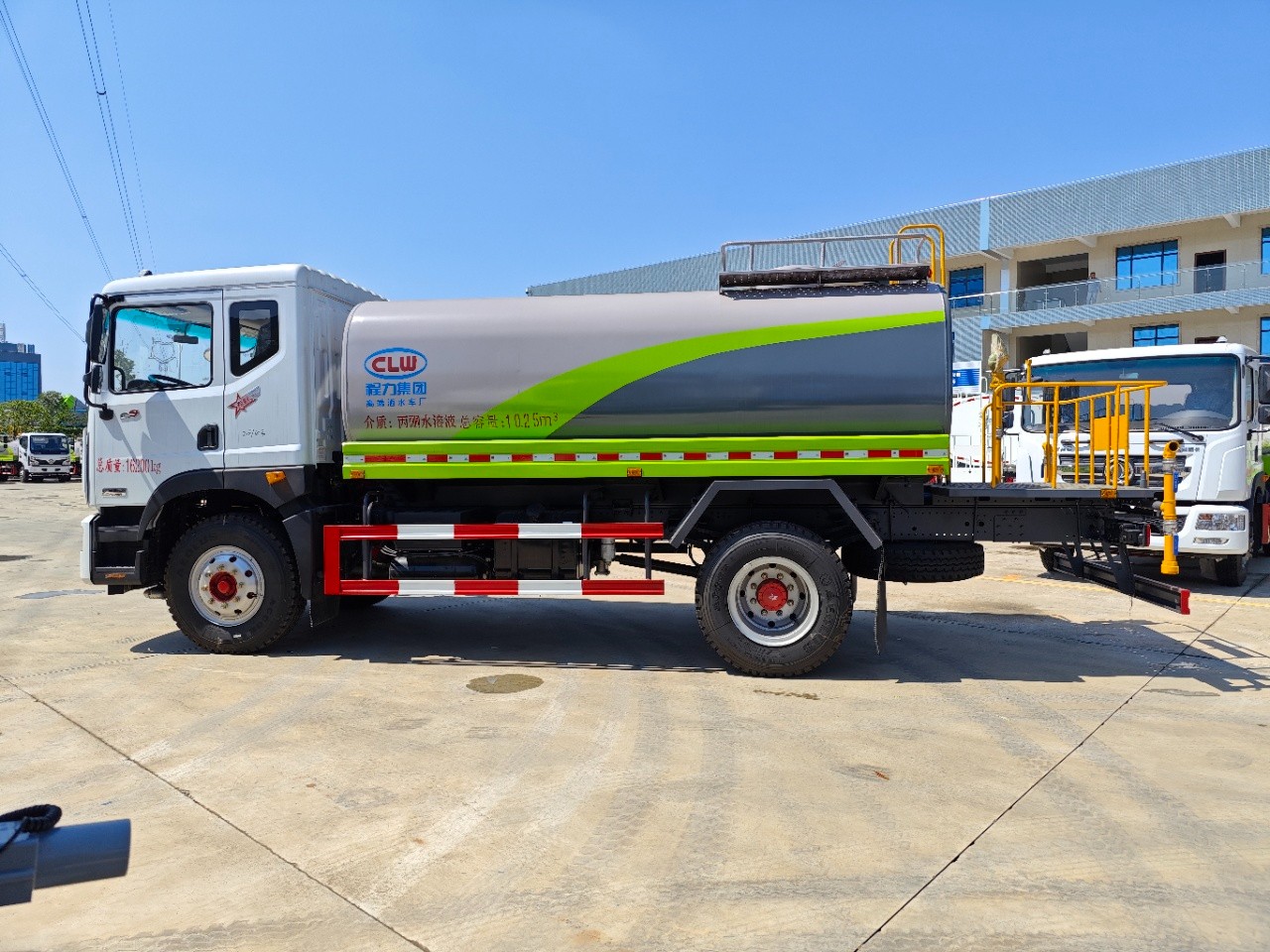

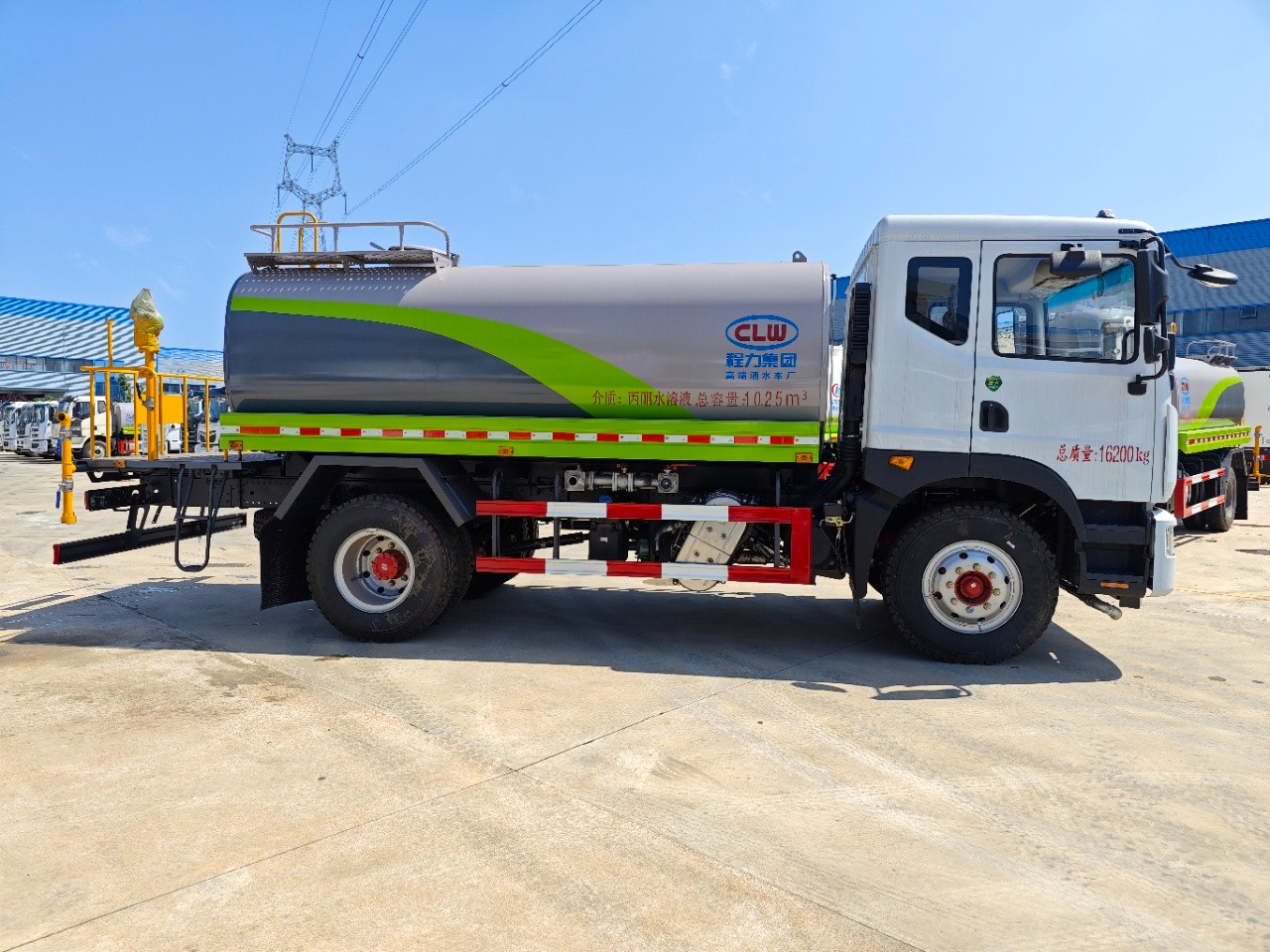

2. Side view of the Dongfeng D9 12m3 water tanker truck

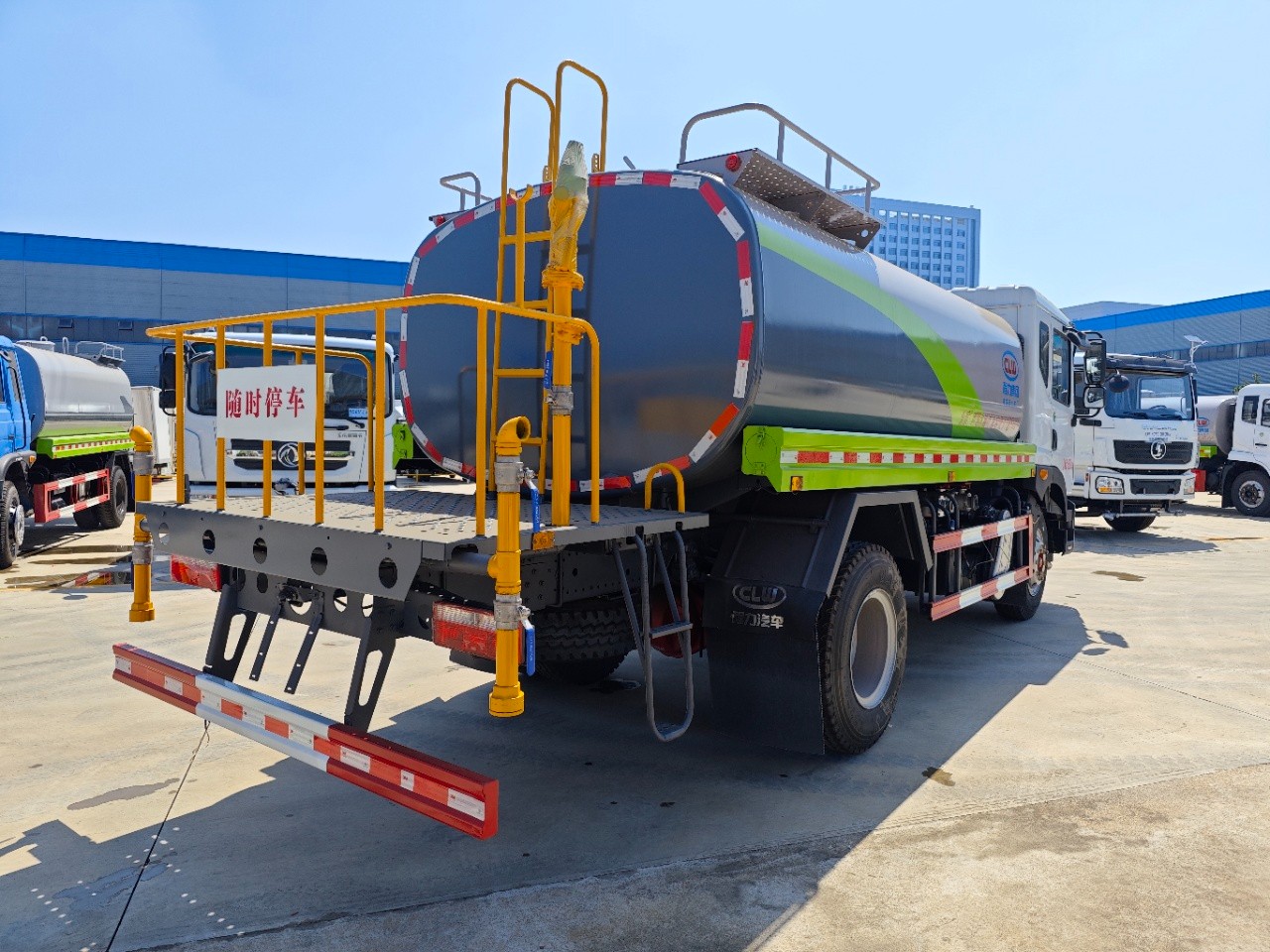

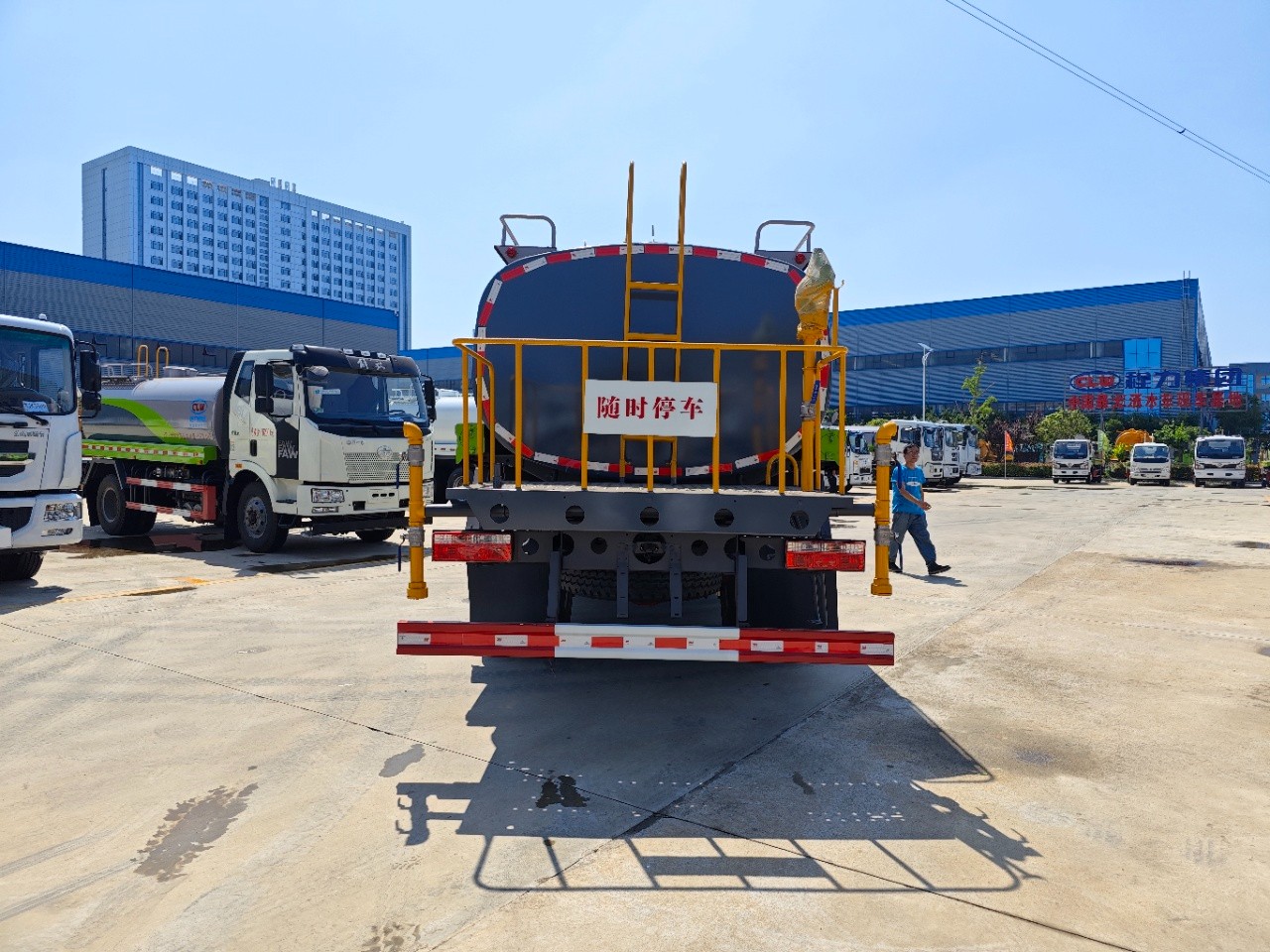

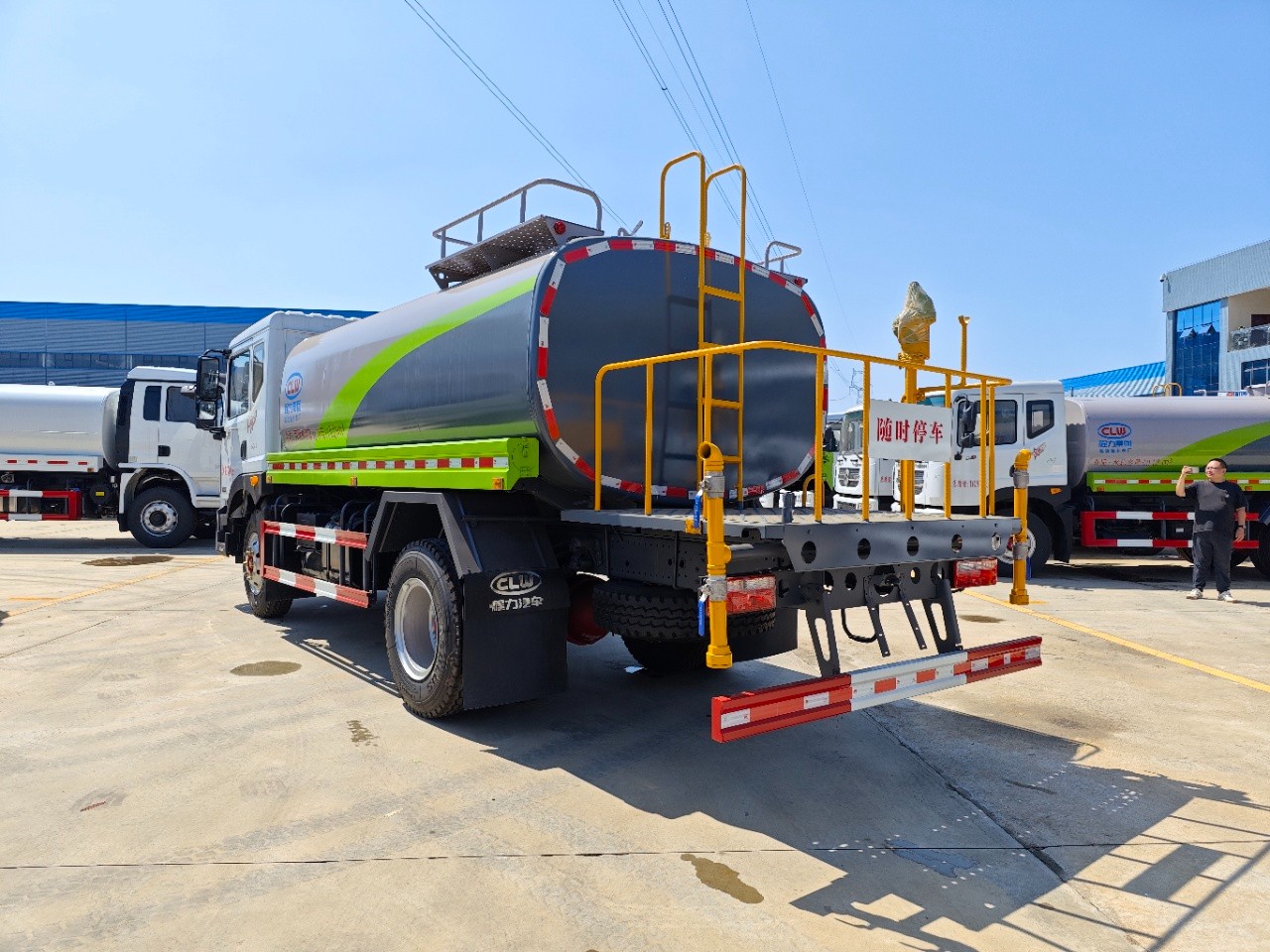

3. Rear view of the Dongfeng D9 12m3 water tanker truck
4. Chassis parameters of the Dongfeng D9 12m3 water tanker truck
The Dongfeng D9 chassis adopts Cummins 230hp engine, Fast 8 gears transmission box, the front axle loading capacity is 3.9T, the rear axle loading capacity is 8T. The wheelbase is 3950mm, the tyre size is 10.00wire steel tyre.
5. The Dongfeng D9 12m3 water tanker truck body is 12m3, the material of the tank body is Q235 carbon steel with thickness 4mm. The Dongfeng D9 12m3 water tanker truck has the following special functions: front flushing, side washing, rear washing and high position washing which can adjust the water flow to make it sprayed out as heavy rain, middle rain and small rain. the max spraying range can be 30m.
