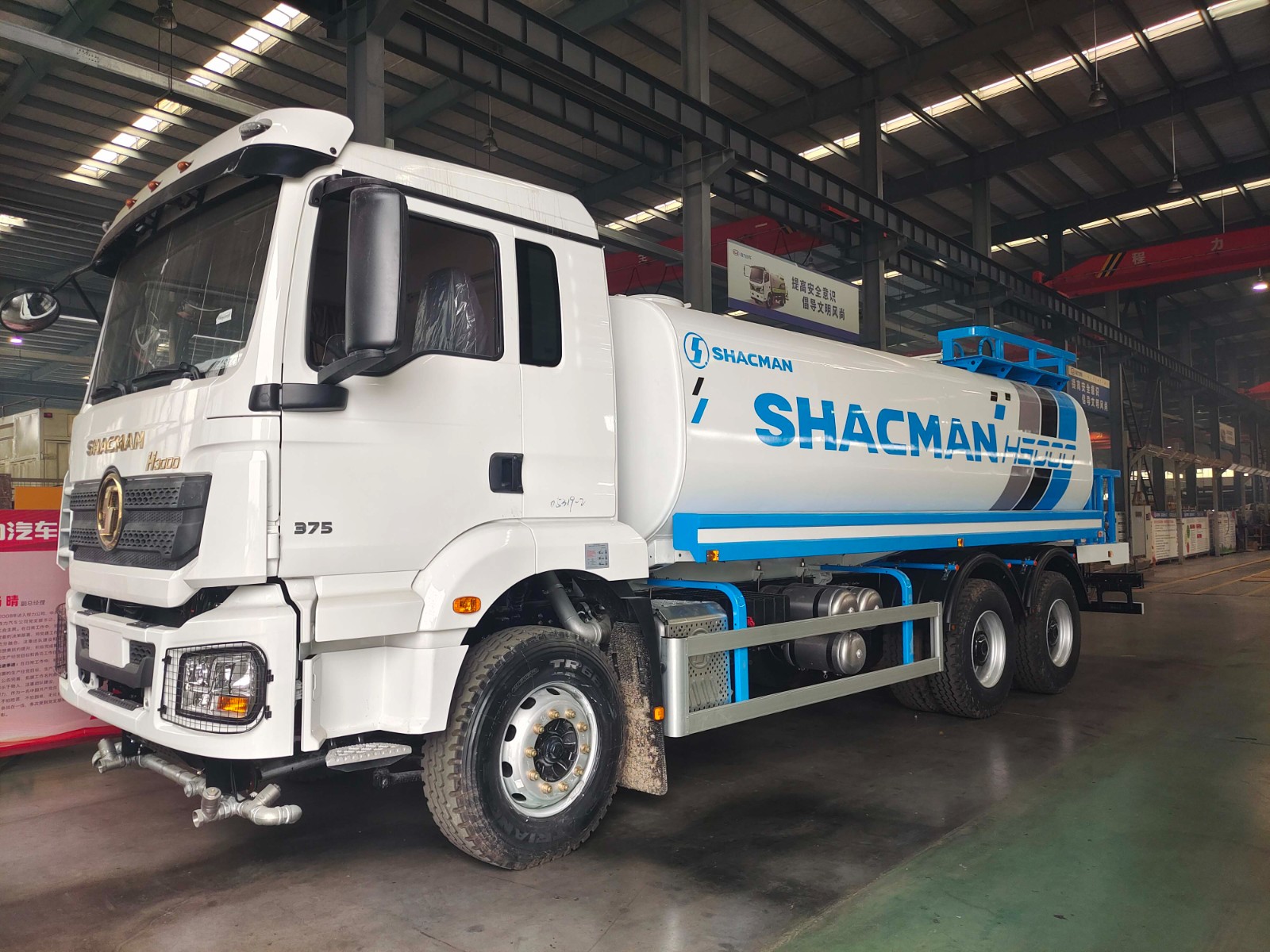

Shacman 20m3 water sprinkler truck

The Shacman 20m3 water sprinkler truck is customized for a udi Arabia customer. According to customer's requirement, the water sprinkler truck adopts Shacman H3000 chassis which is 385hp, the strong engine power gurantees the water sprinkler truck's long time transportation ability. The body tank volume of the water spraying truck is 20 cubic meters. the large body tank also allowed the truck to be running in long time.

Shacman H3000 water sprinkler truck chassis configuration is strong, Shaanxi automobile H3000 rear eight-wheel multi-functional sprinkler is equipped with super horsepower engine, with super bearing capacity and good passability, suitable for a variety of complex road conditions ‌.

Shacman H3000 model has a maximum volume of 20 cubic meters, which can meet the needs of long working hours ‌. In addition, the design of Shacman automobile sprinkler pays attention to high efficiency, and can complete a large number of sprinkler tasks in a short time.

Number 1 of water sprinkler truck sales performance in China market!

Number 37 among Hubei province production enterprises!

Anual output more than 100000 of different kinds of special trucks!

CKD,SKD and spare parts service,customization support!

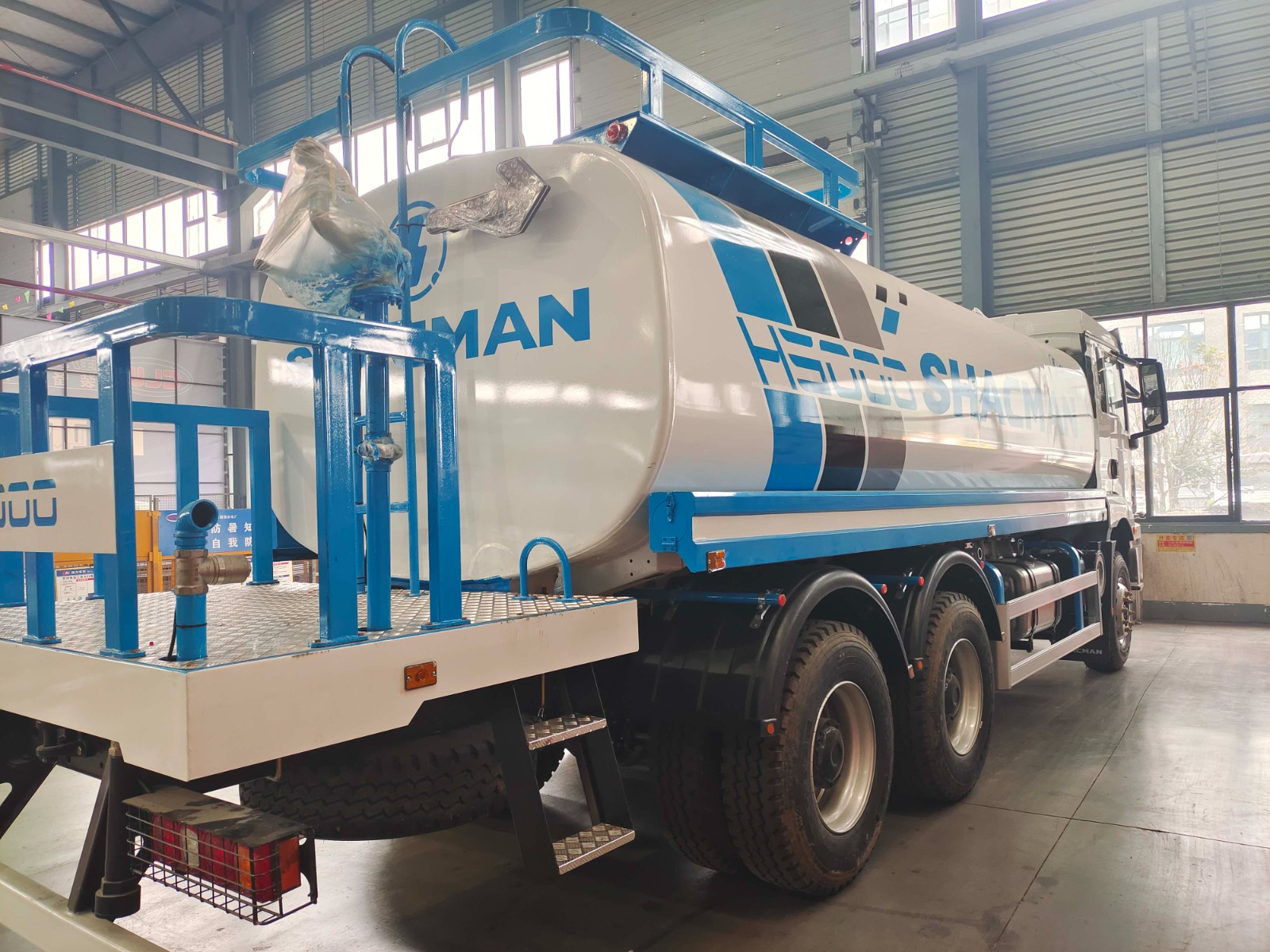

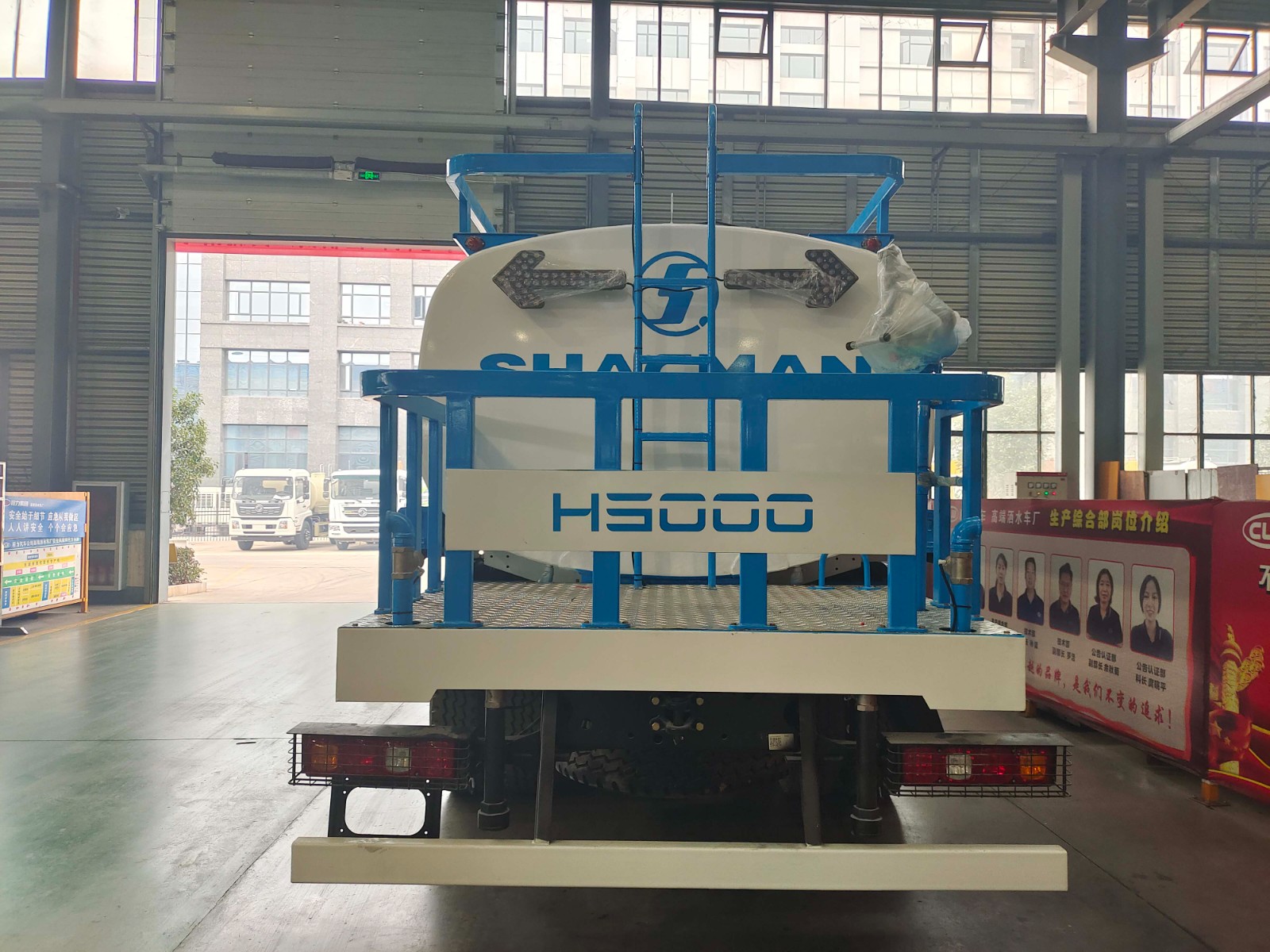

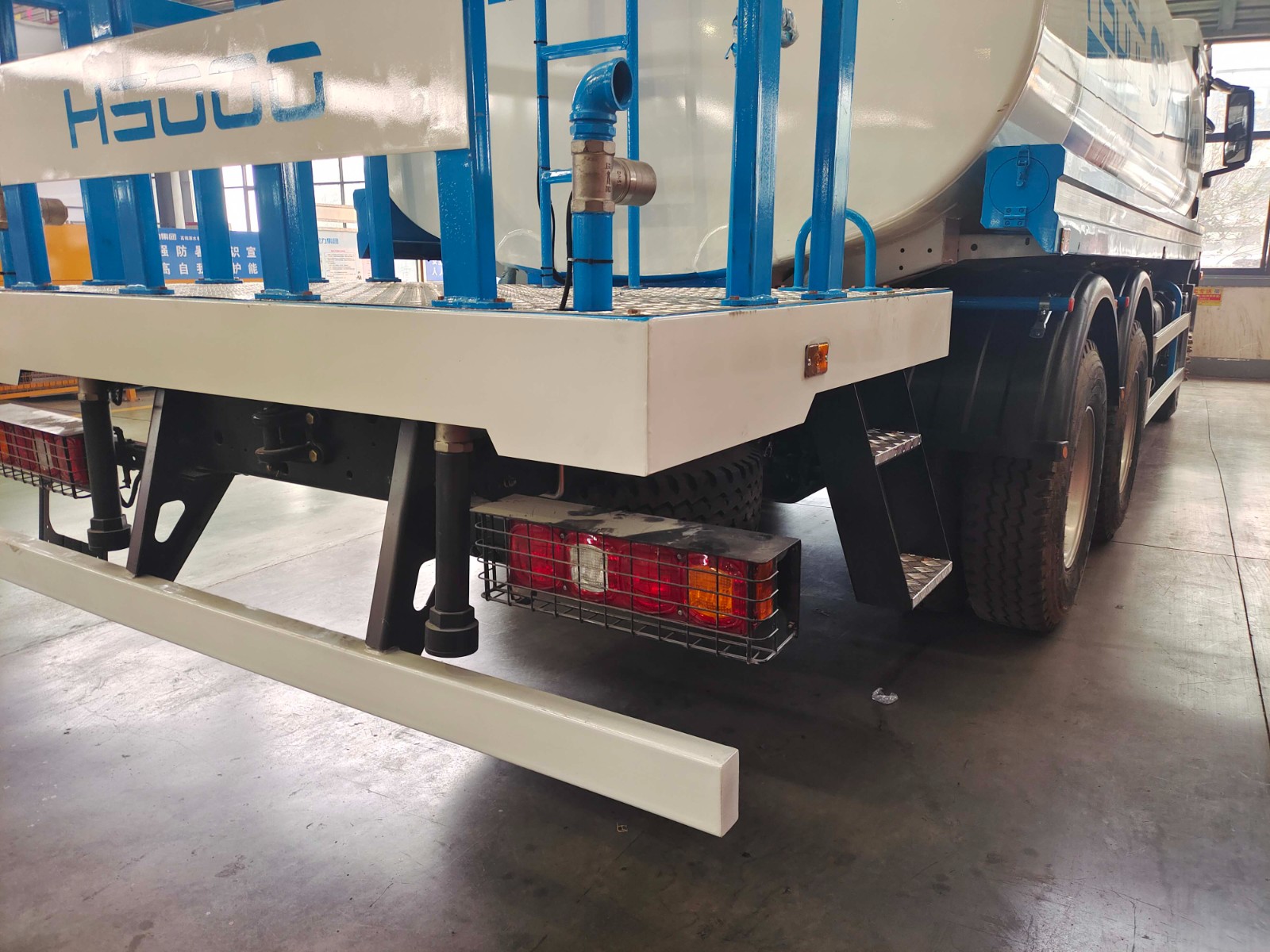

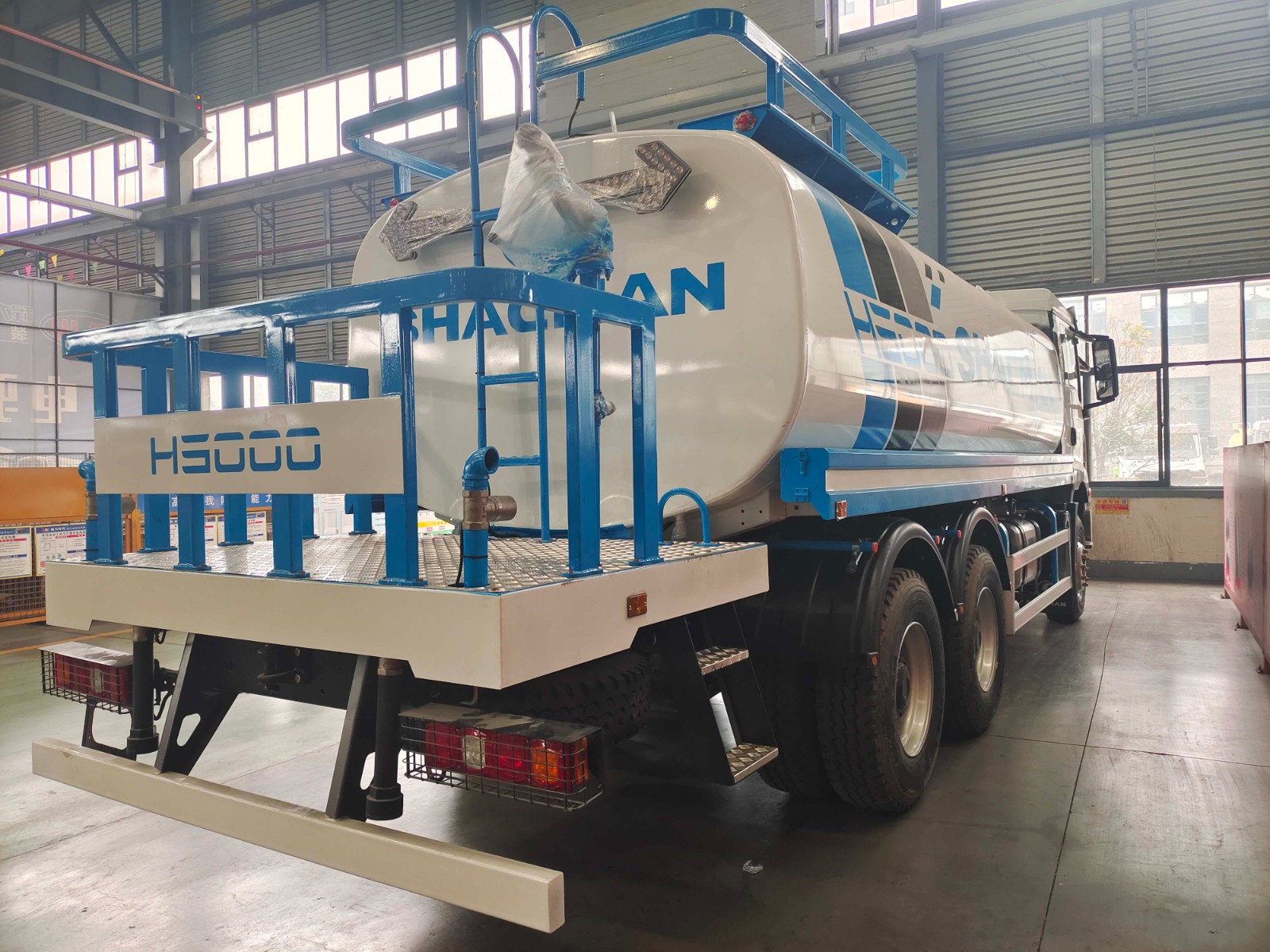

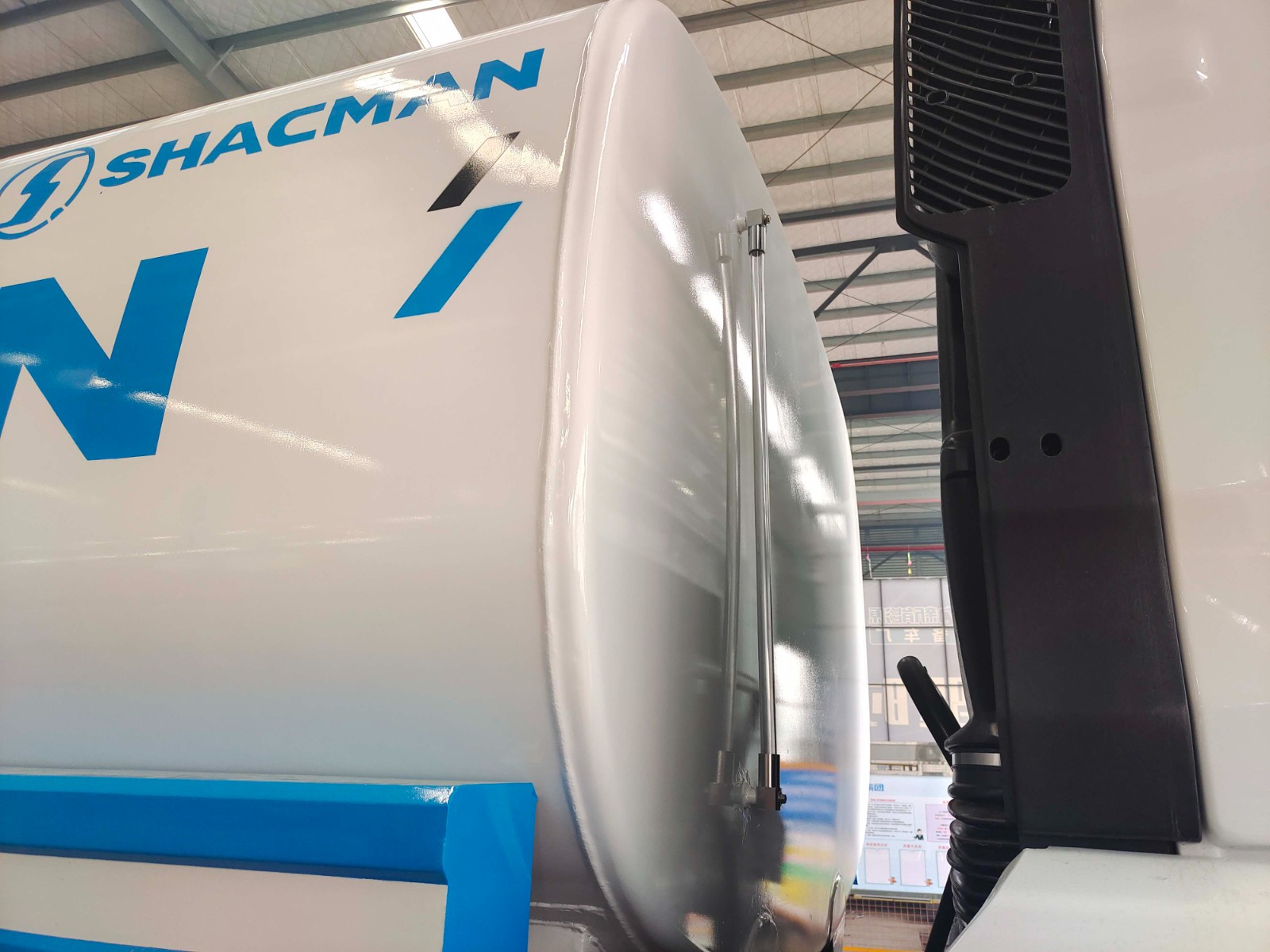

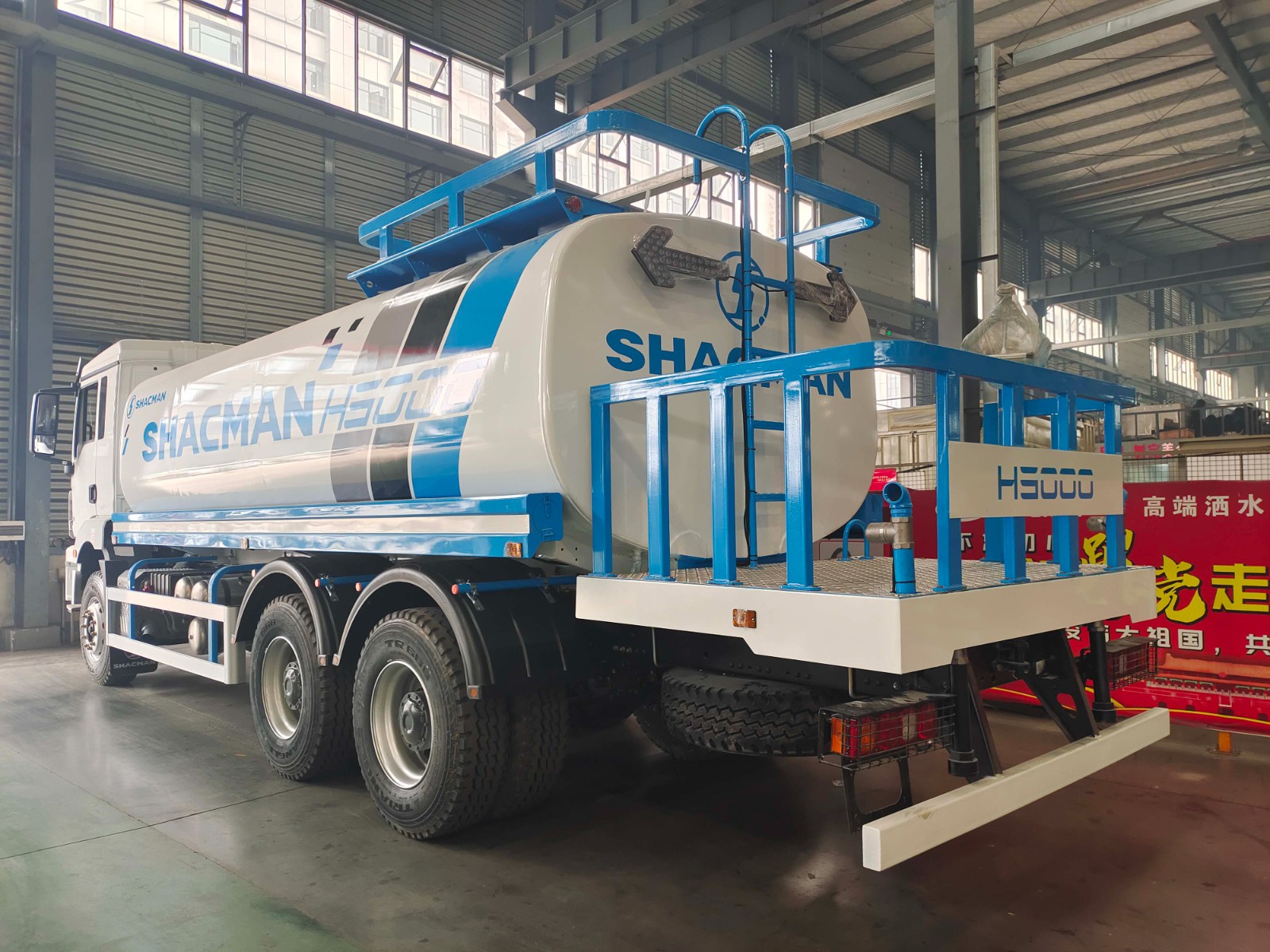

More pictures of the water sprinkler truck:

Details of the water sprinkler truck chassis:

The configuration of Shacman 3000 includes the following aspects ‌ :

‌ Drive form ‌ : 6X2

‌ length ‌ : 12.25 meters

‌ width ‌ : 2.55 meters

‌ height ‌ : 3.96 meters

‌ Origin ‌ : Xi 'an, Shaanxi Province

‌ tonnage class ‌ : heavy duty truck

‌ Driving license requirements ‌ : A1, A2, B2

Engine and transmission

‌ engine brand ‌ : Xi 'an Cummins

‌ Engine model ‌ : ISM11E4 385

‌ Number of cylinders ‌ : 6

‌ Type of fuel ‌ : diesel

‌ displacement ‌ : 10.8L

‌ Emission standard ‌ : State 4

‌ Max output power ‌ : 283kW (385hp)

‌ maximum torque ‌ : 1825N·m

‌ engine form ‌ : supercharged and intercooling, direct injection, electronic control

‌ gearbox brand ‌ : Eaton

‌ Gearbox model ‌ : ET-20013

‌ Shift mode ‌ : manual

‌ Forward gear ‌ : 13

‌ reverse ‌ : 3

Cargo box and cab

‌ container type ‌ : van type

‌ Length of cargo box ‌ : 9.6 meters

‌ container width ‌ : 2.55m

‌ container height ‌ : 2.48m

‌ cab ‌ : extended high top

‌ Permitted passenger number ‌ : 3

‌ row ‌ : half row

Other configuration and performance parameters

‌ Description of front bridge ‌ : MAN7.5T

‌ Rear axle description ‌ : 13T MAN single-stage

‌ Rear axle speed ratio ‌ : 3.364

‌ Suspension type ‌ : less front and more back

‌ tire specifications ‌ : 12R22.5 vacuum tire

‌ Number of tires ‌ : 10

‌ Other configuration ‌ : Automatic air conditioning, electric shaking window machine, electric flip, central control door lock, cab four-point air suspension,

 domestic clutch, domestic steering machine, FRP bumper, Tianxing Health smart version, domestic four-channel ABS, 180Ah ordinary battery, electric

heating rearview mirror, expansion shaft shift, spare tire frame, curtains, aluminum alloy air storage cylinder, VOSS connector, ISM engine standard Jacob brake,

600L aluminum alloy oil tank, etc.

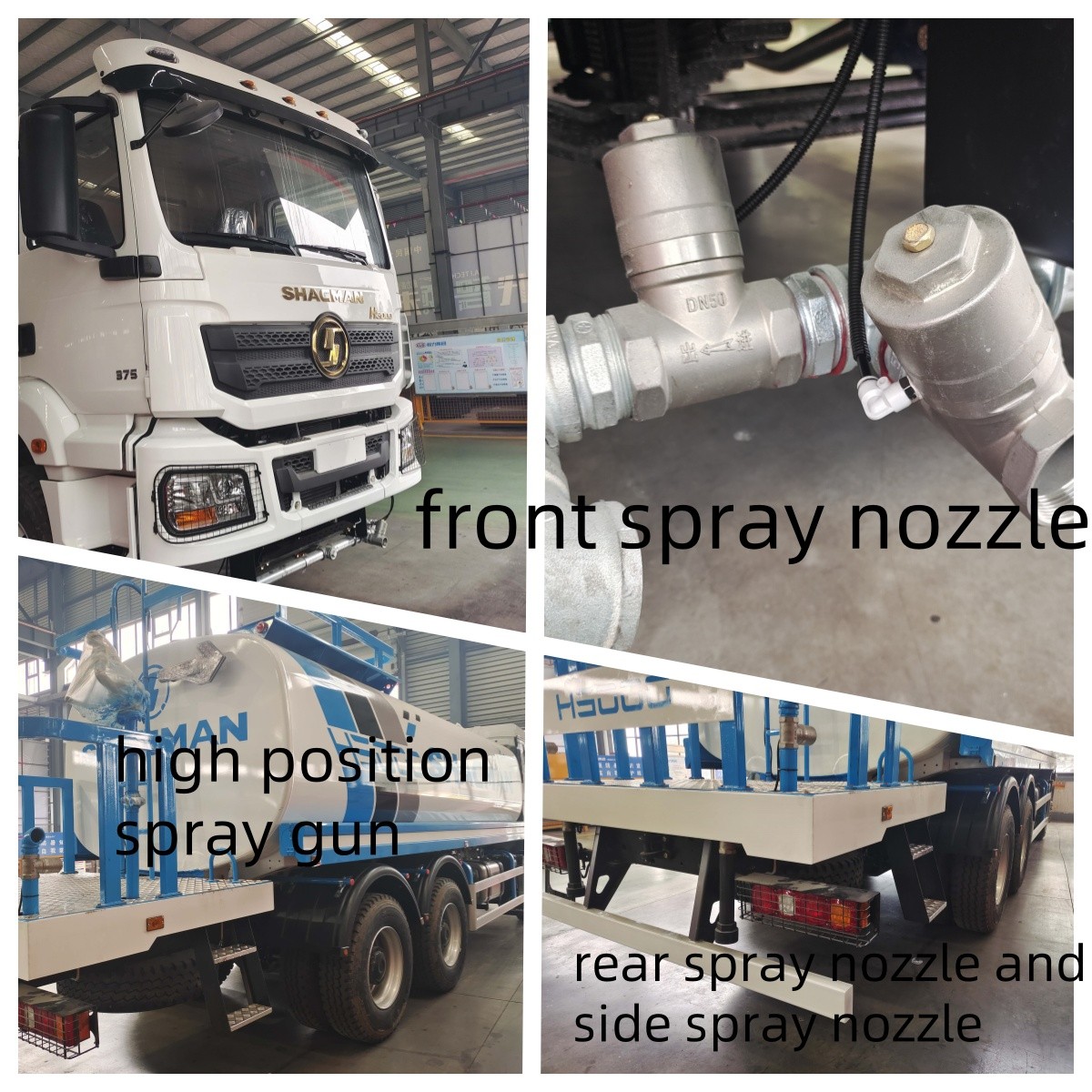

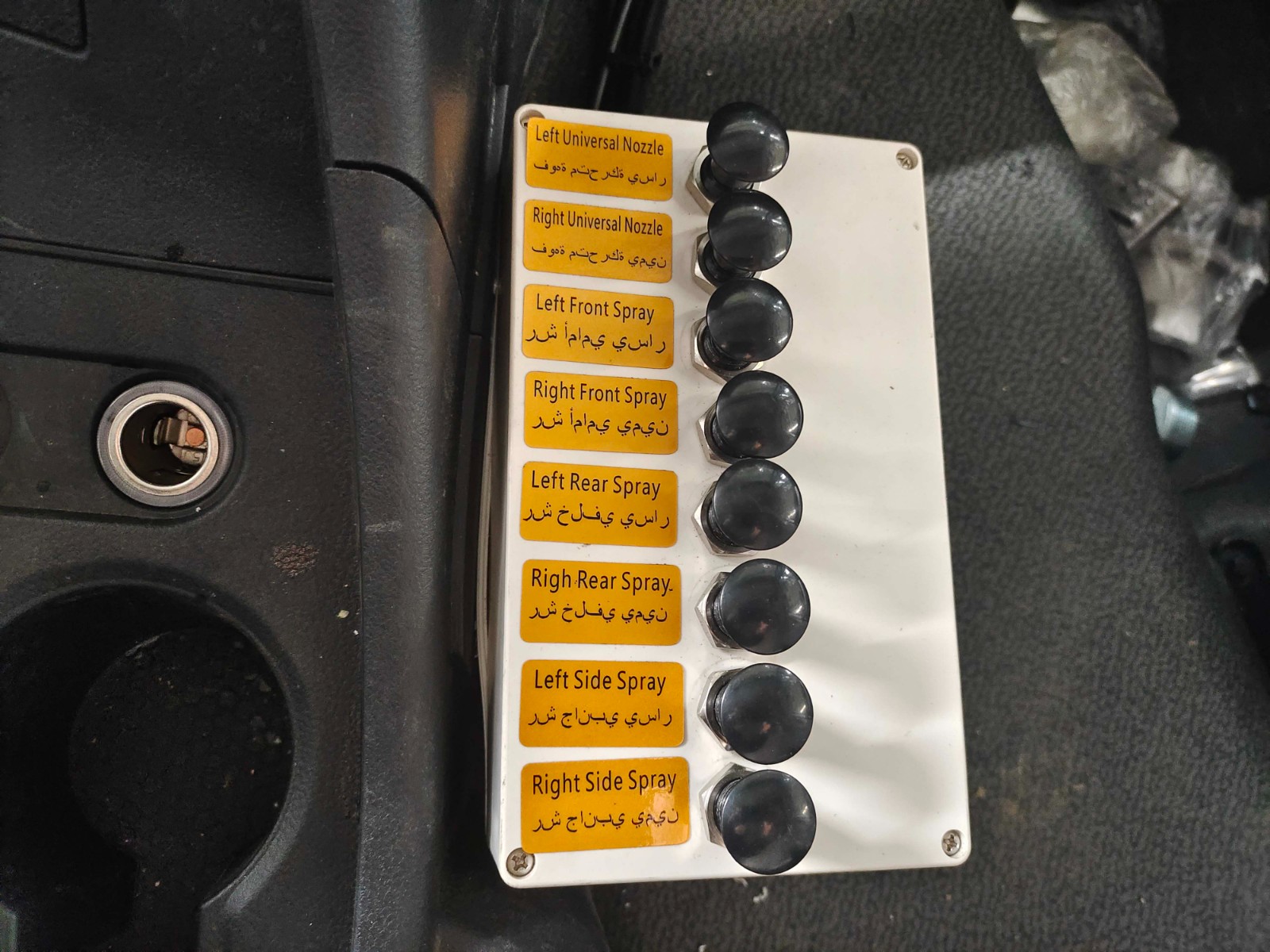

The Shacman 3000 water sprinkler truck body tank volume is 20m3. The front universal spraying nozzle/ front nozzle/rear nozzle/side nozzle are pneumatically controlled. The control box is installed inside of the water sprinkler truck cabin.

The control box of the water sprinkler truckis installed cabin.

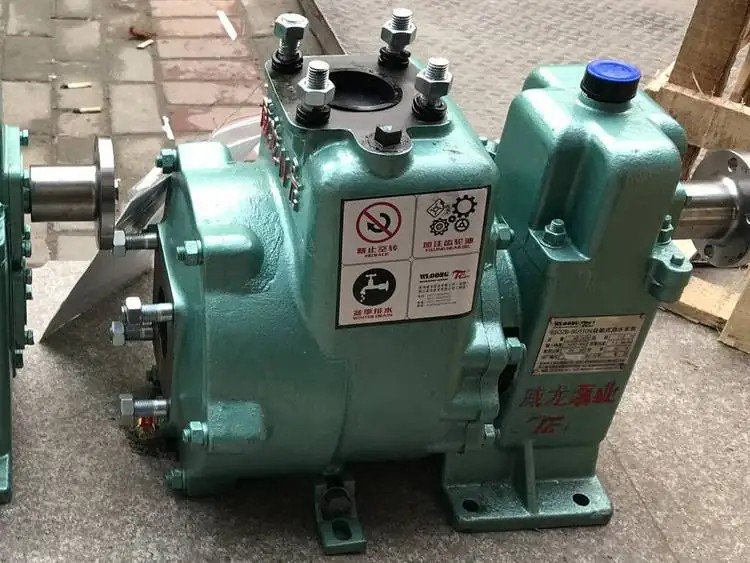

The Shacman 3000 water sprinkler truck adopt Weilong brand 65QZF-50/110N water pump.

Specification of the water pump:

Flow: 50m3/h

Head: 110m

Input rotation speed: 1180r/min

Suction performance: 1.5min/4m

Matched power: 24KW
