Shacman 15m3 water tank truck

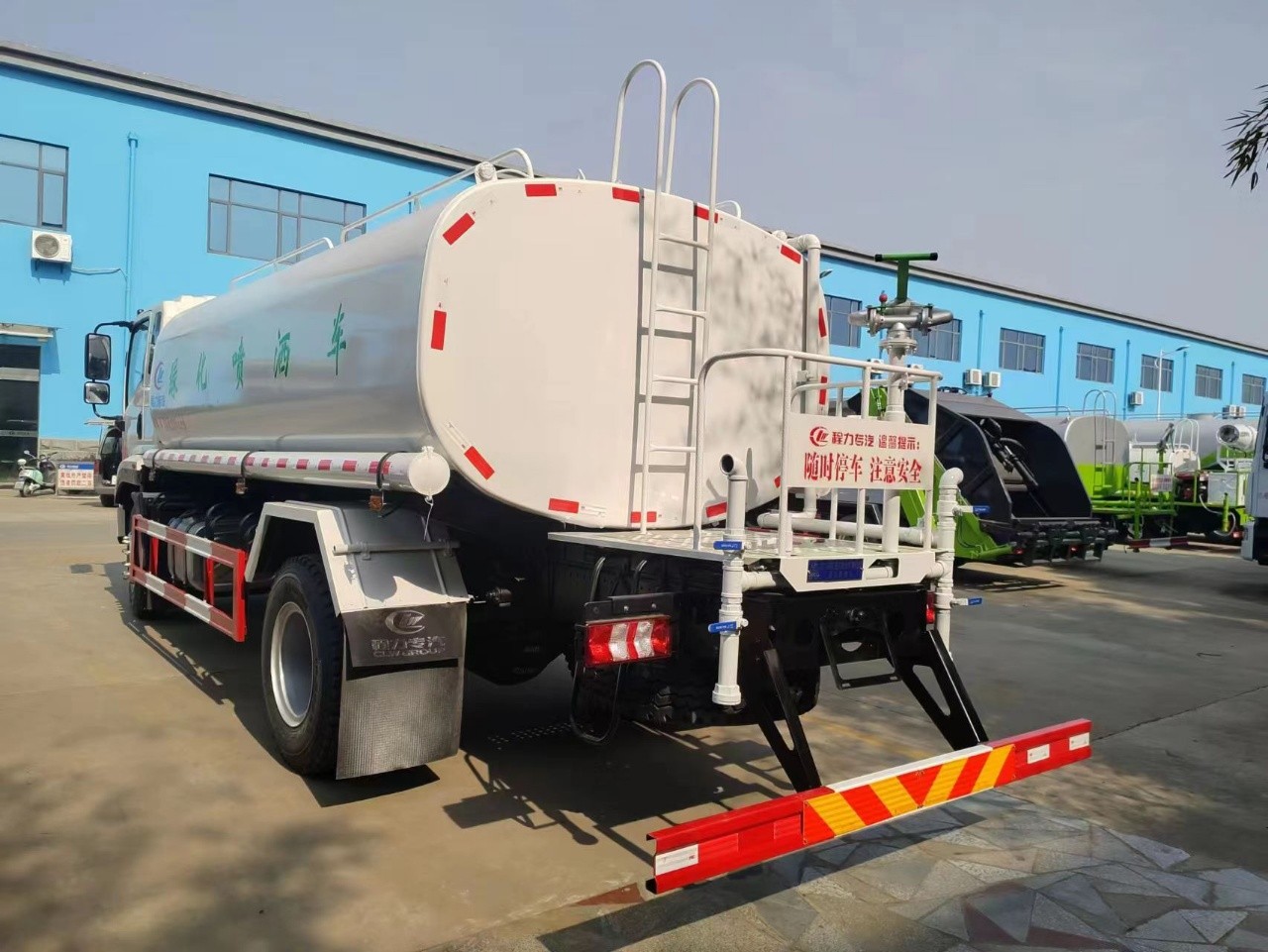

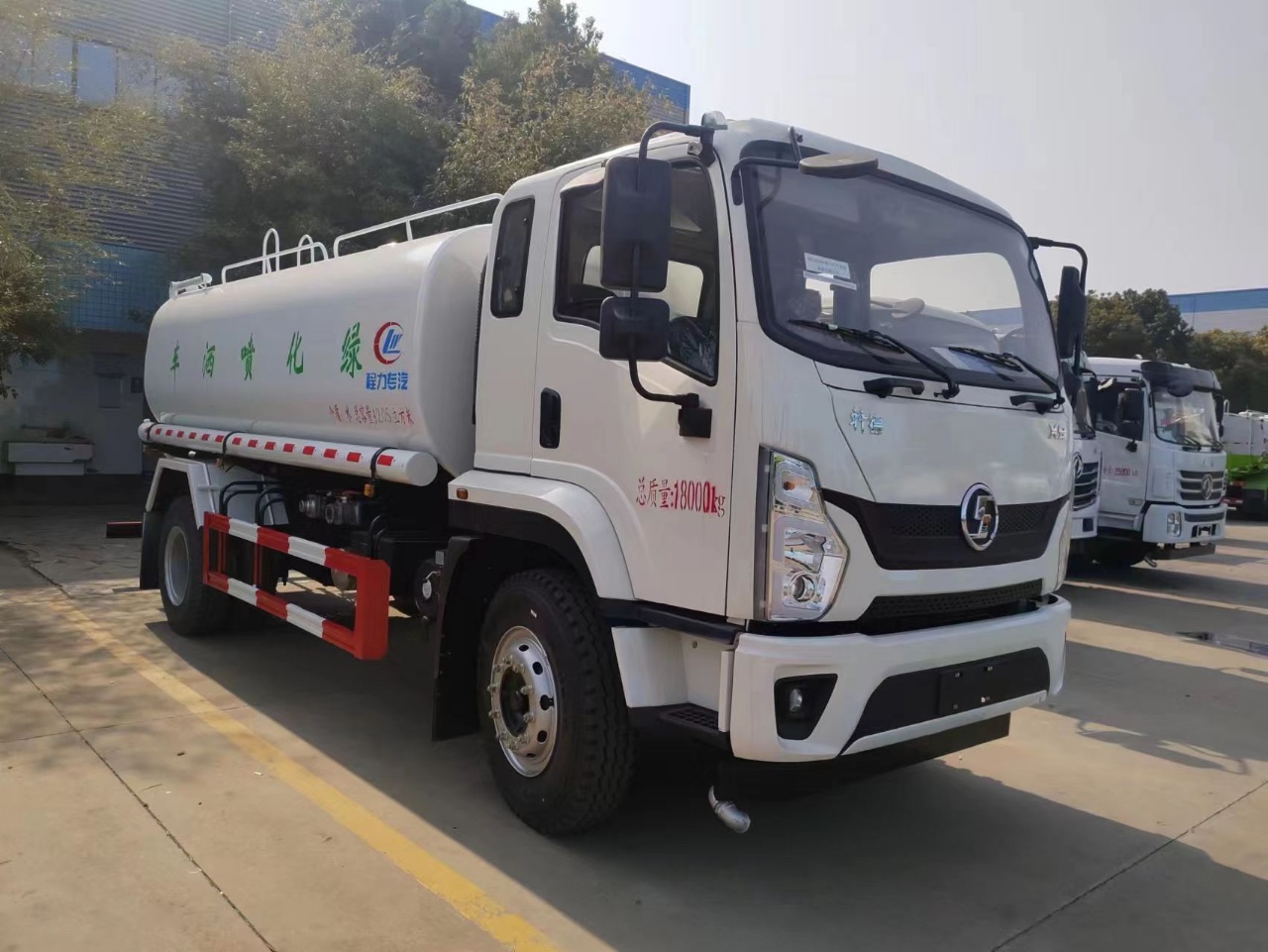

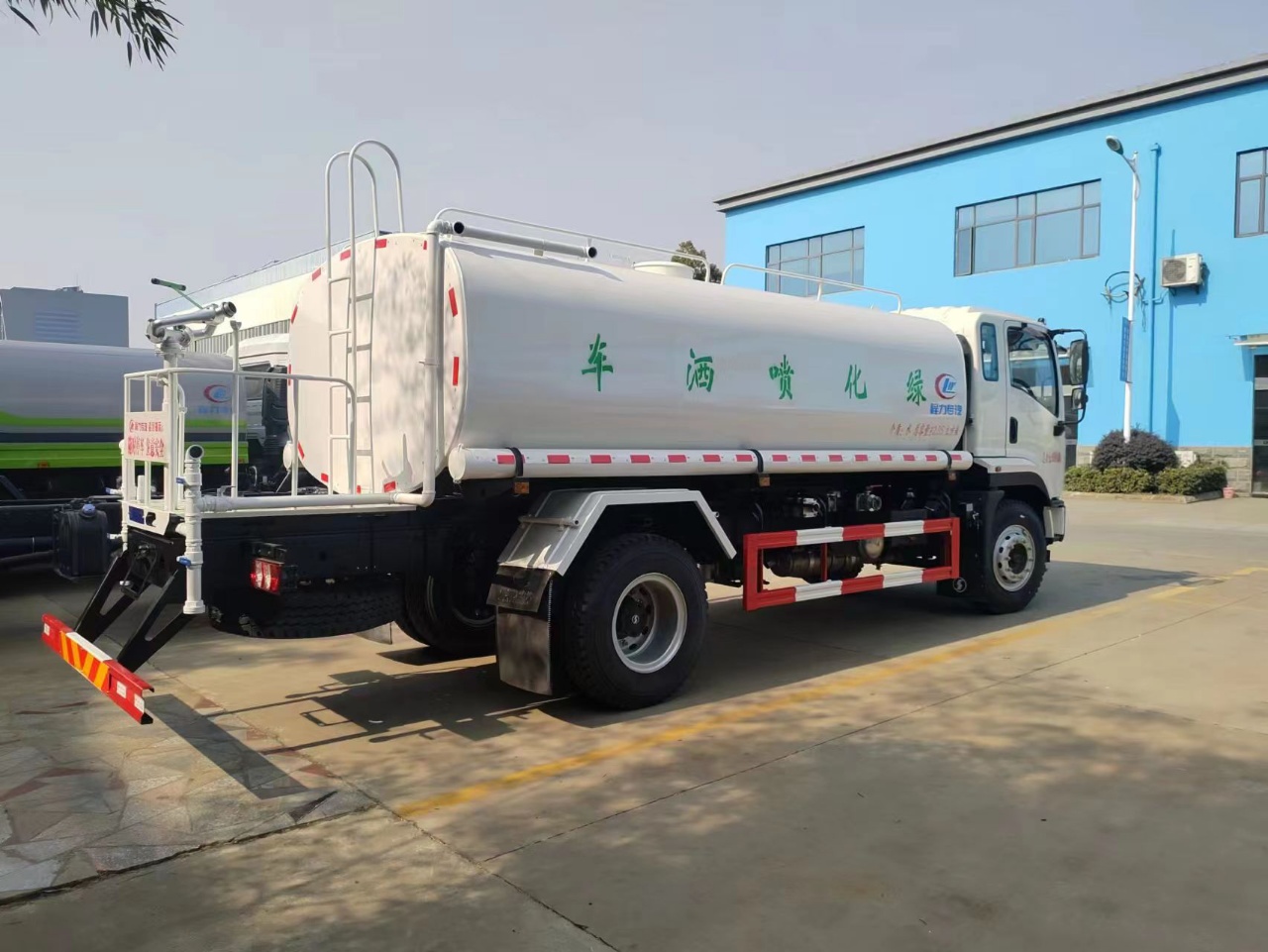

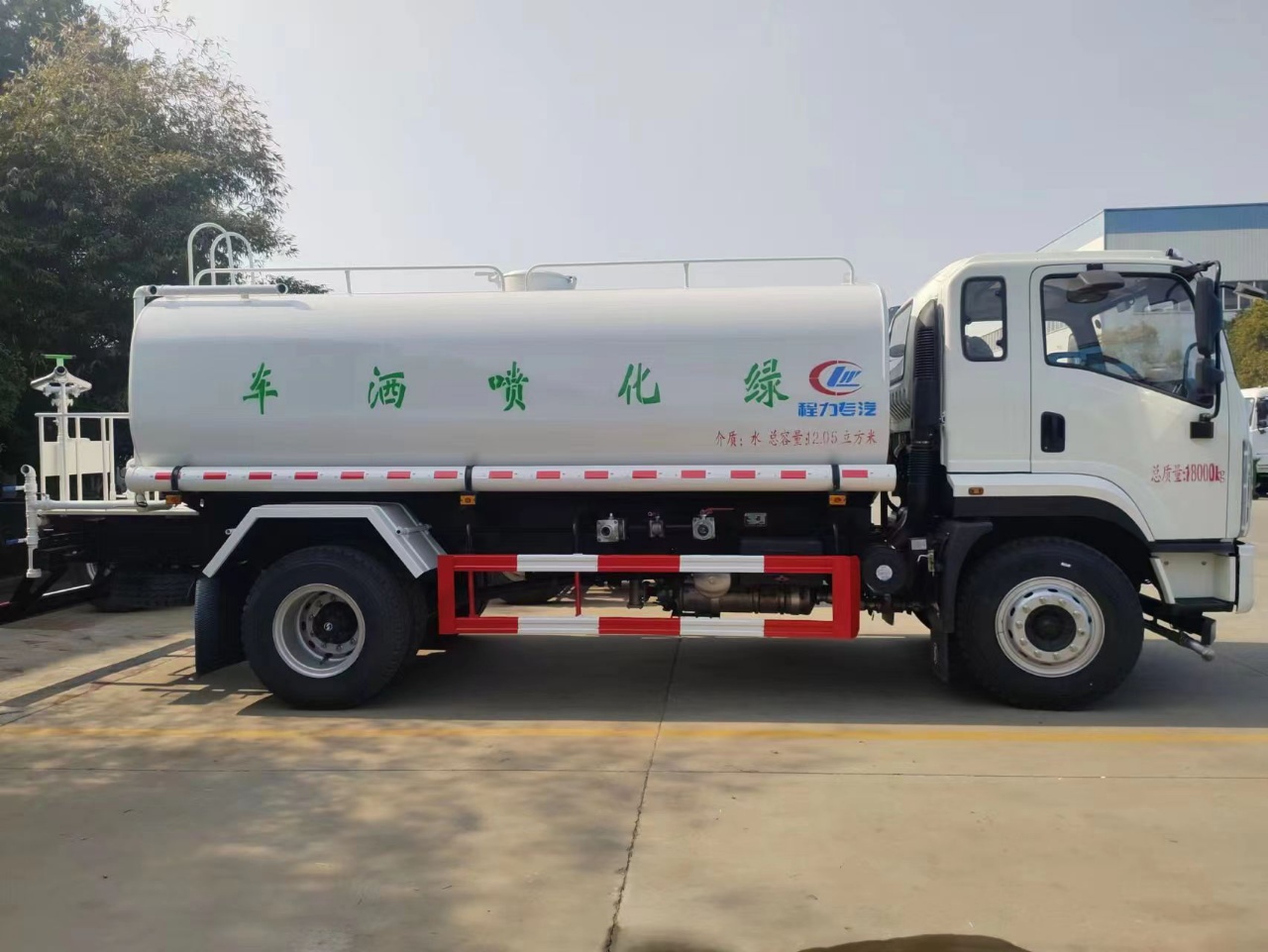

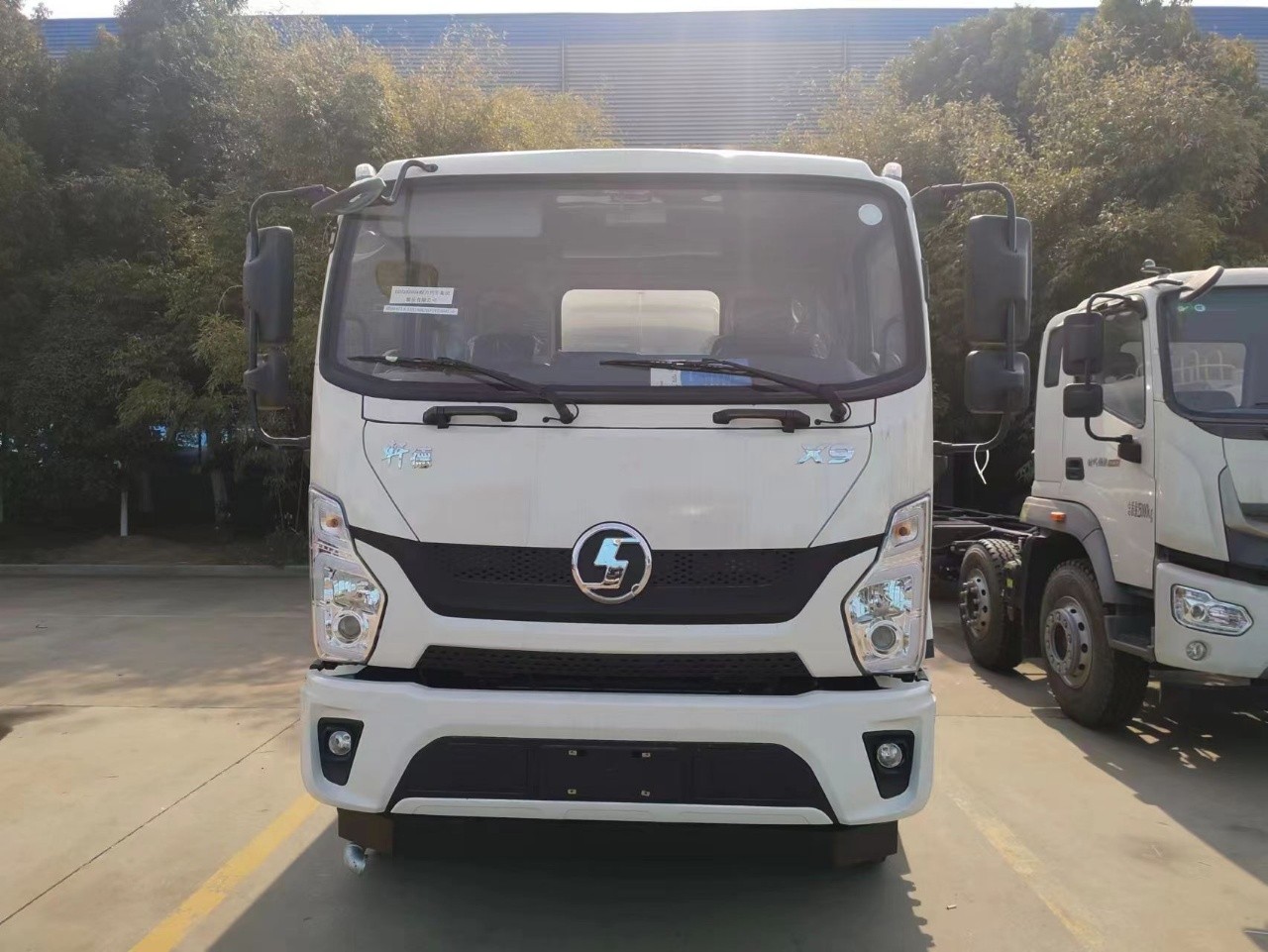

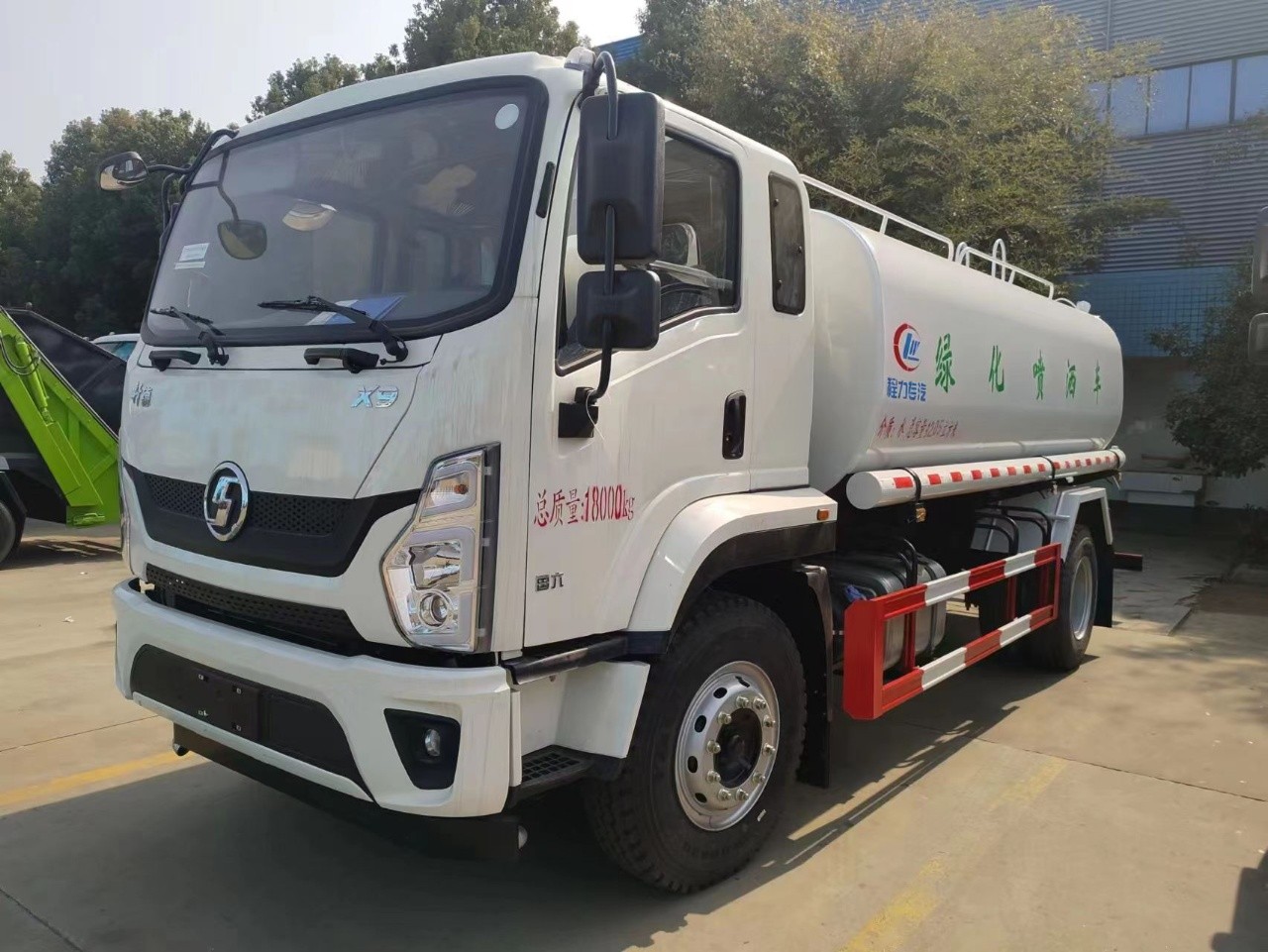

1. Pictures of the Shacman 15m3 water tank truck

2. Detailed configuration of the Shacman 15m3 water tank truck

Chassis model: SX1180BP6501

Vehicle announcement model: CLW5180GPSSDP

Engine :YCS04200-68

Transmission :8JS7C(with PTO)

Front/rear axle: 3.2T/10T(153B)

Frame (mm) : 250/6+4 double deck

Wheelbase (mm) : 4500

Cab: X9 row half /2120

Plate spring: 9/11+8

Fuel tank: 200L aluminum alloy

Tyre: 10.00R20/18PR.

Chassis configuration: X9 half row/2120 (with air conditioning/power Windows/vice seat fixed/with central control lock/cassette player/Tianhang Health Smart version BD vehicle terminal), wheelbase 4500, front axle 3.2T, rear axle 10T.

The body configuration of the 15m3 water tank truck: Material: tank body adopts Q235, partition thickness 3mm, tank body carbon steel thickness 4mm, head thickness 4mm. Large diameter ball valve, aluminum alloy tee, thick main pipe (76)

Cast aluminum pipe fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet four, aluminum alloy pump import through, mold one-time die casting molding, no weld, avoid water leakage, standardized design, good interchangeability, easy maintenance and replacement, aluminum alloy material more lightweight, beautiful and practical, improve product grade.

Other accessories: aluminum aftershower, stainless steel ball valve, high pressure water cannon

Punching plate platform: 2mm punching plate, better anti-slip, no water on the platform, structure optimization, stamping, better strength, lightweight design, beautiful and practical, improve product grade

Special performance of sprinklers Special performance of sprinklers forward (spray) after sprinkling, with side spray, with after the working platform, the platform is installed on the green sprinkler high-pressure cannon (gun spray shape can be adjusted: direct flushing, heavy rain, moderate rain, drizzle, can be continuously adjusted, the maximum range of up to 30 meters), equipped with high-power special sprinkler pump, with fire joints, with self-priming valve, with filter screen. Suction ≥6 meters sprinkling width ≥16 meters range ≥30 meters fog ≥15m
