Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
Vehicle Model: CLW5045TYH6SL
Chassis Model: BJ1046V9JDA-51
Wheelbase: 3360mm
External Dimensions: 5995×2090, 2050×2900mm
Gross Weight: 4495kg
Curb Weight: 3630kg
Tank Volume: 7m³
Tire Size Specifications: 7.00R16 Wire-Tire
Fuel Type: Diesel
Standard: GB17691-2018 National VI
Engine: Quanchai 150 HP 5-speed
Quanchai 150 HP, double-layer frame, 1850mm wide cab, single-row, Wanliyang 5-speed, 7.00R16 Wire-Tire, dynamic steering, ABS, cruise control, air brakes, central locking, power windows, remote control, air conditioning, airbag and shock-absorbing seats, 4.5T rear axle, 2.2T front axle.

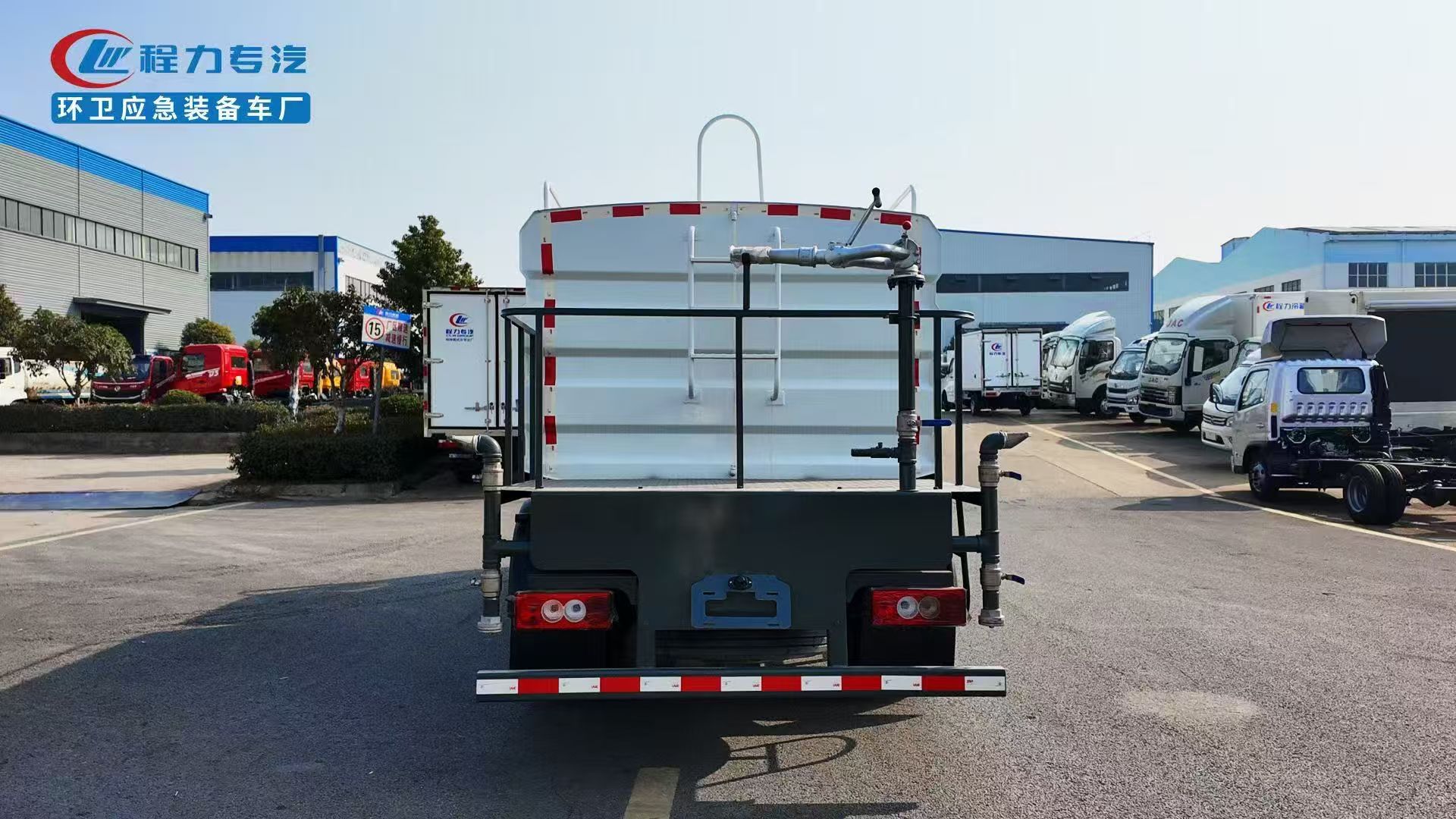

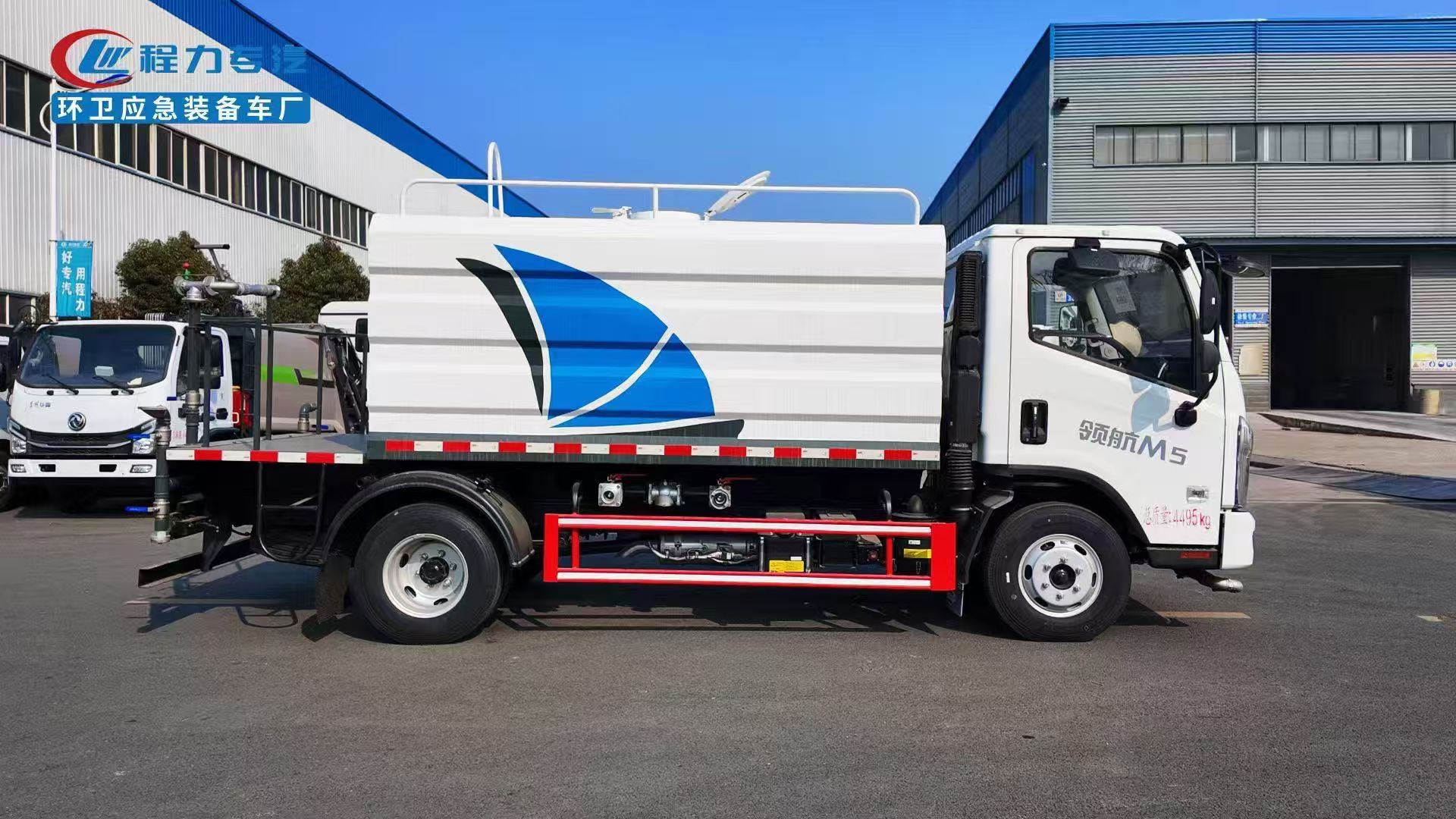

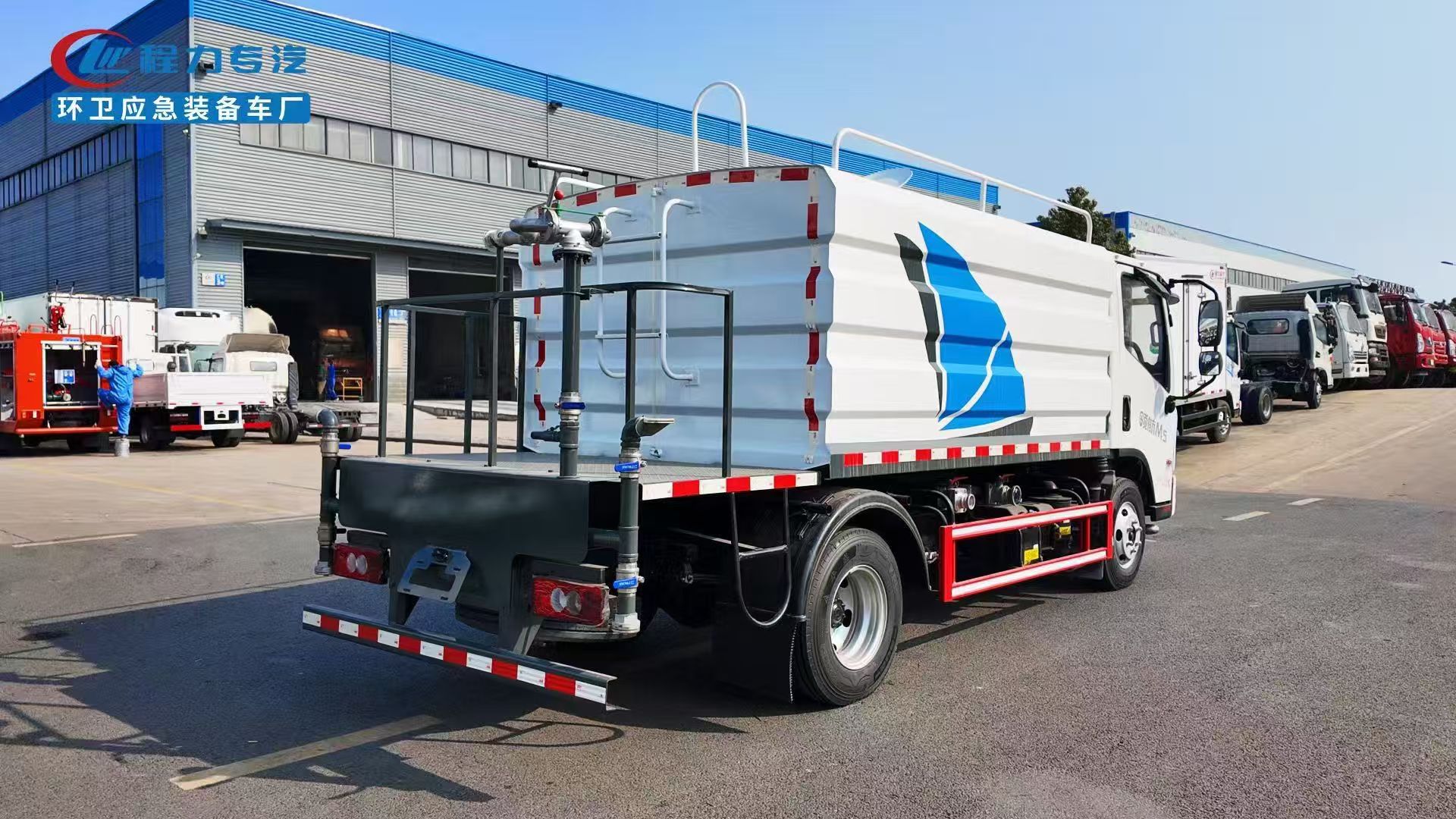

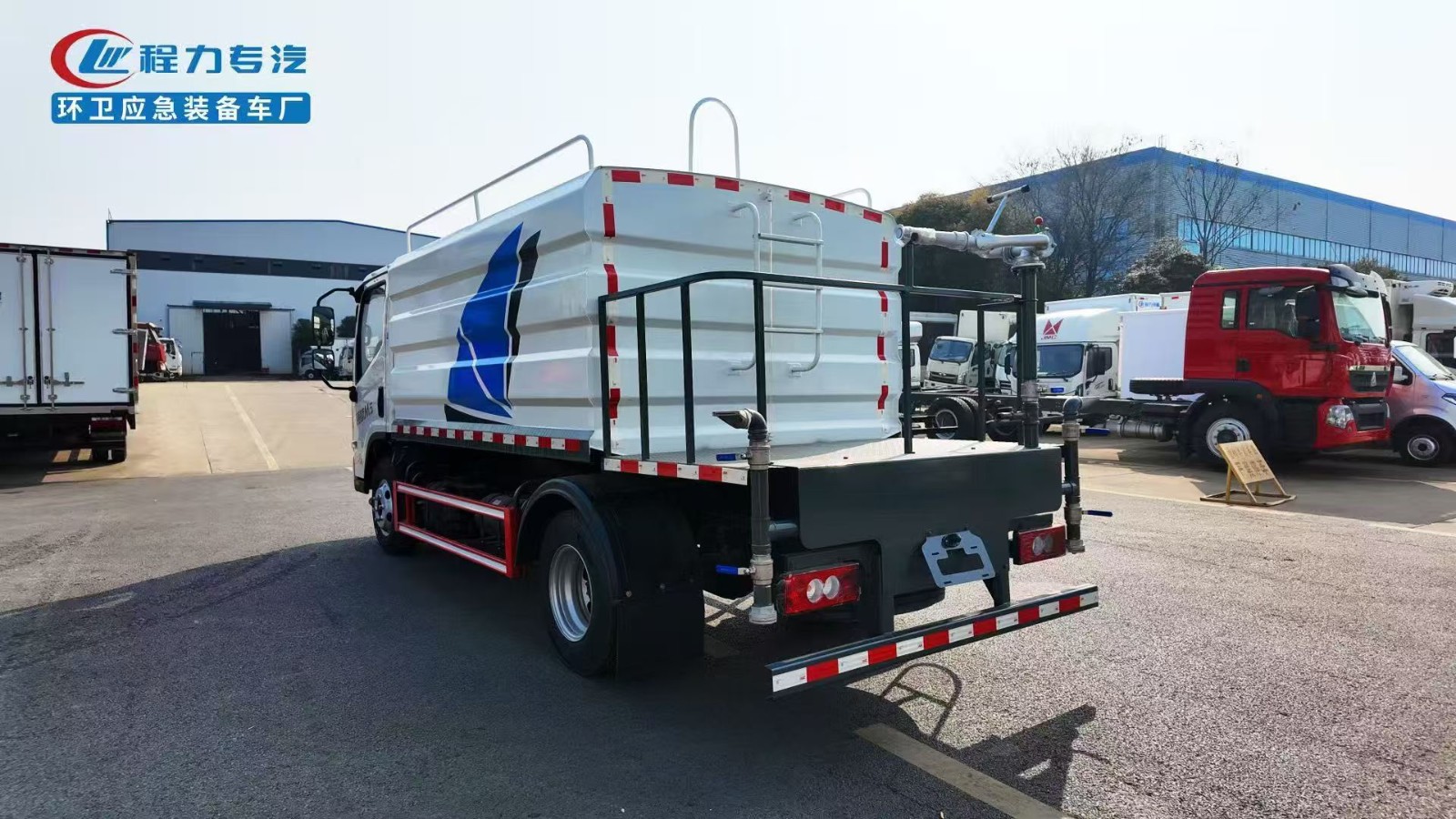

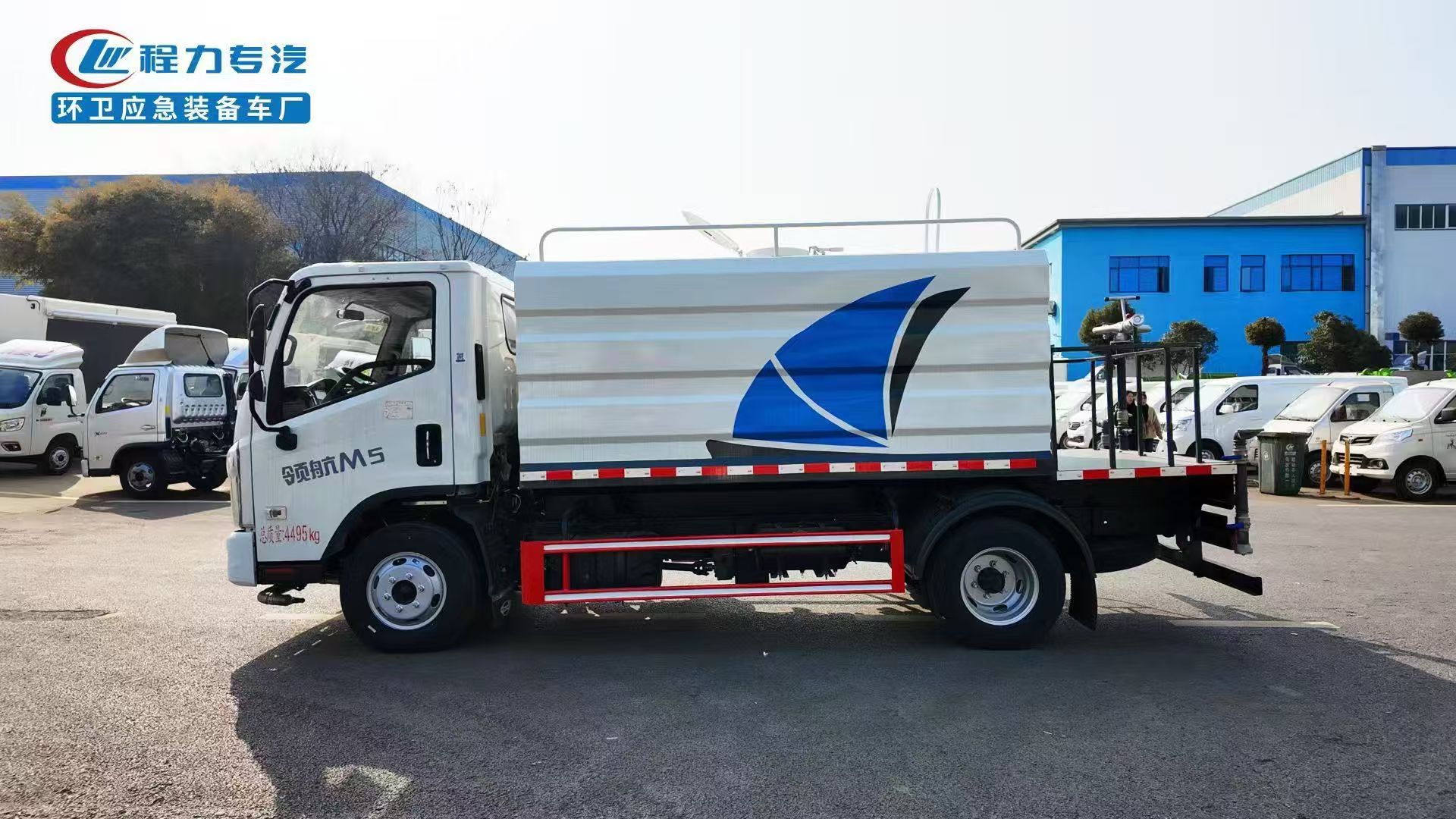

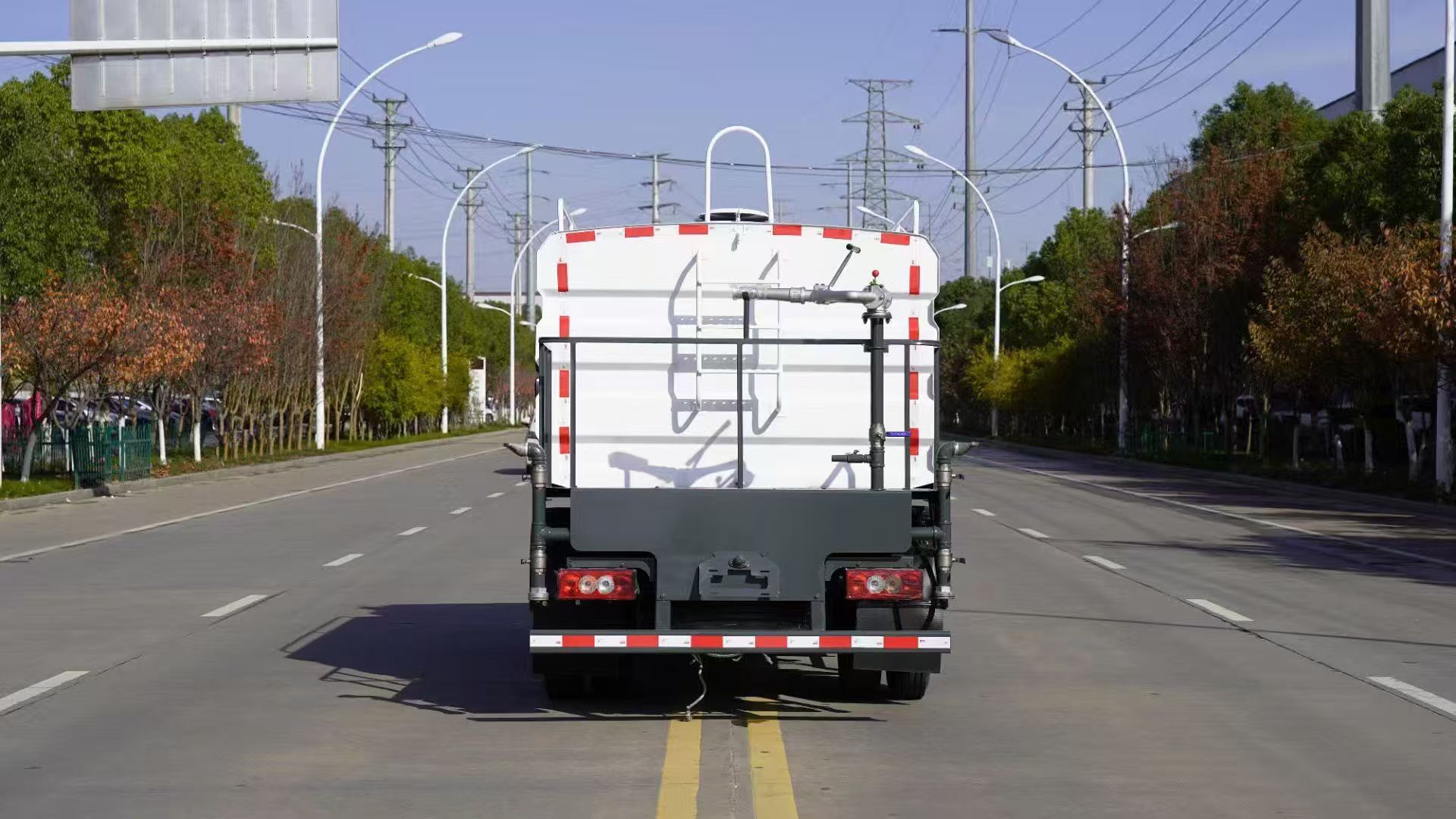

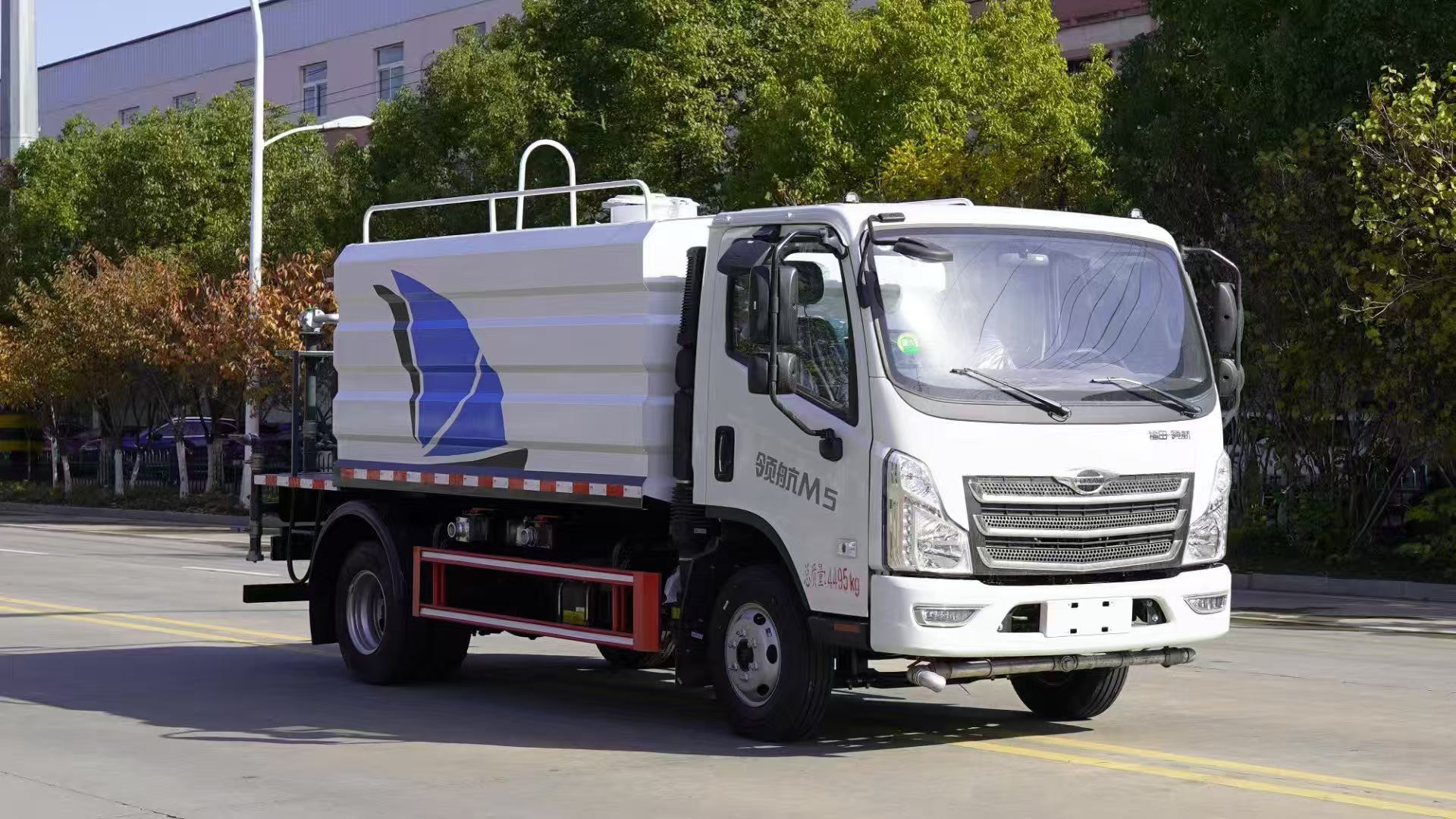

The FOTON 7m3 water sprinkler truck adopts Q235 material. Water pump model: 40/50. The tank is secured with four saddle bolts. The tank has a butterfly-shaped wave-breaking plate inside.
The FOTON 7m3 water sprinkler truck water pump details:
flow: 40 m³/h
head: 50m
self-priming height: 6.5m
self-priming time: 1.5min/4m
shaft speed: 1450rpm/min
shaft power: 9.25Kw
The water sprinkler truck operation:
