Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

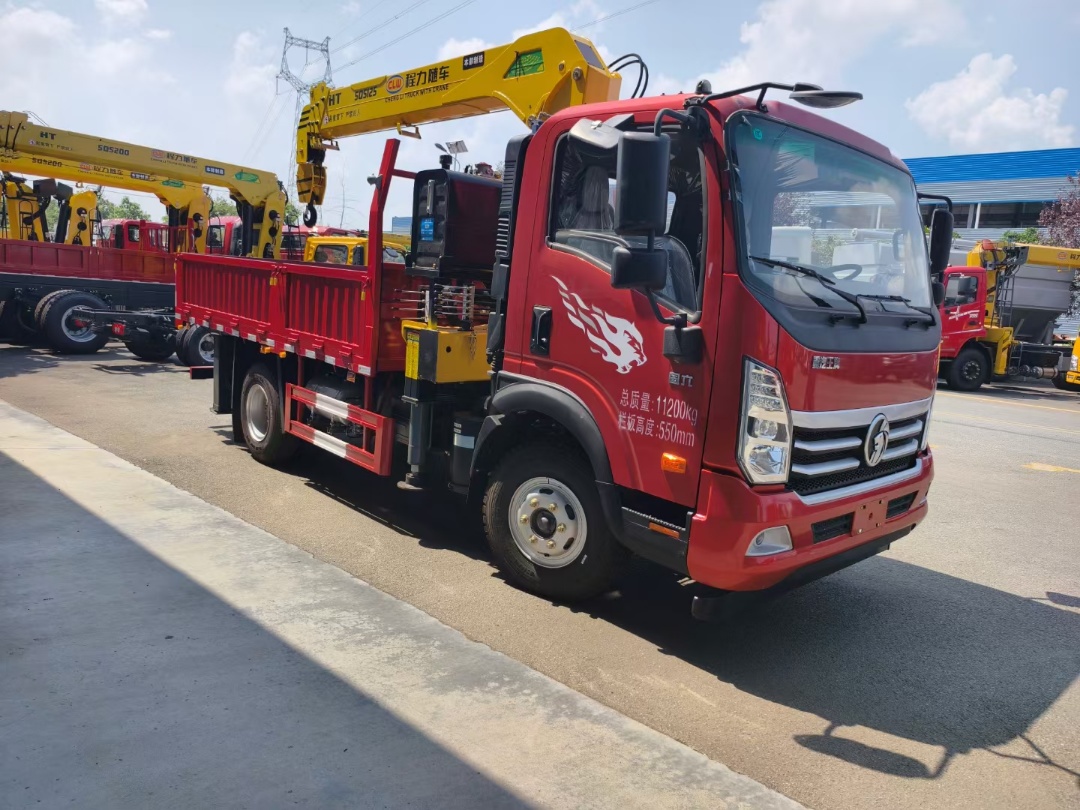

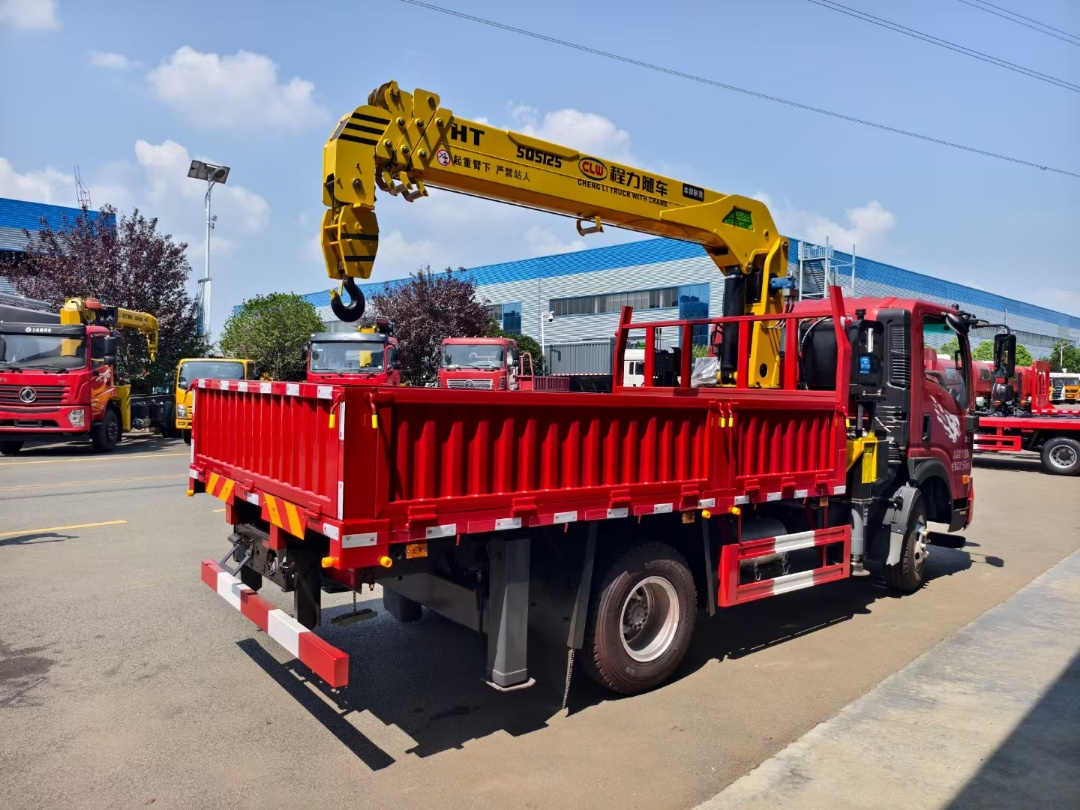

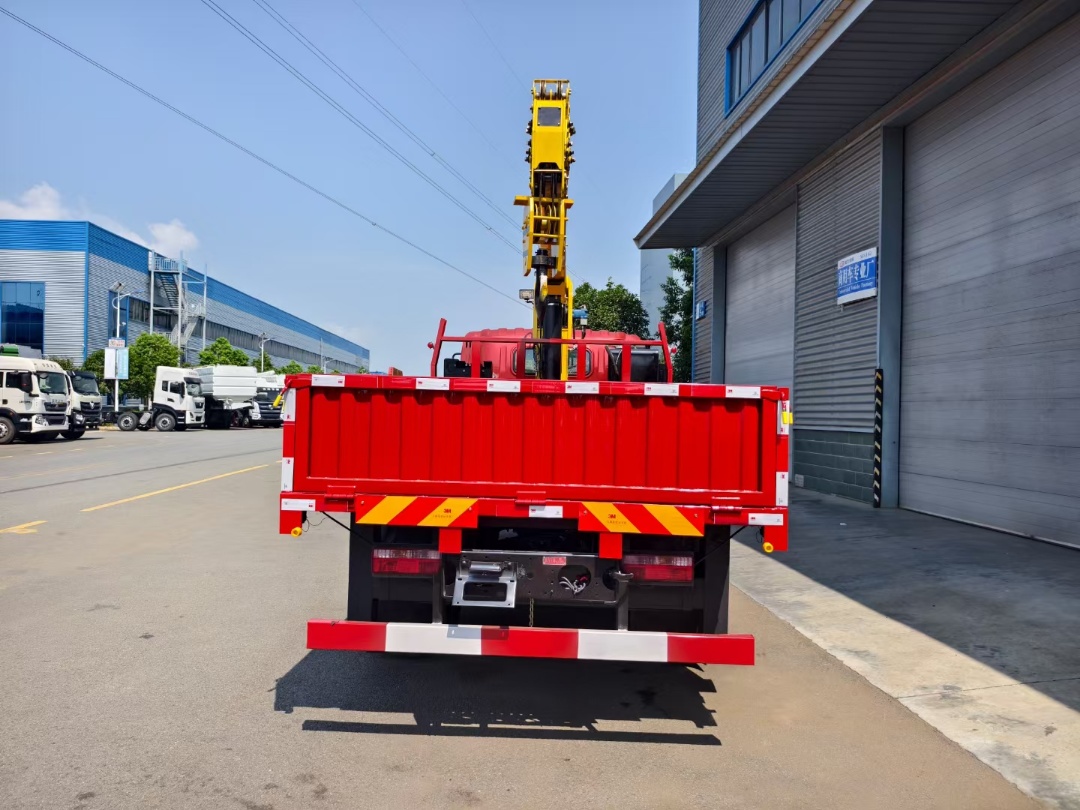

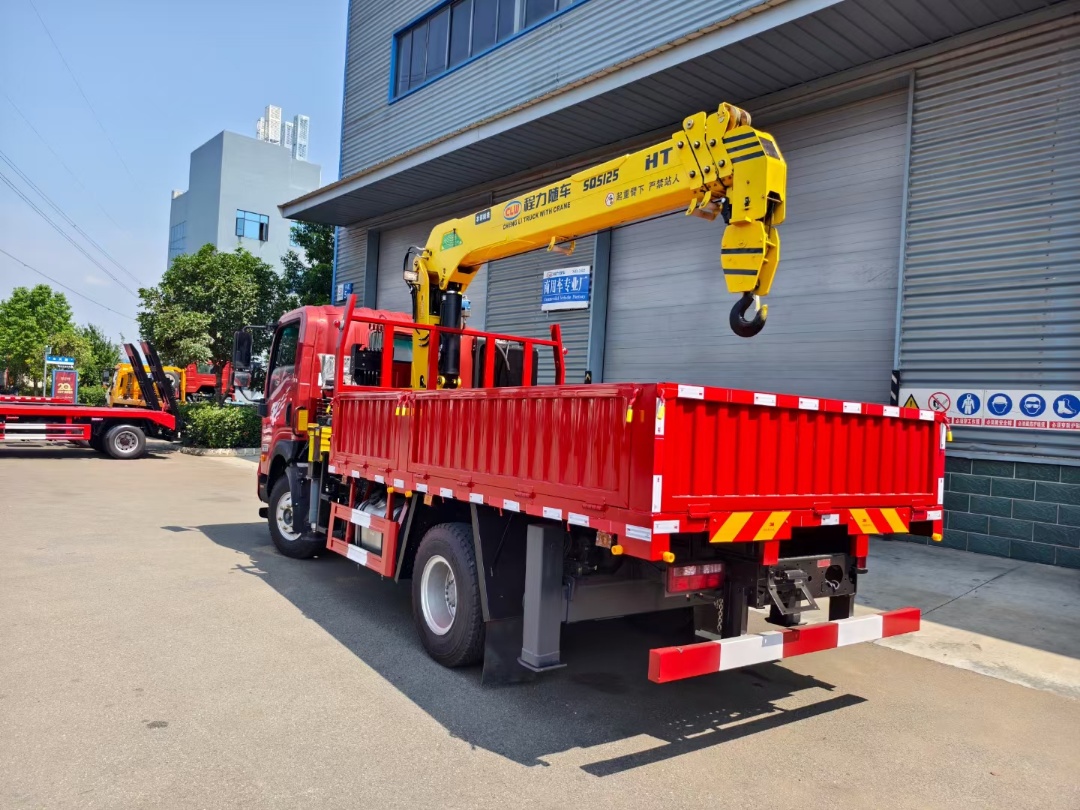

Crane truck, also known as a truck-mounted crane, is a device that lifts, rotates and transports goods through hydraulic lifting and telescoping system, and is usually installed on a cargo truck.The truck-mounted crane can carry various types of grabs and auxiliary tools, such as timber clamping grabs, hoisting baskets, brick clamping tools, drilling tools, etc., to enable multi-scenario operations.
Sinotruck 5T truck mounted crane parameters:
| model | CDW5110JSQHA1Q6 | GVW | 11200kg |
| rated loading capacity | 4275kg | curb weight | 6730kg |
| axle loading capacity | 4000/7200kg | passengers | 3 |
| max speed | 90km/h | front/ rear overhang | 1280/1355mm |
Sinotruck 5T truck mounted crane chassis parameters:
| brand | Sinotruck | axle number | 2 |
| tyre number | 6 | wheelbase | 3600mm |
| tyre size | 8.25R16LT | front /rear gauge | 1740/1800mm |
| leaf spring number | 3/3+3 | fuel type | diesel |
The overall dimension of the whole truck mounted crane is 6860*2450*3550mm, the cargo body dimension is 3950*2350*550mm.
The truck is matched with 5T, 4 sections straight boom crane, the max lifting capacity is 5T, the max working radius is 12m.
