Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

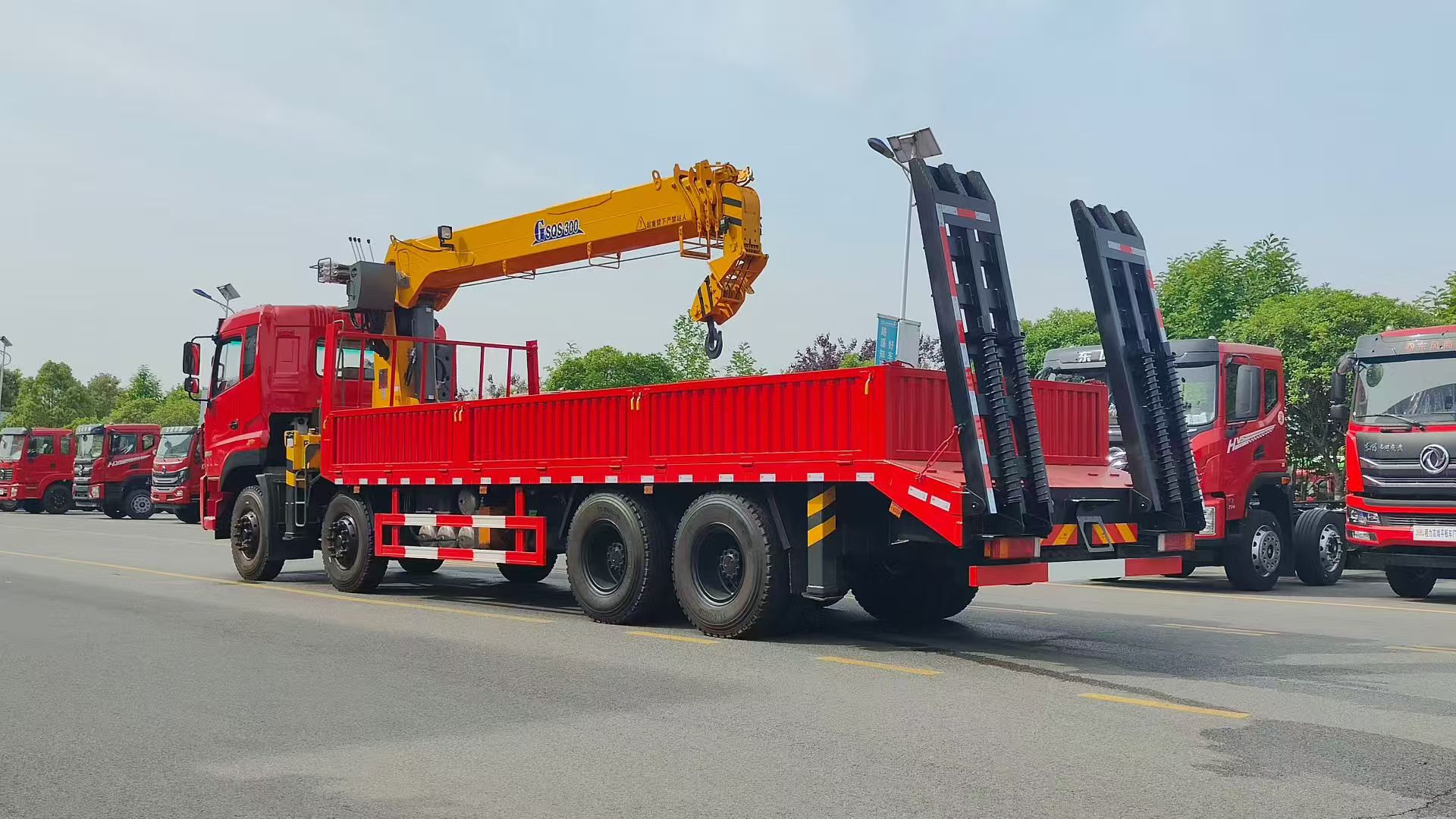

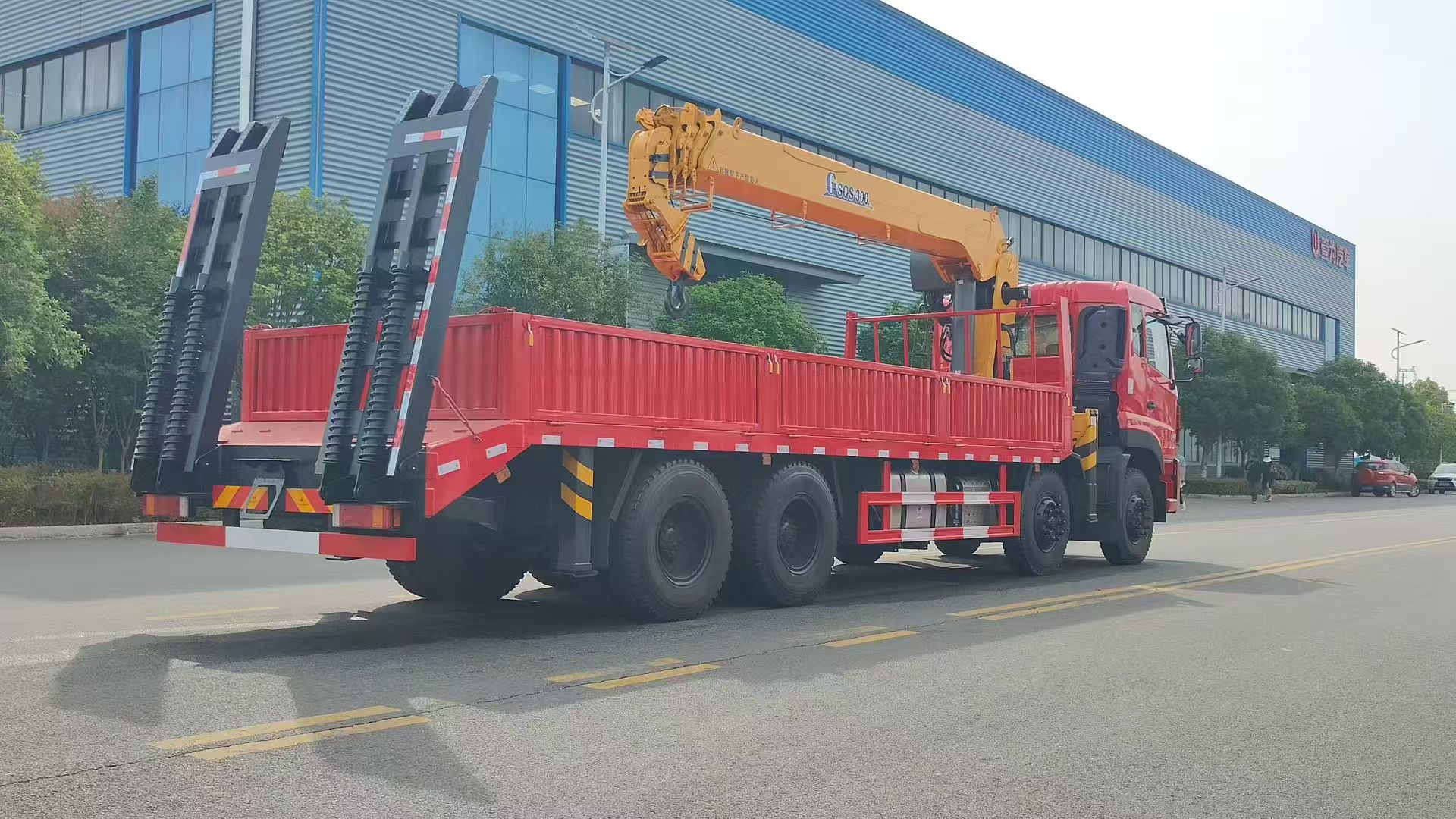

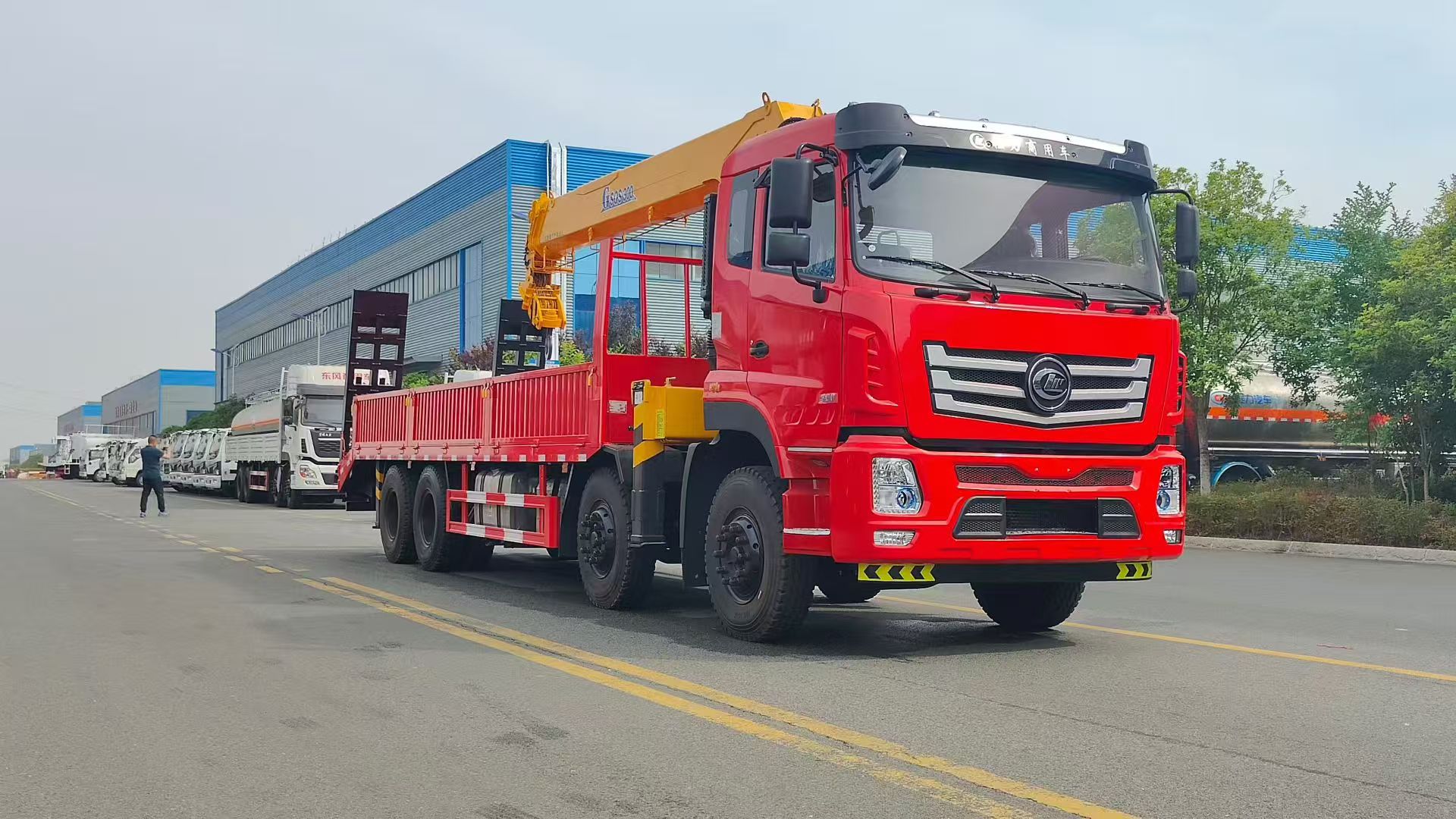

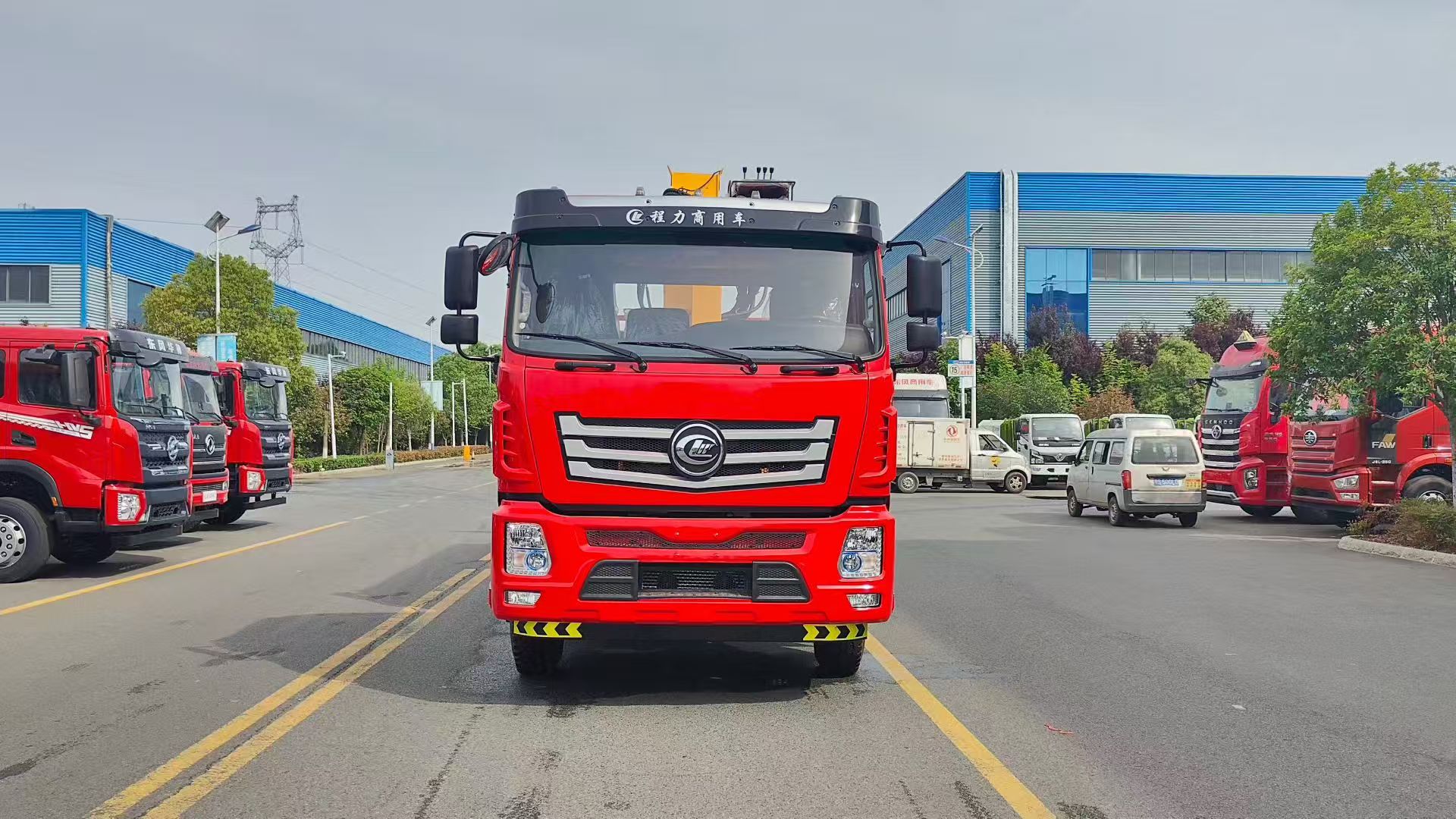

CLW 8*4 truck mounted crane
Model: CL5310JSQ6FD
Chassis Configuration: Daimler Heavy Duty Flat Roof (four-point suspension, airbag seats, electric glass, multi-function steering wheel, MP5 multimedia, electric folding, original factory air conditioning)
Engine: Weichai WP7.300E61 ;
Transmission: 10-speed transmission ;
Axle: 5-ton front axle, 10-ton rear axle
Frame: 300 (8+6+6) three-layer large beam ;
Tires: 11.00R20 steel cord tires
Other: 400L aluminum alloy fuel tank, aluminum alloy air tank, Dahe battery, Ruili brake valve.
Overall Vehicle Dimensions: 12000*2550*3950mm
Cargo Box Dimensions: 8500/8300*2480*800/600mm
Wheelbase: 2250+4350+1350mm
Chassis Optional:
1. Yuchai 350 horsepower (YCK08350-60)/12-speed transmission ;
2. Weichai 400 horsepower (WP10H400E62)/12-speed transmission ;
3. (457) 13-ton rear axle.
The CLW 8*4 truck mounted crane cargo body is 8300*2480*800mm, the material of the cargo body is Q345, with side plate 1.5mm, bottom plate 3mm. The cargo body has different type for choice.
The CLW 8*4 truck mounted crane is matched with 16T crane, the max lifting capacity of the crane is 16T.
The 8*4 truck-mounted crane is a "truck + crane" combined type vehicle. It is mainly engaged in the dismantling and transportation of small and medium-sized equipment in industries, construction, and urban construction. One truck-mounted crane can handle the work of three vehicles (2 cranes + 1 truck), and the total cost can be reduced by half.
