FOTON 23m aerial platform truck

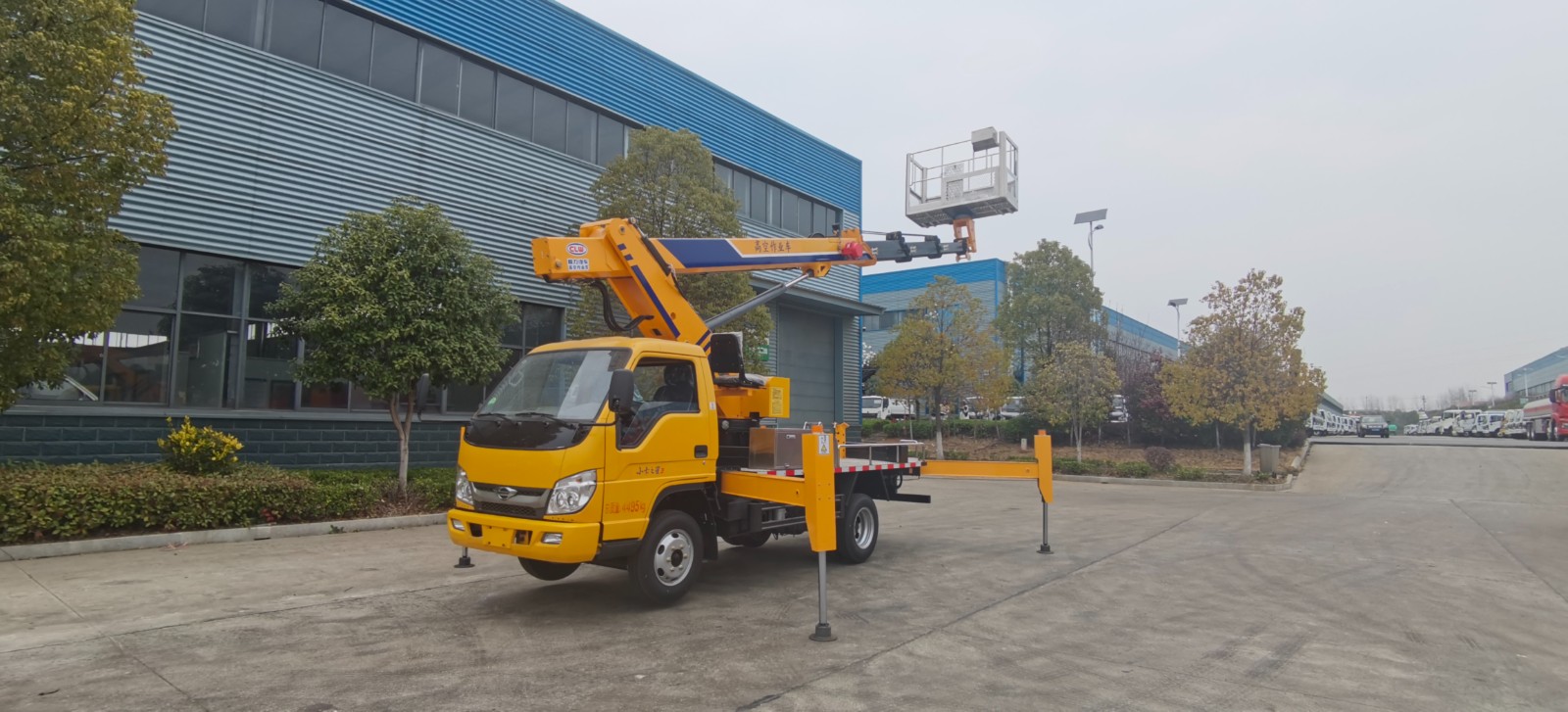

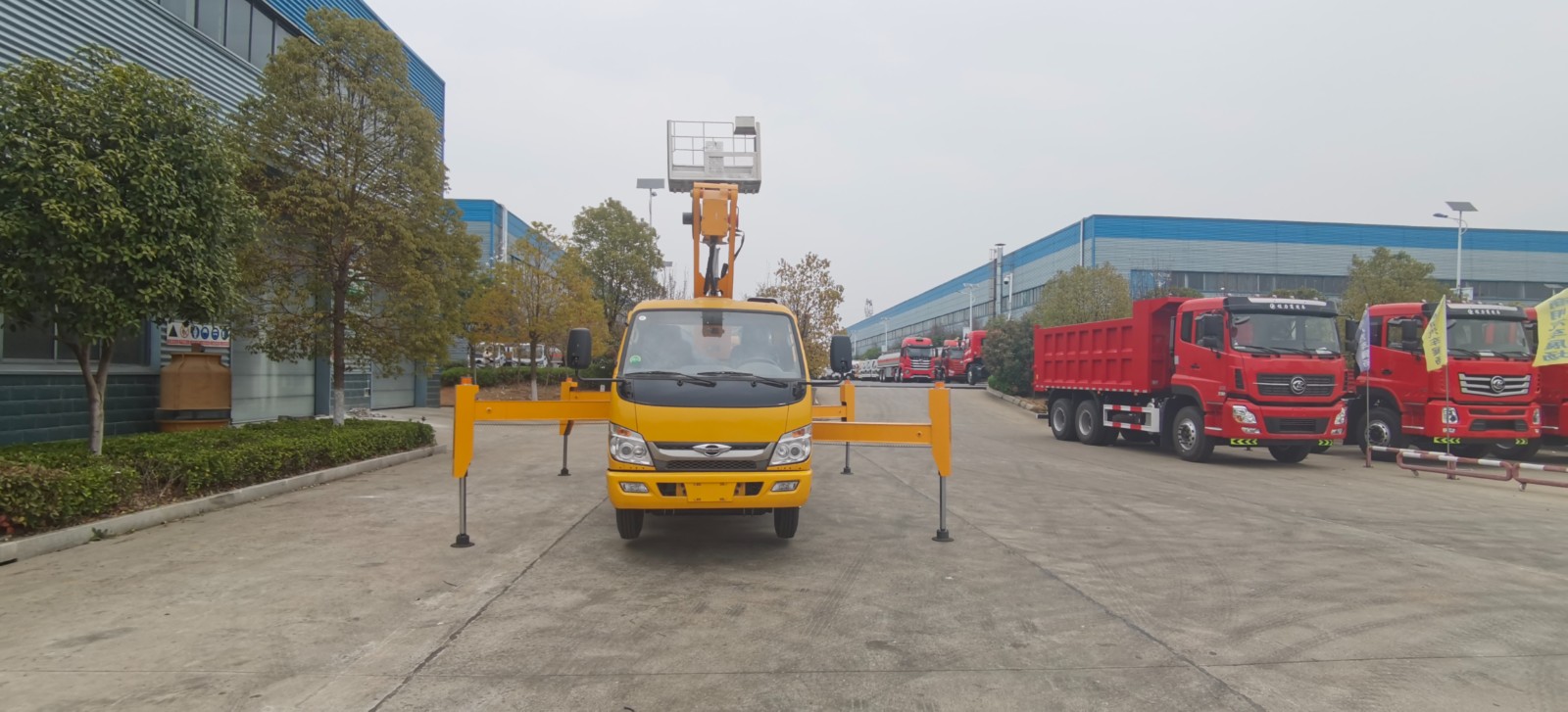

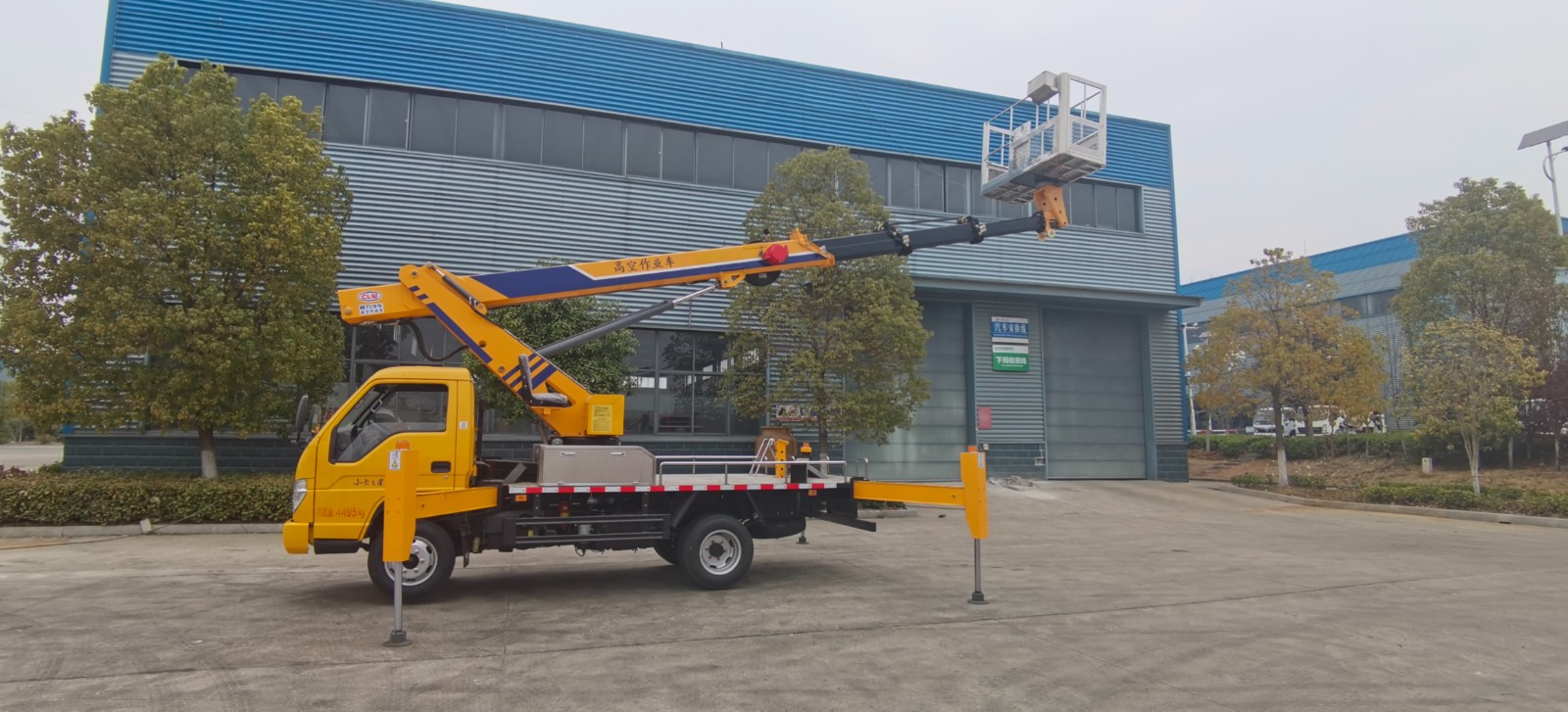

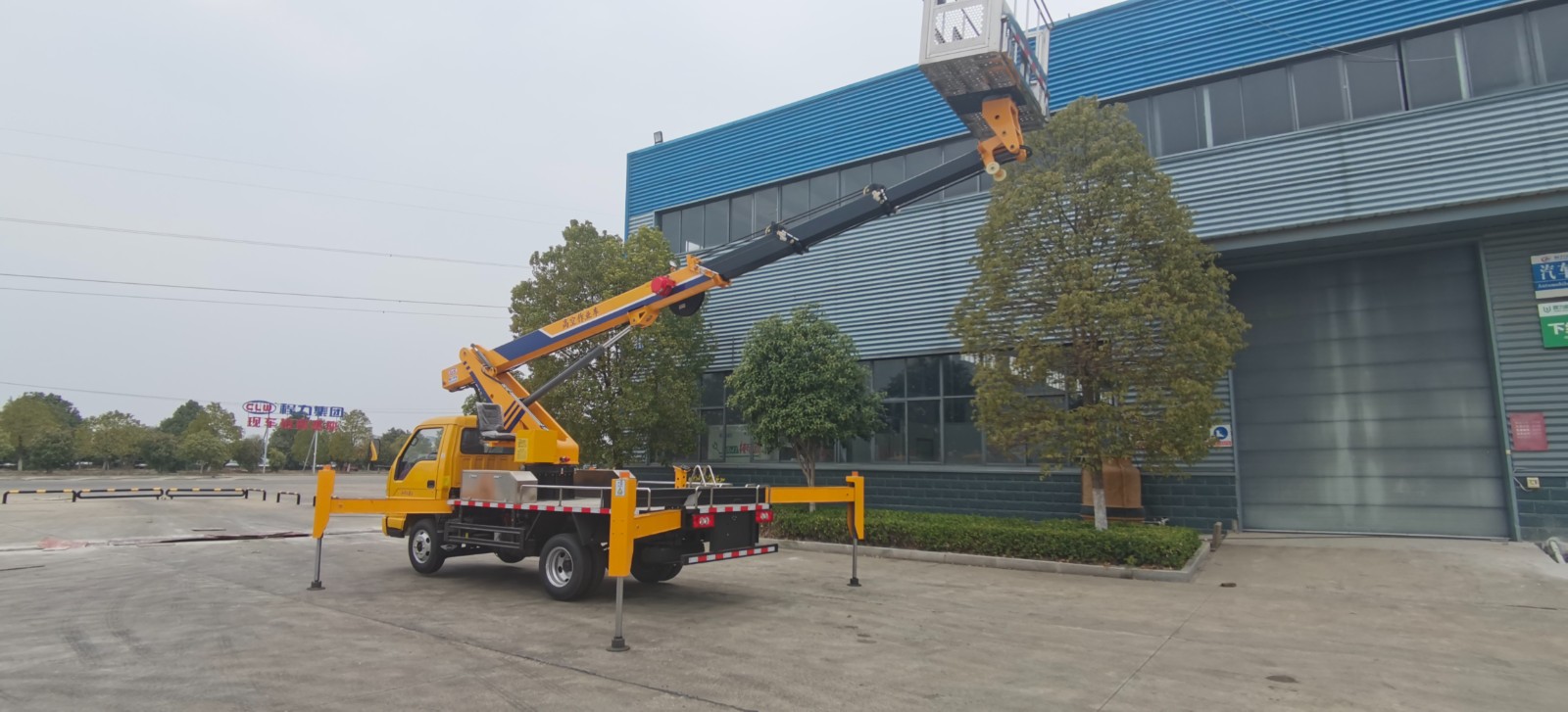

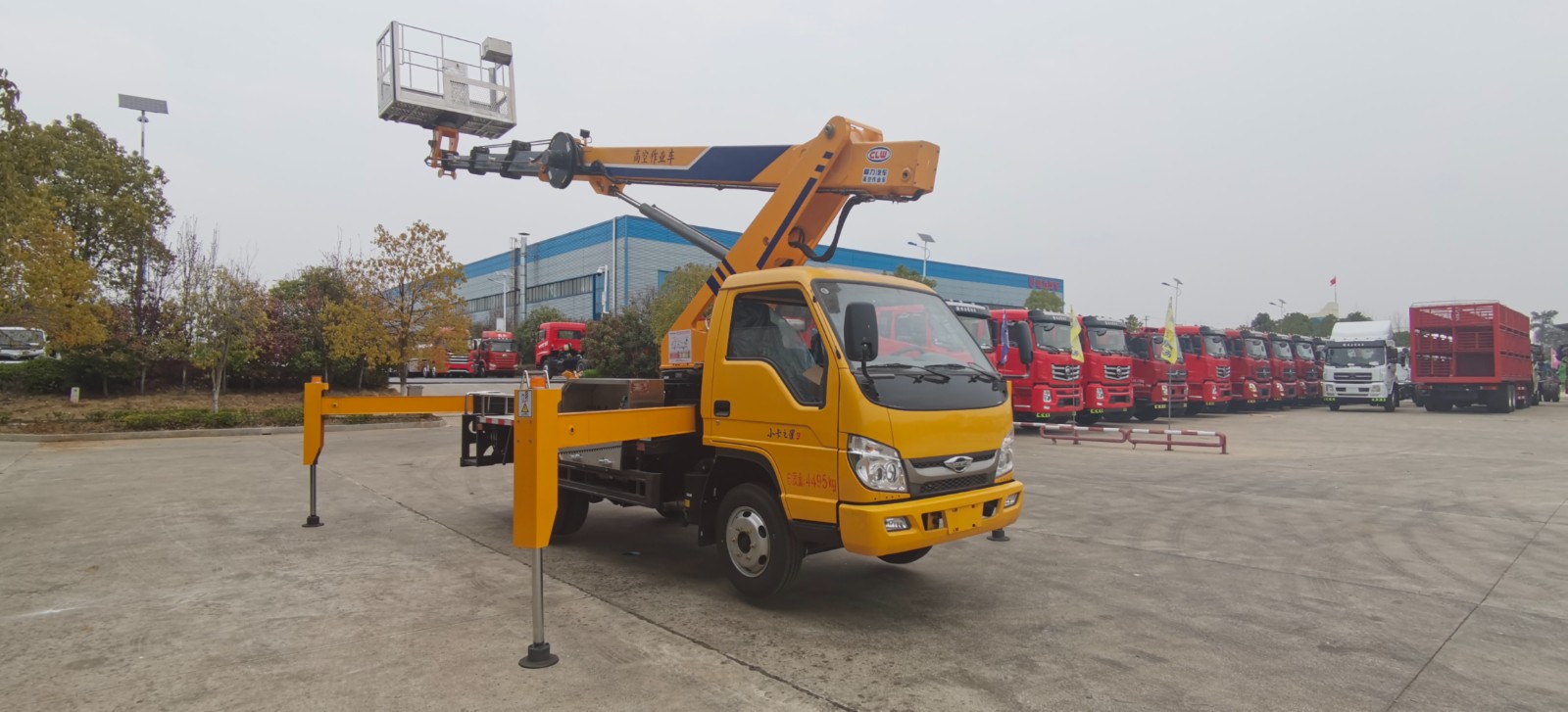

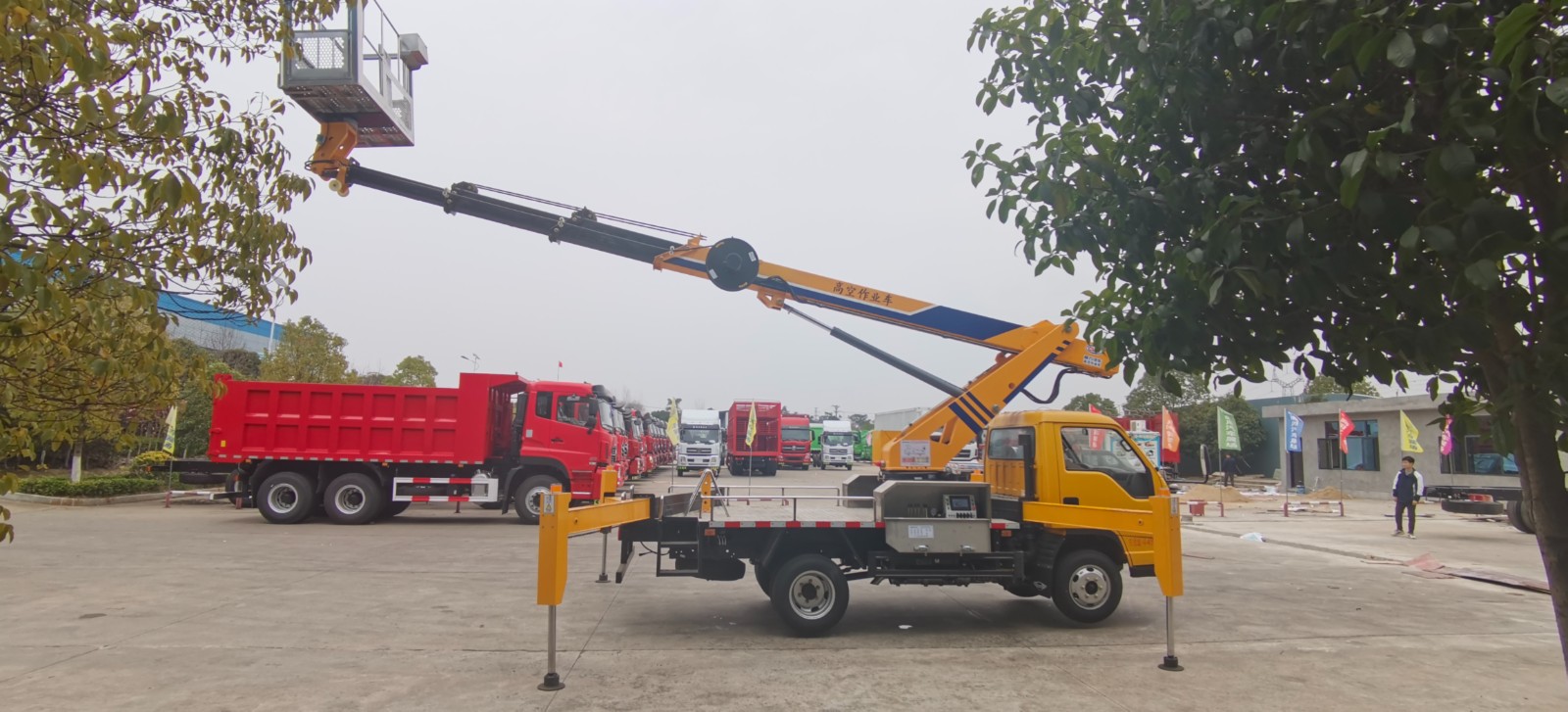

1. Pictures of the FOTON 23m aerial platform truck

2. The FOTON 23m aerial platform truck adopts FOTON brand chassis, the engine power is 115hp, it is  single cabin, 2850mm wheelbase, 6.50 steel tires, oil brake, 5 gears transmission box, front axle 2T, rear axle 3.5T, with directional power, with exhaust brake, original ABS, straight girder.

3. Details of the aerial platform truck body:

the aerial platform truck is equiped with 23m four-section hexagonal telescopic arm, with 1.8 m stainless steel 360 degrees full rotation working bucket. Front V rear H legs, can be operated separately. CAN bus control system, equipped with wireless remote controller, full proportional control, multiple actions can be operated at the same time. Maximum working height: 23 meters, maximum working range: 11 meters. Whole vehicle electronic level. LED lighting, electric emergency pump, forced function. Electric control, manual, close control three operating modes. 24V voltage of the whole vehicle: smooth rotation of the basket; The wireless signal is stronger. Manual operation platform with its own limiting function, novice operation can also be handy.

4. The advantages of the FOTON 23m aerial platform truck

 The whole aerial platform truck steel structure parts are made of high-strength materials, light weight, high strength, high toughness, high reliability;

 imported electro-hydraulic proportional valve group with advanced CAN bus control system, and equipped with wireless remote control, safer and more convenient operation;

 The aerial platform truck is equipped with a 5-inch LCD screen, which can display the length of the detection arm, elevation Angle, platform height and working height in real time.

 The arm adopts the leading 4-section full-chain telescopic structure in China, and the built-in broken chain protector makes the work safer and more stable;

 Front V back H type legs, horizontal double-jointed legs telescopic, wider transverse span and stronger safety and stability, and equipped with "soft leg" protection function, can be operated at the same time or alone, to adapt to a variety of working conditions. u

 mainly supporting hydraulic and electrical parts: imported load sensitive proportional valve, balance valve, CAN bus control system are produced by well-known manufacturers at home and abroad. u

 The aerial platform truck chassis adopts national VI chassis, equipped with air conditioning, and the steering wheel adopts hydraulic power.

 The hanging basket is made of high strength stainless steel, the hanging basket is not easy to damage, rust, lightweight structure design more load. u

 Hexagon working arm, synchronous telescopic, compact structure, high working efficiency, wide working range. Built-in telescopic cylinder, double chain telescopic mechanism, easier to observe the fault point, convenient maintenance. u

 The aerial platform truck electric appliance adopts CAN bus control system, the line is neat and simple. The vehicle has two operations: wireless remote control operation, (optional) can also be operated in the hanging basket, safe and reliable, high work efficiency. u

The operation platform is matched with 220V mains interface, which can use daily power tools and is not affected by the power consumption of the working environment.
