Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

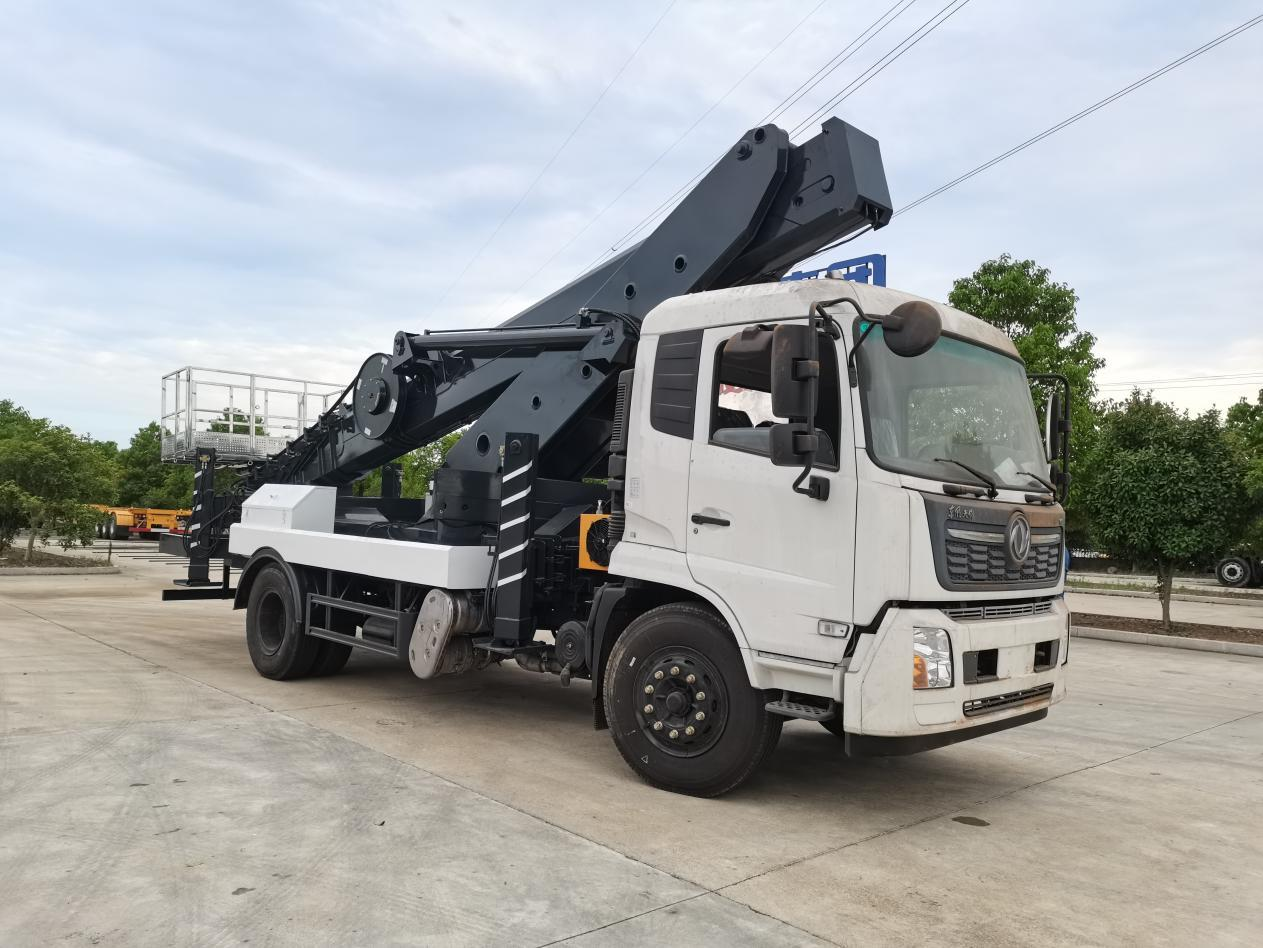

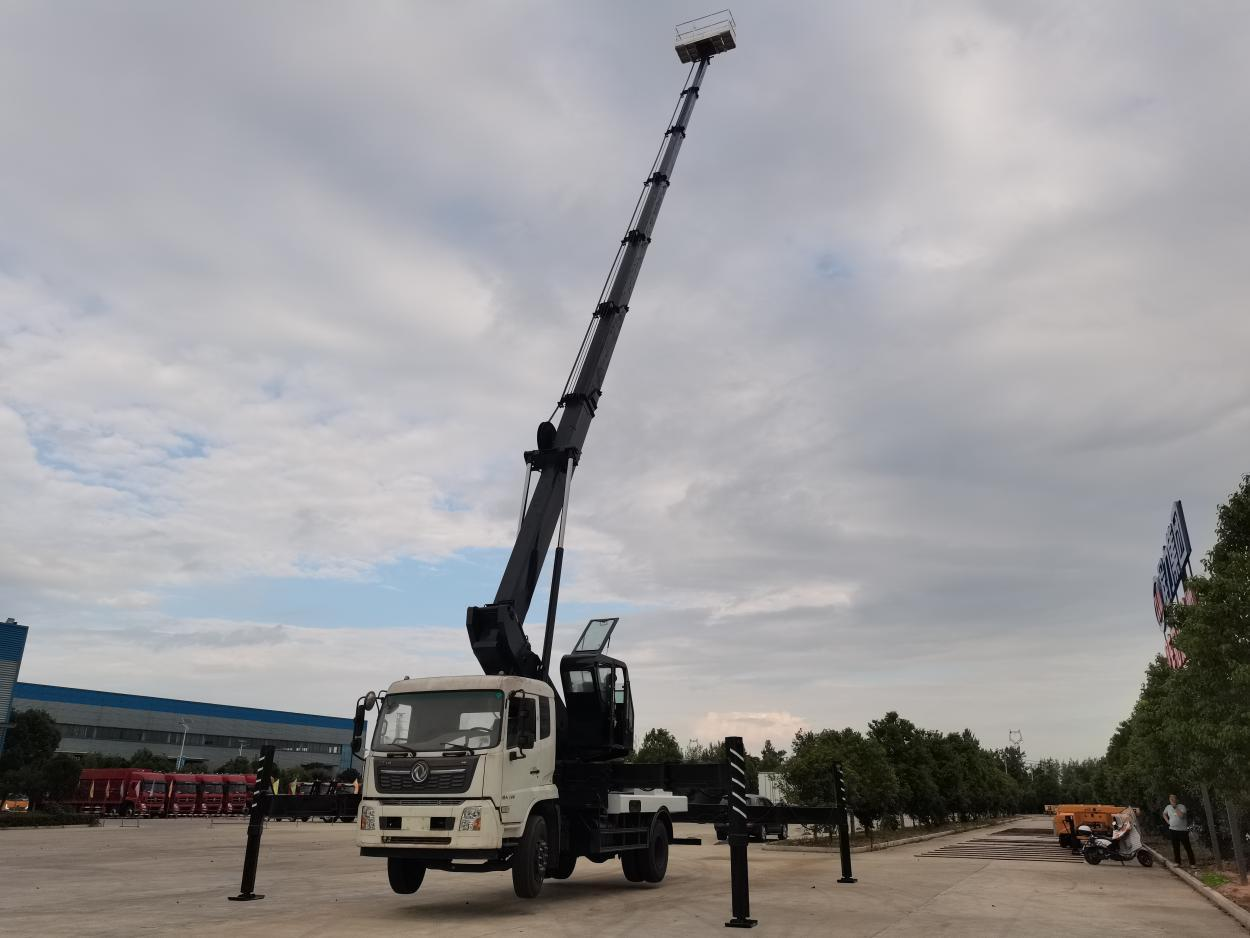

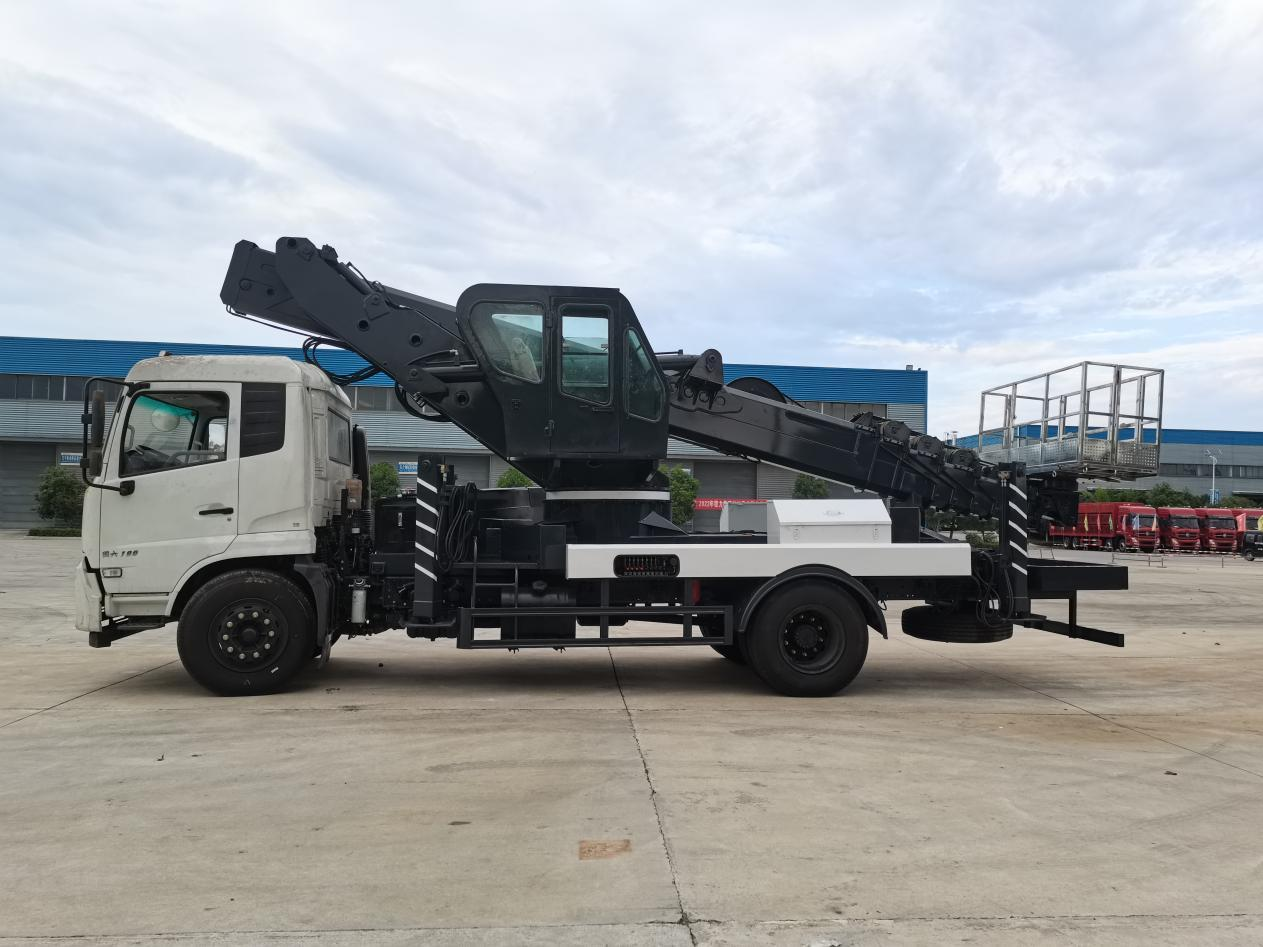

Aerial platform truck are specialized vehicles that transport workers and equipment to the site and carry out aerial operations. They are widely used in municipal, power, communication, construction and other industries.
Parameters of the Dongfeng Tianjin 45m aerial platform truck:
| total length | 9550mm | total width | 2550mm |
| total height | 3990mm | passengers | 3 |
| GVW | 13495kg | bucket loading capacity | 200kg |
| max working height | 45m | working radius at max working height | 5m |
| max working radius | 18m | working height at max working radius | 17m |
| outrigger horizontal span | 6600m | outrigger longitudinal span | 5460mm |
| front suspension | 1430mm | rear suspension | 3020mm |
| wheelbase | 4700mm |
Key parts of the Dongfeng Tianjin 45m aerial platform truck:
| Items | Brand | Function |
| electro-hydraulic proportional valve | Kemai | to control the hydraulic oil supply of different operations, addjust speed and make sure them work smoothly |
| electrical controller | Duman | CAN-BUS control system, inteligently control different operations and safty device, it is maintenance free. |
| multiway valve for outriggers | Zhongmei | operate the extend and retract, lift and lower operations of the outrigger, easily to be switche |
| electric and manual valve for upper body | Kemai | switch different operations of the boom and bucket, different operations can be locked to ensure the safety |
| Bidirectional balance valve | Zhongmei | it has self-locking function, to prevent the boom and bucket fally sharply in case the hydraulic oil tube burst, also to make the actions smoothly. |
| hydraulic oil pipe | without oil leakage | |
| hydraulic pipe connector | longer lift time and not easy to damage | |
| hydraulic pump | good quality and stability, to supply hydraulic powerforce for the whole hydraulic lifting system | |
| limit switch | outrigger operations and boom operations can be locked and not operated at the same time | |
| LCD system | Duman | Real-time display of the arm length, elevation angle, platform height and working height, etc |
