45m aerial platform truck

Aerial platform truck is a kind of equipment that integrates carrying people, goods and machinery. It is mainly composed of a crane chassis, support legs, columns, telescopic arms, operation platforms, etc. It is usually equipped with a hydraulic or electric control system and can perform actions such as lifting, lowering, moving forward and backward, left and right, and rotating at high altitudes through the operation console or remote control.

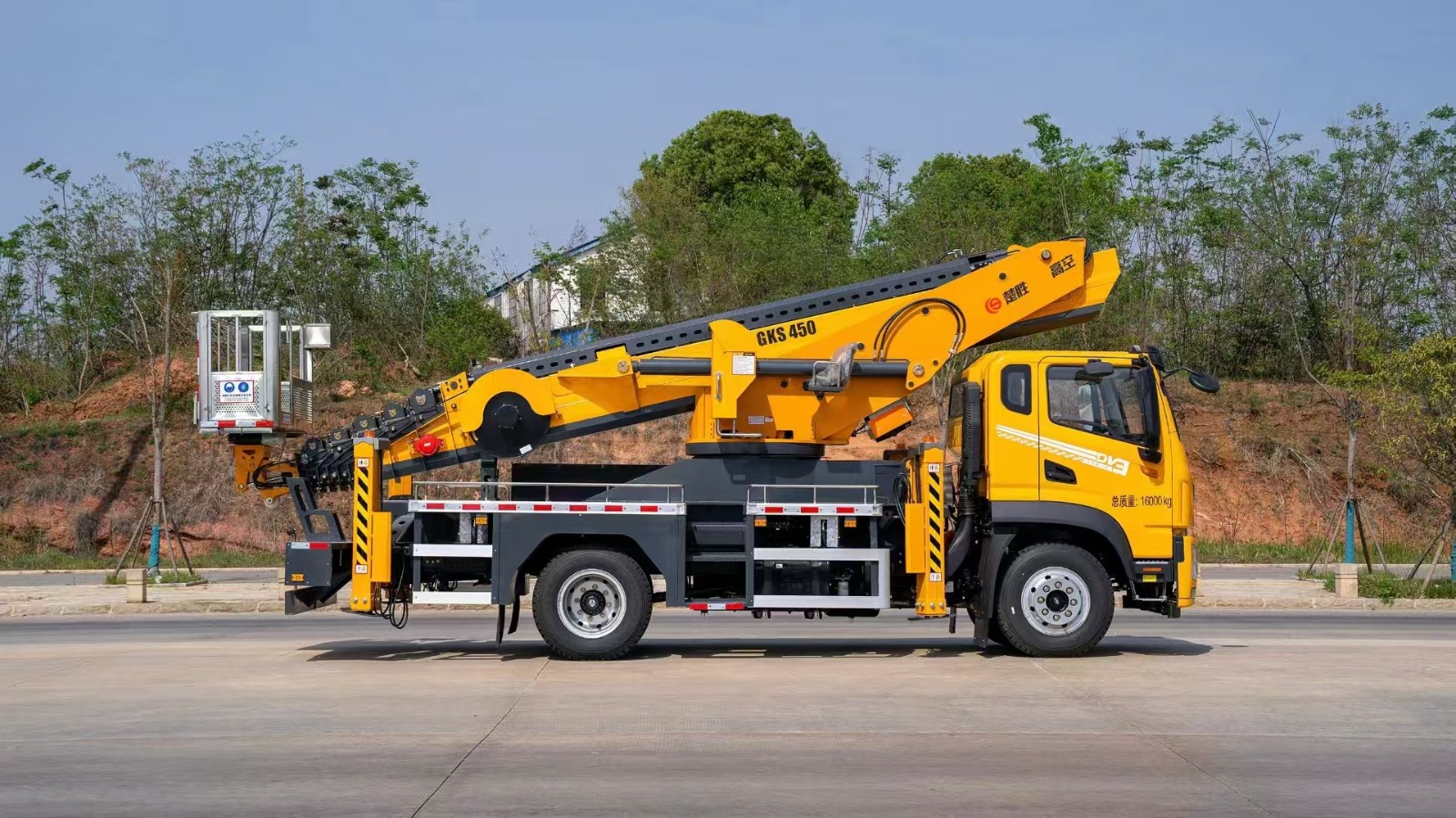

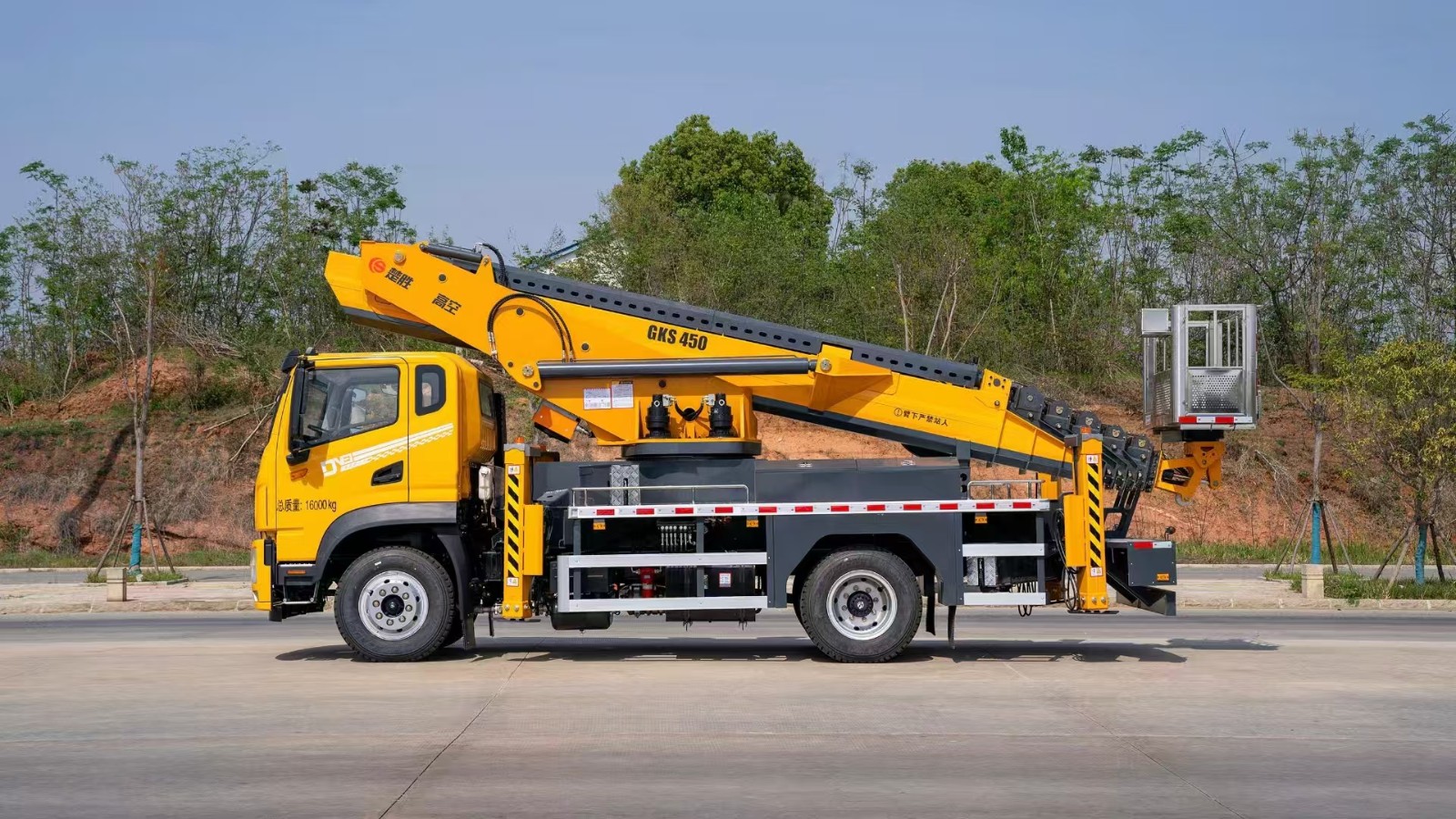

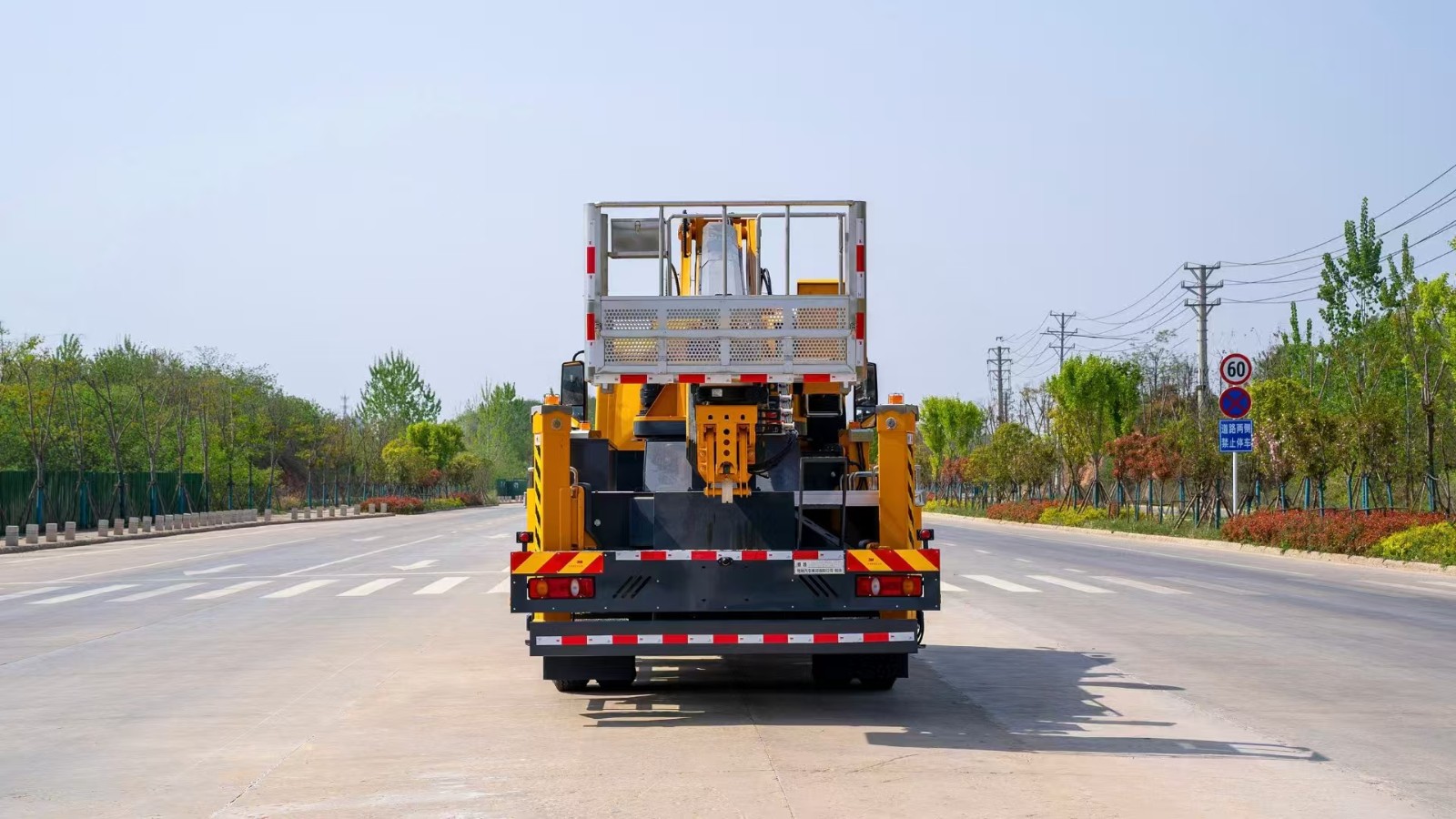

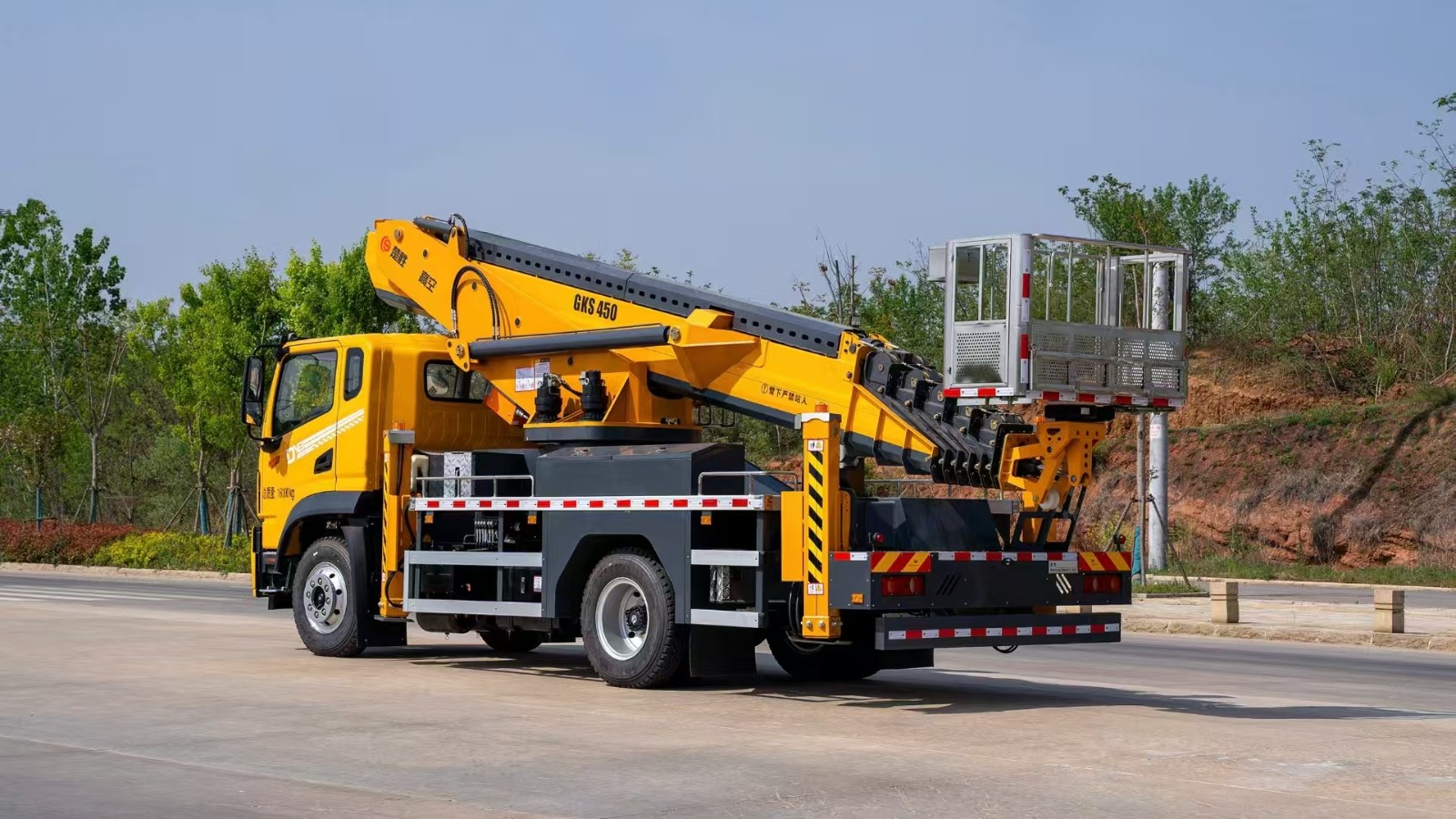

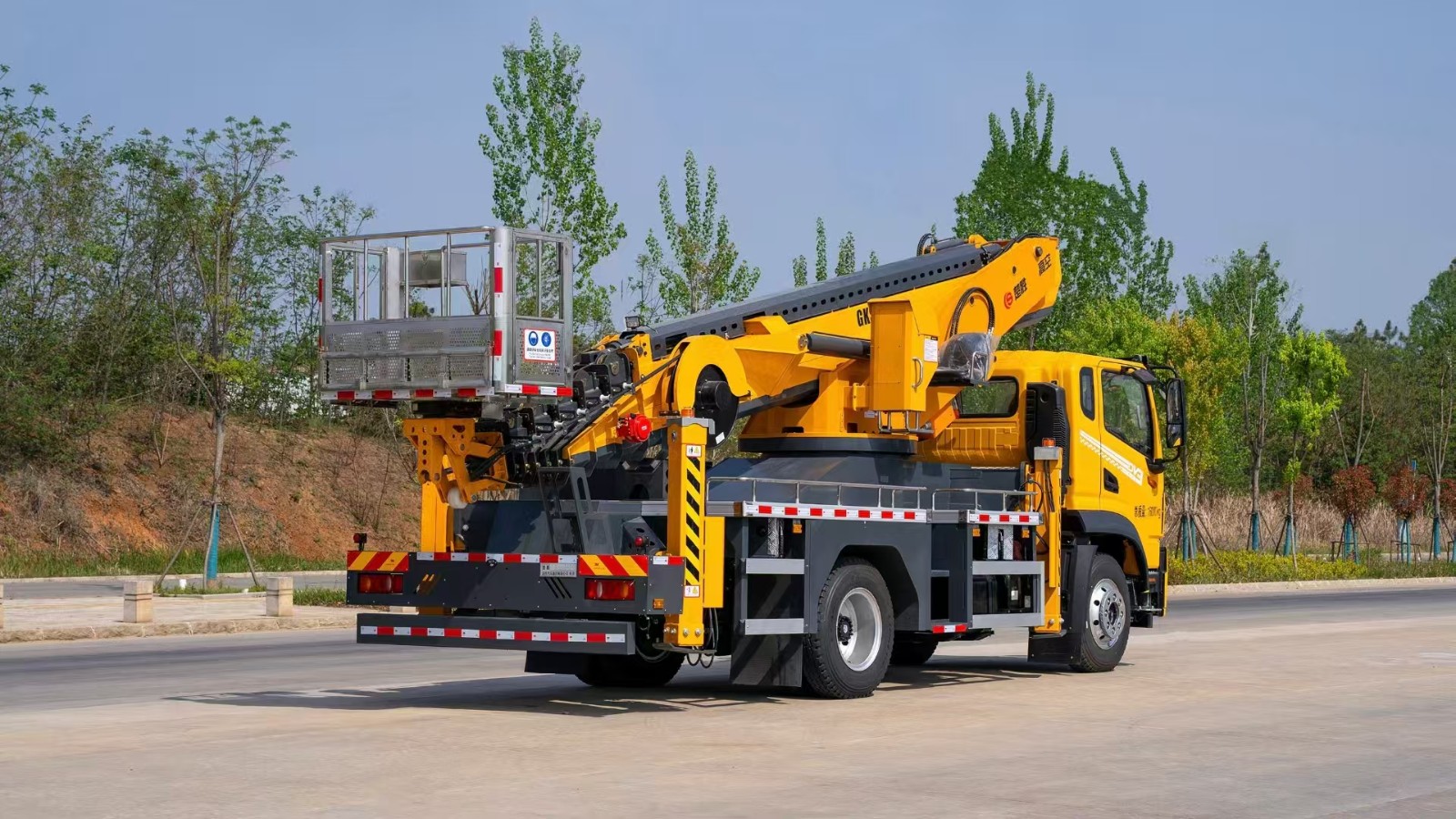

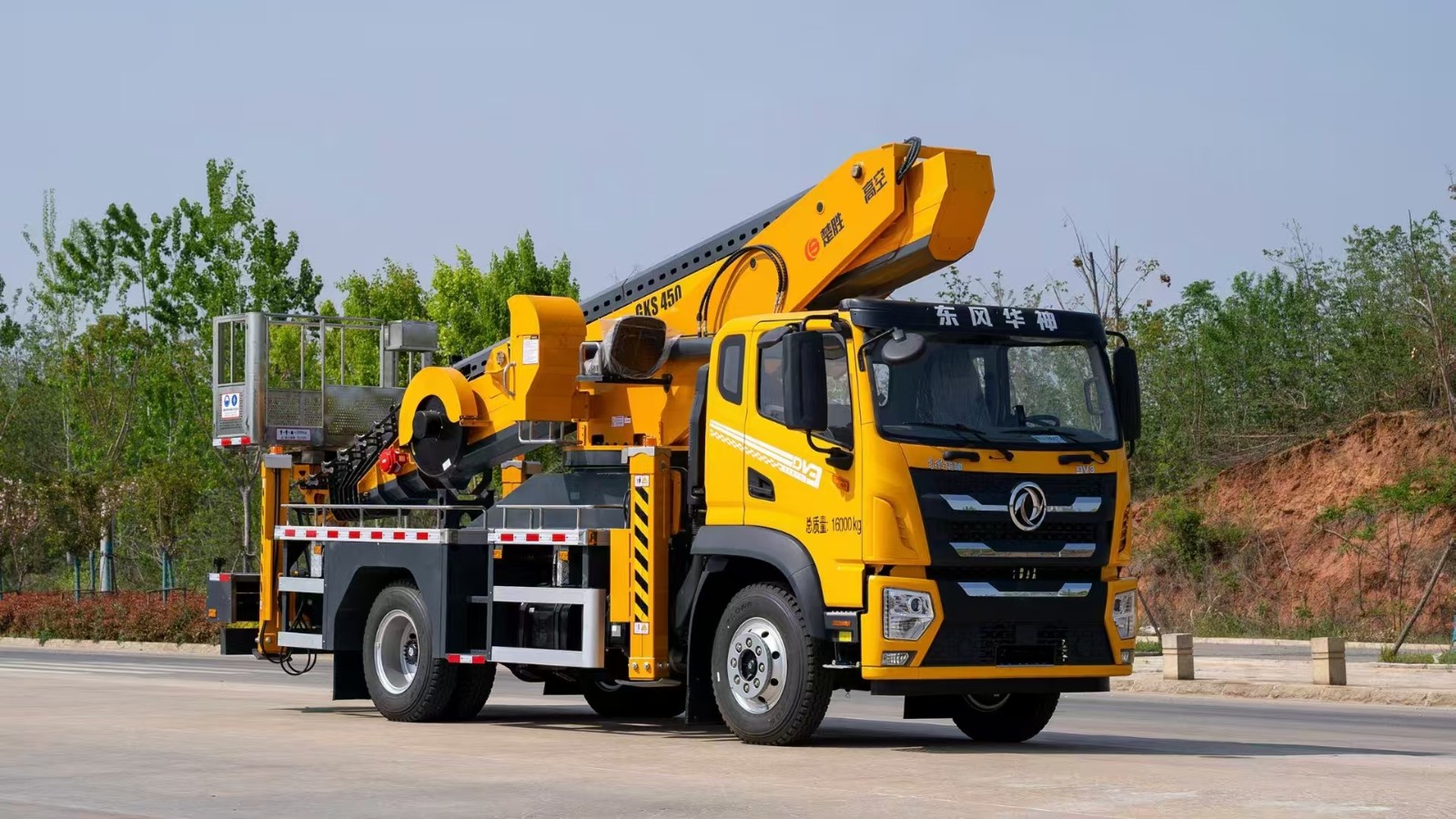

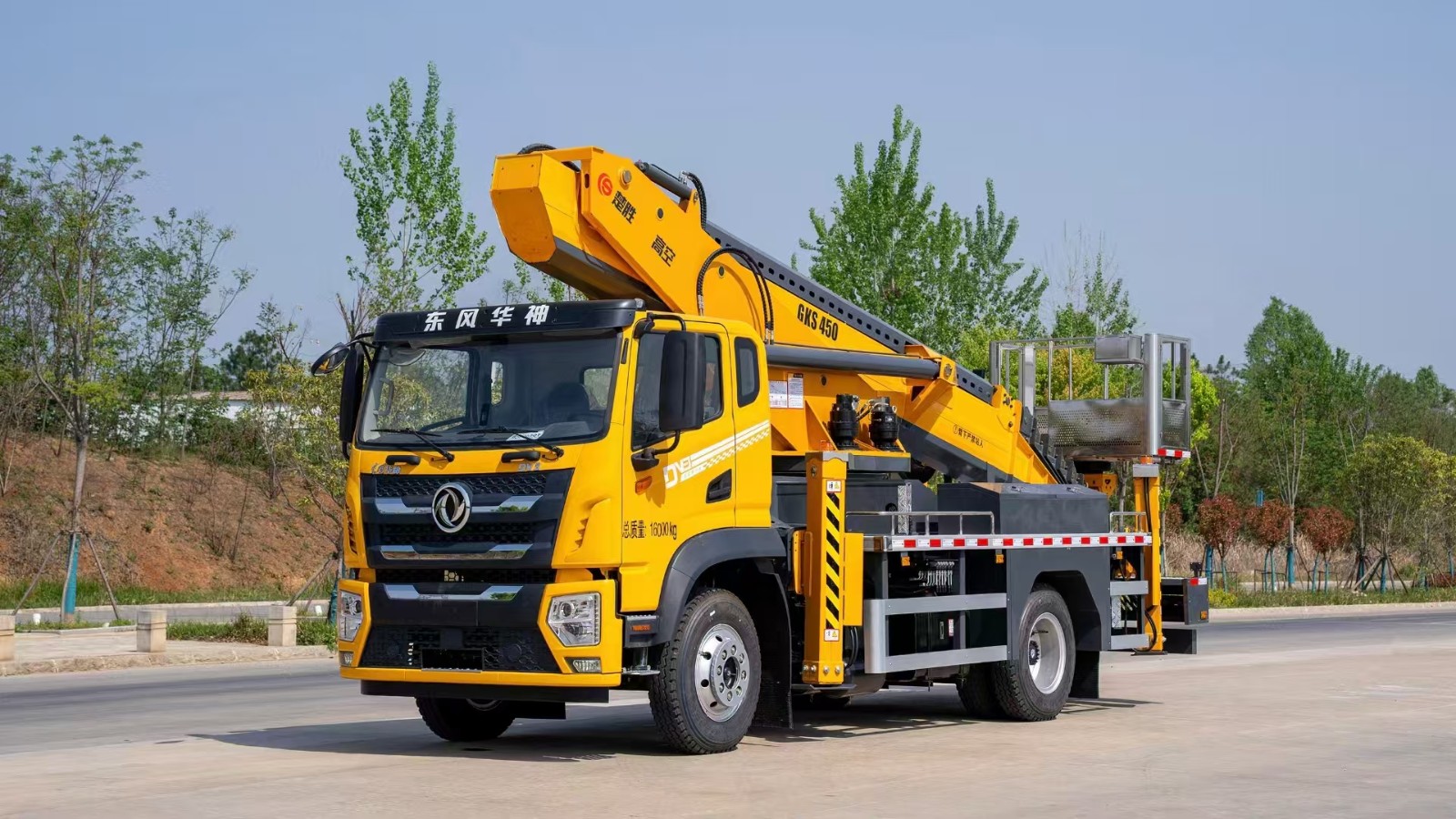

The Dongfeng 45m aerial platform truck adopts Dongfeng Huashen DV3 chassis, the chassis model is EQ1160GL6DJ, it is equipped with egnien Yuchai 170 horsepower, 3950mm wheelbase, 9.00R20 steel wire tires, FAST 8-speed transmission, with original synchronizer, air brake, multi-functional steering wheel, original air conditioning, electric airbag seats, central lock, dashcam, sun visor.

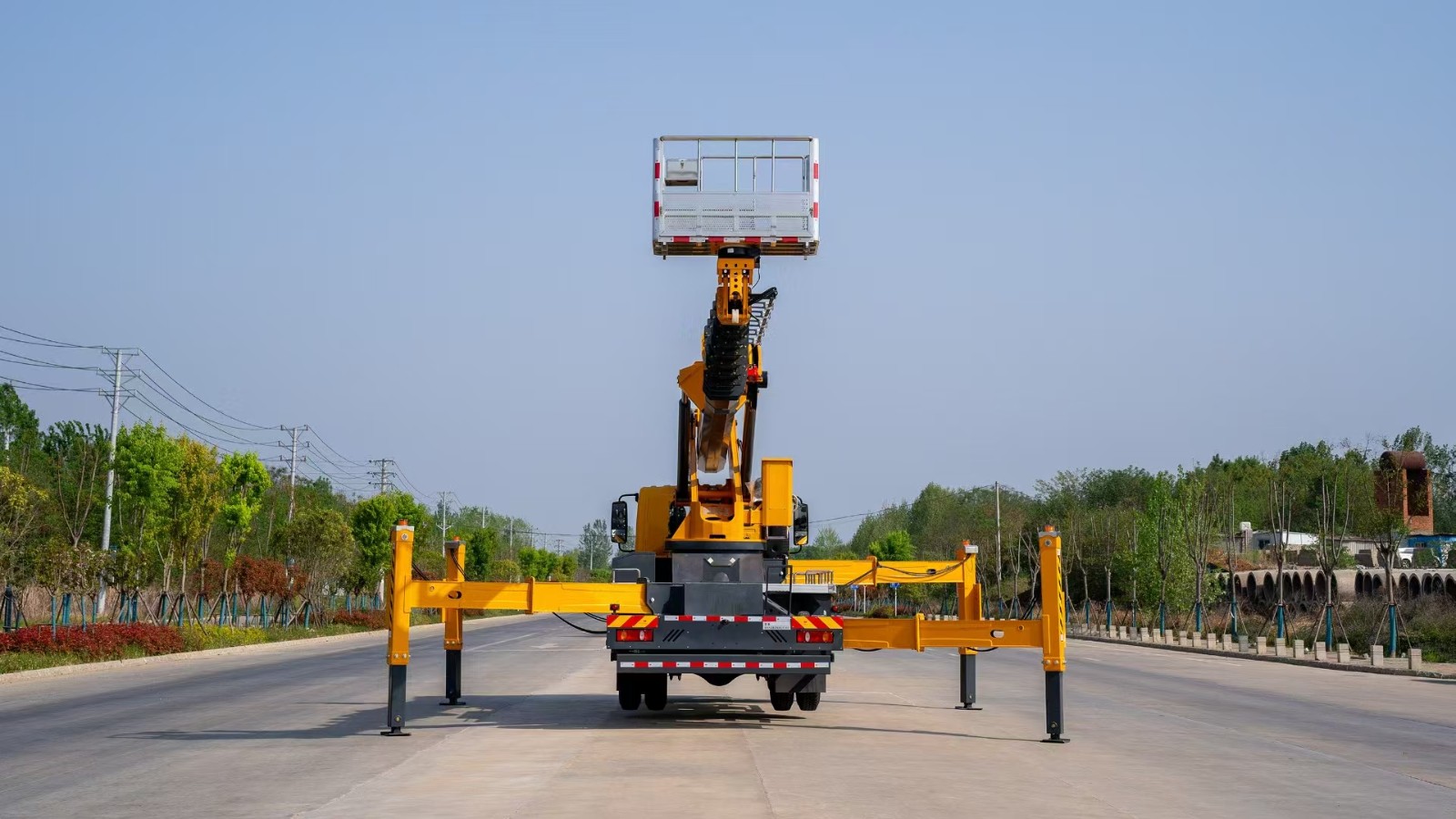

The Dongfeng 45m aerial platform truck adopts a seven-section octagonal large arm with synchronous extension and retraction. The large arm can rotate 360 degrees. The front V and rear V double-section hydraulic outriggers are adjustable separately. The span of the front and rear outriggers is 7 meters and they can be extended and retraction synchronously. 1.6-meter stainless steel suspended basket, with a load capacity of 200 kilograms. The upper structure of the aerial platform truck adopts the electrostatic powder coating process. Standard distribution control operation screen, remote control, hydraulic oil radiator, flexible leg protection, anemometer. (Optional reversing camera can be added to operate the driver's cab.)"It adopts a seven-section octagonal large arm with synchronous extension and retraction. The aerial platform truck large arm can rotate 360 degrees. The front V and rear V double-section hydraulic outriggers are adjustable separately. The span of the front and rear outriggers is 7 meters and they can be extended and retraction synchronously. 1.6-meter stainless steel suspended basket, with a load capacity of 200 kilograms. The upper structure of the entire vehicle adopts the electrostatic powder coating process. Standard distribution control operation screen, remote control, hydraulic oil radiator, flexible leg protection, anemometer. (Optional reversing camera can be added to operate the driver's cab.)"
