JAC 24m aerial platform truck

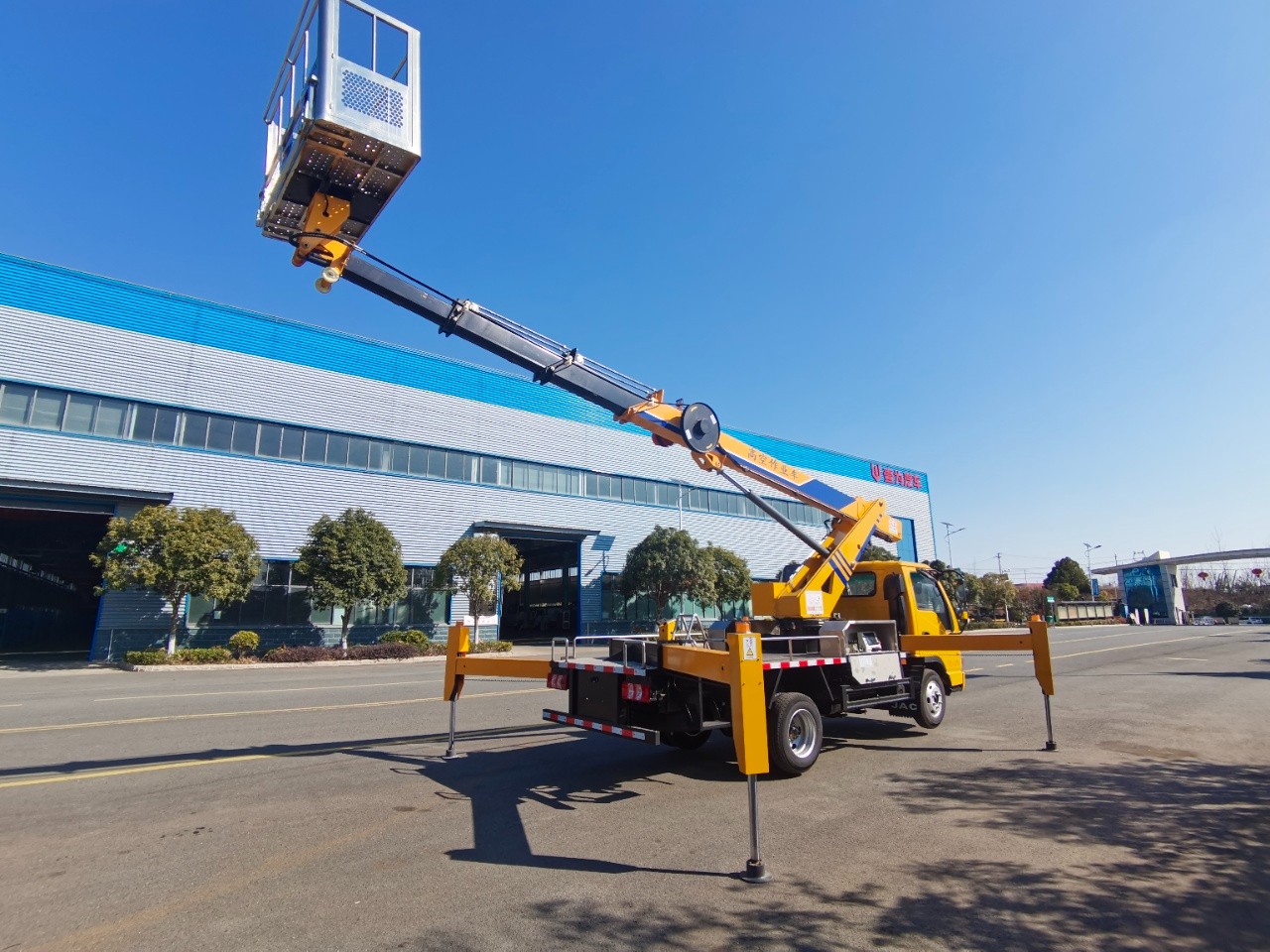

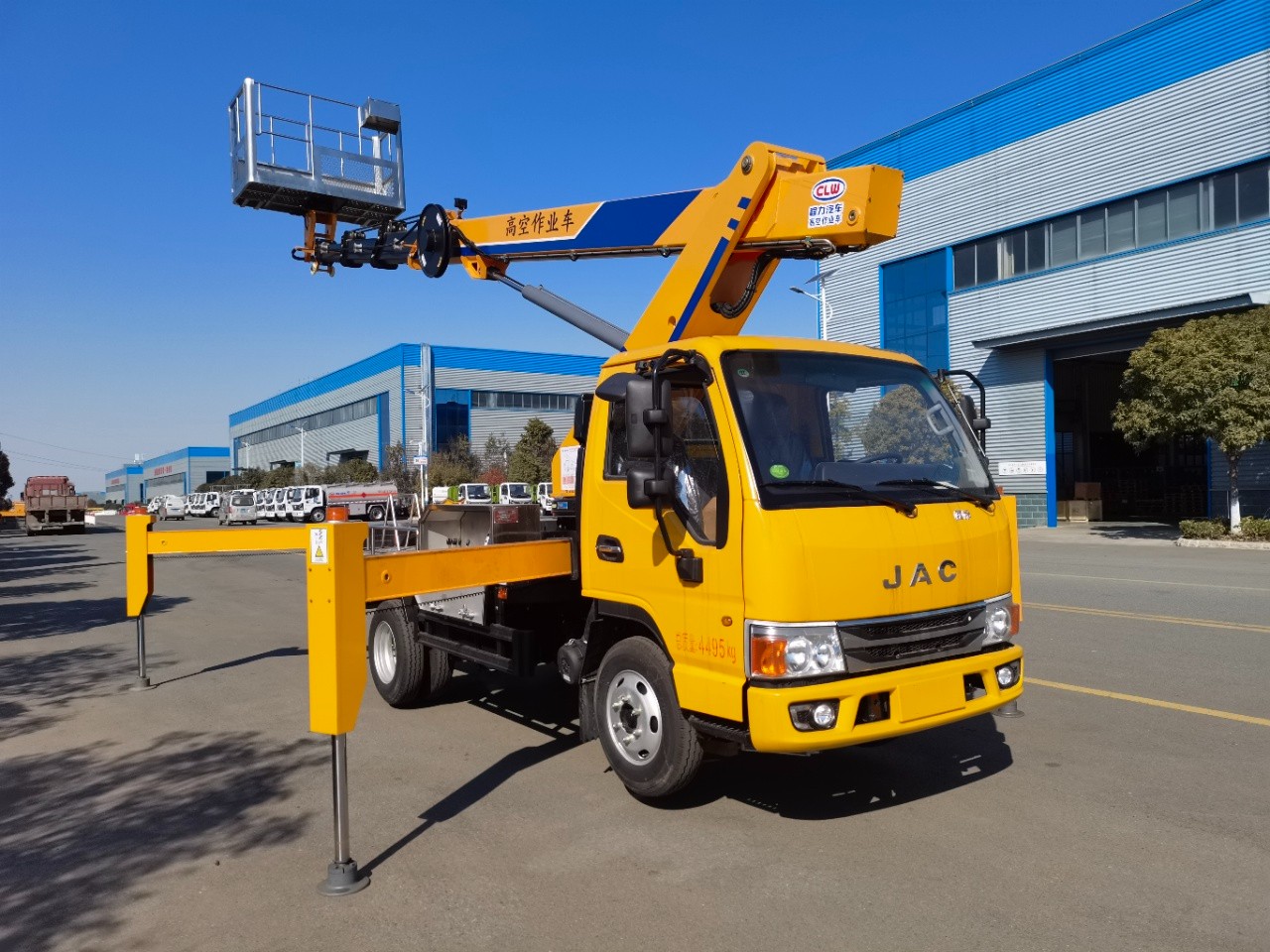

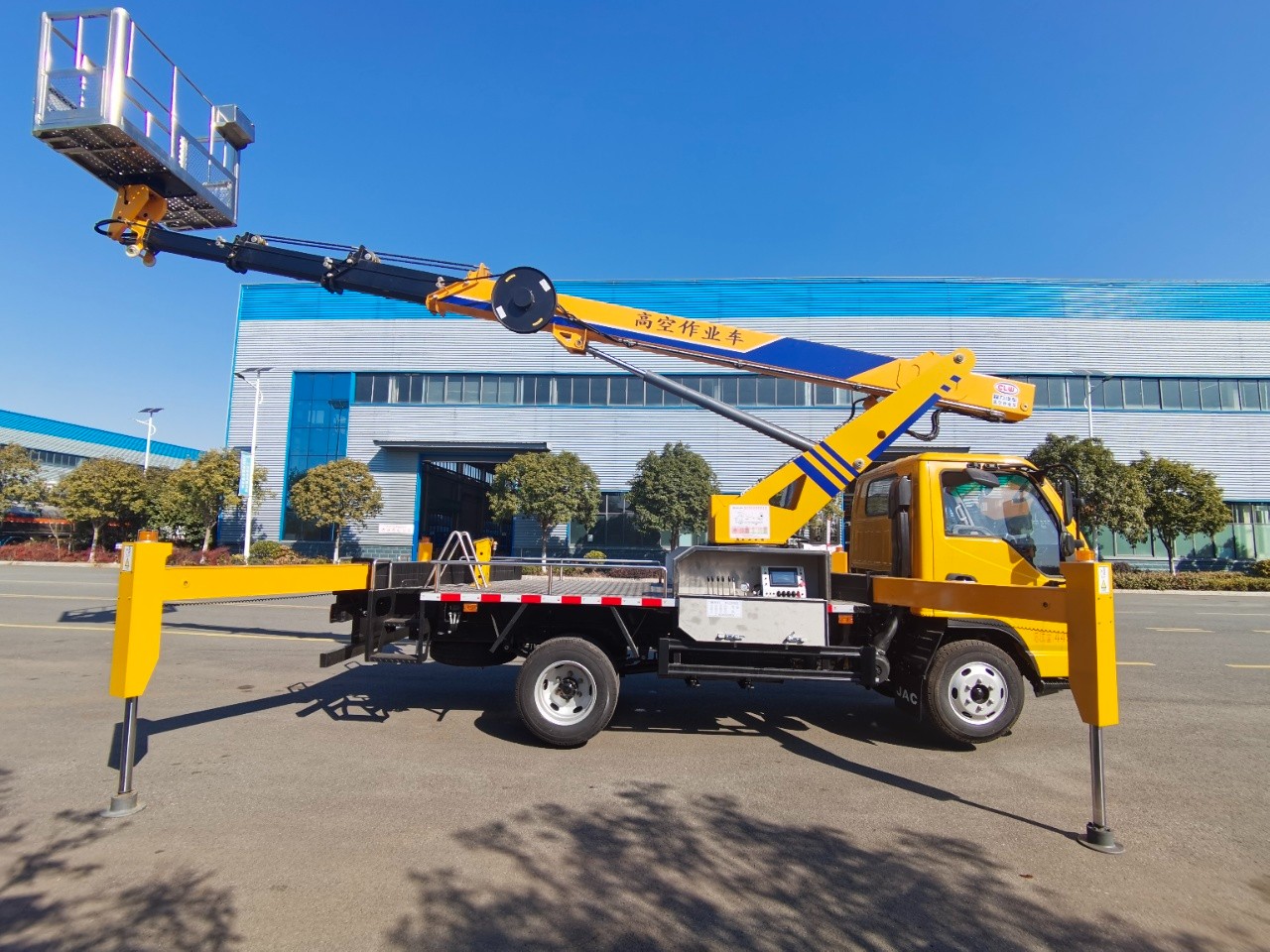

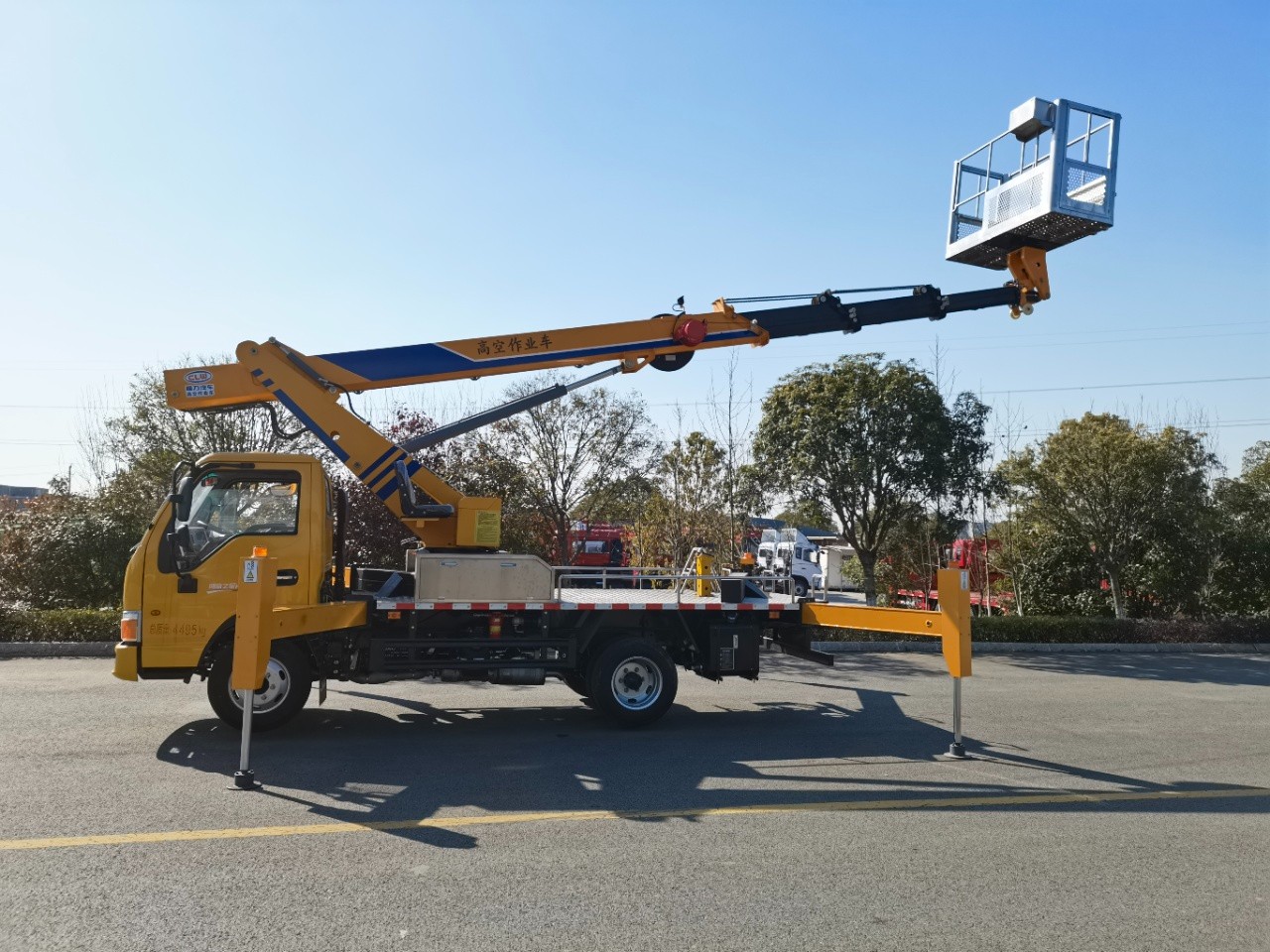

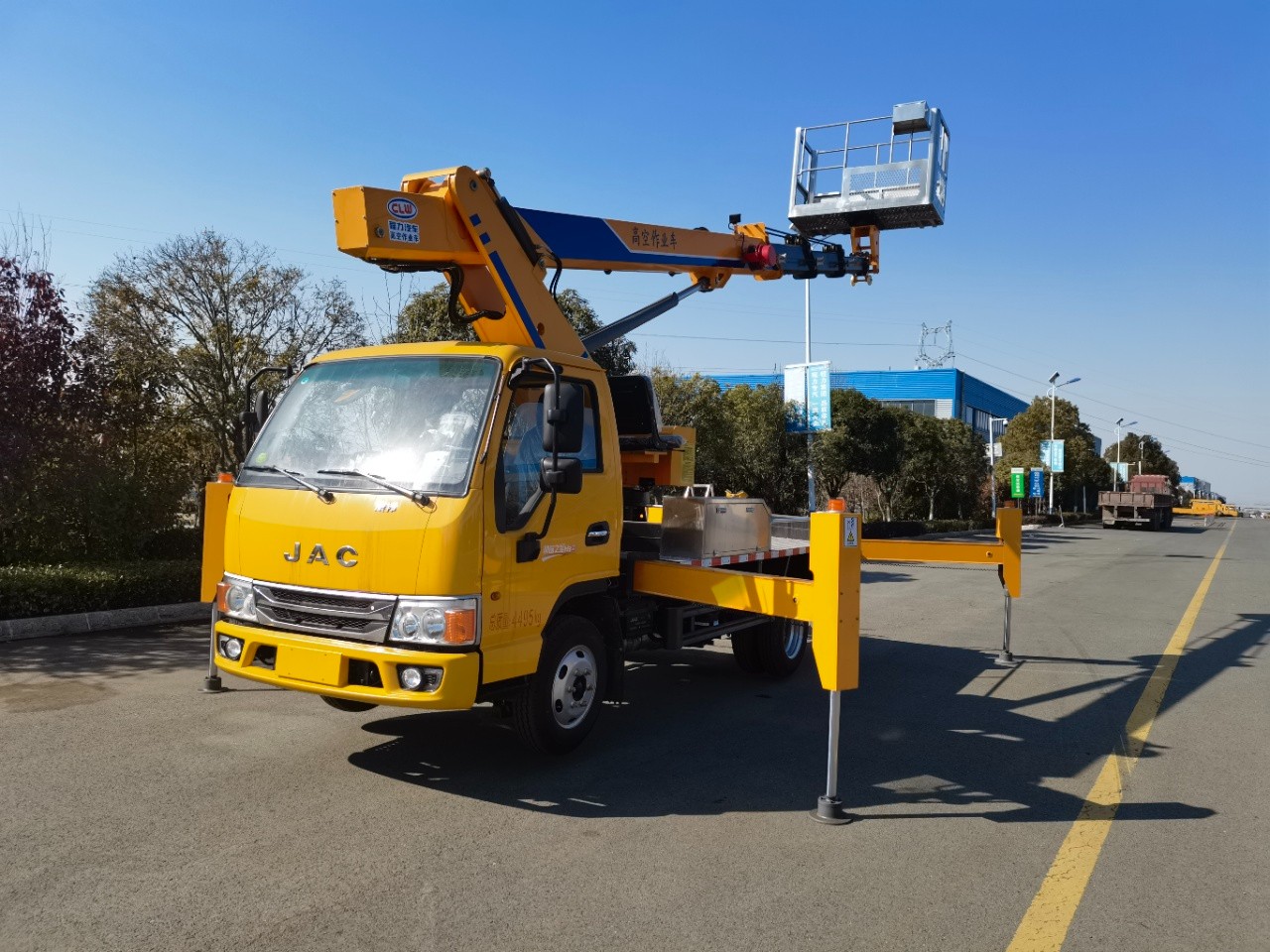

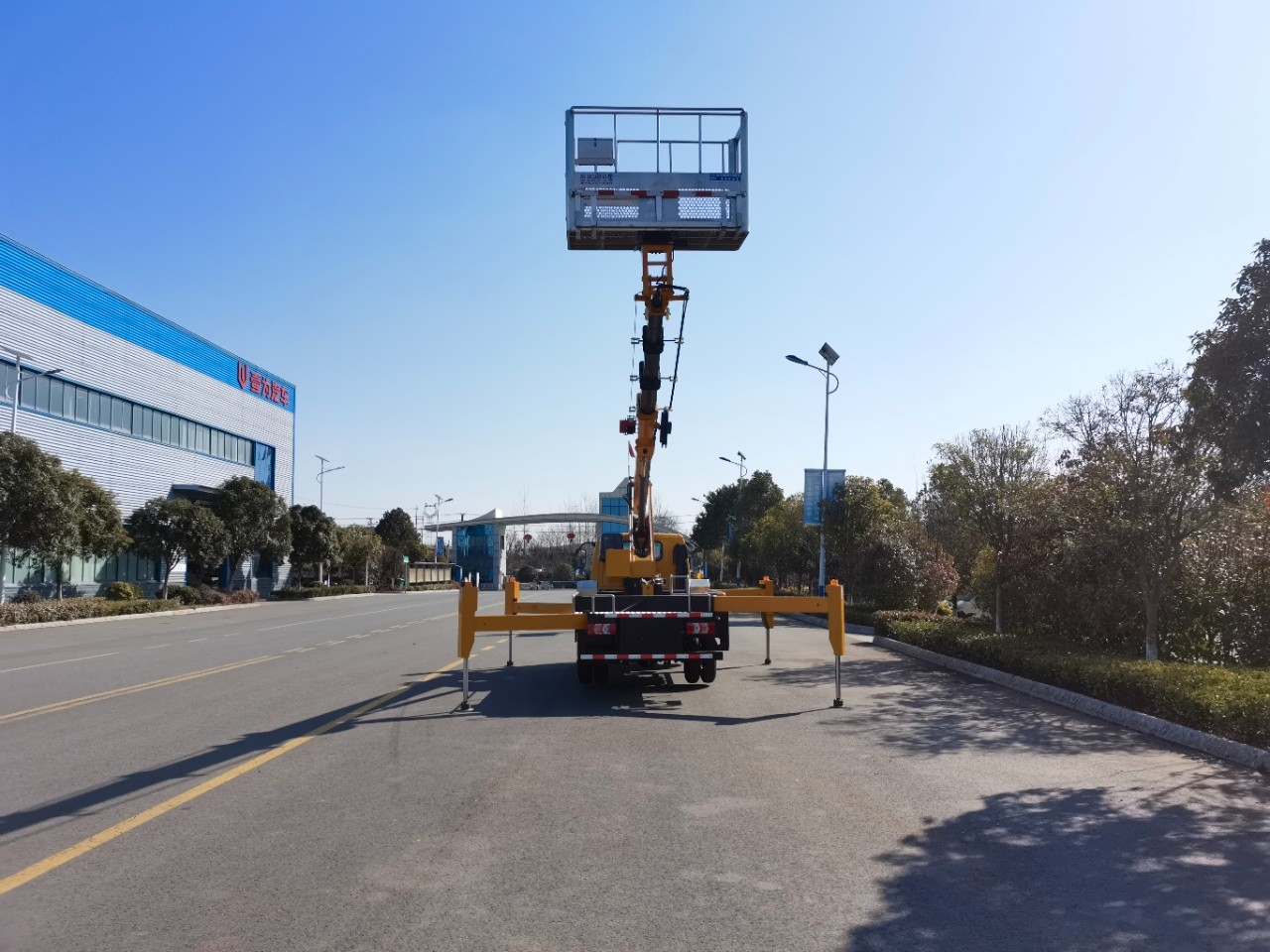

1. Pictures of the JAC 24m aerial platform truck

2. The whole JAC 24m aerial platform truck parameters:

3.The JAC 24m aerial platform truck chassis information:

3. Features of the JAC 24m aerial platform truck:

The aerial platform truck operation arm adopts four hexagonal high-strength steel synchronous telescopic operation, the maximum working height is 24 meters, the front V back V-shaped legs, the legs can be adjusted separately, the operation arm can be 360 degrees rotated, the platform load :200Kg. CAN wireless control system, equipped with wireless remote control, full proportional control, multiple actions can be operated at the same time. Vehicle electronic level, LED lighting, electric emergency pump, forced function. Electric control, manual, close control three operating modes. 24V voltage of the whole vehicle: smooth rotation of the basket; The wireless signal is stronger. Manual operation platform with its own limiting function.

4. Advantages of the JAC 24m aerial platform truck:

The steel structure of the  aerial platform truck  is made of high-strength materials, with light weight, high strength, high toughness and high reliability;

The imported electro-hydraulic proportional valve group is matched with the advanced CAN bus control system and equipped with a wireless remote control, which is safer and more convenient to operate;

The  aerial platform truck is equipped with a 5-inch LCD screen, which can display the detection arm length, elevation angle, platform height, working height, etc. in real time;

The  aerial platform truck boom adopts the domestic leading 4-section full chain telescopic structure with a built-in chain break protector, making the work safer and more stable;

Front V and rear H-shaped outriggers, horizontal double-section outrigger telescopic, wider lateral span, stronger safety and stability, and equipped with a "soft leg" protection function, which can be operated simultaneously or separately to adapt to various working conditions. ★

The main supporting hydraulic and electrical components: imported load-sensitive proportional valves, balancing valves, CAN bus control systems, etc. are all produced by well-known manufacturers at home and abroad. ★

The  aerial platform truck chassis adopts the National VI chassis, equipped with air conditioning, and the steering wheel adopts hydraulic power assistance.

The hanging basket is made of high-strength stainless steel, the hanging basket is not easy to be damaged or rusted, and the lightweight structure design has a larger load capacity. ★

 Hexagonal working arm, synchronous telescopic, compact structure, high working efficiency, large working range. Built-in telescopic cylinder, double chain telescopic mechanism, easier to observe fault points and convenient maintenance. ★

 The aerial platform truck electrical appliances adopt CAN bus control system, with neat and simple lines. The whole vehicle has two operations: wireless remote control operation, (optional) can also be operated in the hanging basket, safe and reliable, high working efficiency. ★

The working platform is equipped with 220V mains interface, daily electric tools can be used, and it is not affected by the power consumption of the working environment
