Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308
Foam fire trucks are used in fire brigades, inflammable and explosive, dangerous chemicals, pharmaceutical and chemical enterprises, engaged in general class A and class B fire fighting. This model has the following characteristics: 1. Full range of tank volume; 2. With subframe structure, can protect the main frame; 3. Simple operation, easy maintenance, to meet the needs of export products; 4. Optional sprinkler system to achieve road greening function; 5. Low use cost and convenient maintenance of conventional structure.

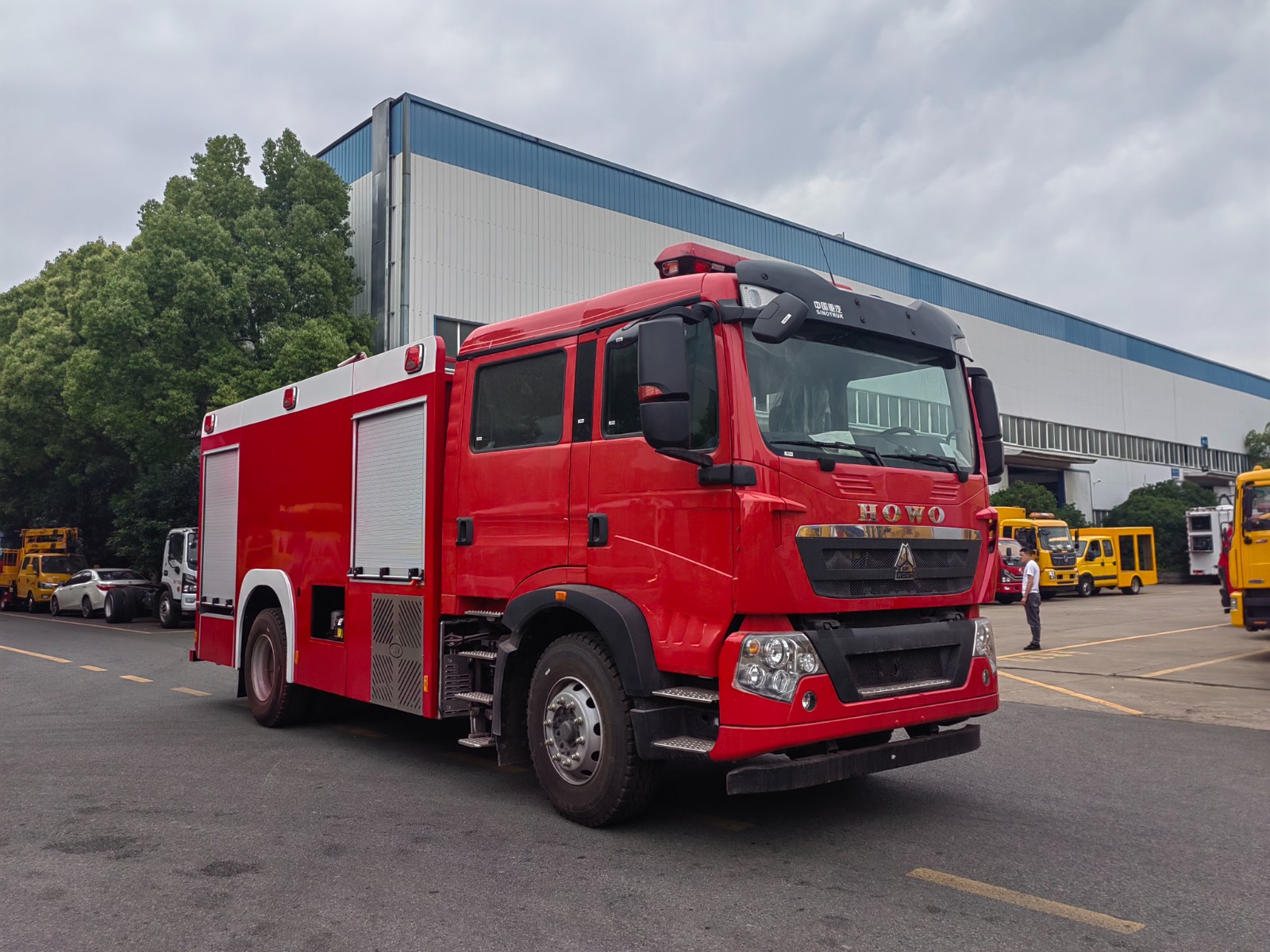

Pictures of the foam tanker fire truck
3. Parameters of the foam tanker fire truck
| truck model | CLW5190GXFPM80/HW | chassis model | ZZ5207TXFV471GF5 |
| wheelbase | 4700mm | engine model | MC07H.35-60 |
| outer dimensions | 8360*2510*3550mm | passengers | 2+4 |
| GVW | 19100kg | rated loading capacity | 8100kg |
| curb weight | 10550kg | max speed | 100Km/h |
| fire pump and rated flow | CB10/60 60L/S 1.0MPa | fire gun and rated flow | PL4 848L/s 0.8MPa |
| fire gun range | foam≥55m water≥60m | approach/ departure angle | 16/12° |
| tank material | carbon steel ( PP, stainless steel avialable) |
