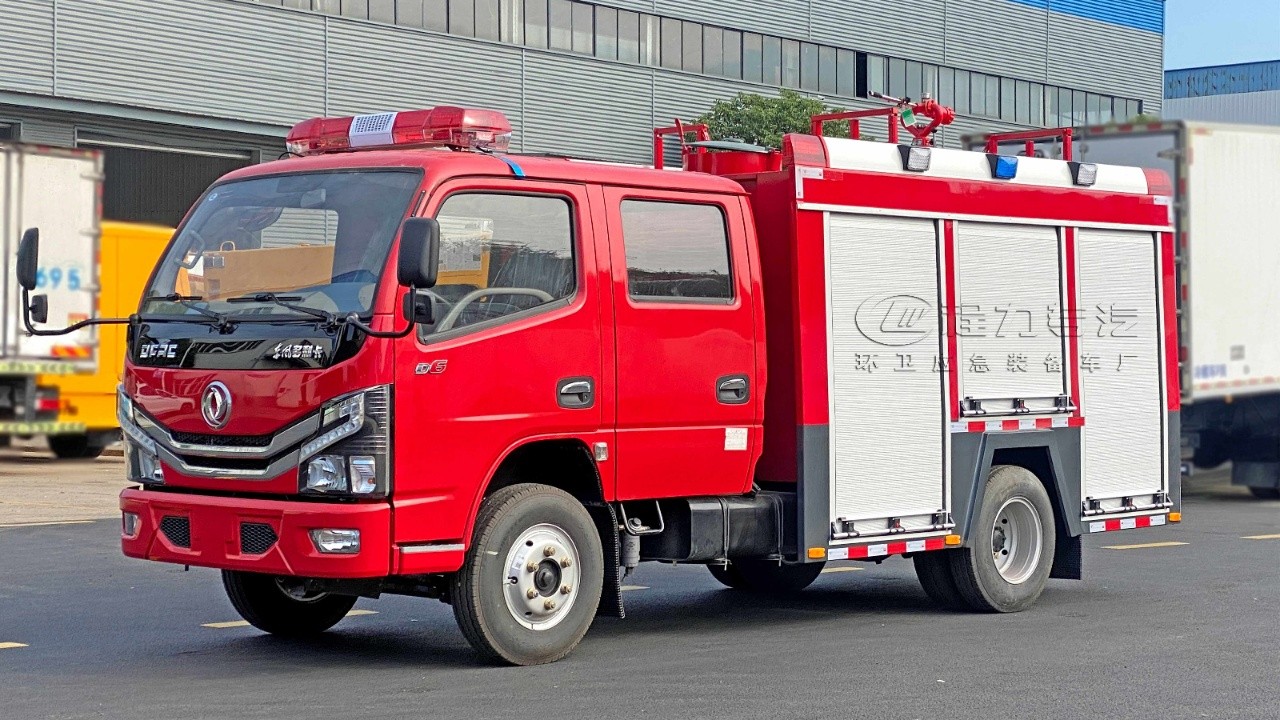

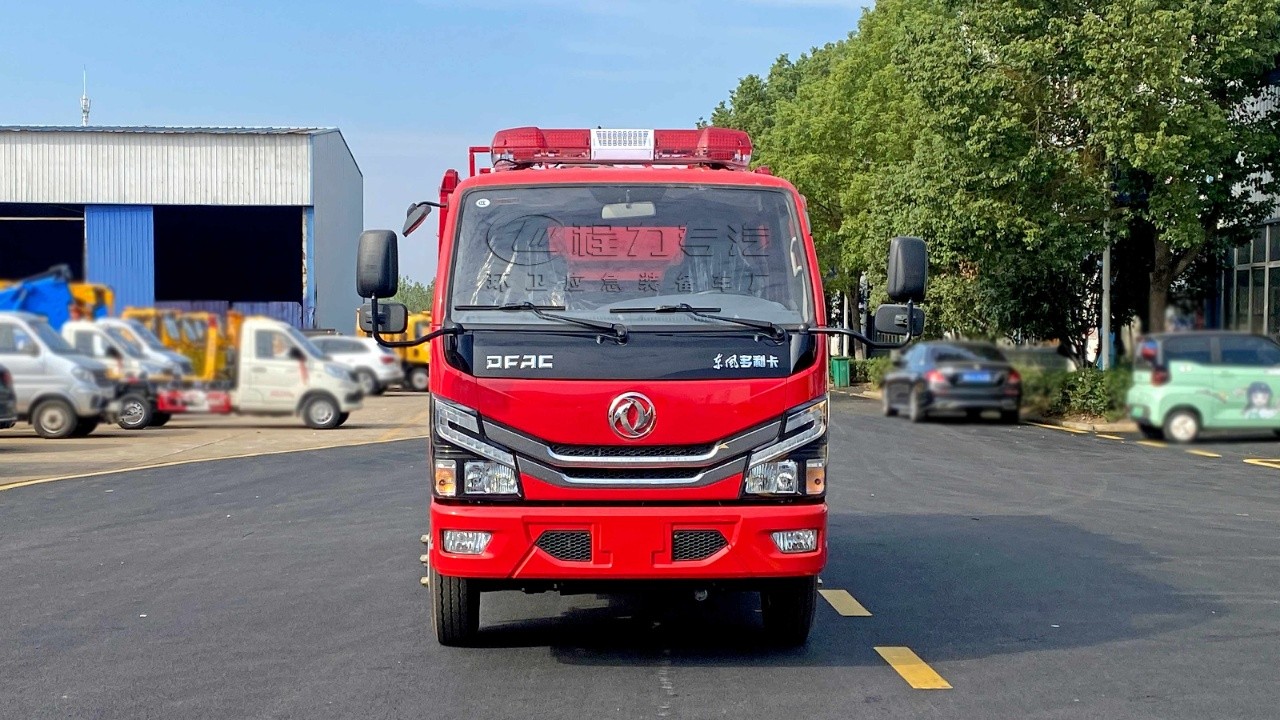

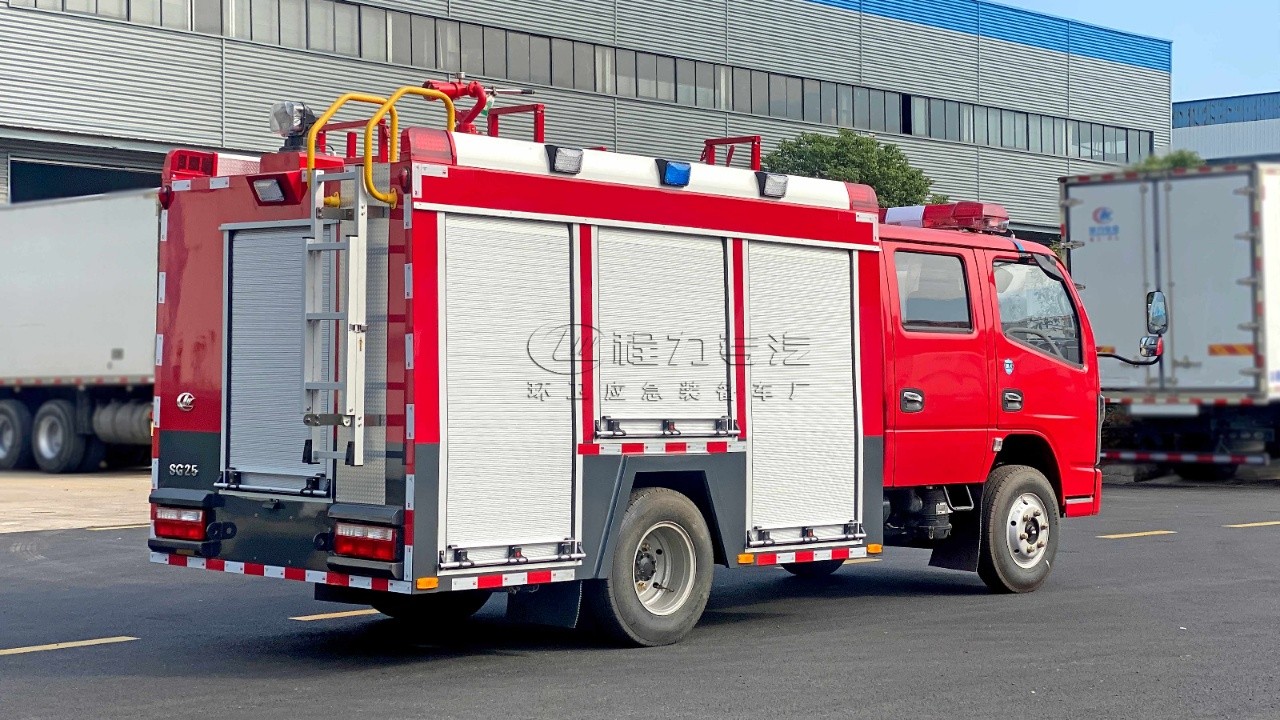

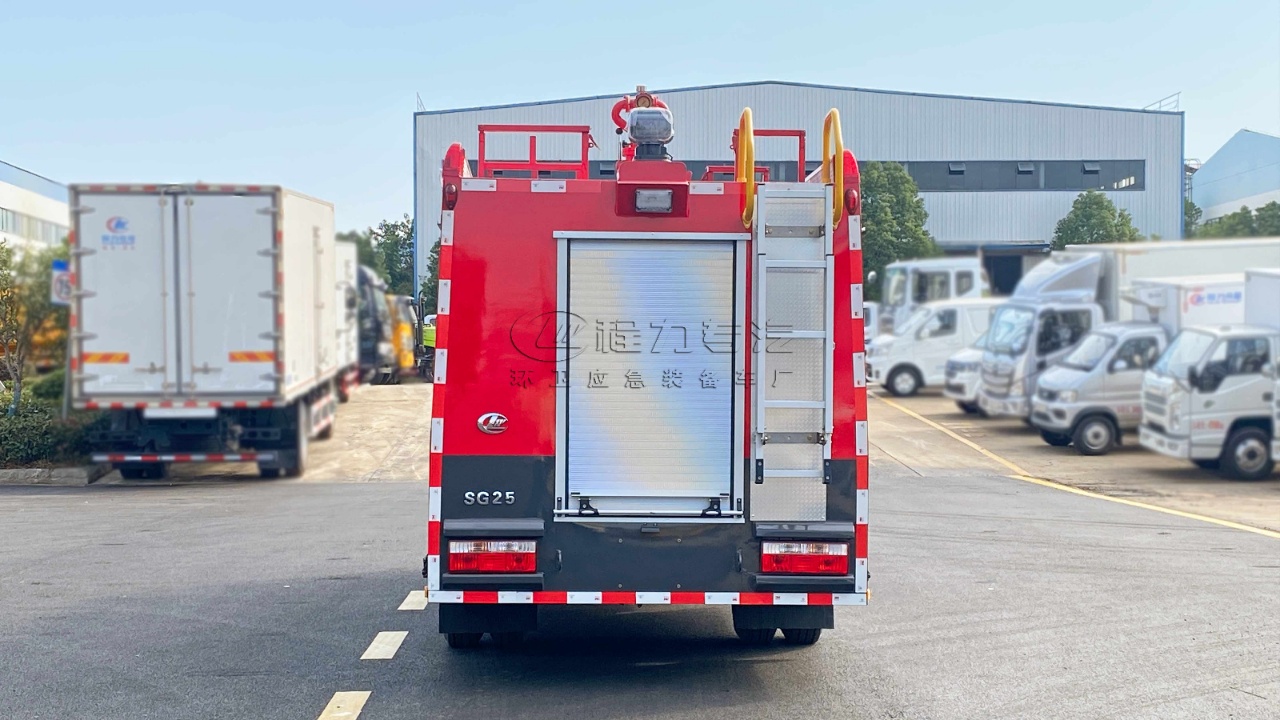

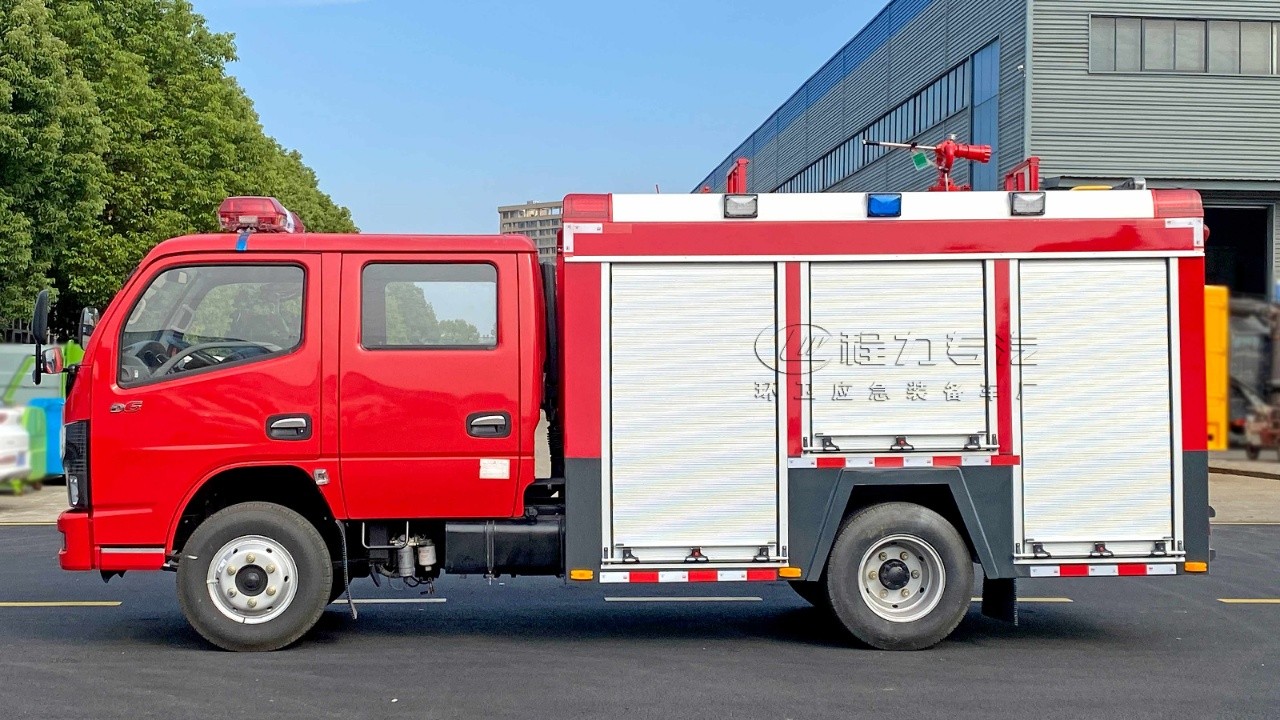

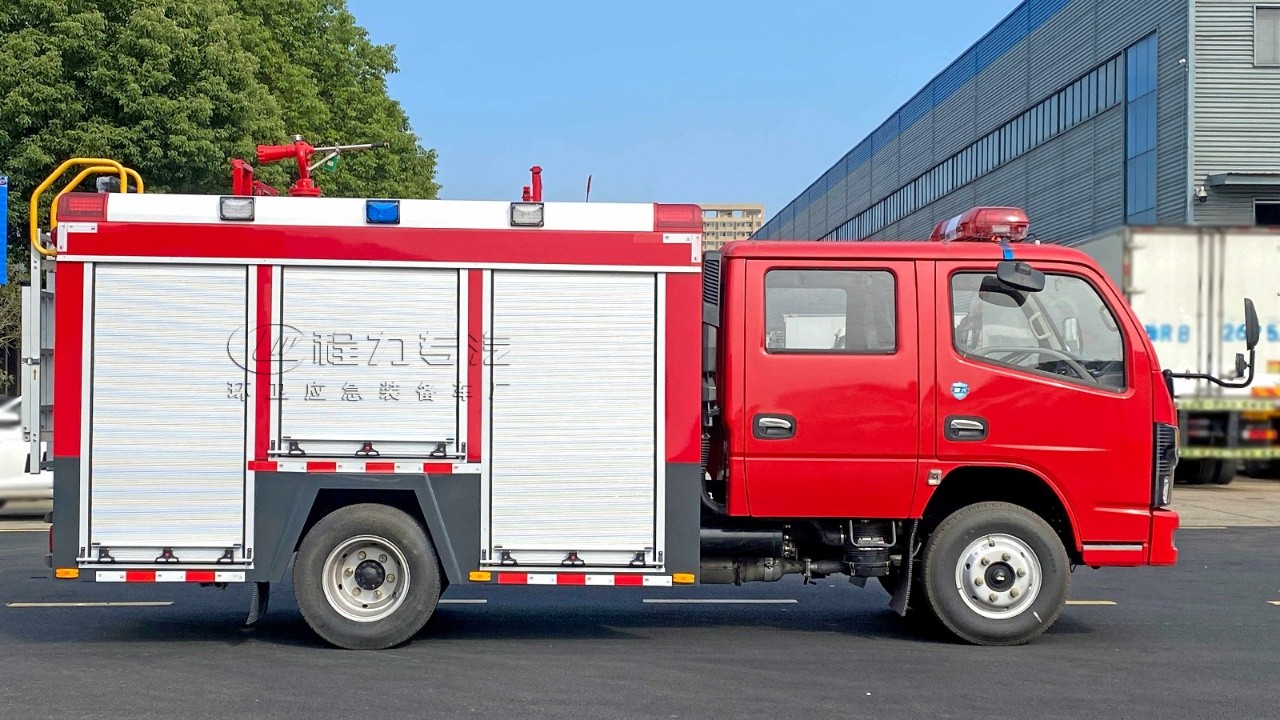

Dongfeng Doric 2.5m3 water foam fire truck

Origin: Suizhou China

Brand: CLW

Emission standard: EURO 2/3/4/5/6

Steering wheel: LHD/RHD

Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

Inquire Now Next Product

Phone：

+86 13329890945

+86 19813830308

ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Center

contant us

Phone：

+86 13329890945

+86 19813830308

Email：info@clw-specialtrucks.com
ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Details

Dongfeng Doric fire truck is mainly composed of Dongfeng light vehicle chassis with water tank, equipment compartment and other modified parts. Also known as fire trucks, fire engines, etc. Fire truck is used for fire fighting, auxiliary fire fighting or fire rescue of mobile fire technical equipment, is designed and manufactured according to the needs of different rescue objects and fire fighting, suitable for fire personnel to ride, equipped with various fire equipment or fire extinguishing agent vehicles.

Parameters of the Dongfeng Doric fire truck

Parameters of the whole fire truck
Brand	CLW	model	CLW5070GXFSG25
outer dimensions	604019802830mm	GVW	7135kg
rated loading capacity	2500kg	curb weight	4260kg
axle loading capacity	2415/4720kg	fron/ rear suspension	1040/1692mm
passengers	2+3	max speed	100km/h
approach/departure angle	27/14°
Parameters of the fire truck chassis
model	EQ1075DJ3CDF	brand	Dongfeng
axle number	2	tyre number	6
wheelbase	3308mm	tyre size	7.00R16
leaf spring number	6/6+5	fuel type	diesel
engine brand	Quanchai	power	132hp
Parameters of the fire truck body
fire truck tank volume: 2.5m3, made of high-quality carbon steel box, anti-corrosion treatment, full power sandwich force extracter, equipped with CB10/20 Shanghai Risheng fire pump, PS20 fire cannon, flow: 20L/s, range ≥45 meters, internal tank, long row of alarm lights, loudspeakers, flash lights, rear lights, operation panel.
