Product Details

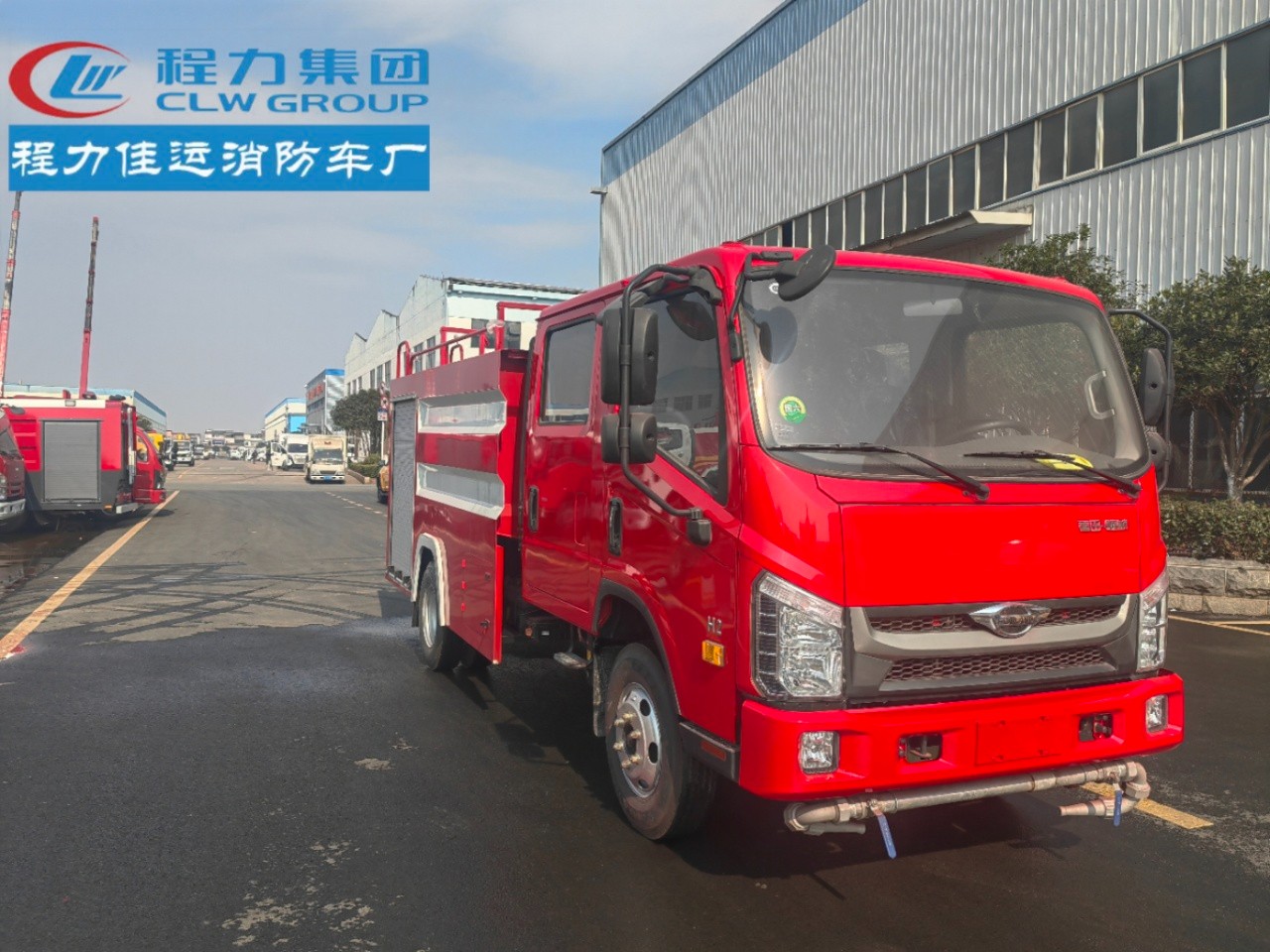

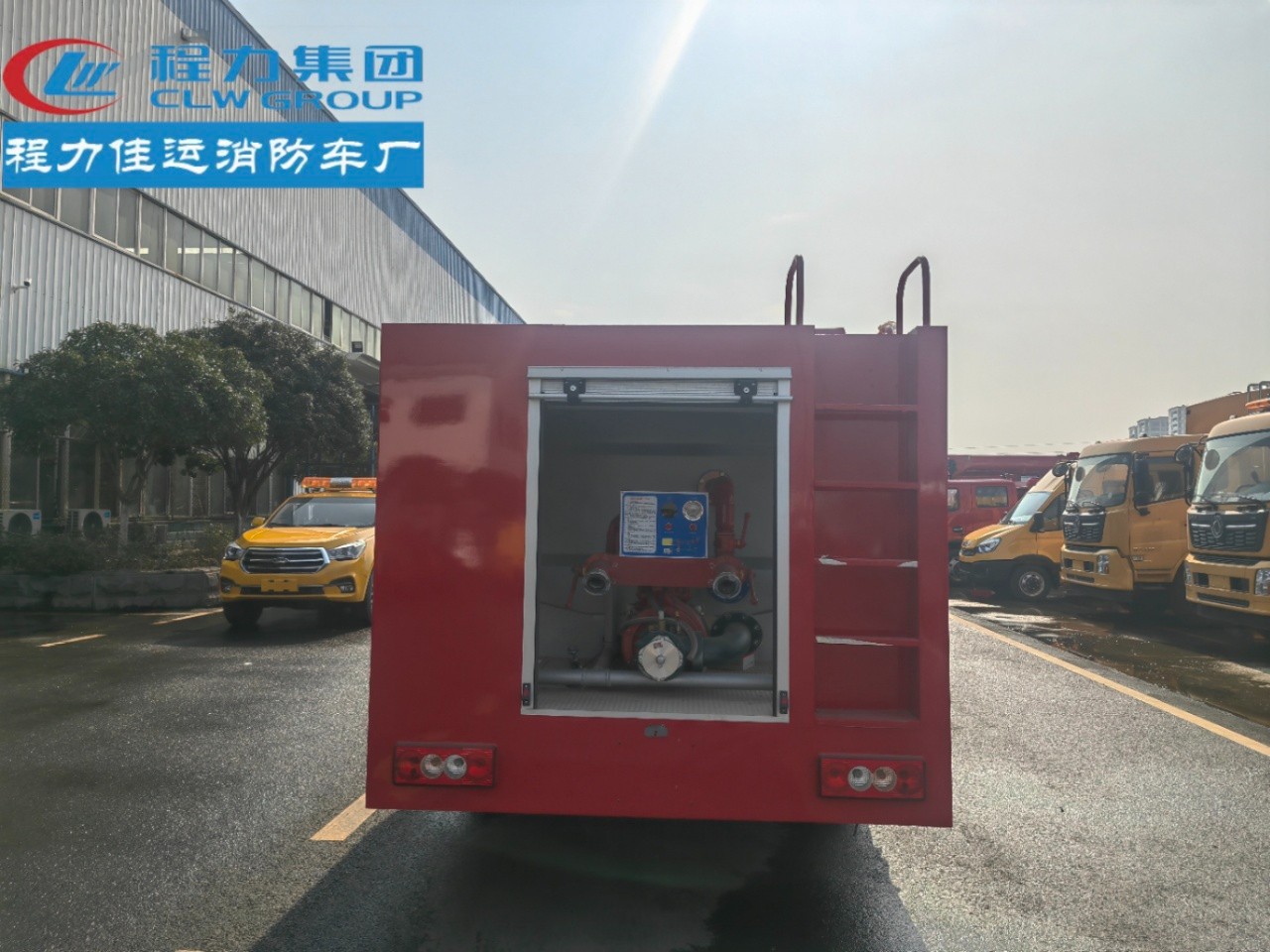

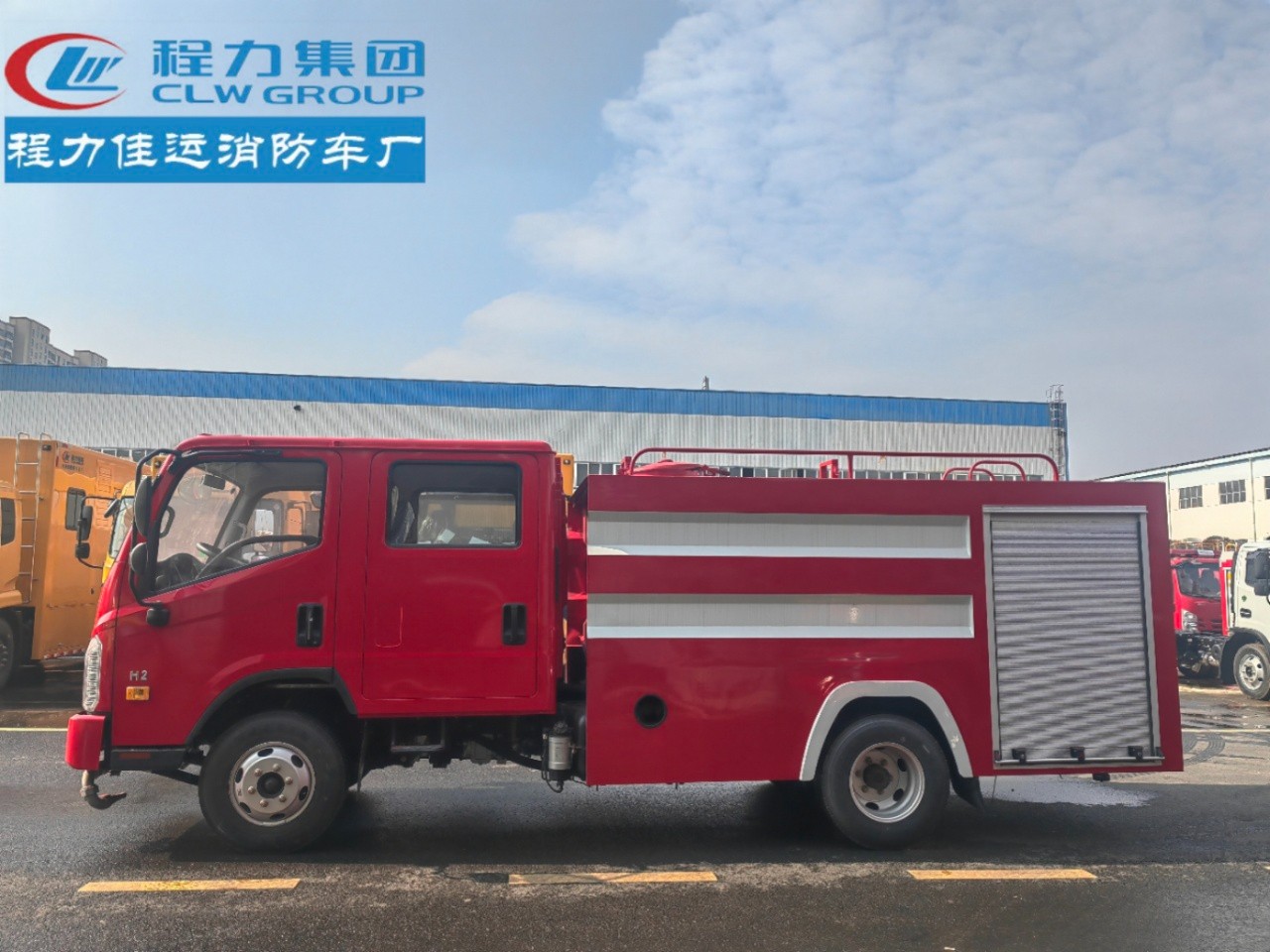

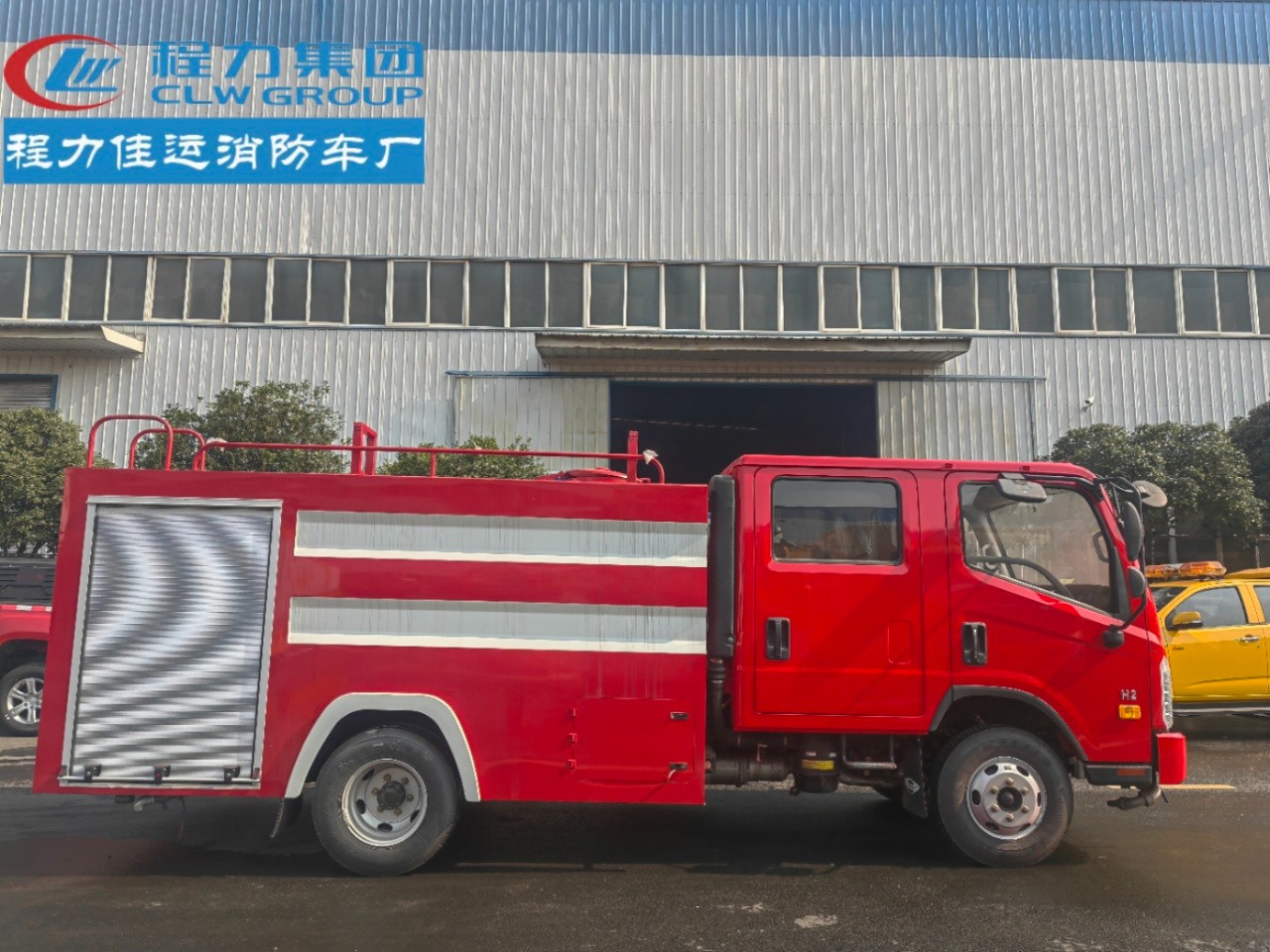

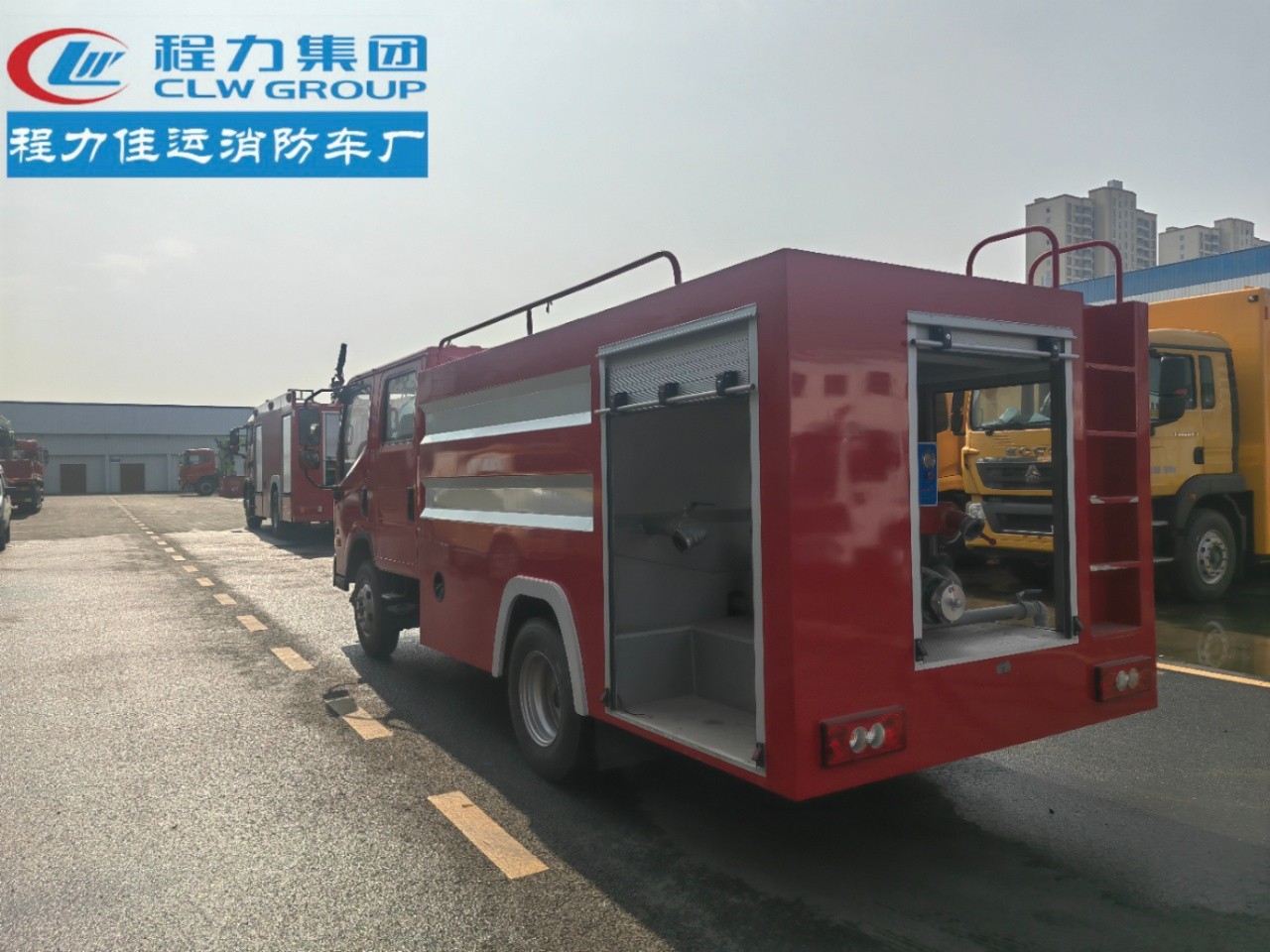

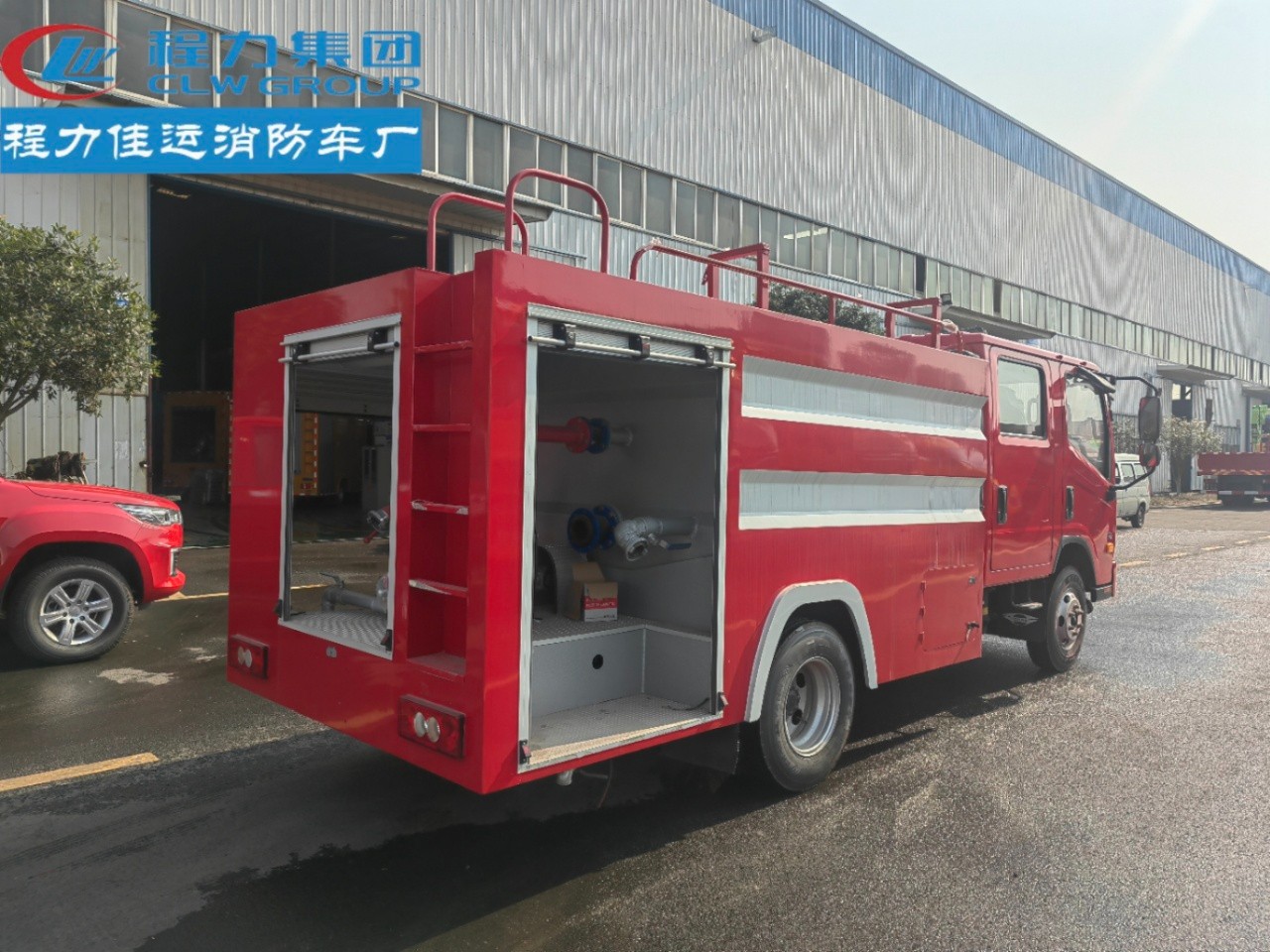

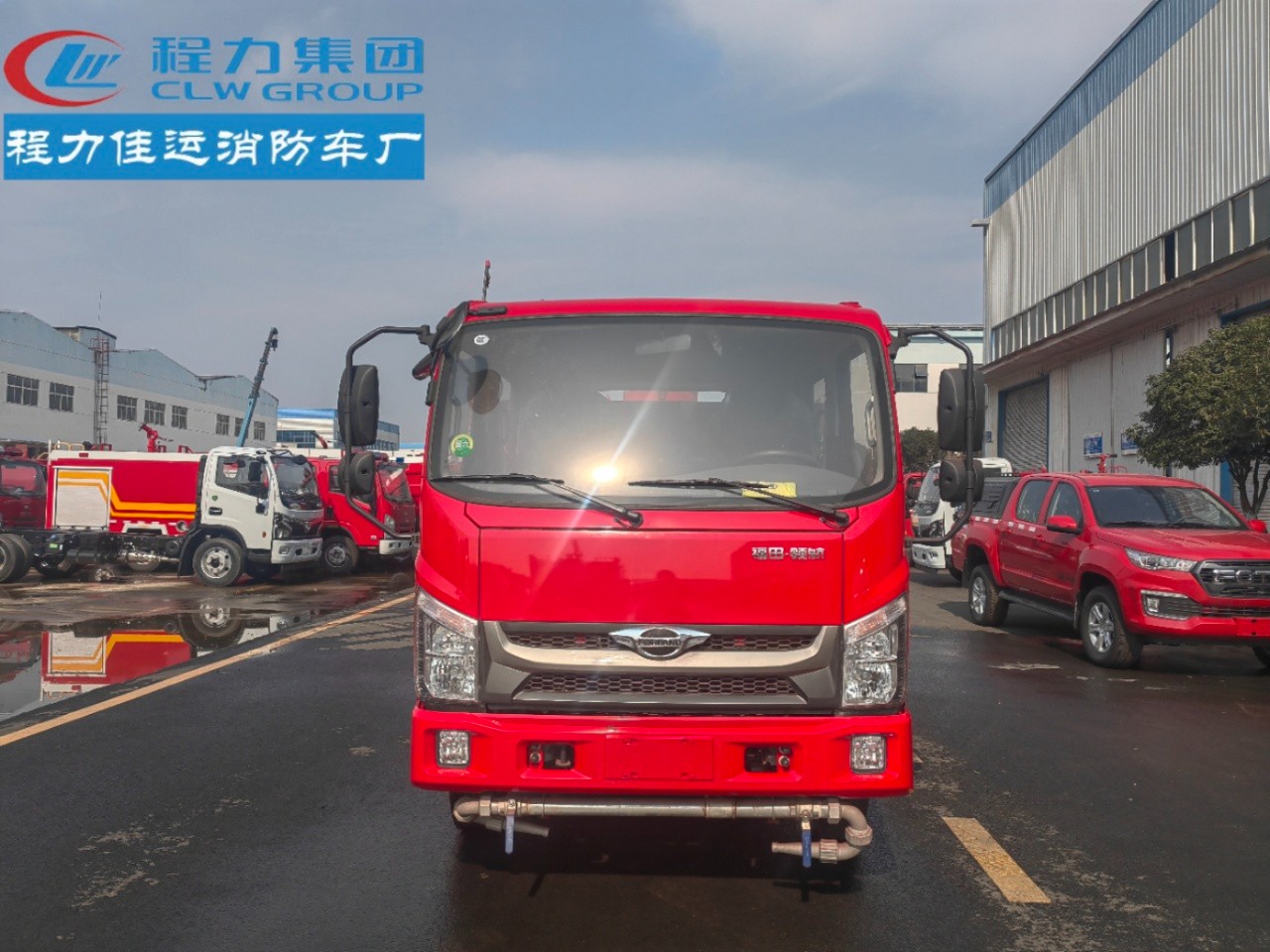

1. Pictures of the FOTON H2 double cabin fire truck

2. Whole FOTON H2 double cabin fire truck parameters

model	CLW5071GSSADY	brand	CLW
outer dimension	629020602450mm	GVW	7360kg
rated loading capacity	3080mm	curb weight	3890mm
axle load	2640/4720kg	front/ rear suspension	1130/1800m
passengers	3+3	appraoch/departure angle	21/12°
max speed	95km/h

3. FOTON H2 fire truck chassis adopt FOTON BJ1076VEADA-51 chassis,the wheelbase is 3360mm, with tyre size 7.00R16RT 14PR. there are 3 types of engine for choice: Q23-115C60/Q28-130C60/YN25PLUS10

4. The FOTON H2 double cabin fire truck body mainly composed of water tank and water pump, which is specilly designed for road washing and spraying. The fire truck water tank volume is 3.23m3, effective volume 3.08m3.

Fire pump rated flow: CB/20 atmospheric fire pump, flow 20L/s, pressure 1.0MPa; Vacuum pump pumping time ≤35s, suction depth ≥7m.

Maximum vacuum degree: ≥85kPa;

Fire gun range: column range ≥48m, fog range 15m

Standard pre-offset conical nozzle, flushing width ≥25m conical nozzle Angle can be adjusted at will; Double side rear sprinkling, spraying area 15m²
