Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

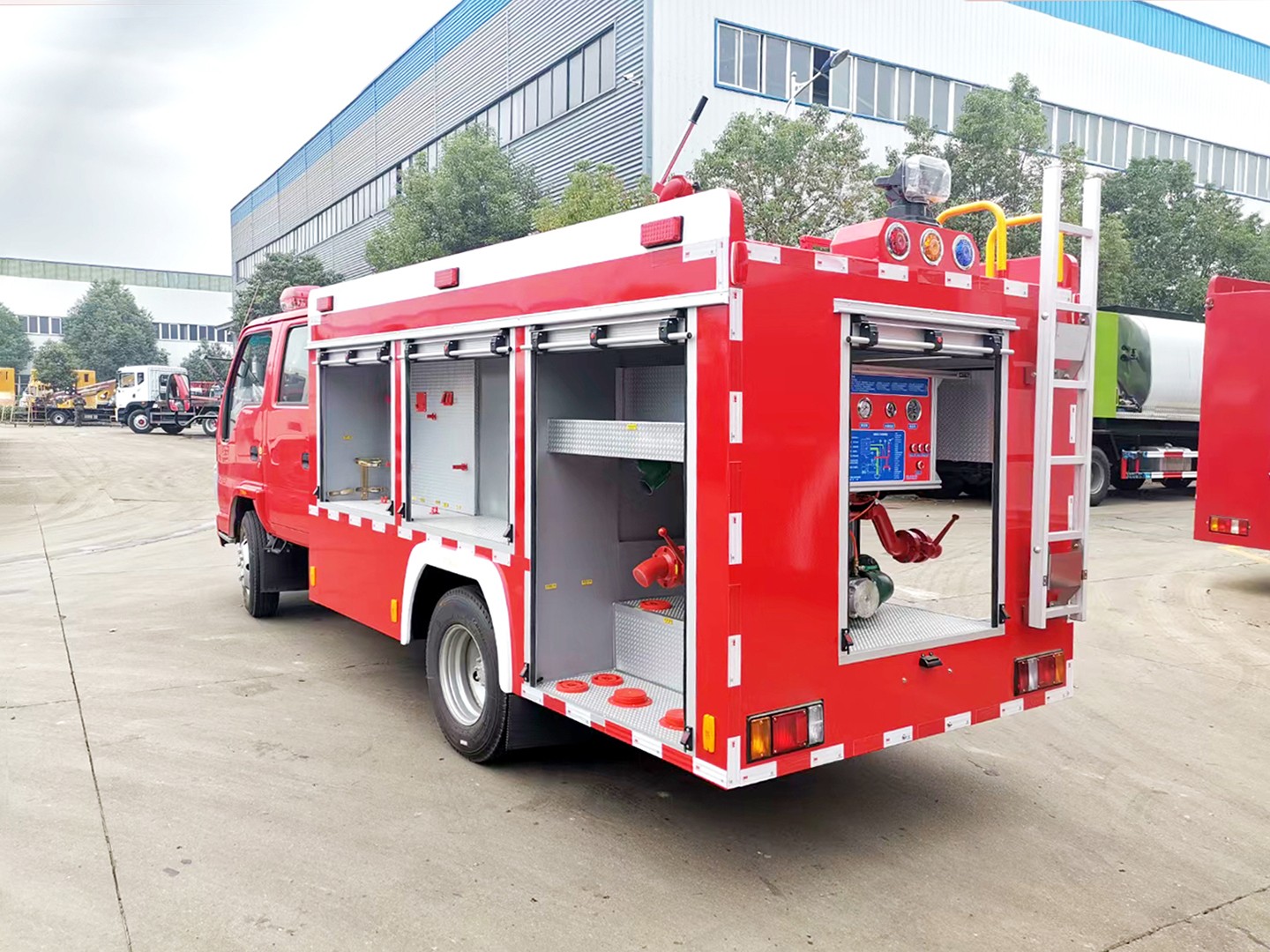

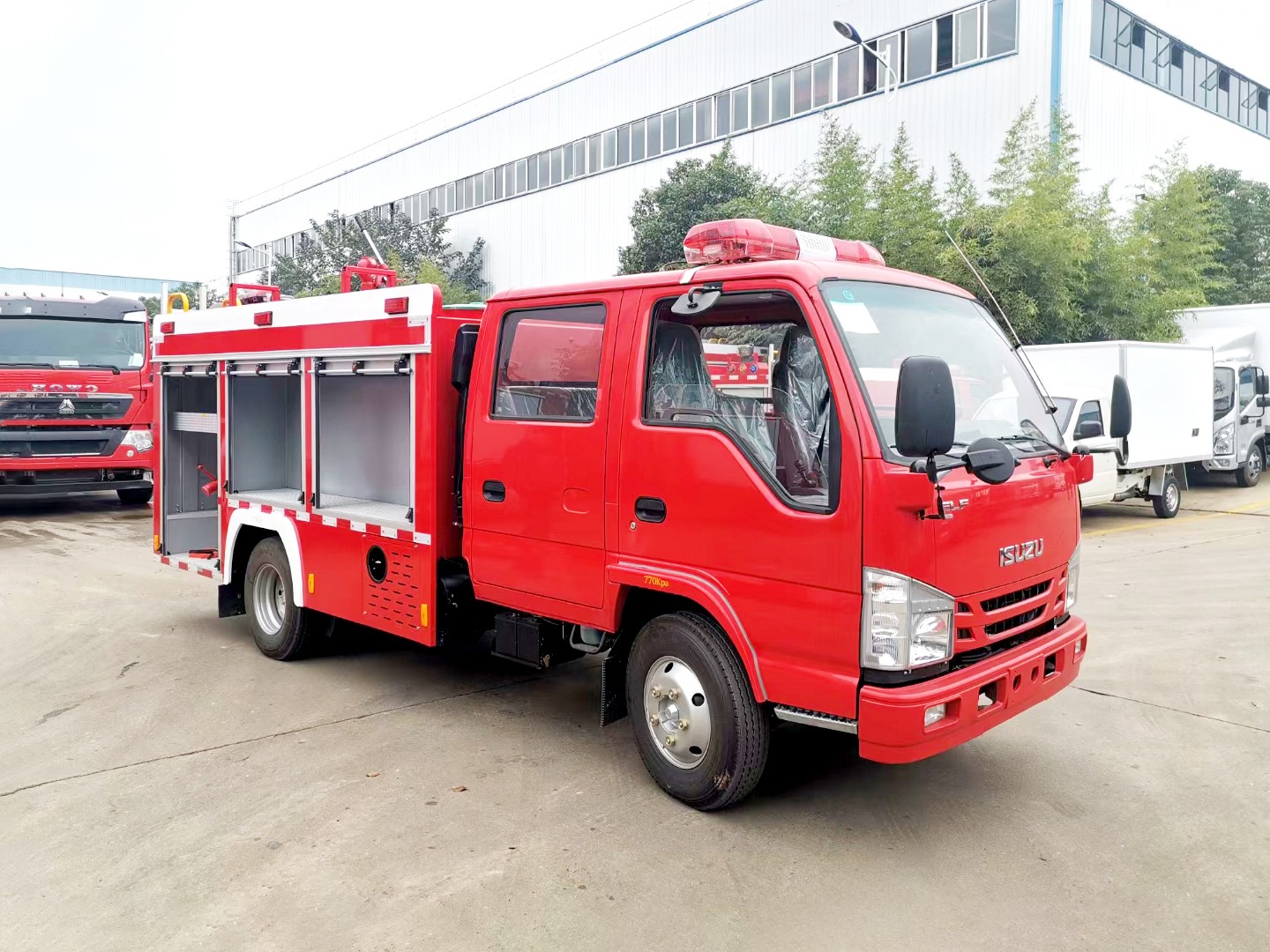

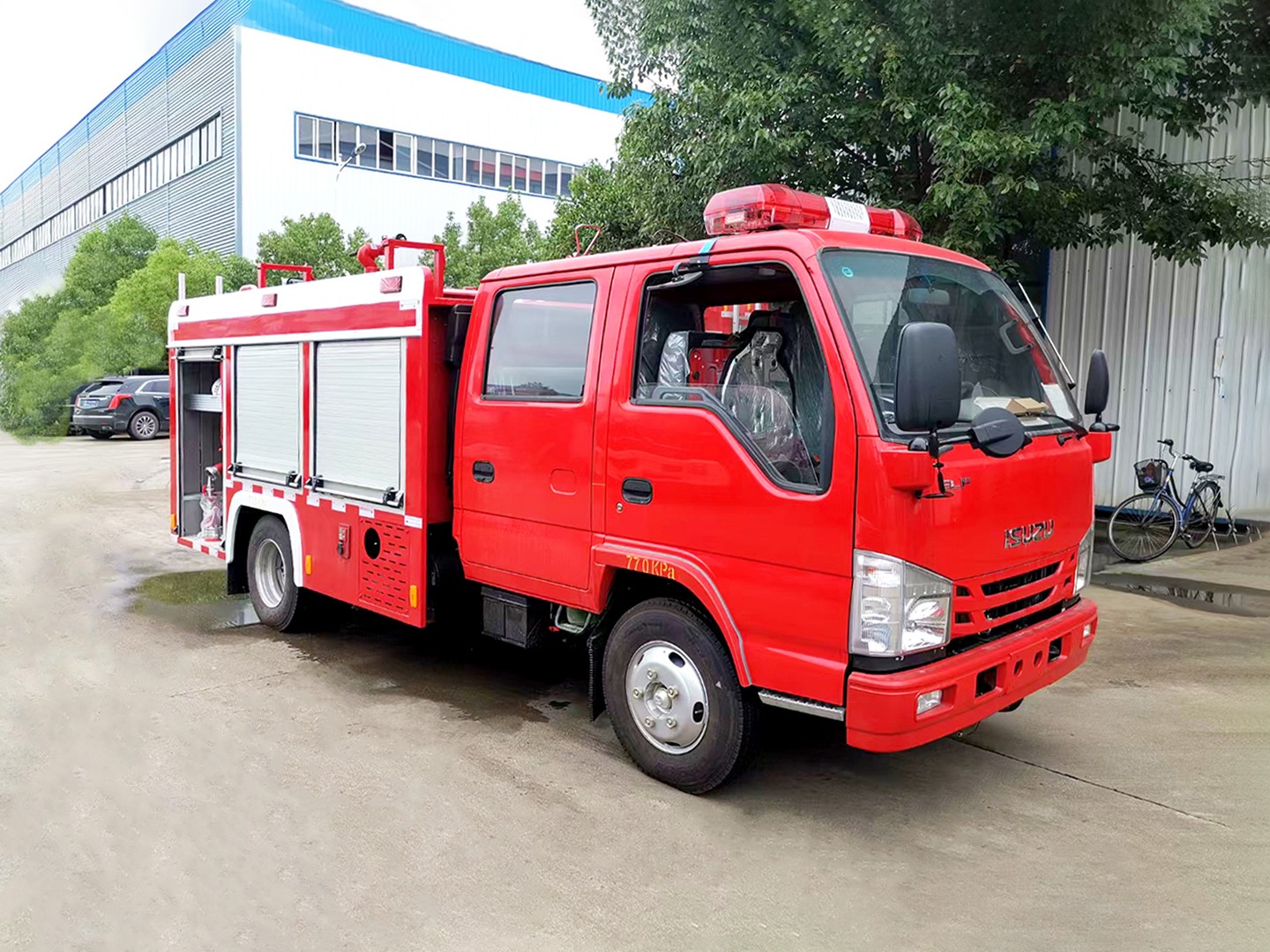

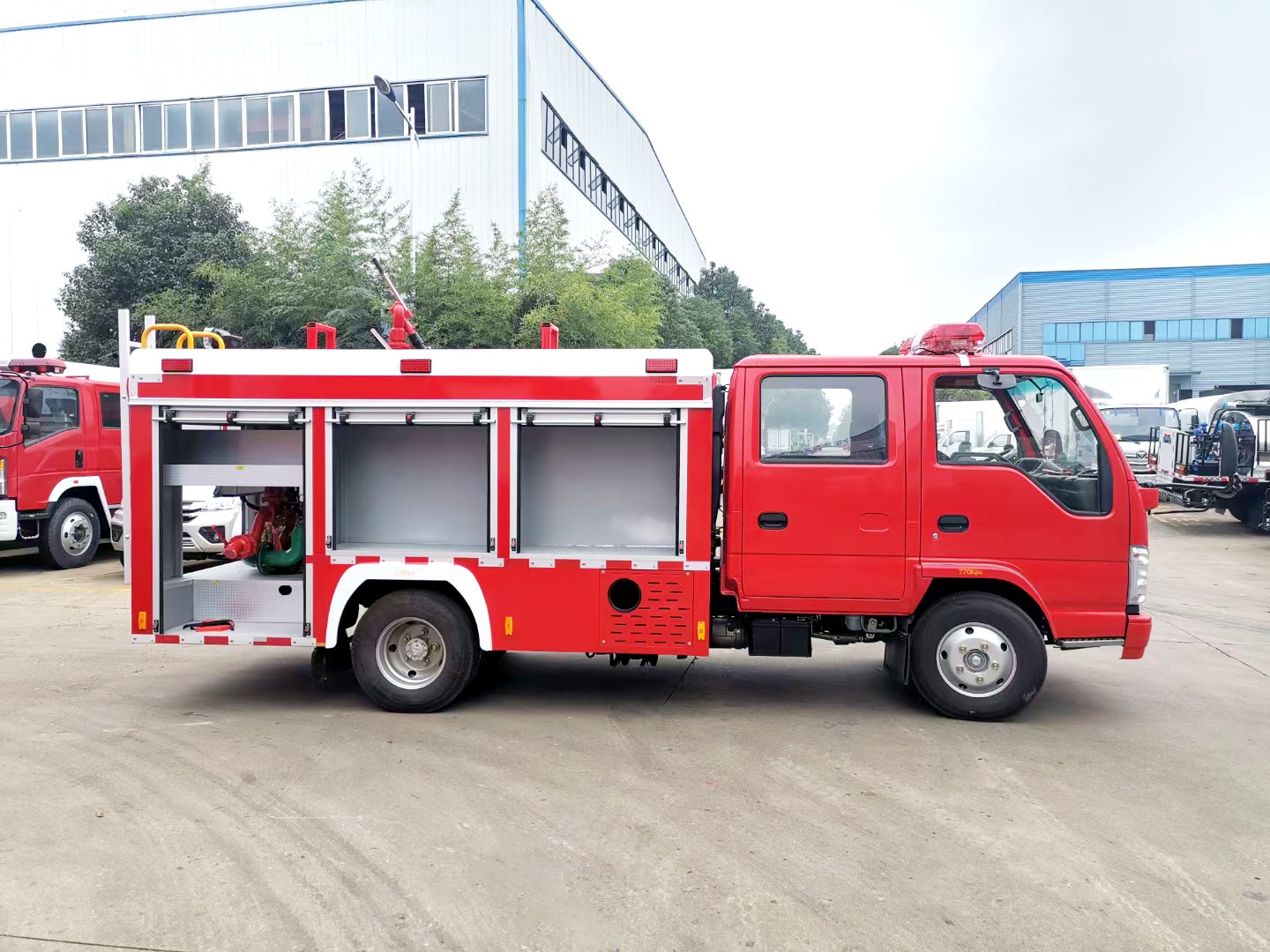

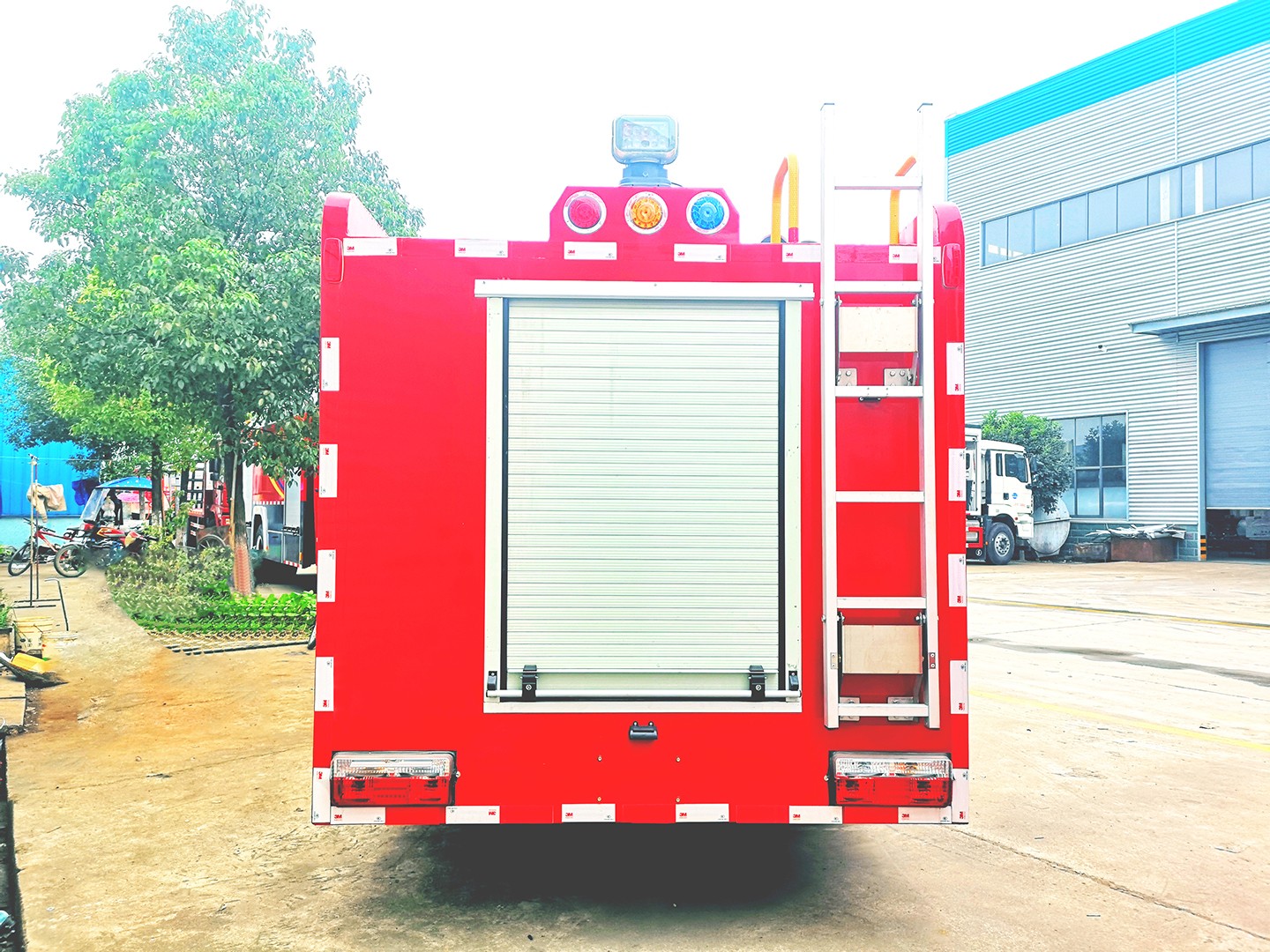

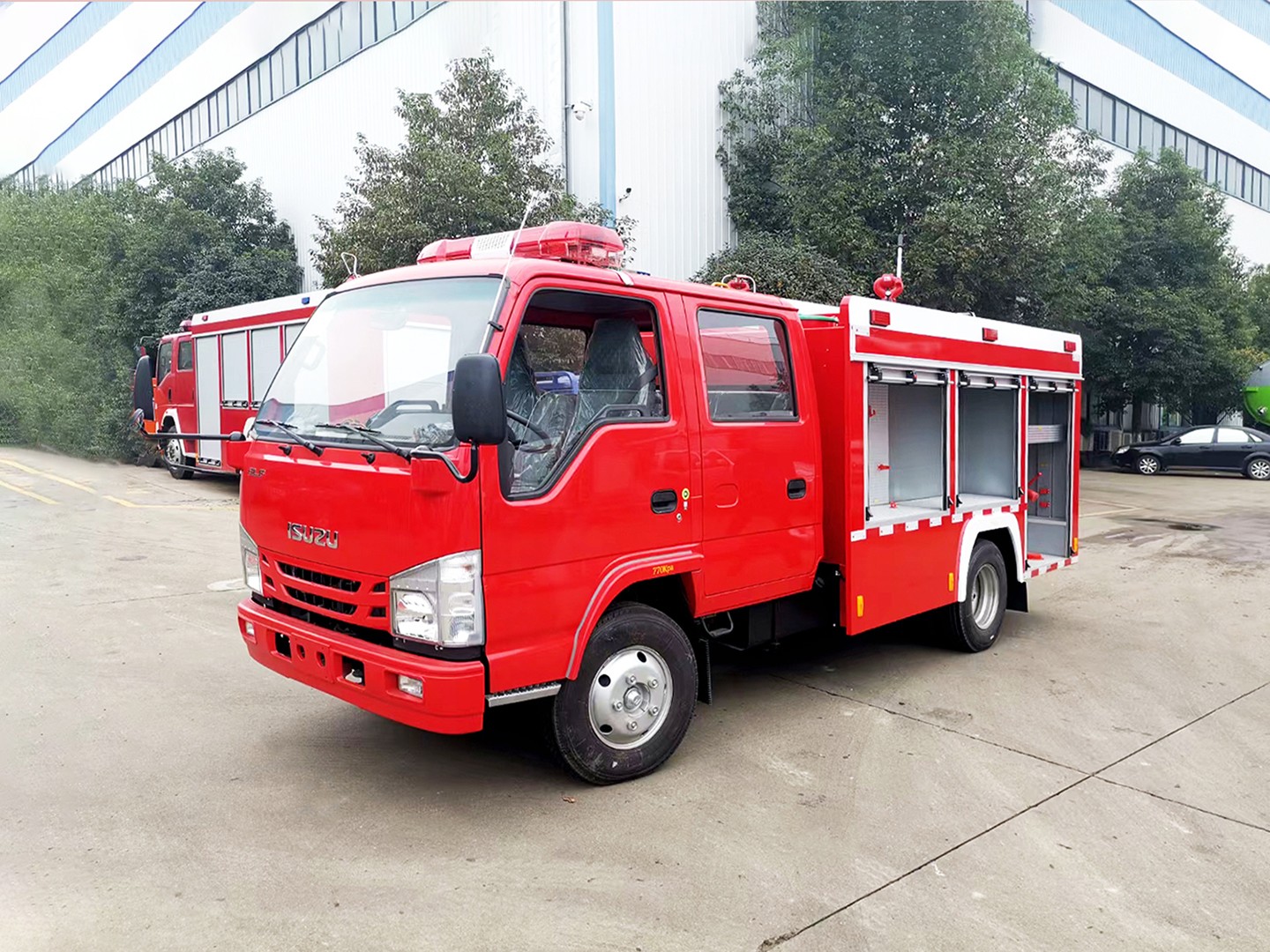

1. Picture of the ISUZU 100P fire truck
2. Whole truck parameters of the ISUZU 100P fire truck
| truck model | CLW5070GXFSG20/QL | brand | CLW |
| outer dimensions | 6100*1960*2660mm | GVW | 6700kg |
| rated loading capacity | 2000kg | curb weight | 4325kg |
| front/ rear suspension | 1015/1725mm | axle loading capacity | 2200/4500kg |
| passengers | 2+3 | max speed | 95km/h |
| approach/departure angle | 20/15 |
3. ISUZU Chassis parameters
| chassis model | QL1070BUHWY | brand | ISUZU |
| axle number | 2 | wheelbase | 3360mm |
| tyre bumber | 6 | tyre size | 7.00R16LT 14PR |
| front gauge | 1504/1377 | rear gauge | 1425 |
| leaf spring number | 8/6+5 | fuel type | diesel |
| emission standard | EURO 6 | engine | 4KH1CN6LB/88KW/120hp 4KH1N6MD/103KW/140hp |
4. ISUZU 100P fire truck body parameters
water tank volume: 2m3
water tank dimension: 1905*1000*1000mm
tank material:carbon steel(PP/stainless steel are avilable)
fire pump：CB10/20, 20L/S 1.0MPa
fire gun：PS20, 20（L/s） 0.8MPa
fire gun range: water ≥48m
