Dongfeng Doric water tank fire truck

Origin: Suizhou China

Brand: CLW

Emission standard: EURO 2/3/4/5/6

Steering wheel: LHD/RHD

Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

Inquire Now Next Product
  Phone:

+86 13329890945

+86 19813830308


  ADD:South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China
contant us
Phone:

+86 13329890945

+86 19813830308


Email:info@clw-specialtrucks.com
ADD:South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Details

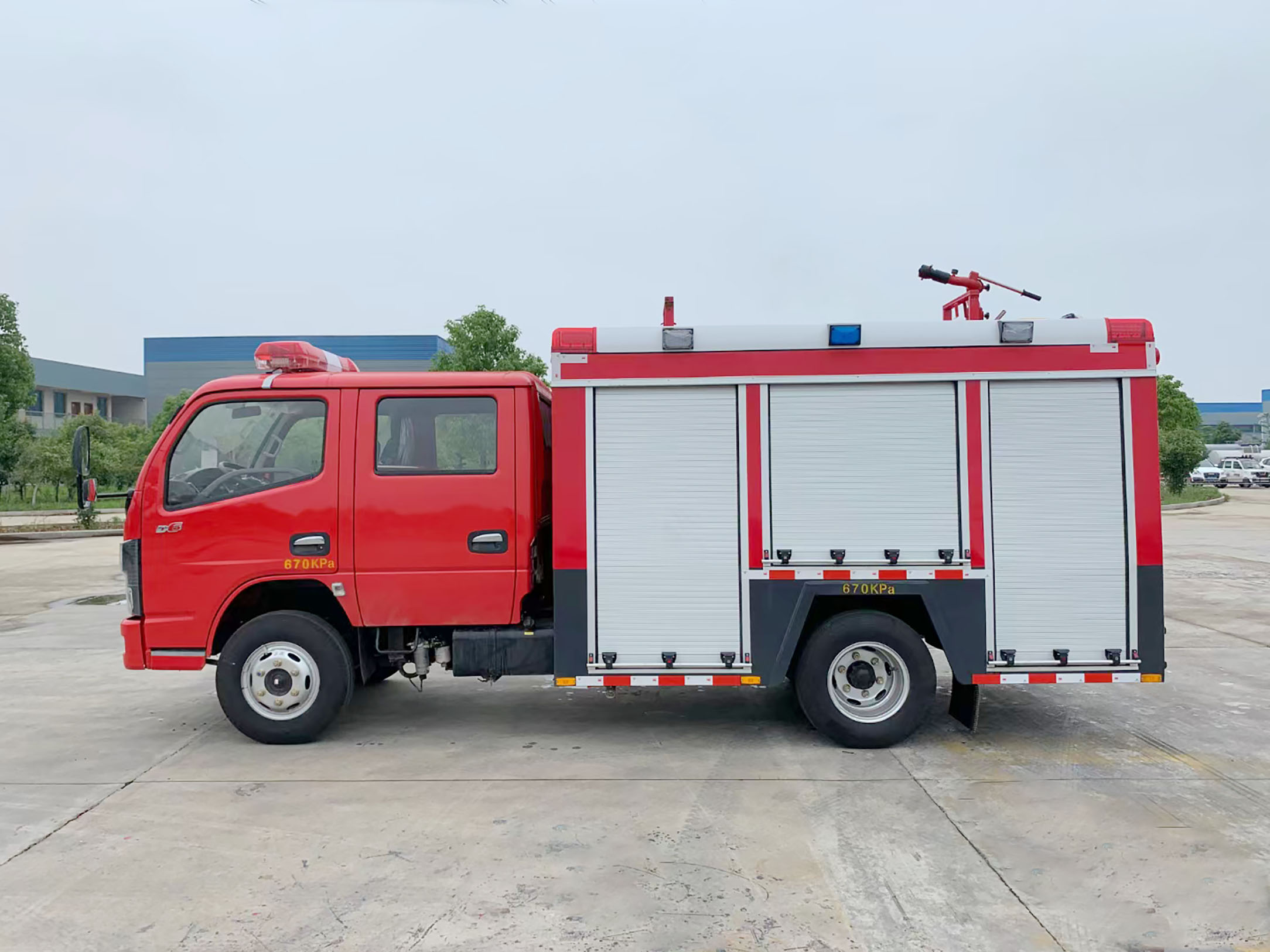

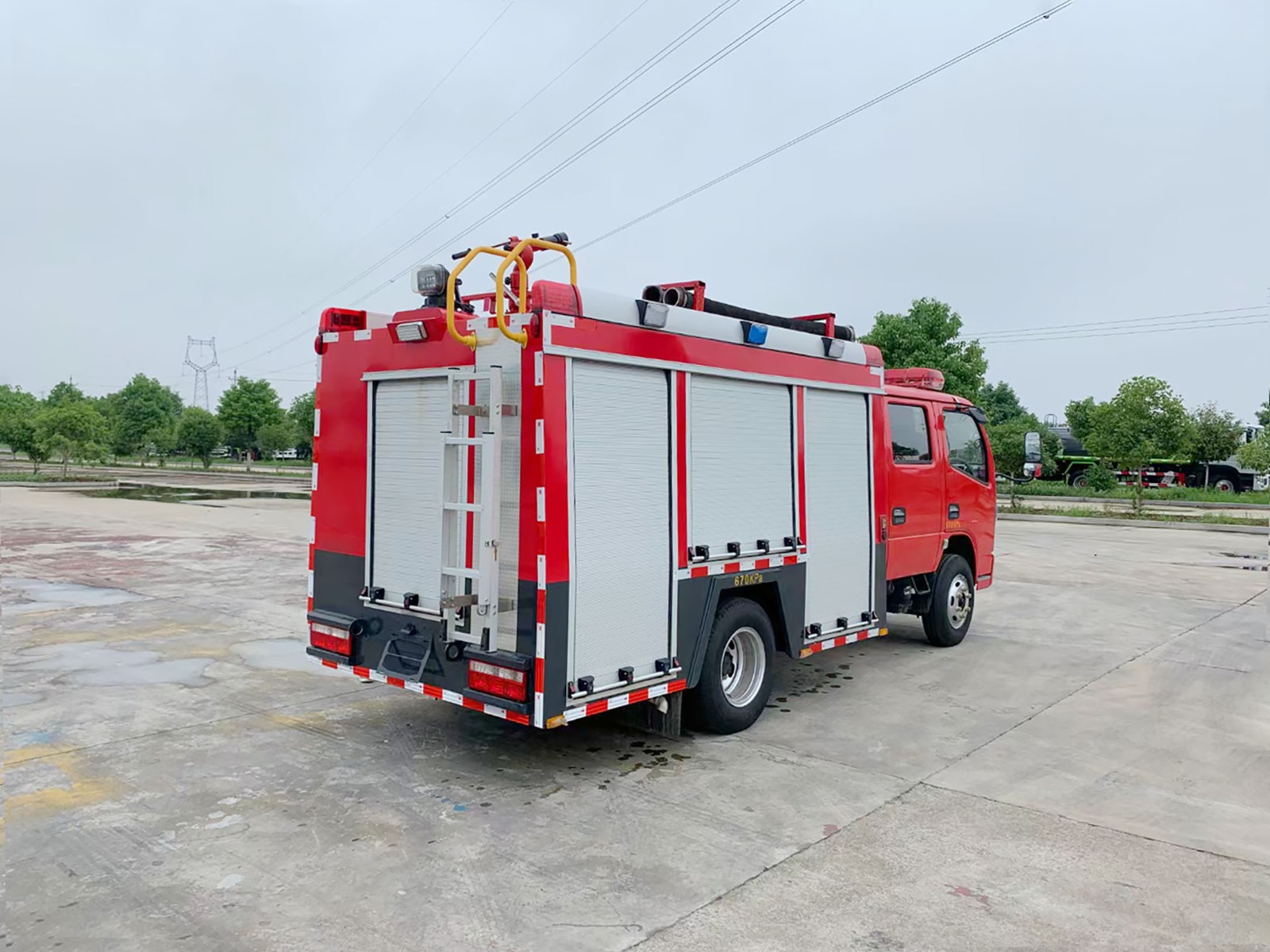

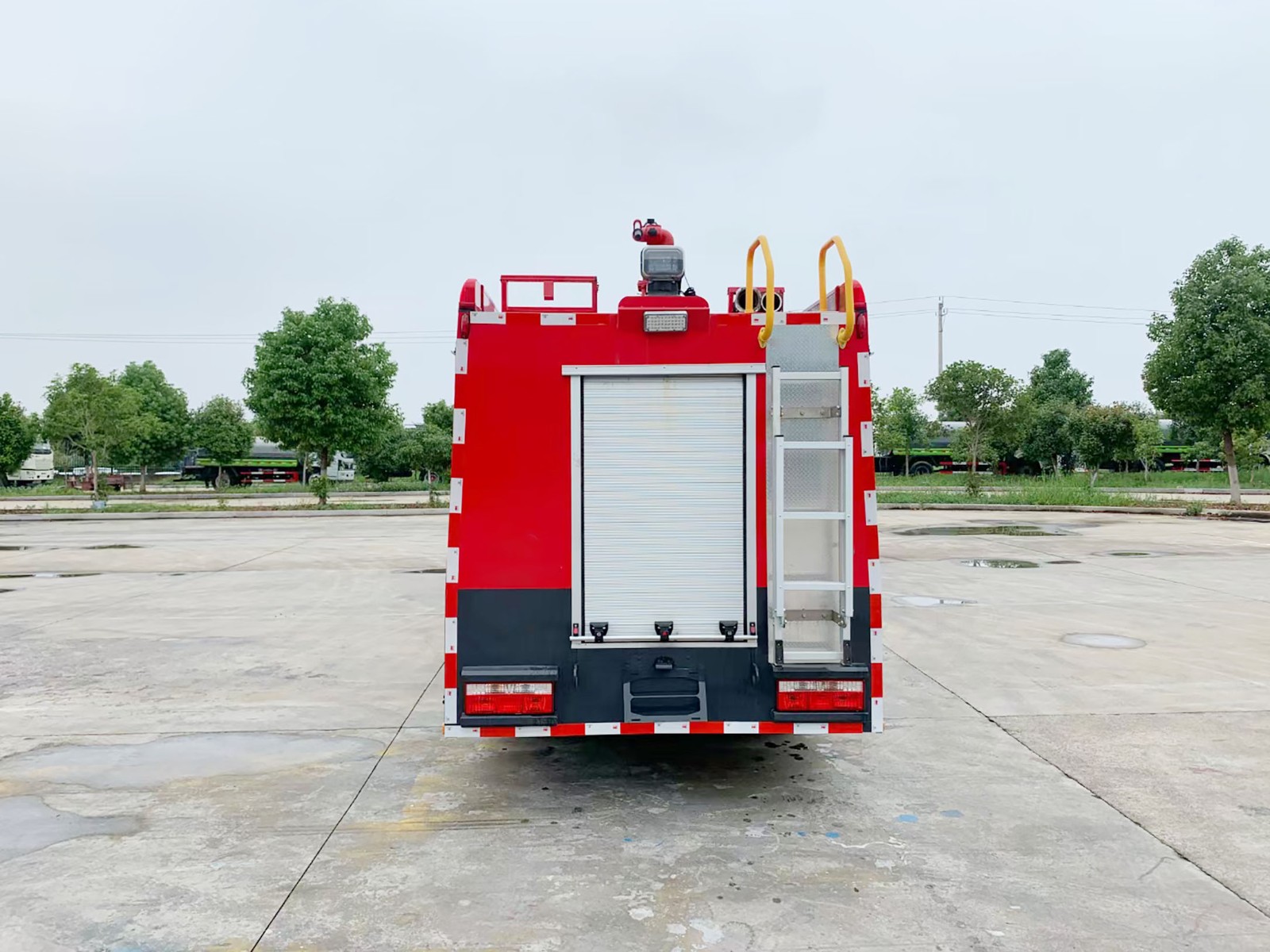

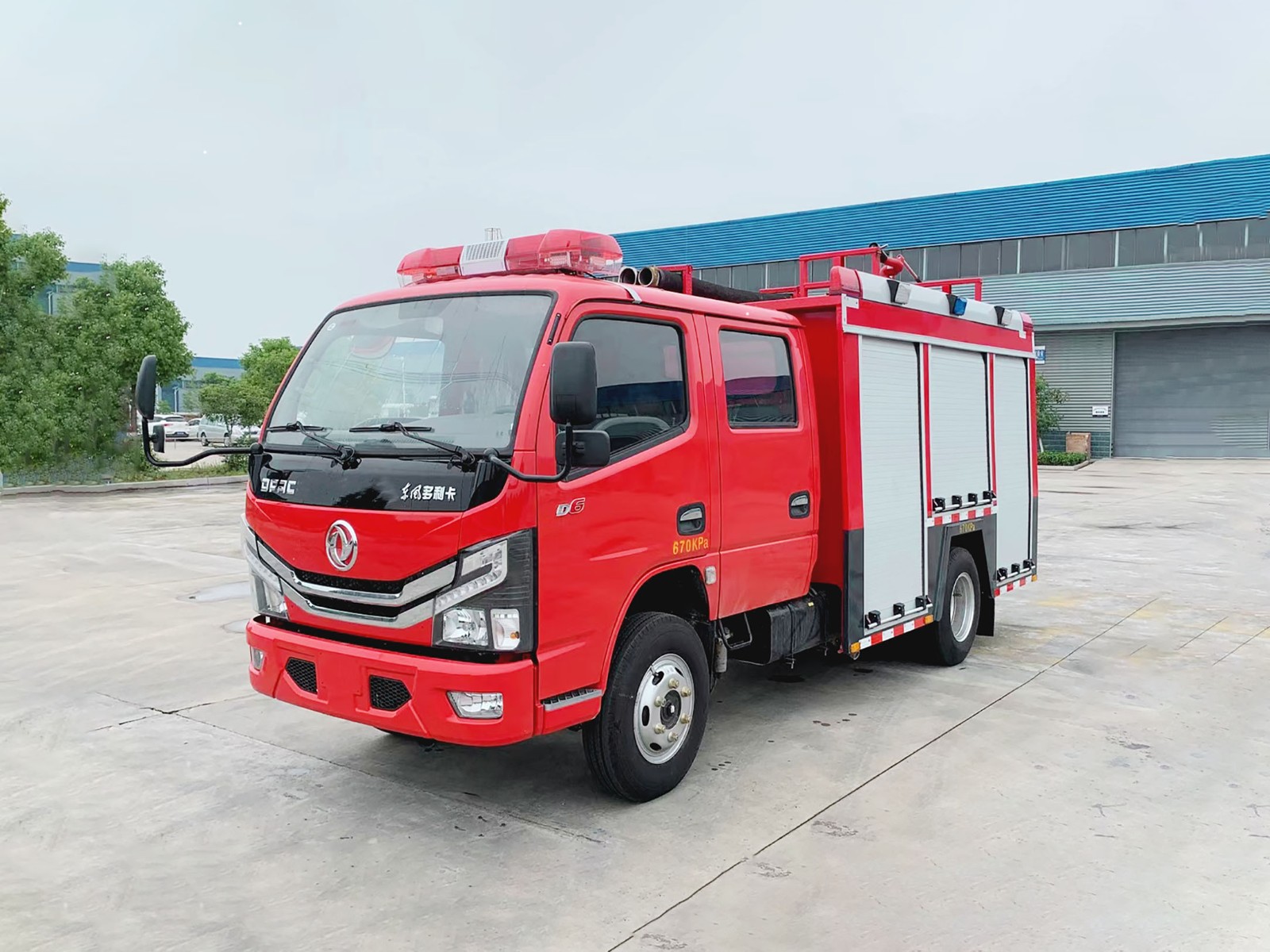

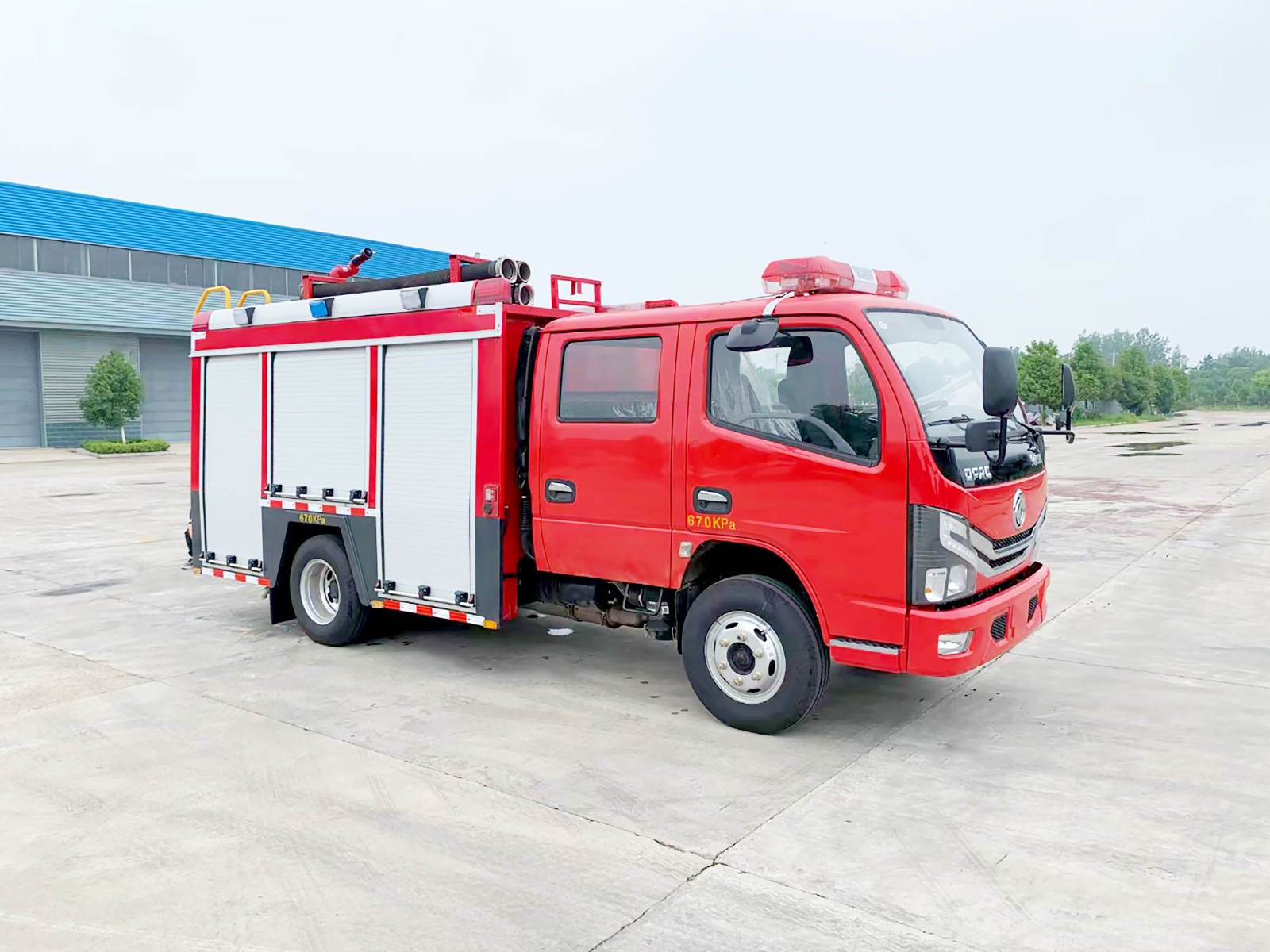

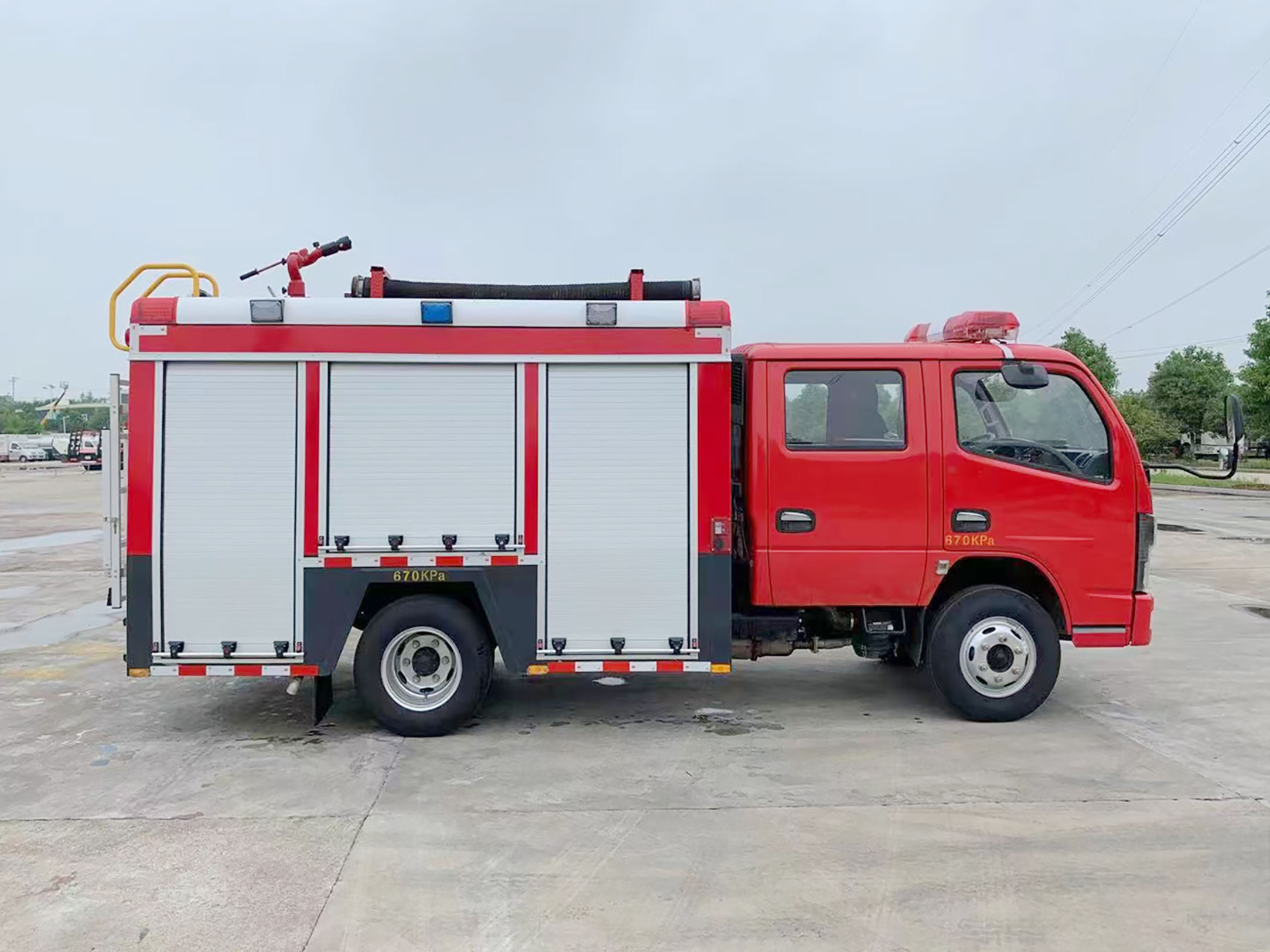

1. Pictures of the fire truck


2. Whole fire truck parameters:

truck model CLW5070GXFSG25/DFbrand CLW
outer dimension6040*1980*2830mm GVW 7135kg
rated loading capacity 2500kg curb weight 4260kg
axle load 2415/4720kg front/ rear suspension 1040/1692mm
passengers 2+3approach/departure angle 27/14
max speed 100km/h


3. Chassis information of the fire truck

chassis model EQ1075DJ3CDFbrandDongfeng
axle number 2wheelbase 3308mm
tyre size 7.00R16 tyre number 6
front gauge 1521/1503mmrear gauge 1498,1586mm
spring leaf number 6/6+5fuel diesel
emission standard EURO 6 engine

Q23-115E60/85KW/115hp

YCY24140-60/103KW/140hp


4. Fire truck body information

Tank volume: 2.5m3, the material is carbon steel or PP or stainless steel

water tank dimensions: 2060*1000*1200mm

fire pump: CB10/20, 20L/S 1.0MPa

fire gun: PS20, 20(L/s) 0.8MPa

fire gun range:water ≥48m



CUSTOMIZATION SERVICE

Special truck customization service to meet customer's special requirements.
