Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

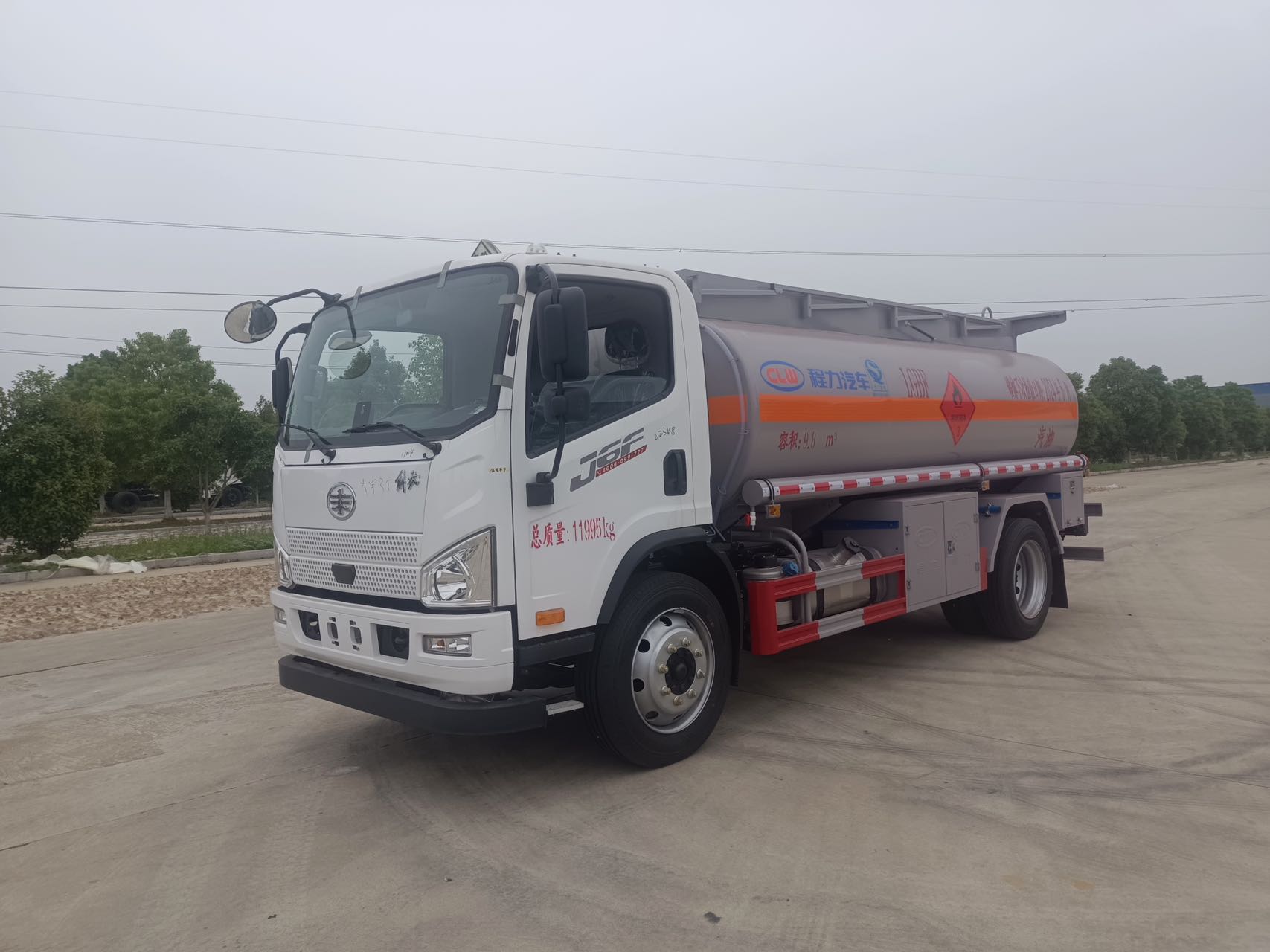

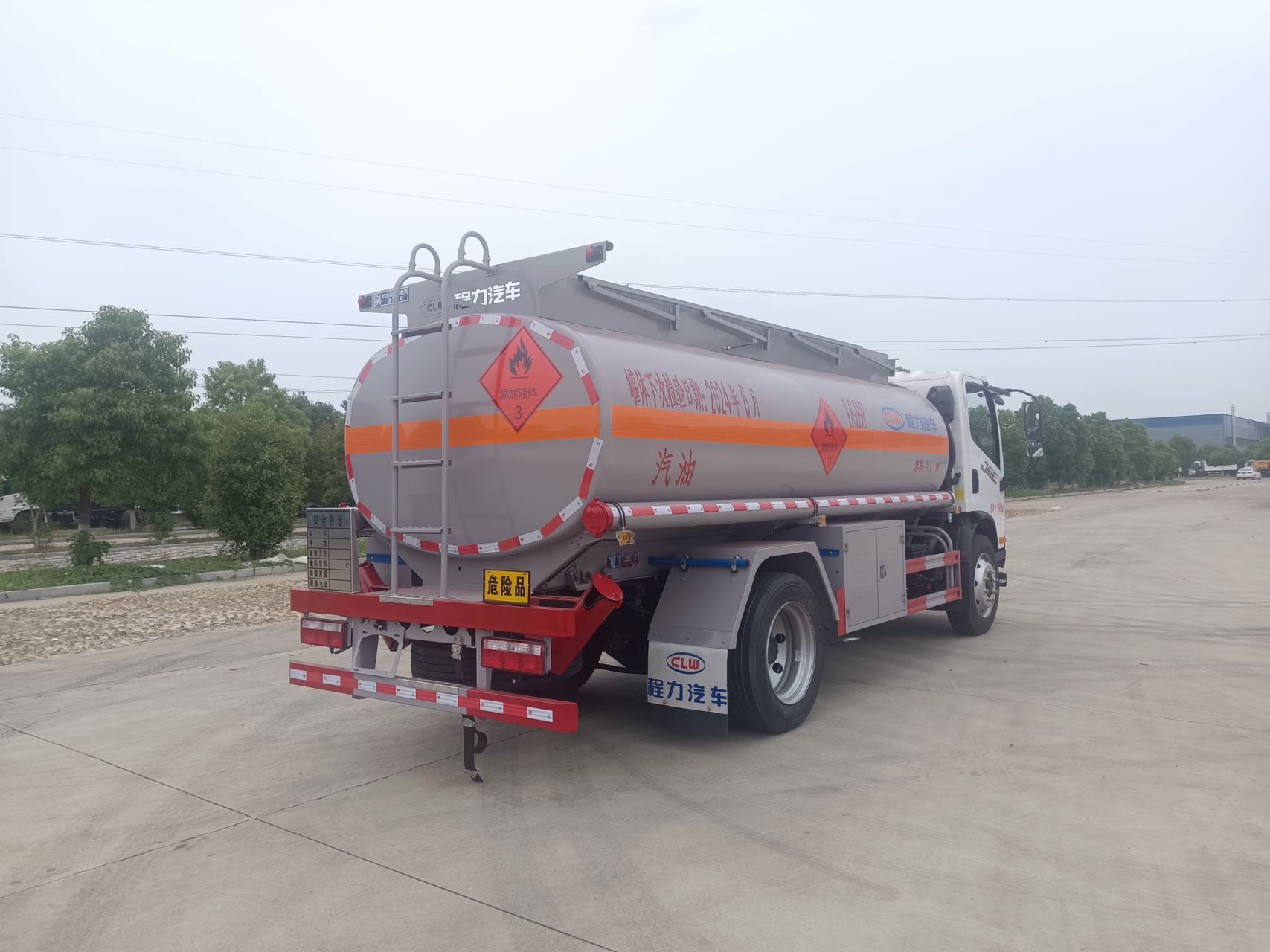

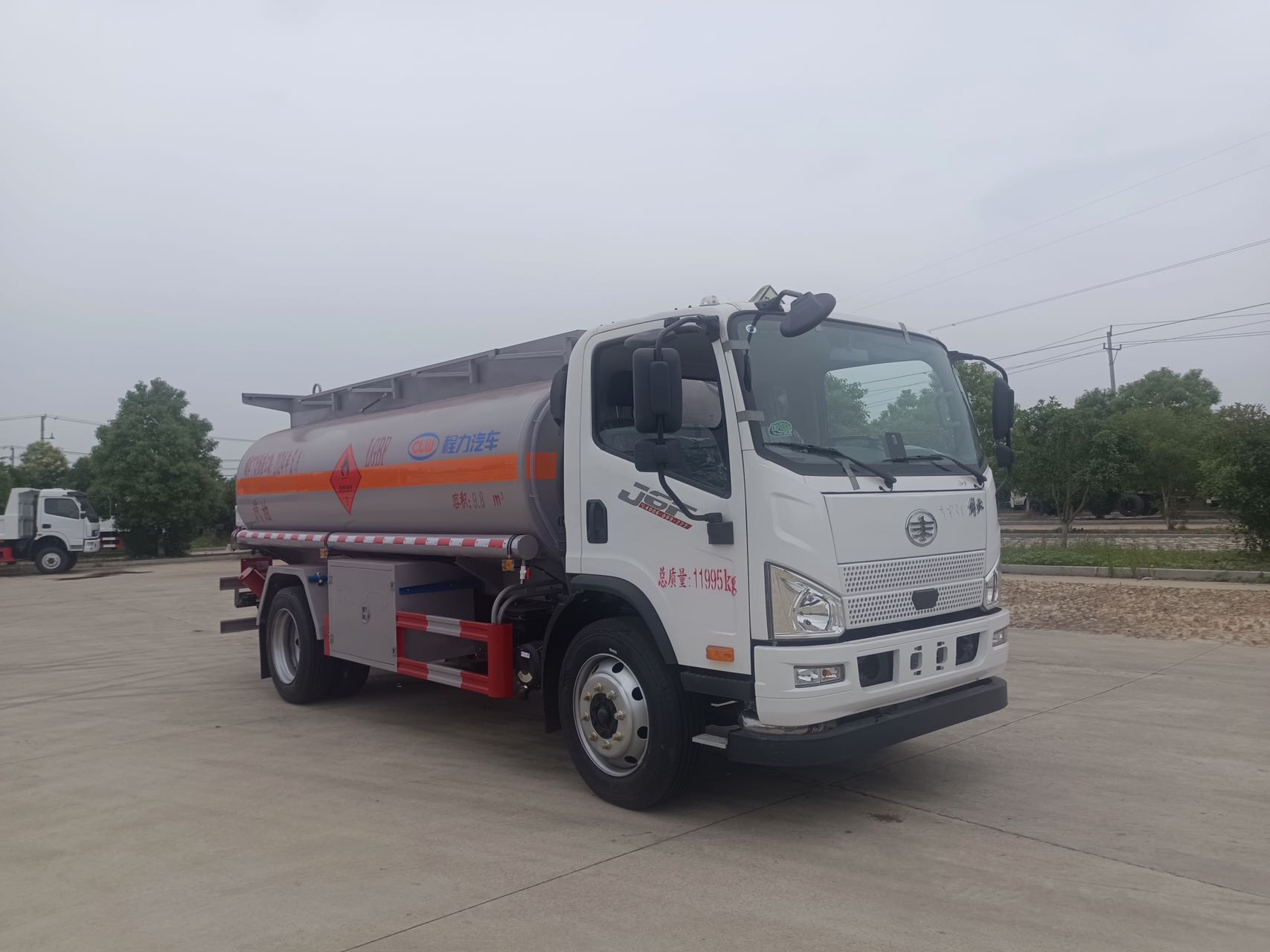

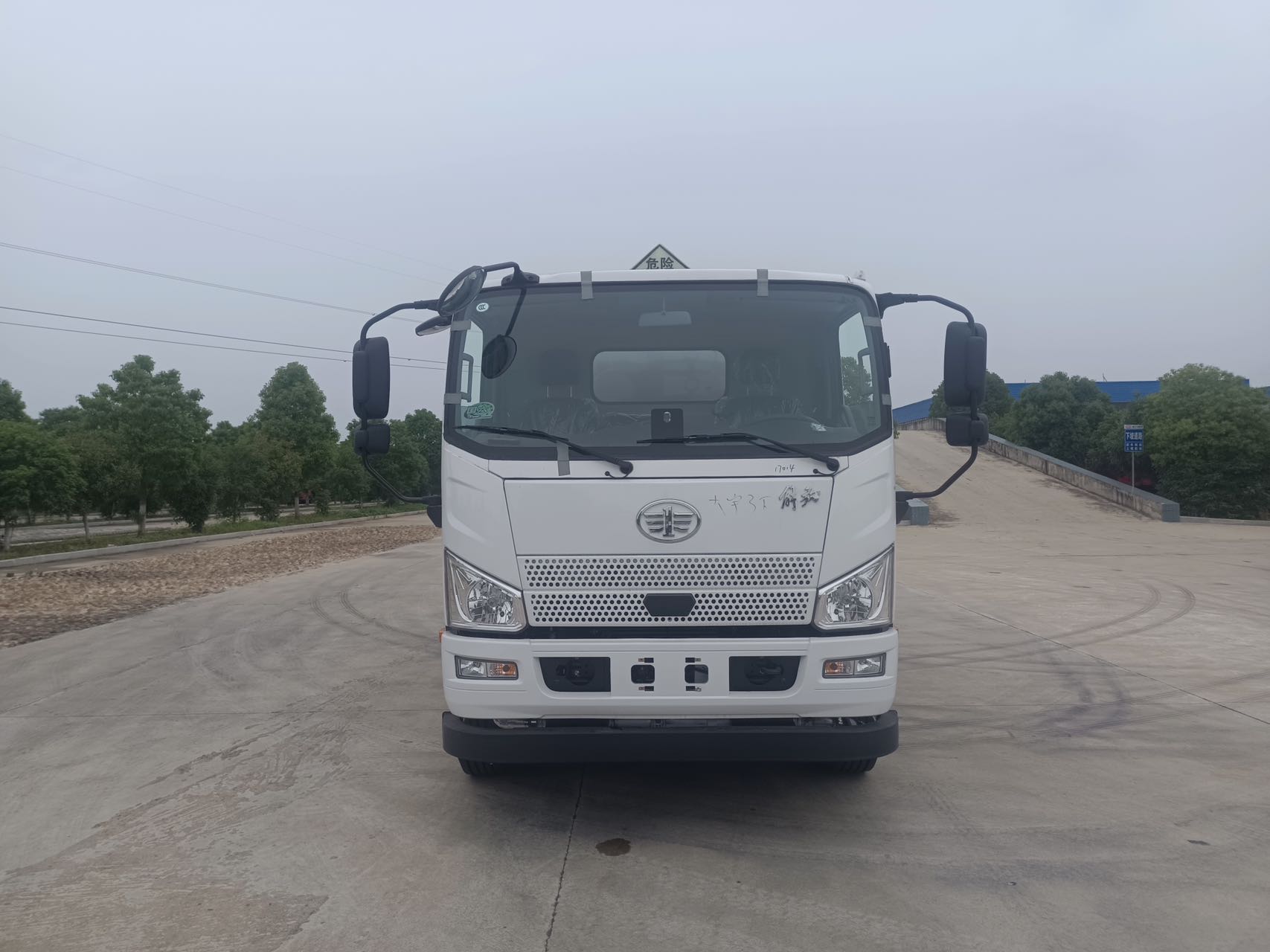

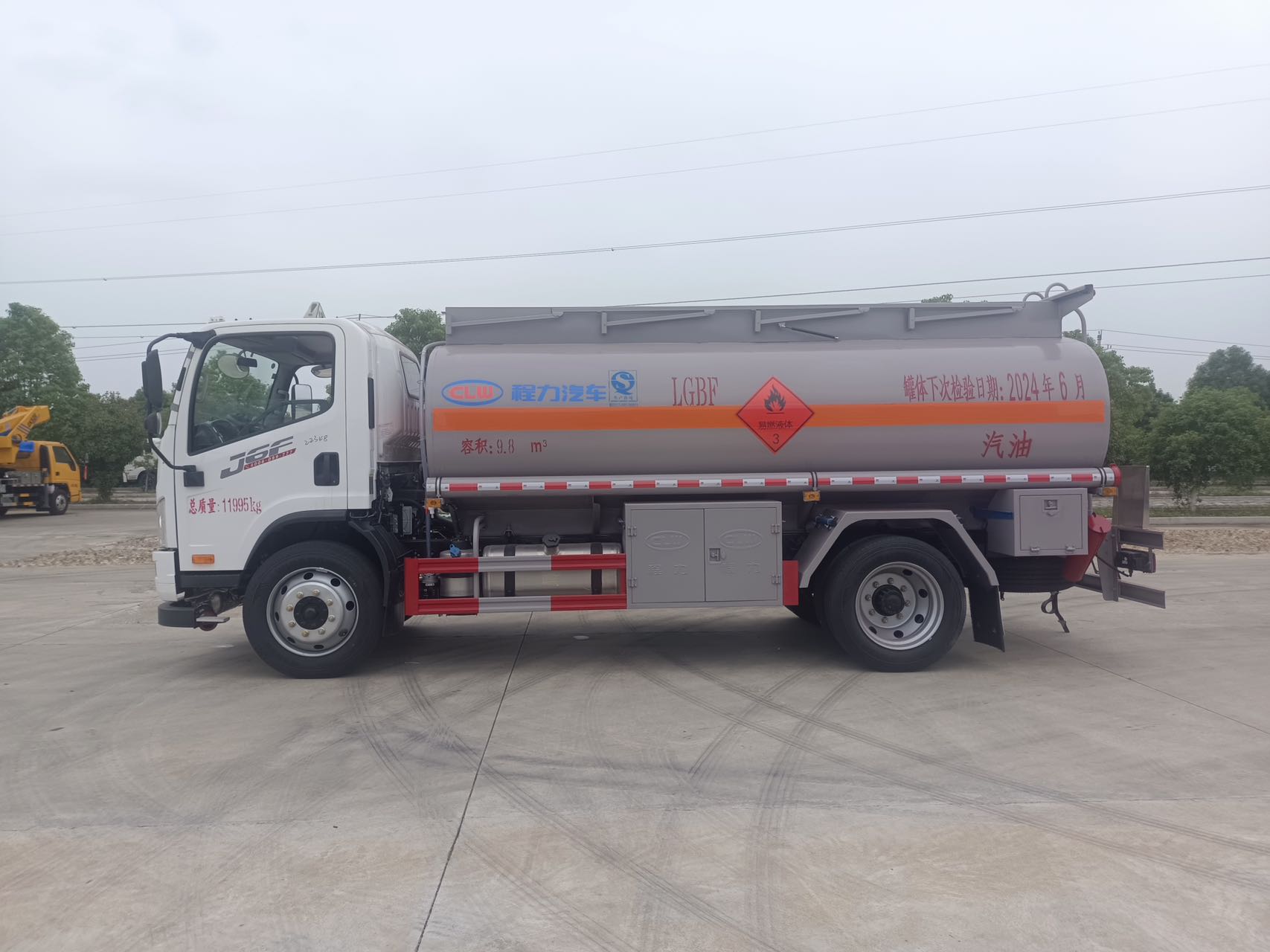

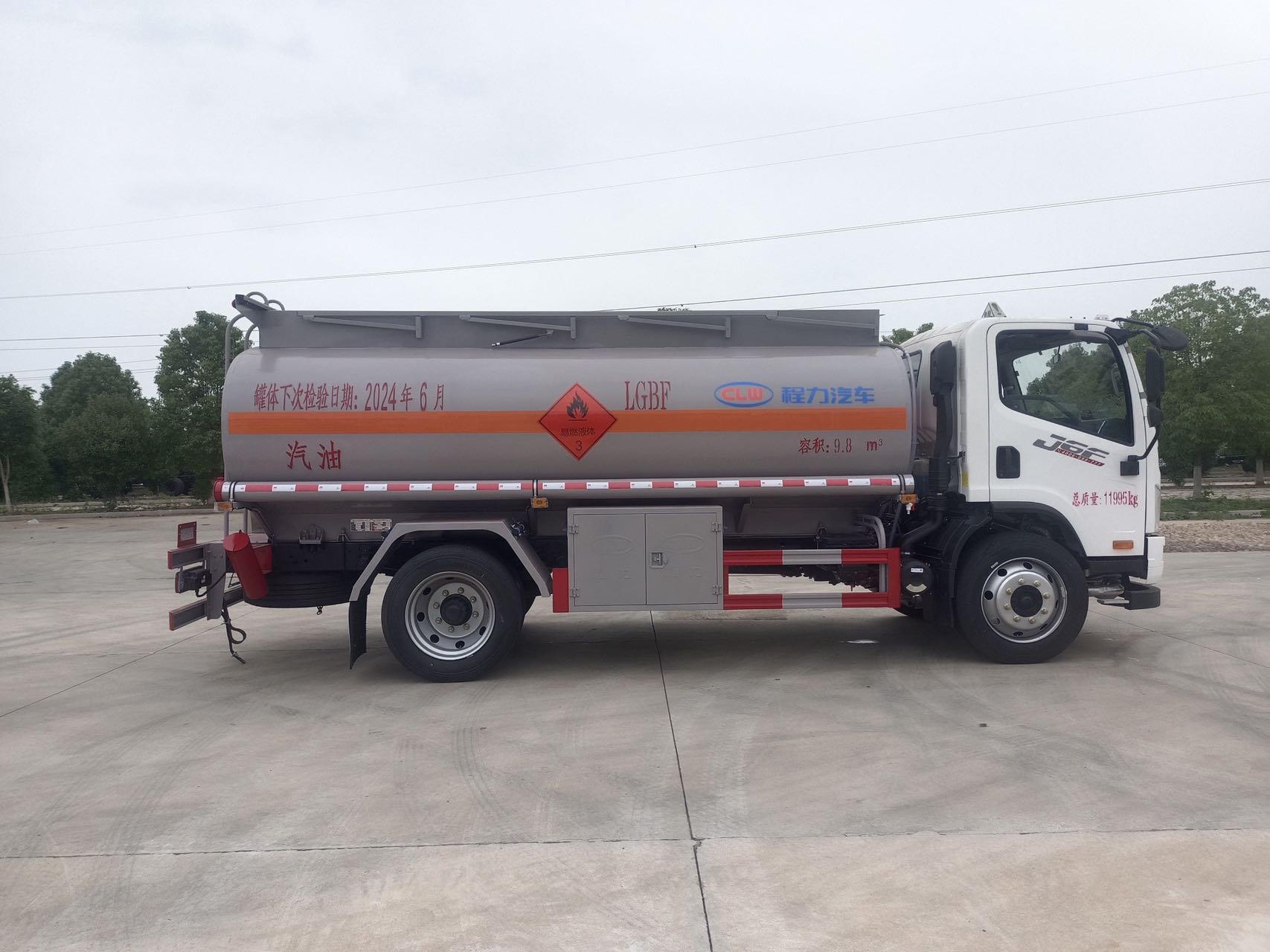

1. Pictures of the FAW fuel truck
2. Parameters of the whole fuel truck
| model | CL5121GJY6BWG | brand | CLW |
| outer dimensions | 6950*2350*2800mm | GVW | 11995kg |
| rated loading capacity | 6545kg | curb weight | 5255kg |
| axle loading capacity | 4360/7635kg | front/ rear suspension | 1155/1895mm |
3. Parameters of the fuel truck chassis
| model | CA1120P40K59L4BE6A84 | brand | FAW |
| axle number | 2 | tyre number | 6 |
| wheelbase | 4200mm | tyre size | 255/70R22.5 |
| front/ rear gauge | 1738/1678mm | leaf spring number | 3/3+3 |
| fuel type | diesel | emission standard | EURO 6 |
| engine brand | Dachai | horsepower | 180hp |
4. The fuel truck chassis configuration: FAW original dangerous goods chassis, FAW J6F flat top single row cab, Dachai EURO 6 emission standard engine 180 HP, with air conditioning, 8 speed transmission, air brake, double battery 24V, 340G welding bridge (7 tons rear axle), electromagnetic + manual power switch, air brake, power steering, 255 vacuum tire, with exhaust brake, front disc brake, speed limiter, ABS, GPS, double warning with new rules.
5. The fuel truck body configuration: Made in strict accordance with the announcement volume of 9.8 square, Q235B plate, barrel body 4.2mm thick, head 4.5mm thick, partition 4.2mm thick, single bin, tank top one European standard tank mouth, one submarine valve, with 76/40 special oil pump (pump in and pump out), (optional large flow refueling machine and 15 meters thick reel and gun) full set of European standard, Rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, other standard.
