Dongfeng D9 13m3 fuel truck

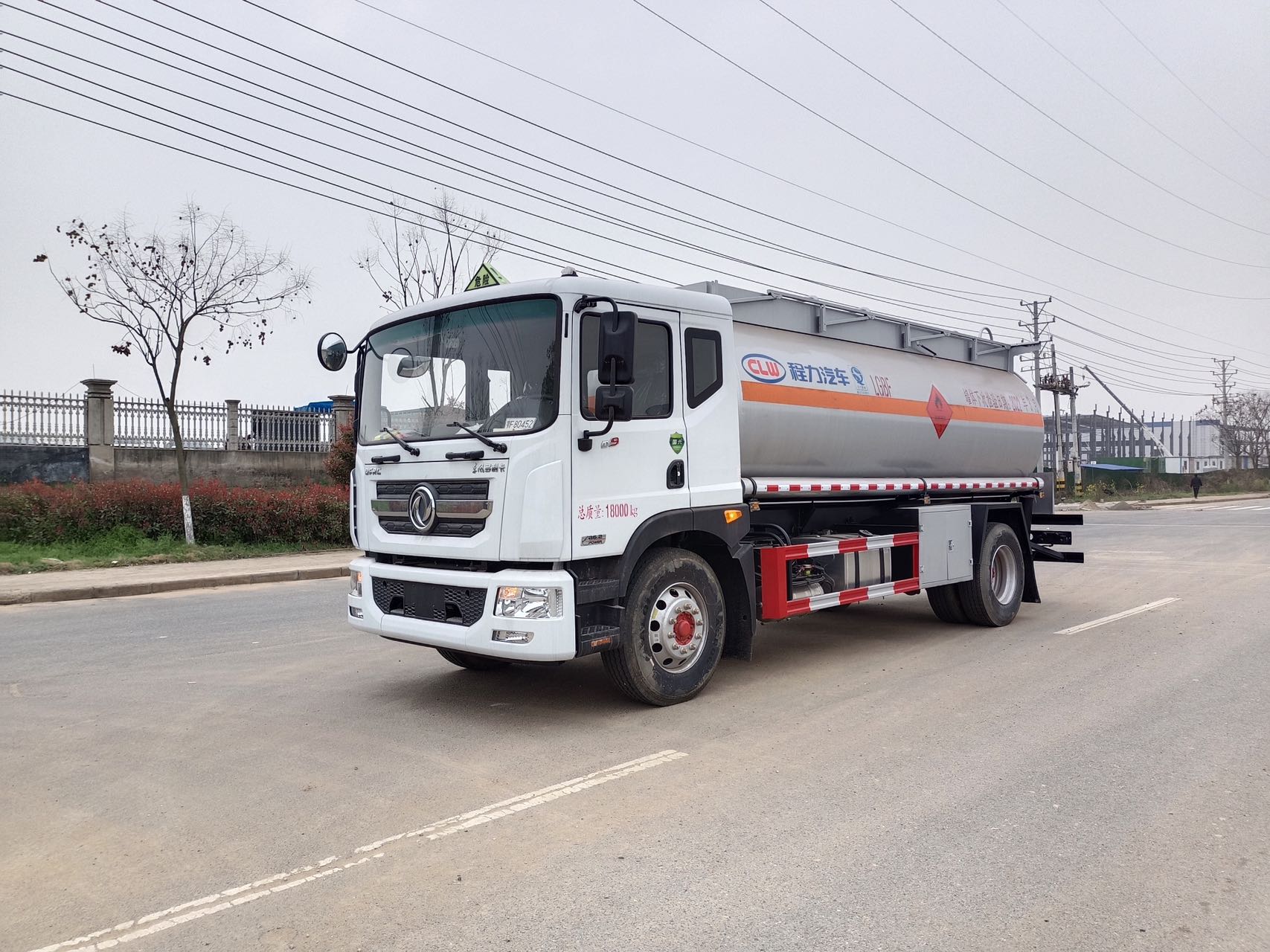

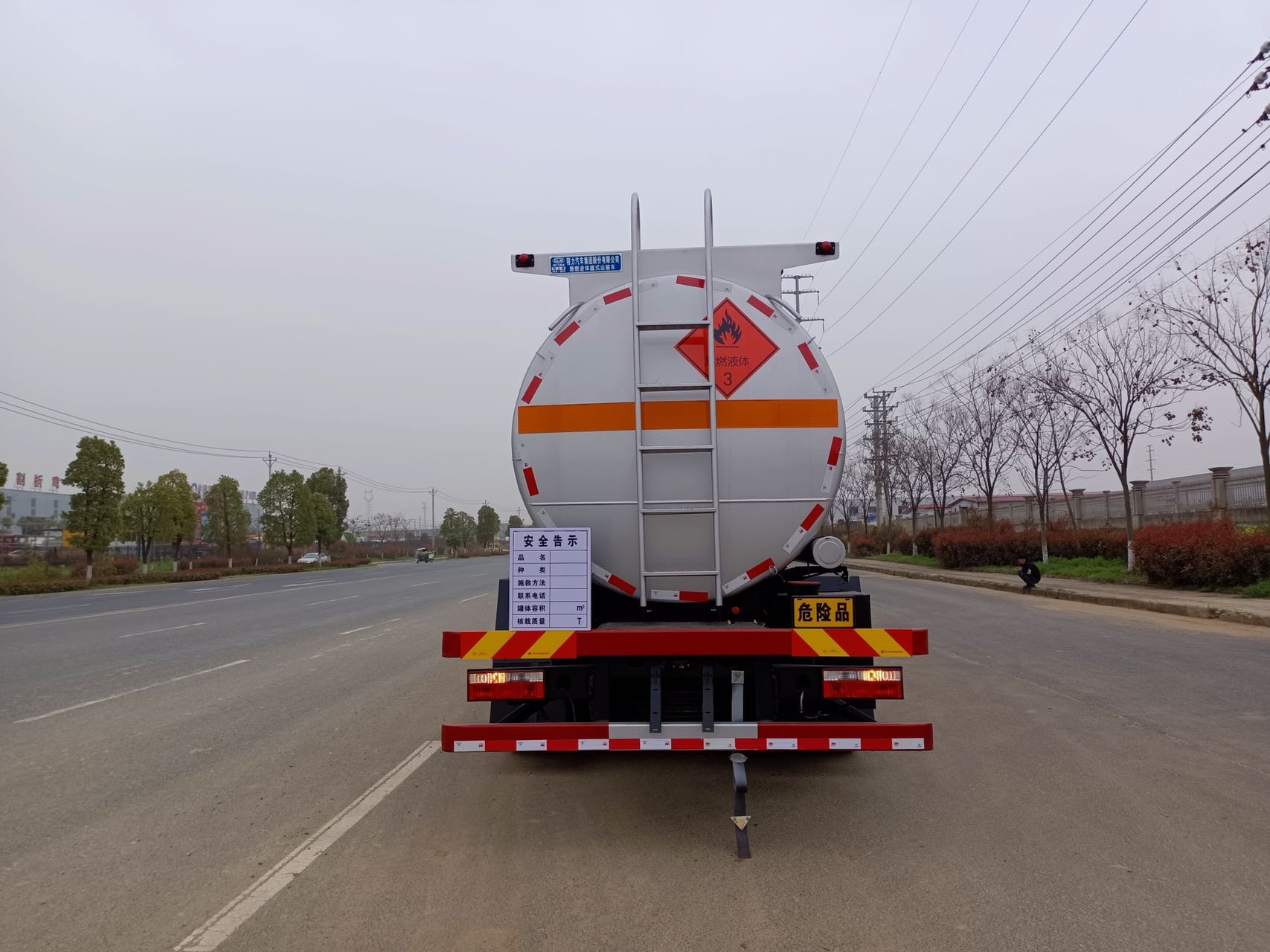

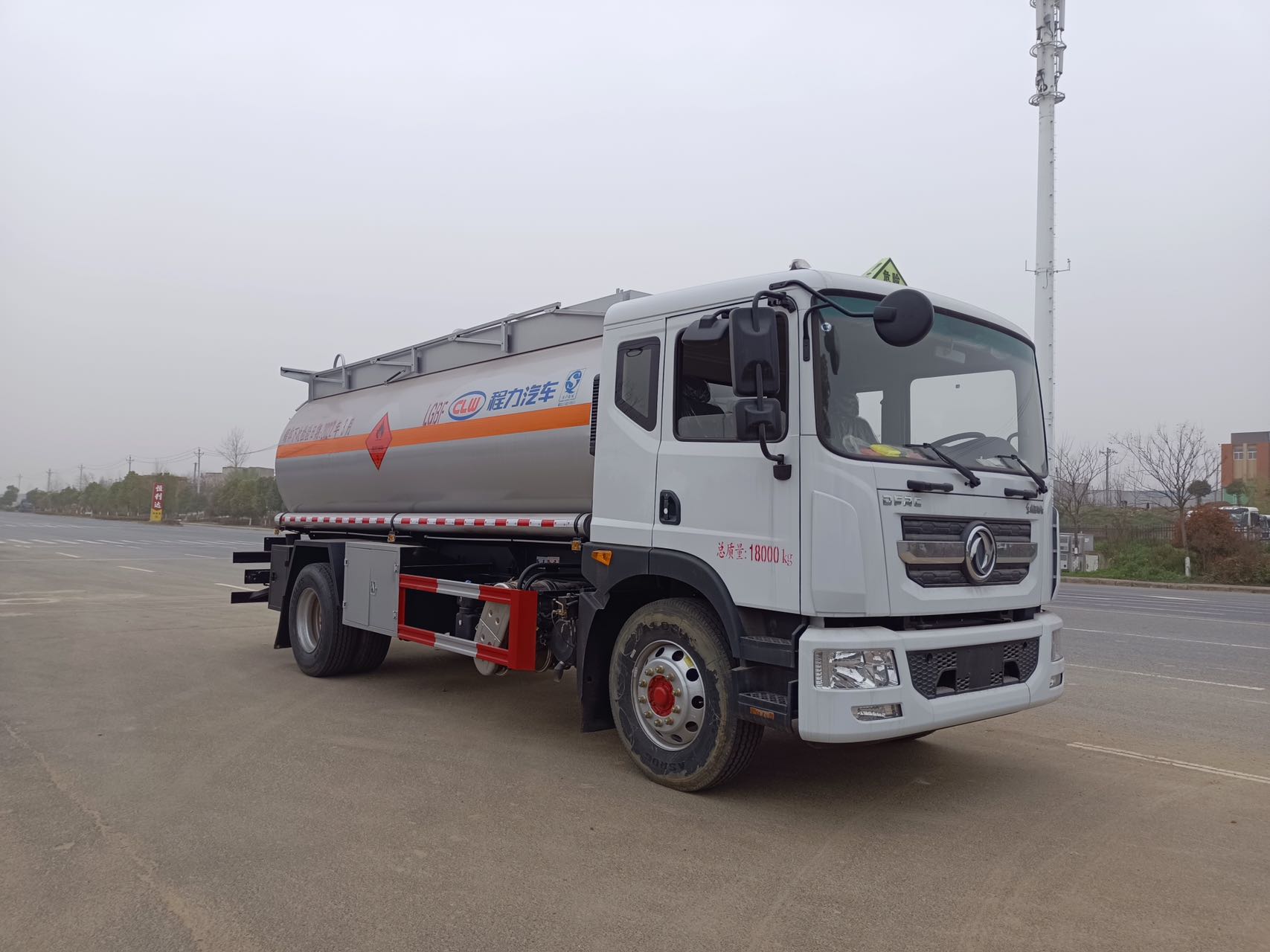

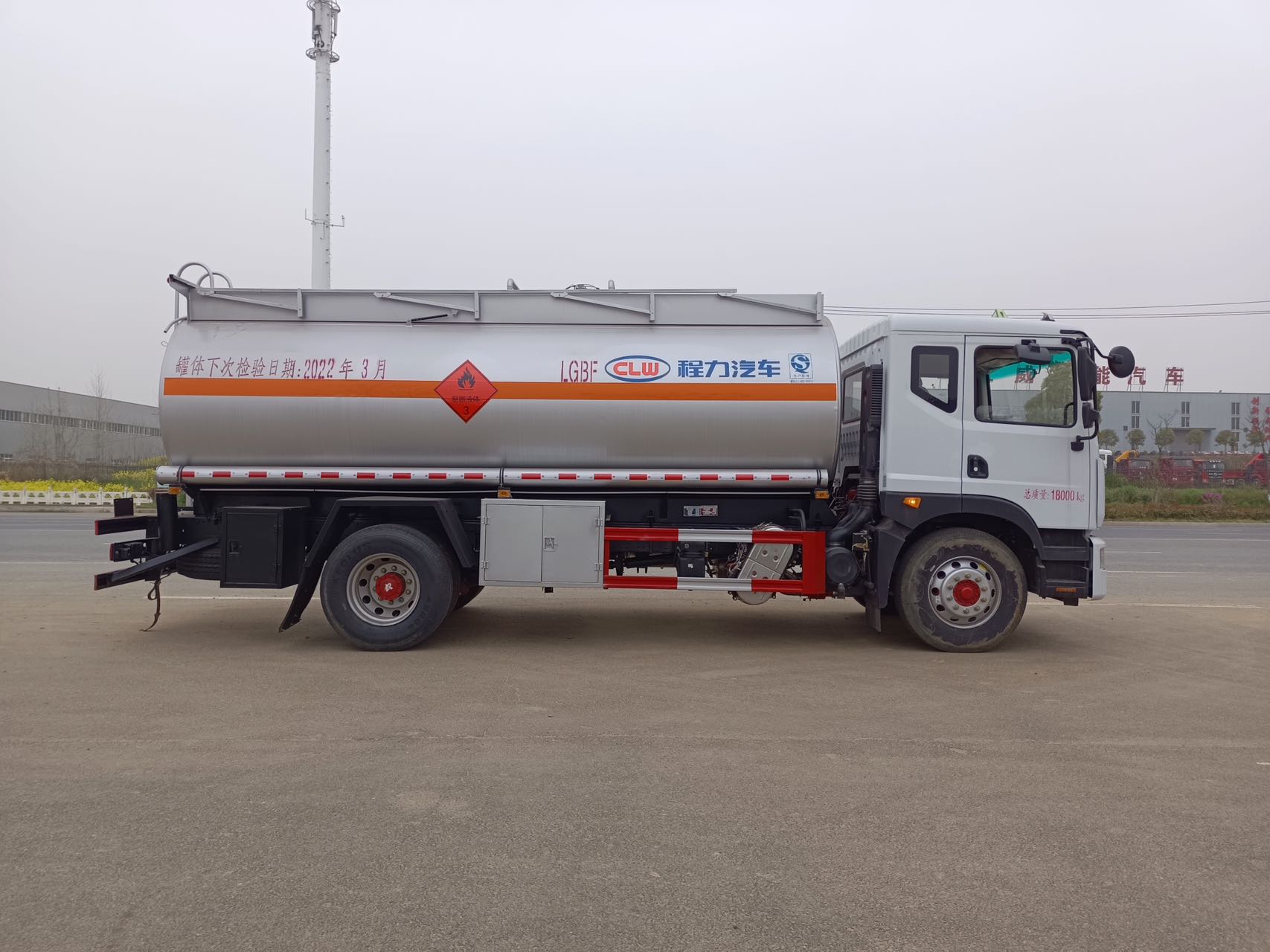

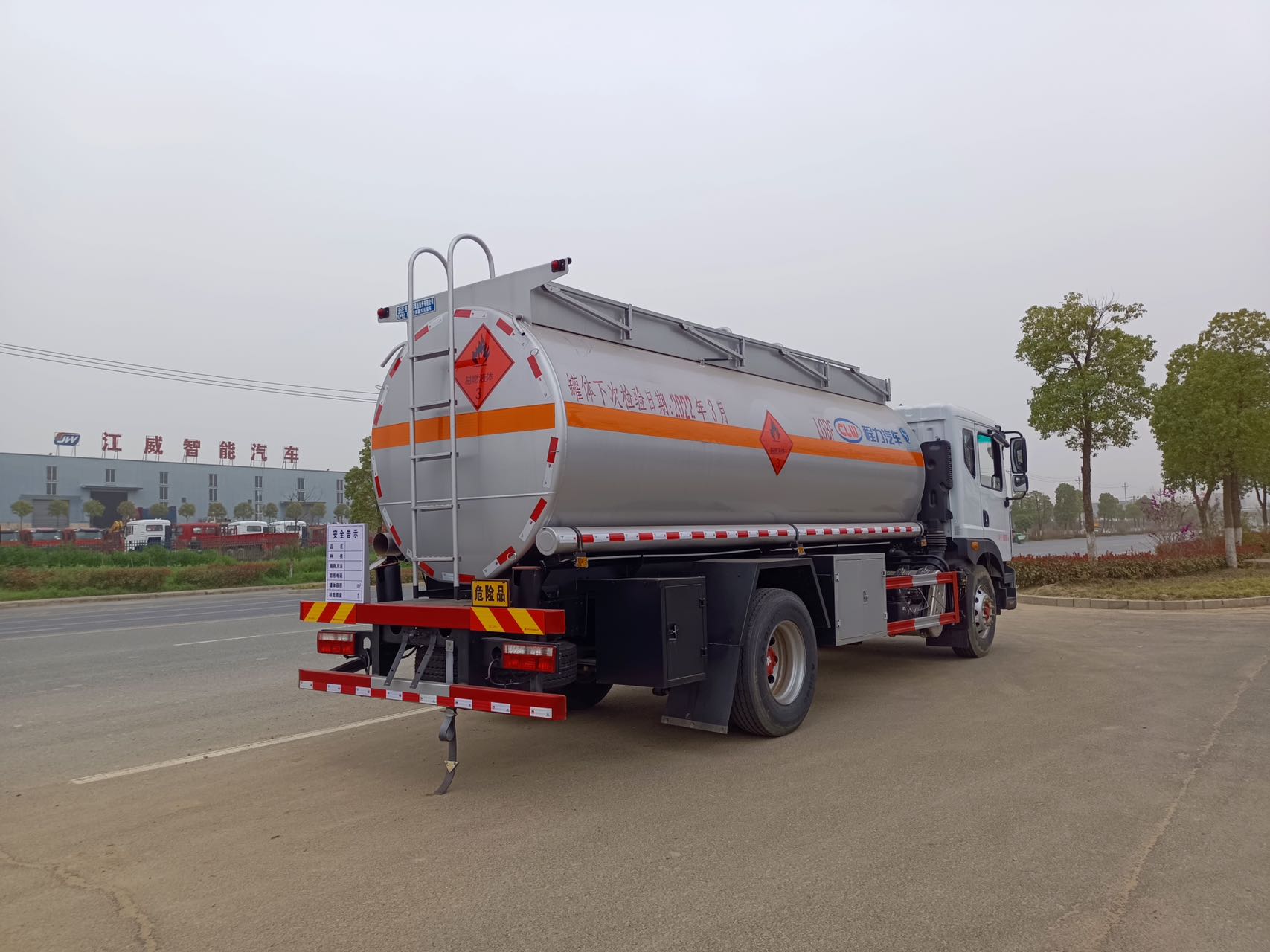

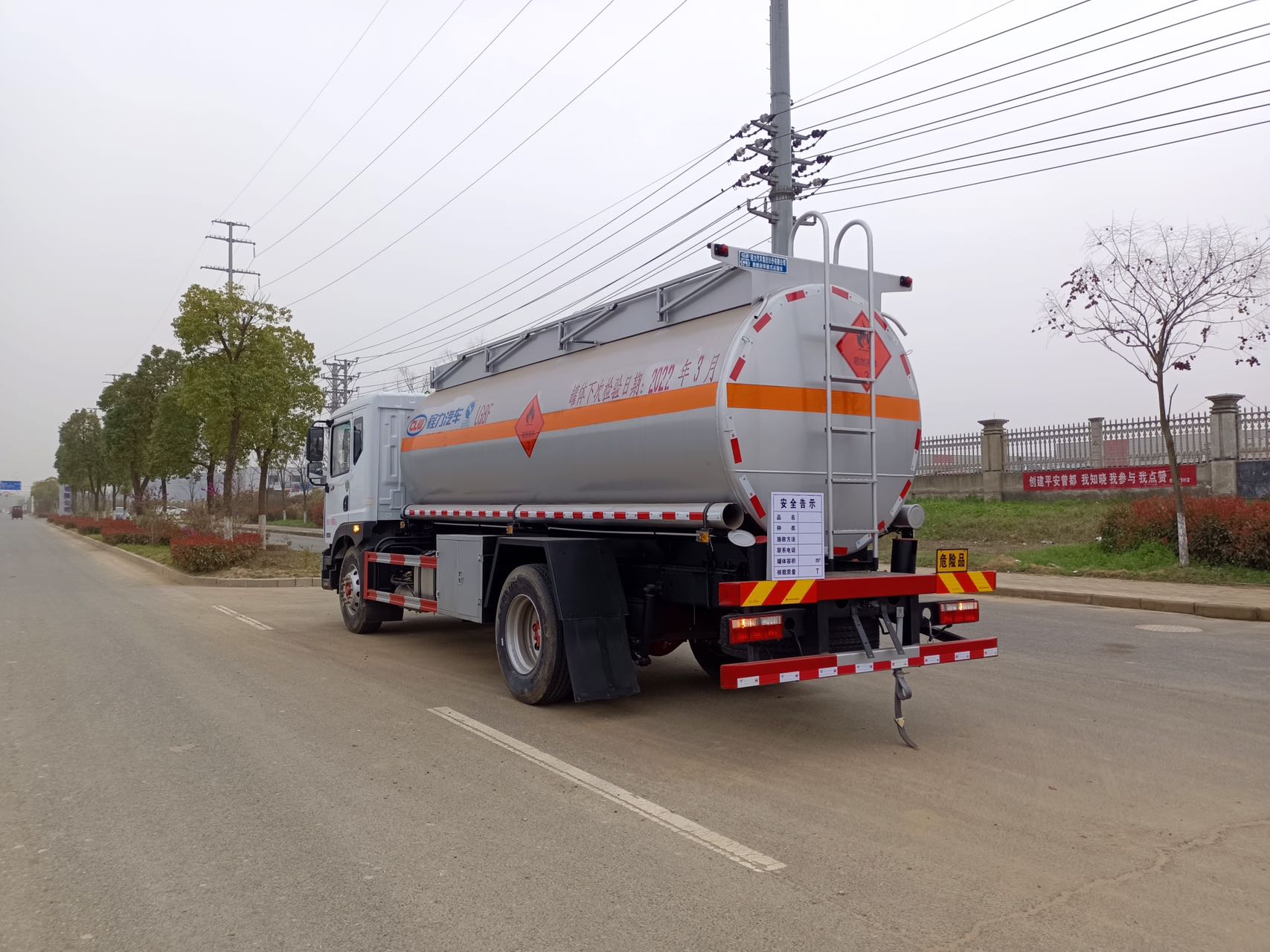

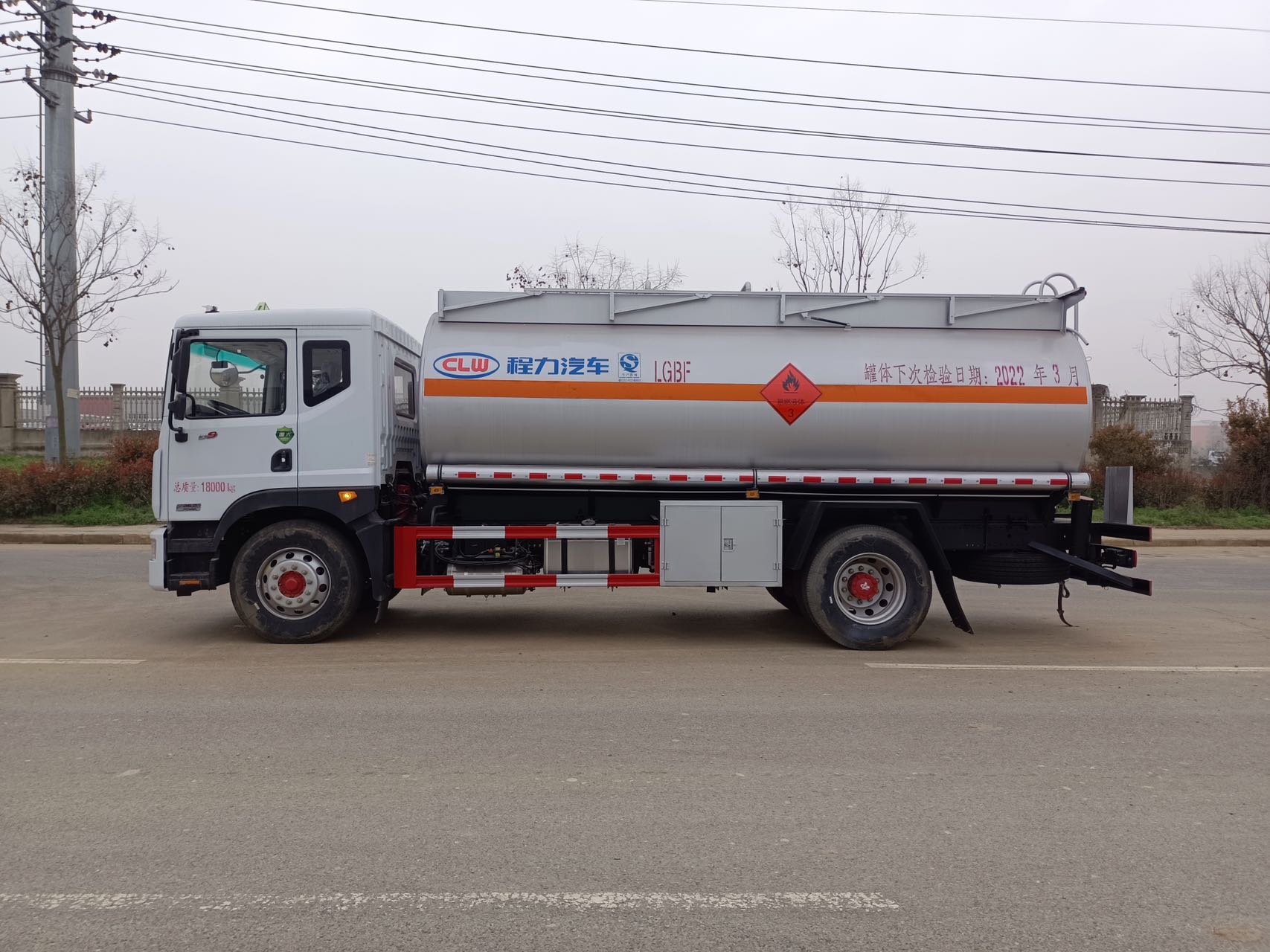

1. Pictures of the Dongfeng D9 13m3 fuel truck

2. The Dongfeng D9 13m3 fuel truck chassis details:

The fuel truck adopts Dongfeng D9 original chassis, 4700mm wheelbase, Cummins 230hp engine, Fast 8-speed transmission, 295/80 vacuum tires, with air conditioning, front axle disc brake, front axle 4.5T disc brake, Dena 10t rear axle, 250 twin frame, speed limit device, electric doors and Windows, EBS, with air suspension, with anti-collision warning, lane departure warning, tire pressure monitoring.

3. The Dongfeng D9 13m3 fuel truck tank body details:

Effective volume of the fuel tank: 13m3, 304 stainless steel material, body thickness 4.75mm, head thickness 5.75mm, partition board thickness 4.75mm, single bin;

with one stainless steel European standard manhole at the top,

with 1 stainless steel sea valve with voice alarm device,

with 80/60 special stainless steel oil pump (pumping in and pumping out),

with rear ladder, manual guardrail, toolbox, rear bumper, side guardrail.
