HOWO 27m3 fuel truck

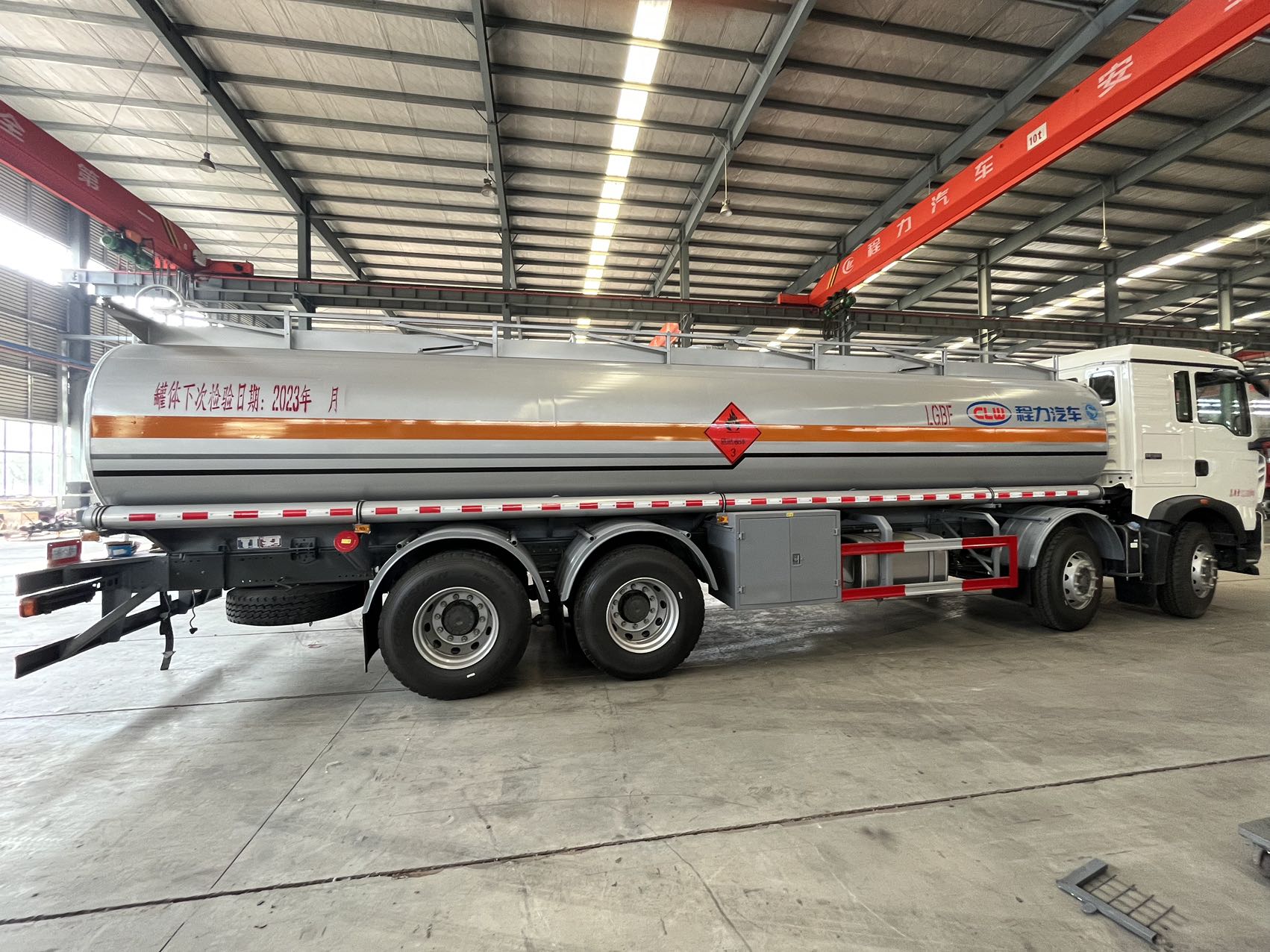

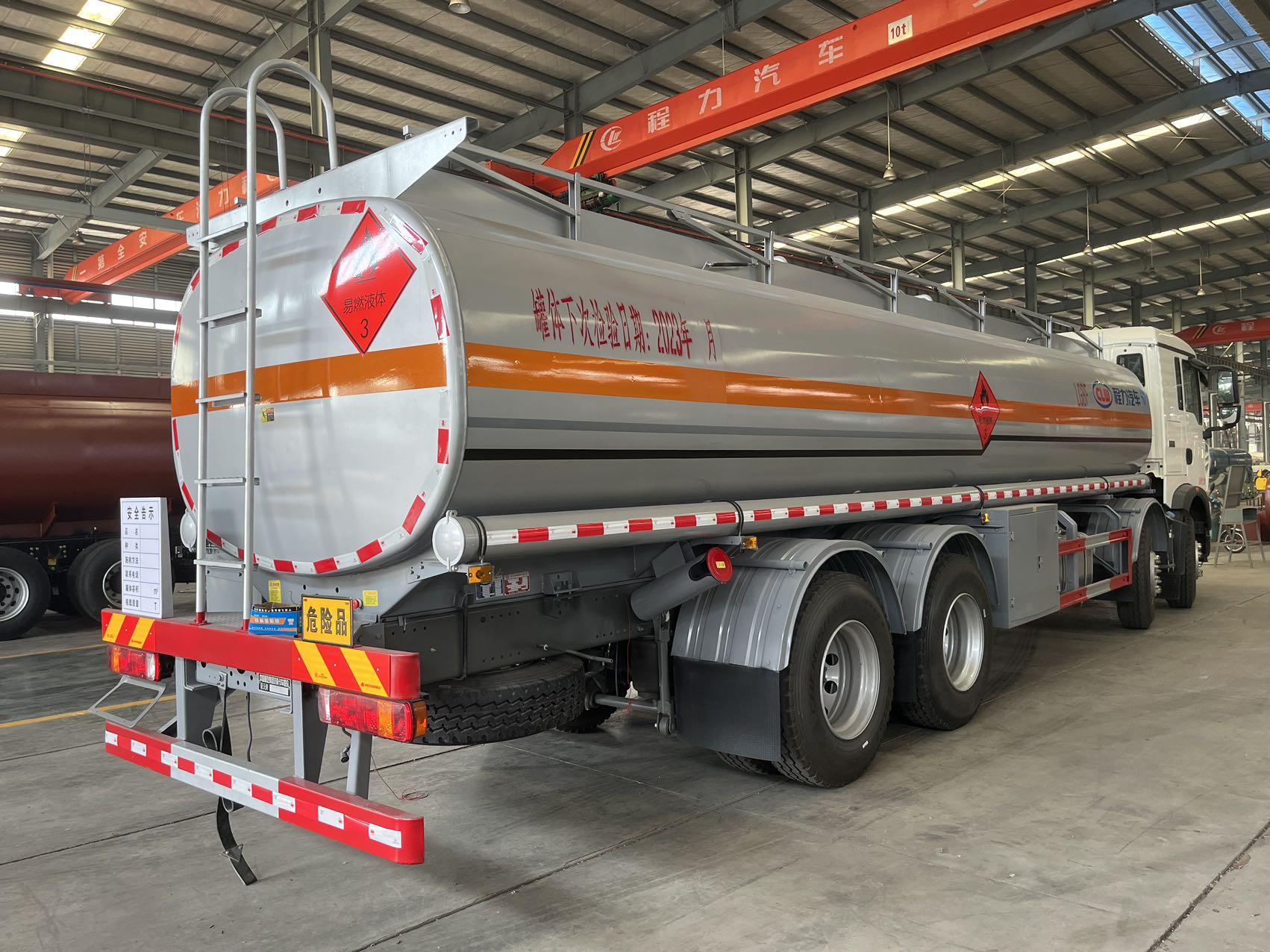

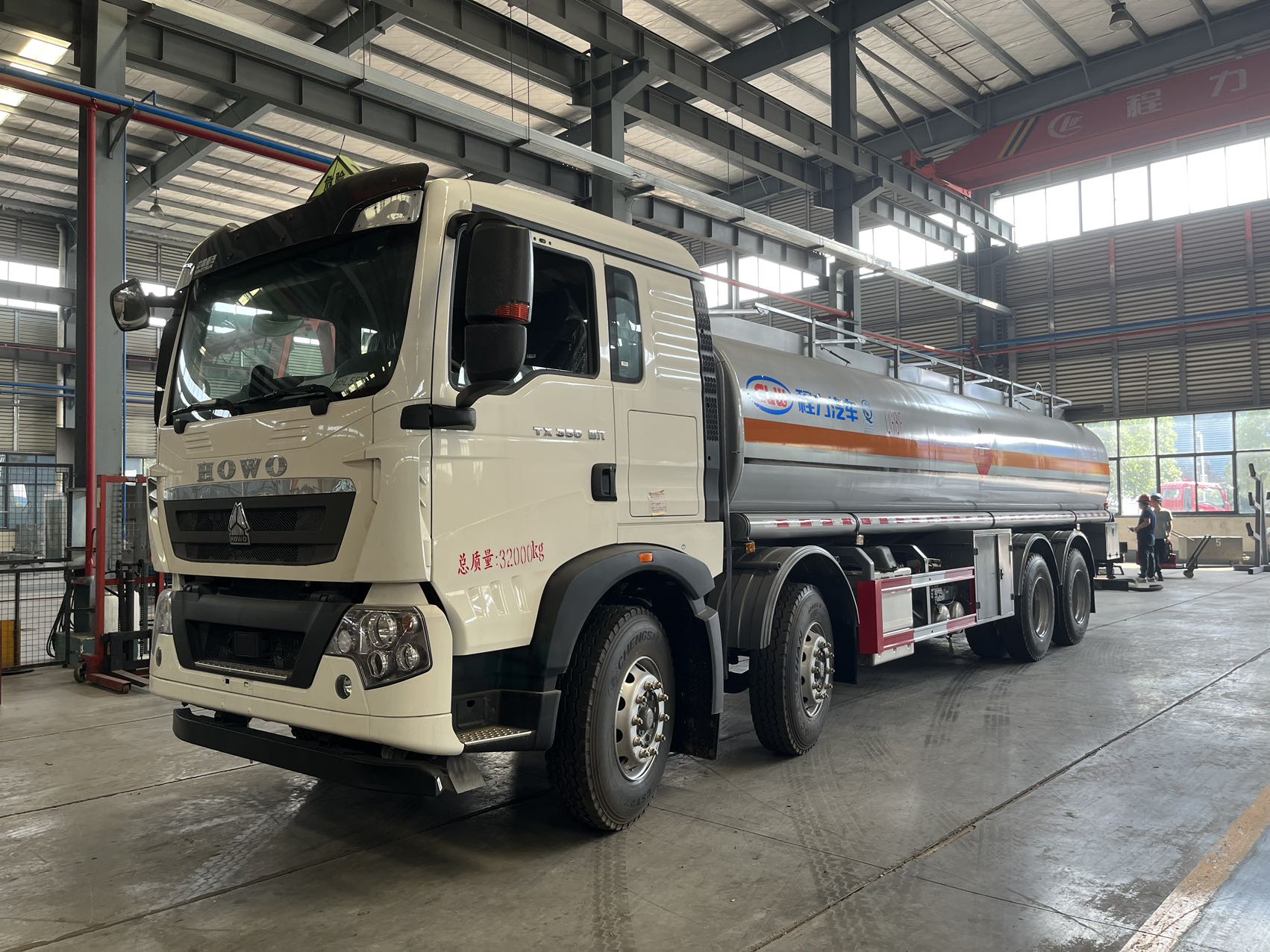

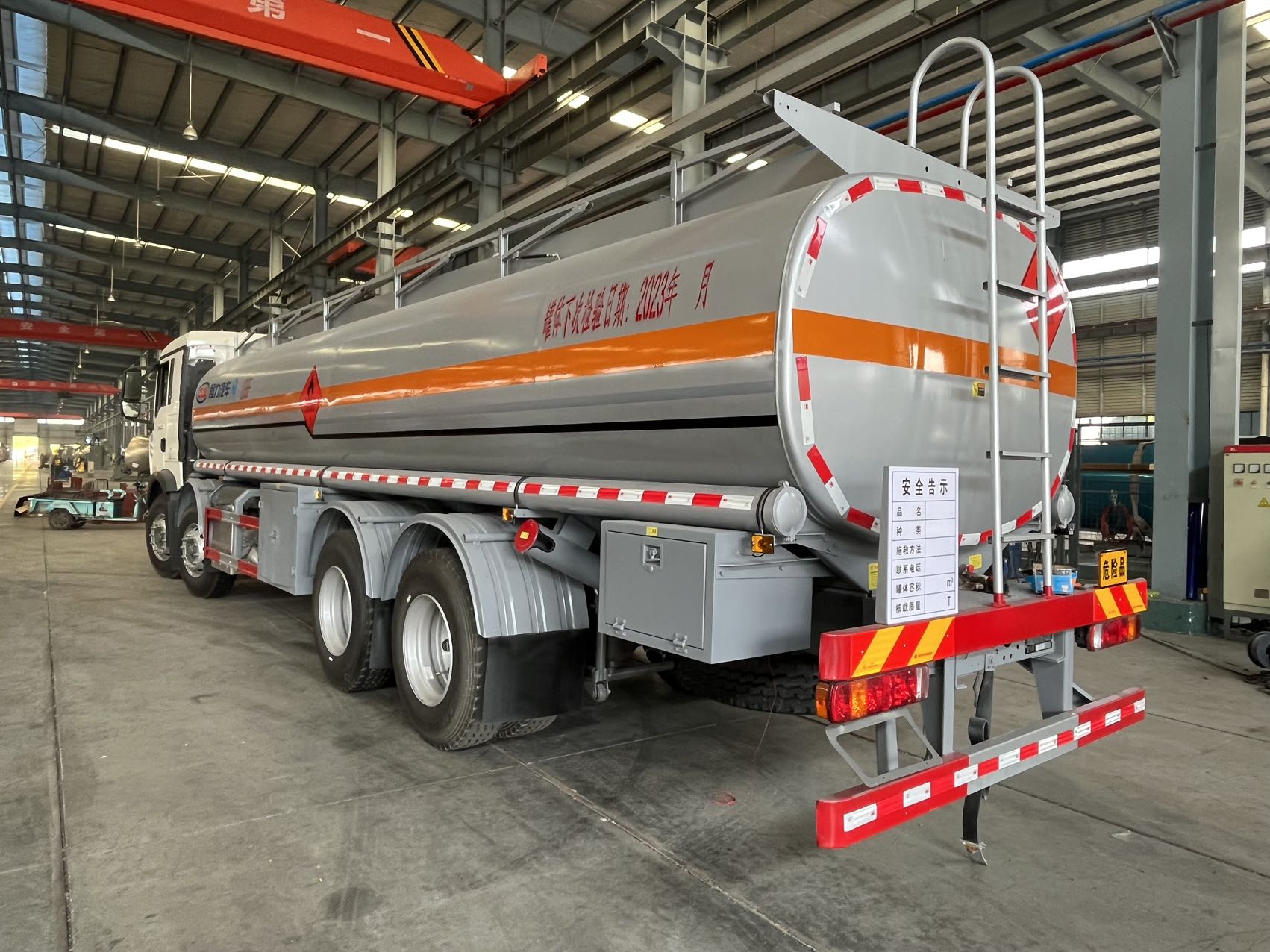

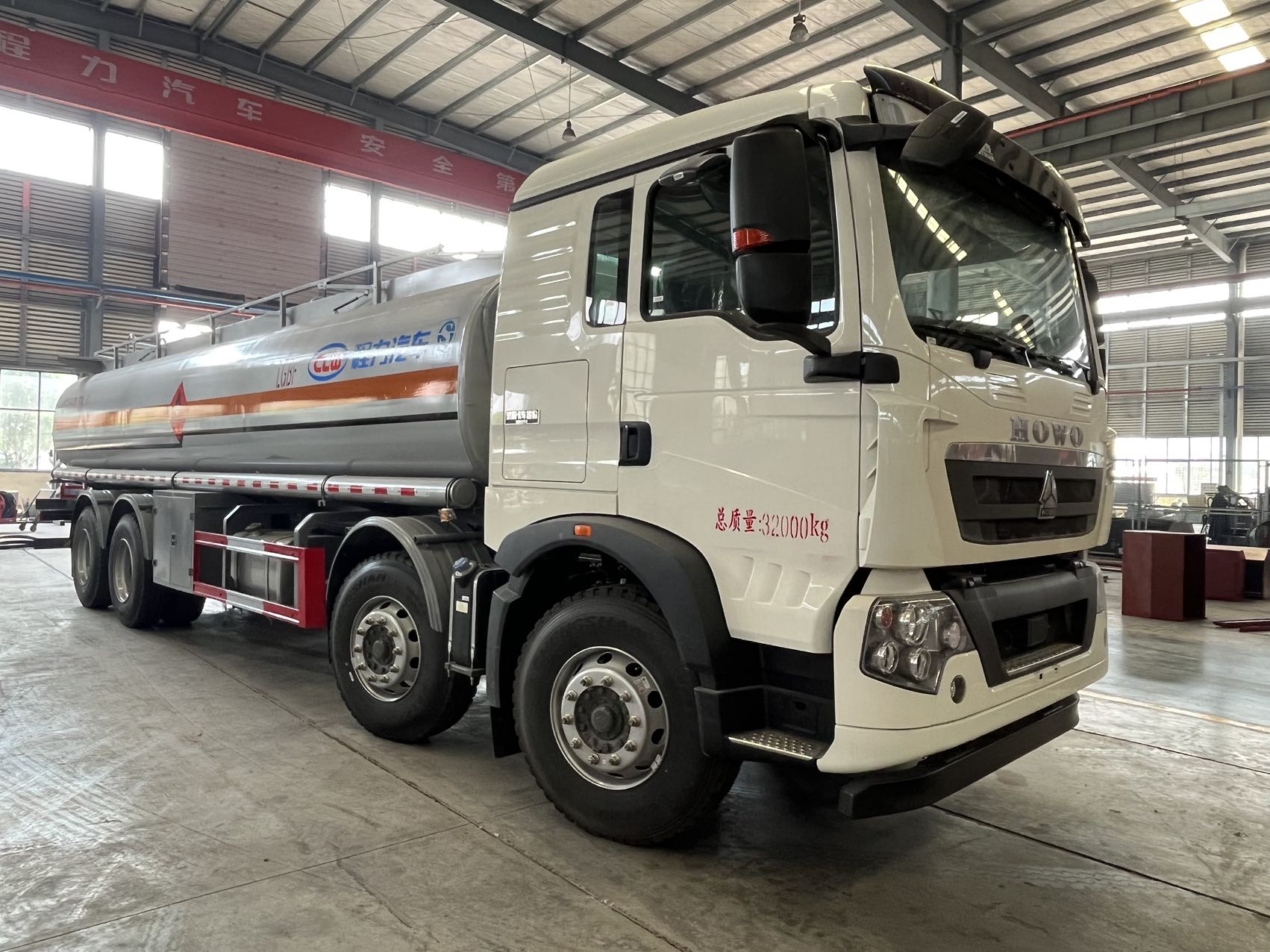

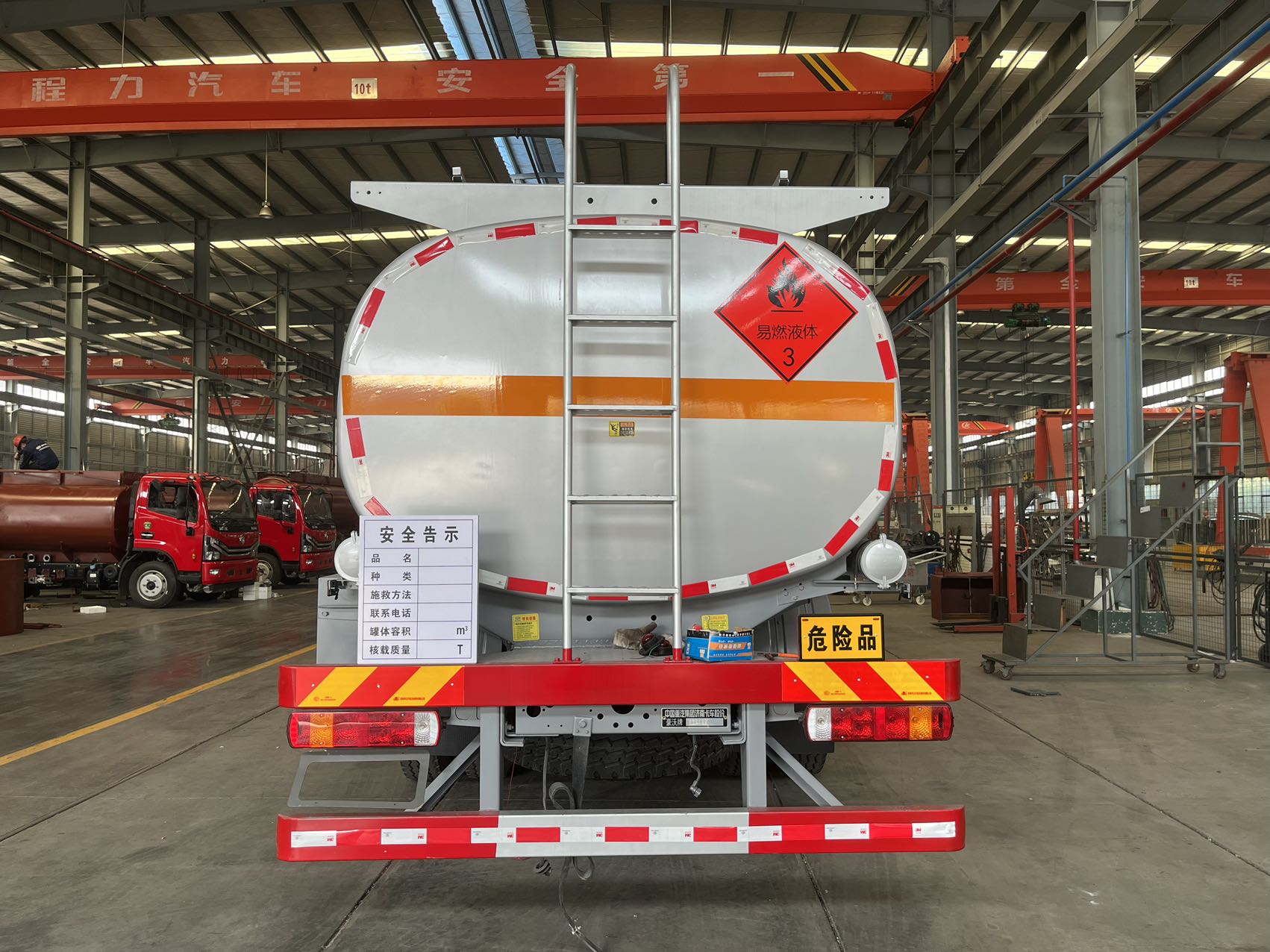

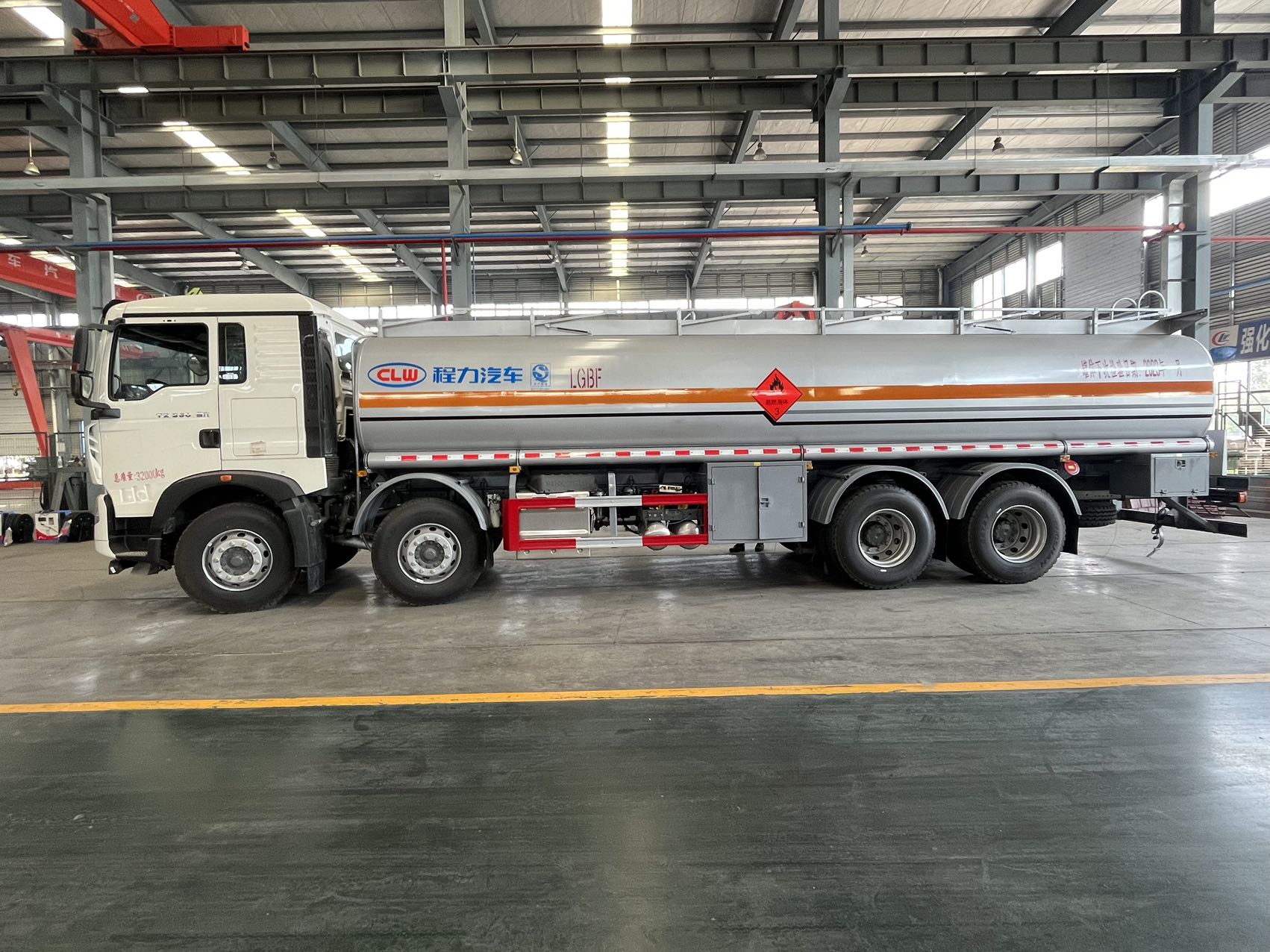

1. Pictures of the HOWO 27m3 fuel truck

2. The HOWO 27m3 fuel truck chassis details:

Howo TX5; Special vehicles; TX-V cab; Multi-functional steering wheel; Main air bag + auxiliary simple seat; MC07H.35-60 engine; HW13709XSTC2 gearbox +HW70 flanged force extractor; VPD75D front axle (disk); MCY11BES dual rear axle (disc); Speed ratio 4.63; Double deck frame (8+4/280); Front less rear air suspension (3/3/-/-) 8198 directional machine; Front exhaust system; EBS+ESC; Middle bumper (non-metal); Aluminum alloy wheels (domestic); 12R22.5; 400L fuel tank; LDWS+FCWS with radar; Cable PTO; Sinotruk Intelligent Pass B version; Terminal emission monitoring device; Steering wheel burst emergency device; Optional tire pressure monitoring system;

3. The HOWO 27m3 fuel truck body details:

Effective volume of the fuel tank:27m3, the material is Q235, tank body thickness 5mm, head thickness 5mm, partition board thickness 5mmk, single bin;

Tank top with two Jialong brand European standard manhole, 1 voice alarm Jialong submarine valve, 1 set of Jialong lower oil charging system(oil discharge valve, oil and steam recovery, anti-overflow detector rod, anti-static coil), with Shandong Shenwei brand 80-60 special oil pump (pump into pump out) , with rear climbing ladder, with manual guardrail, toolbox, rear bumper, side guardrail.
