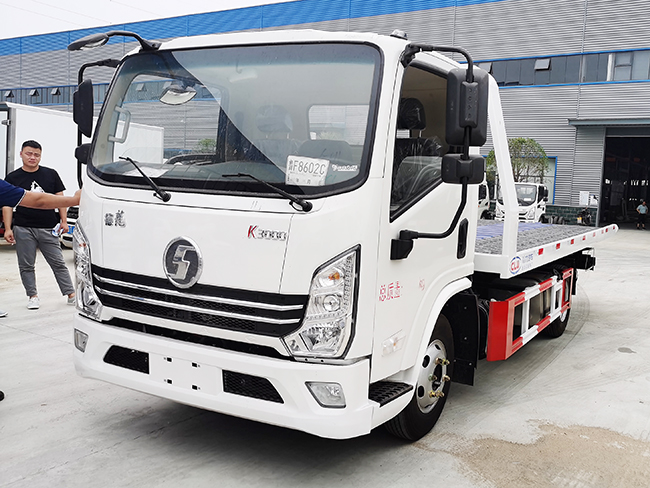

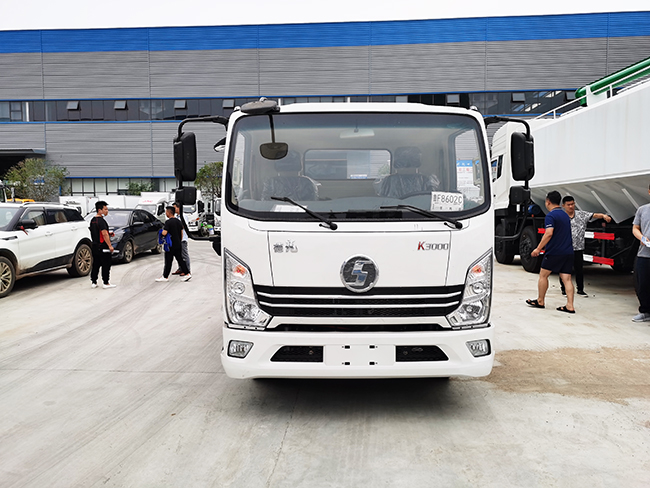

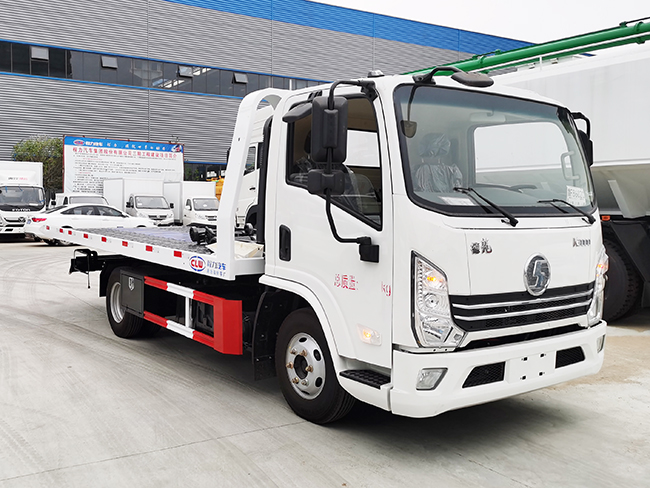

Shacman K3000 wrecker truck

Clearing vehicles are special engineering vehicles designed to ensure smooth traffic flow. They are important equipment for traffic management in busy urban areas and on expressways. These vehicles can quickly, promptly and safely remove accident vehicles, faulty vehicles and vehicles violating traffic rules from the roads, and guide traffic flow.

The Shacman K3000 wrecker truck chassis configuration: Mid-body single-row cab, Weichai 130hp engine, Fata 6-speed gearbox (with original factory synchronizers), central locking, power windows, remote key fob, 2.5/5T front and rear axle Hande 500,000 maintenance-free axle, ABS, emergency brake, 7.00R-16 steel wire tire, central LCD display, local double-layer main beam, 120L aluminum alloy fuel tank, electric heating rearview mirror, electric air conditioning (with dehumidification function), fully wrapped seats, multifunction steering wheel, cruise control, daytime running lights, one-key vehicle search, dual USB interfaces, corner lighting, wheelbase 3300 (mm).

Upper configuration and performance for the Shacman K3000 wrecker truck:

The tail board can be selected from telescopic board, integrated board, middle extension board, ordinary flip board, and full-drop floor:

①Telescopic board size: (main board length 4.2 meters + tail telescopic board 1.2 meters) × board width 2.3 meters

②Integrated board size: (main board length 4.2 meters + tail integrated board 1.2 meters) × board width 2.3 meters

③Middle extension board size: (main board length 4.2 meters + middle extension board 0.6 meters + tail board 0.9 meters) × board width 2.3 meters

④Ordinary flip board: (main board length 4.2 meters + tail board 0.9 meters) × board width 2.3 meters

⑤Full drop floor: (main board length 4.2 meters + tail telescopic board 1.2 meters) × board width 2.3 meters

The flat plate adopts 3PL folding stamping flat plate, one-to-two type, double-side linkage operation device. It can carry 3 tons and tow 3 tons, and the rear support arm can lift 2 tons. The multi-way valve and balance valve use imported hydraulic parts (Italy Hyde). There are 3 rear working lights, 1 40KN hydraulic winch (25 meters of wire rope), 1 tool box, 2 trolleys, 1 pair of L-shaped tire holders, 6 binding straps, 1 pair of forks, 1 pair of fork seats. 1 chain hook. Rear lifting mechanism (detachable), the main board is 4.2 meters long.
