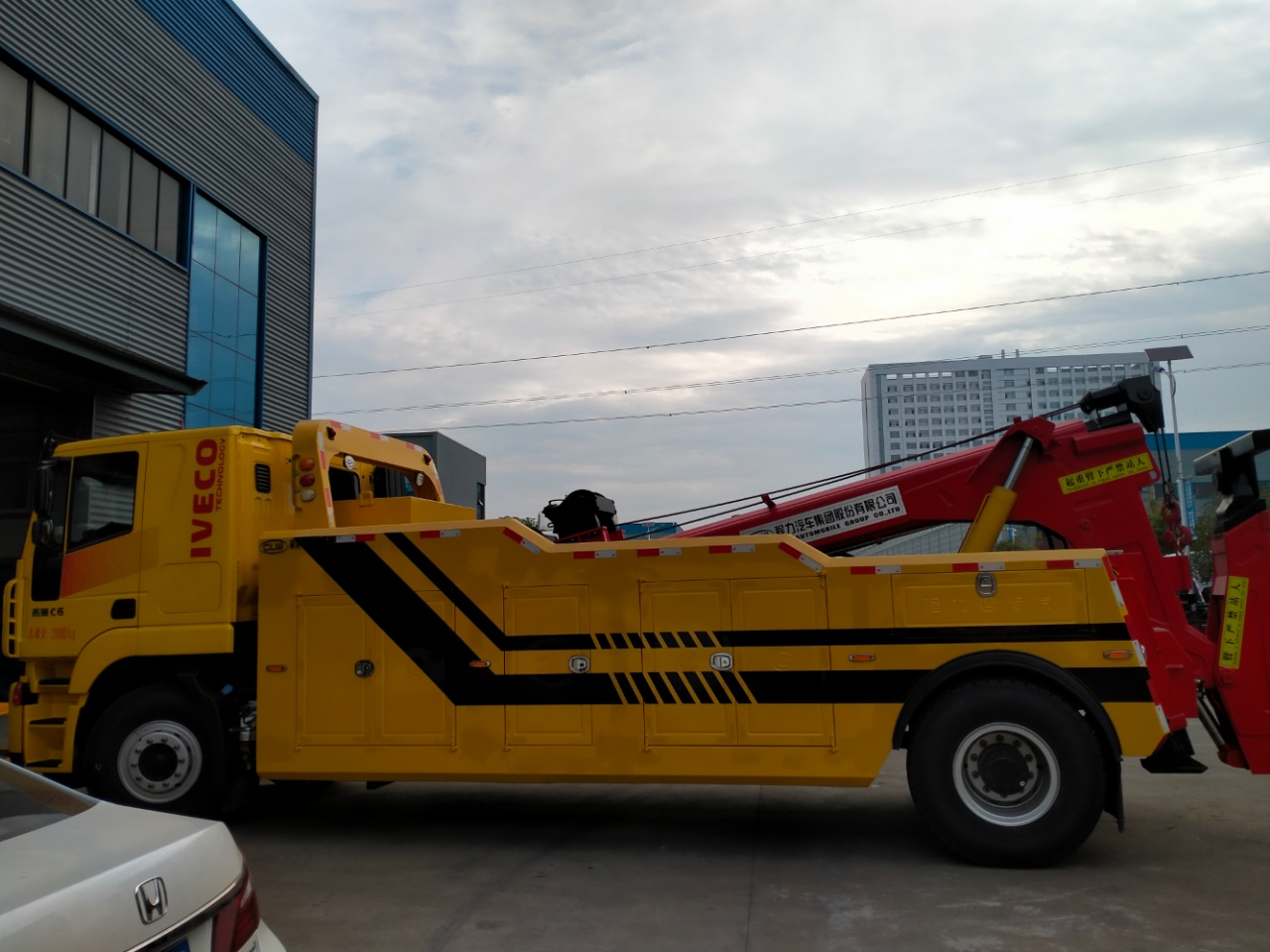

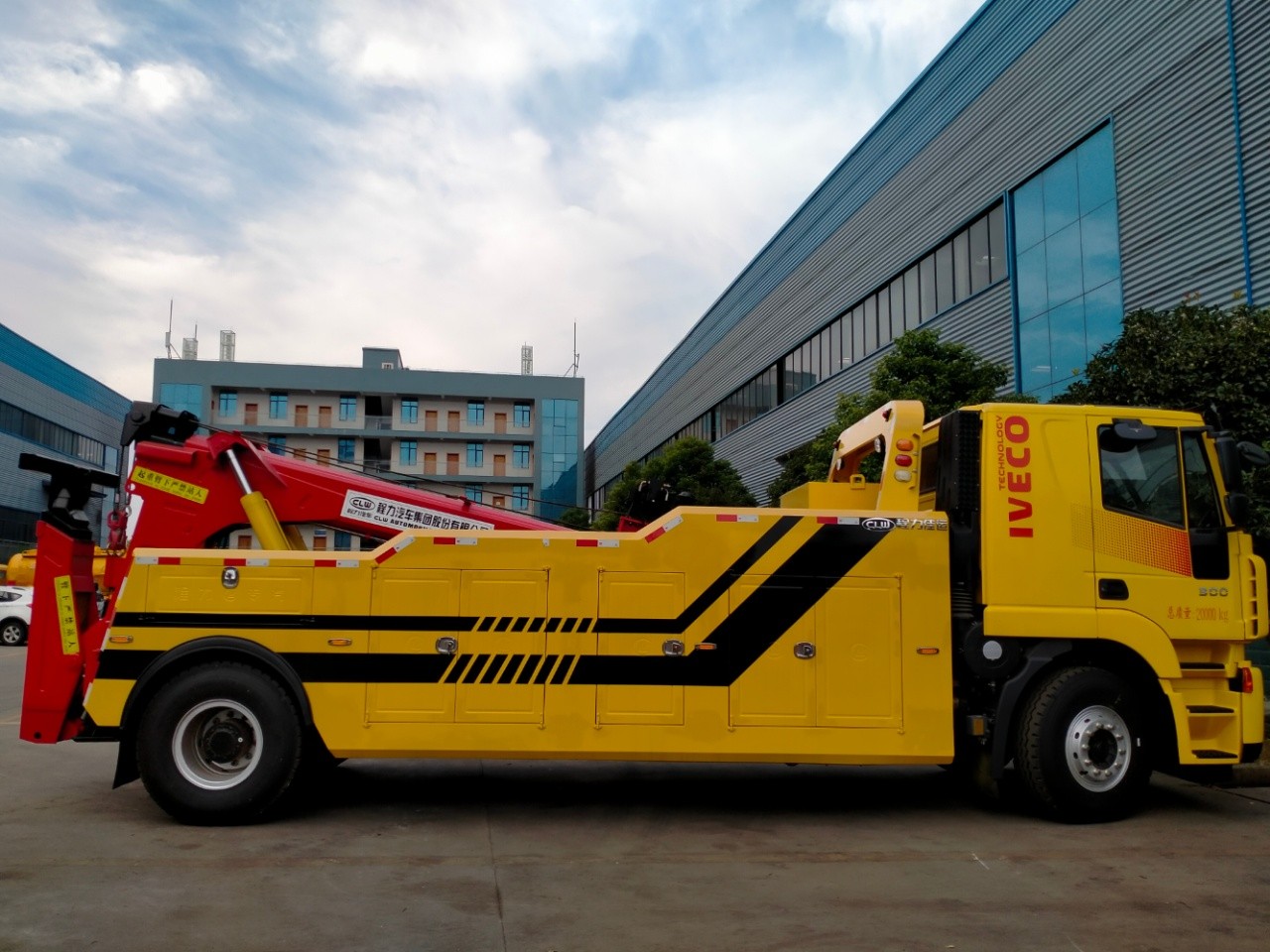

IVECO 4*2 tow and lift wrecker truck

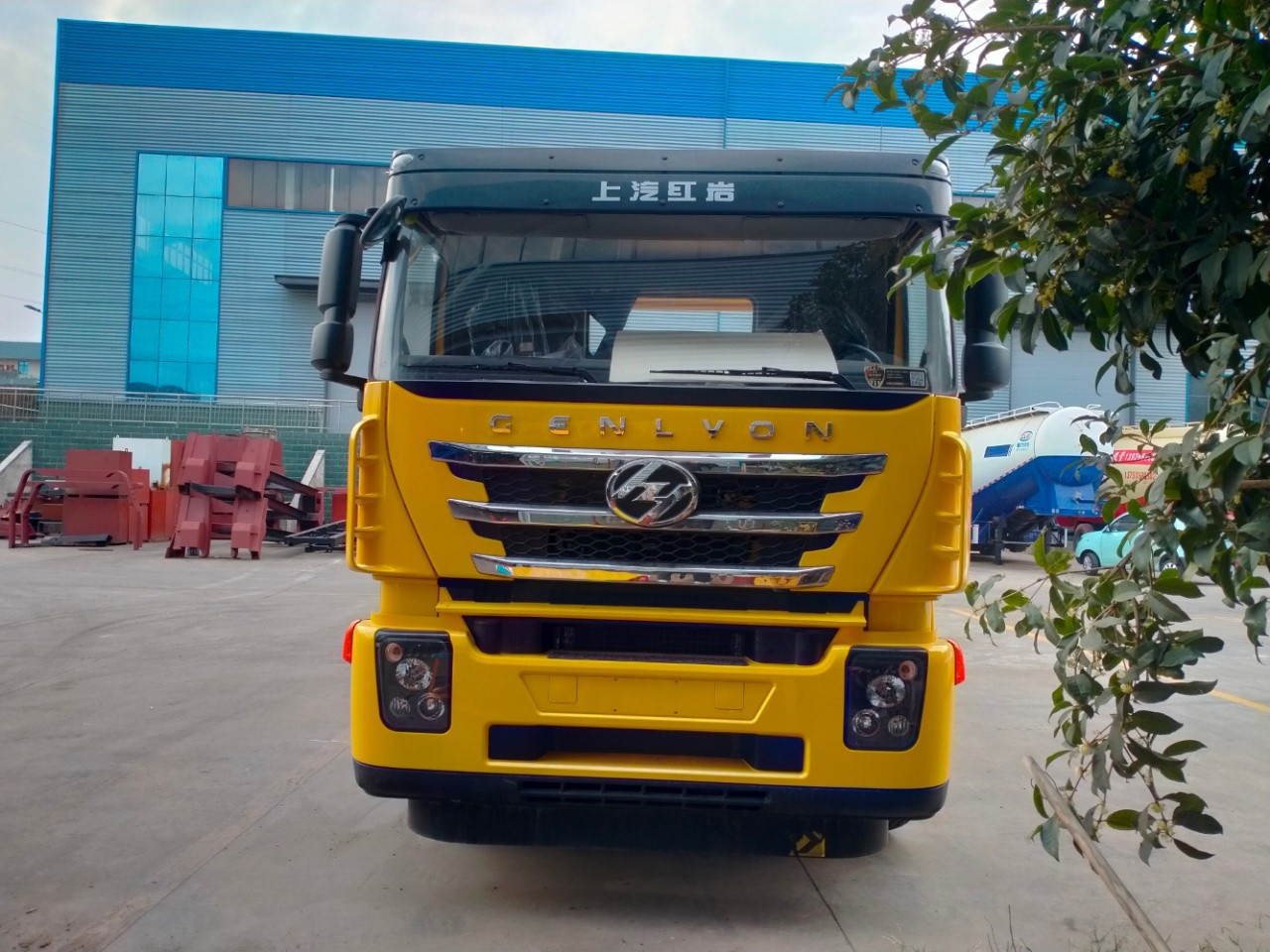

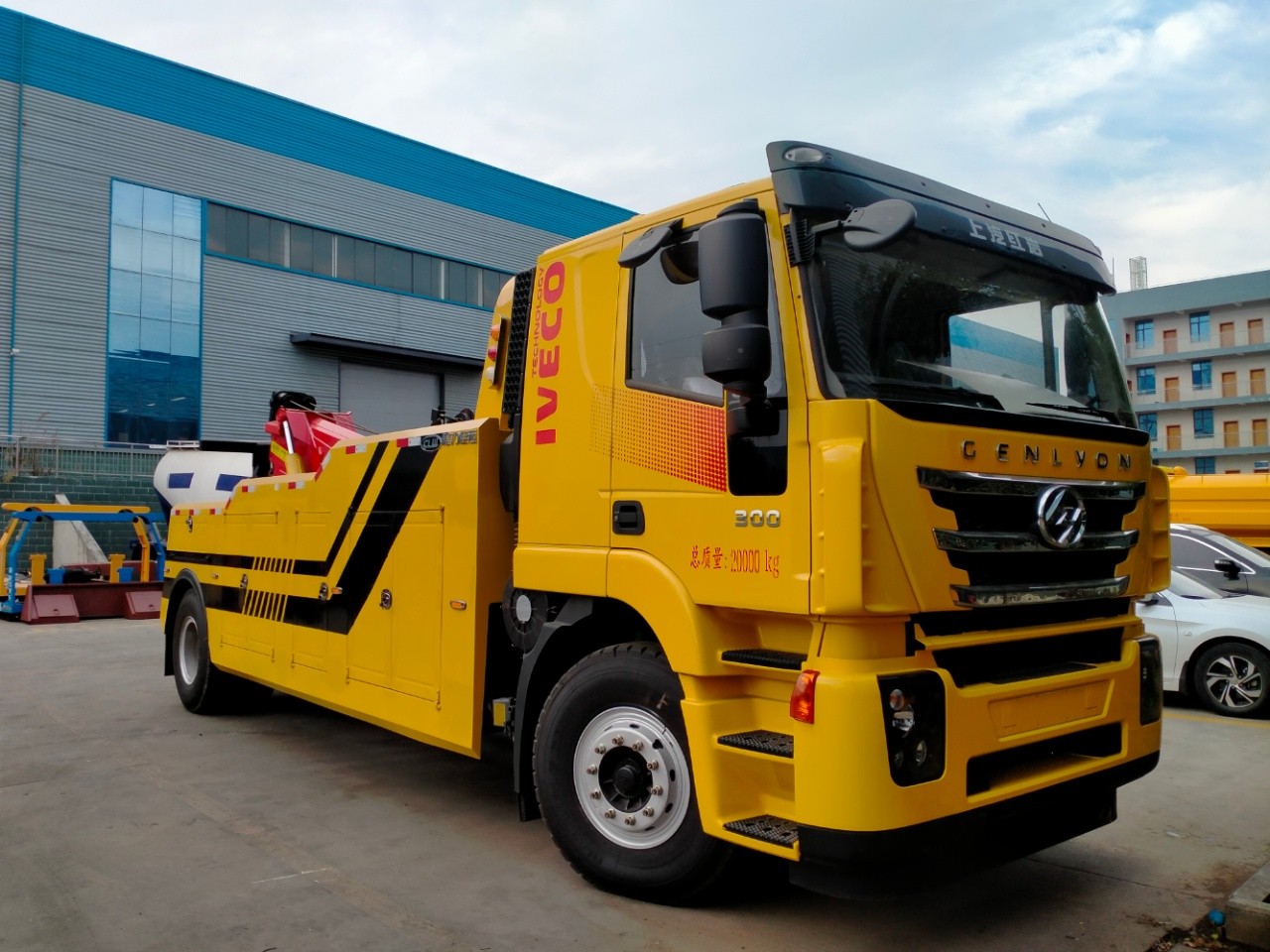

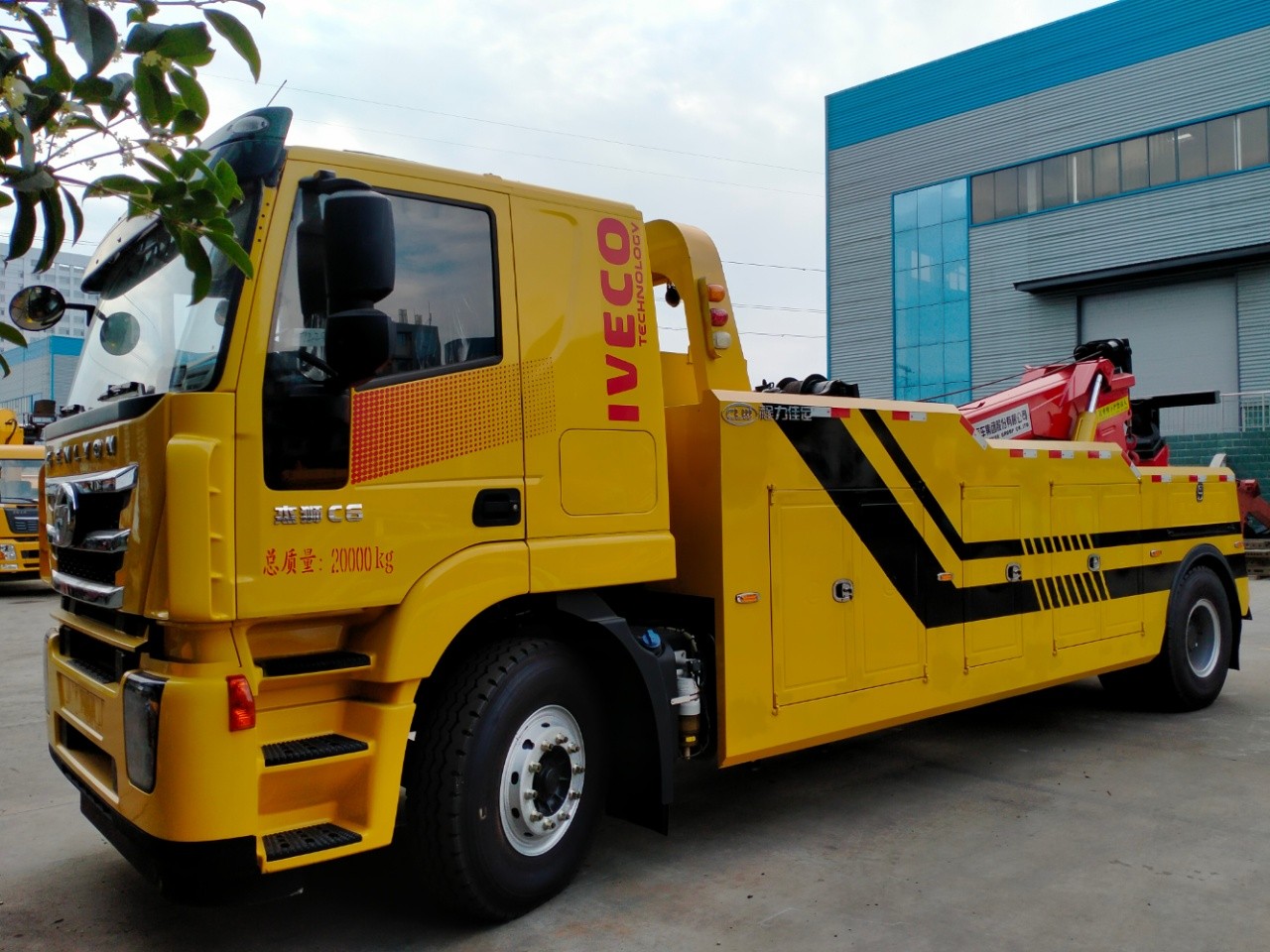

IVECO lifting and towing integrated wrecker truck chassis configuration: C6 flat-roof driver's cabin, 6000mm wheelbase, ShangChai 300 horsepower 10-liter engine. Faso 10-speed gearbox, 16-ton double-stage reduction cast bridge (HY300H), frame 305×8 + 4, 400L fuel tank, 12.00R20PR18 tires, luxurious air seats, remote throttle, central locking, electric windows.

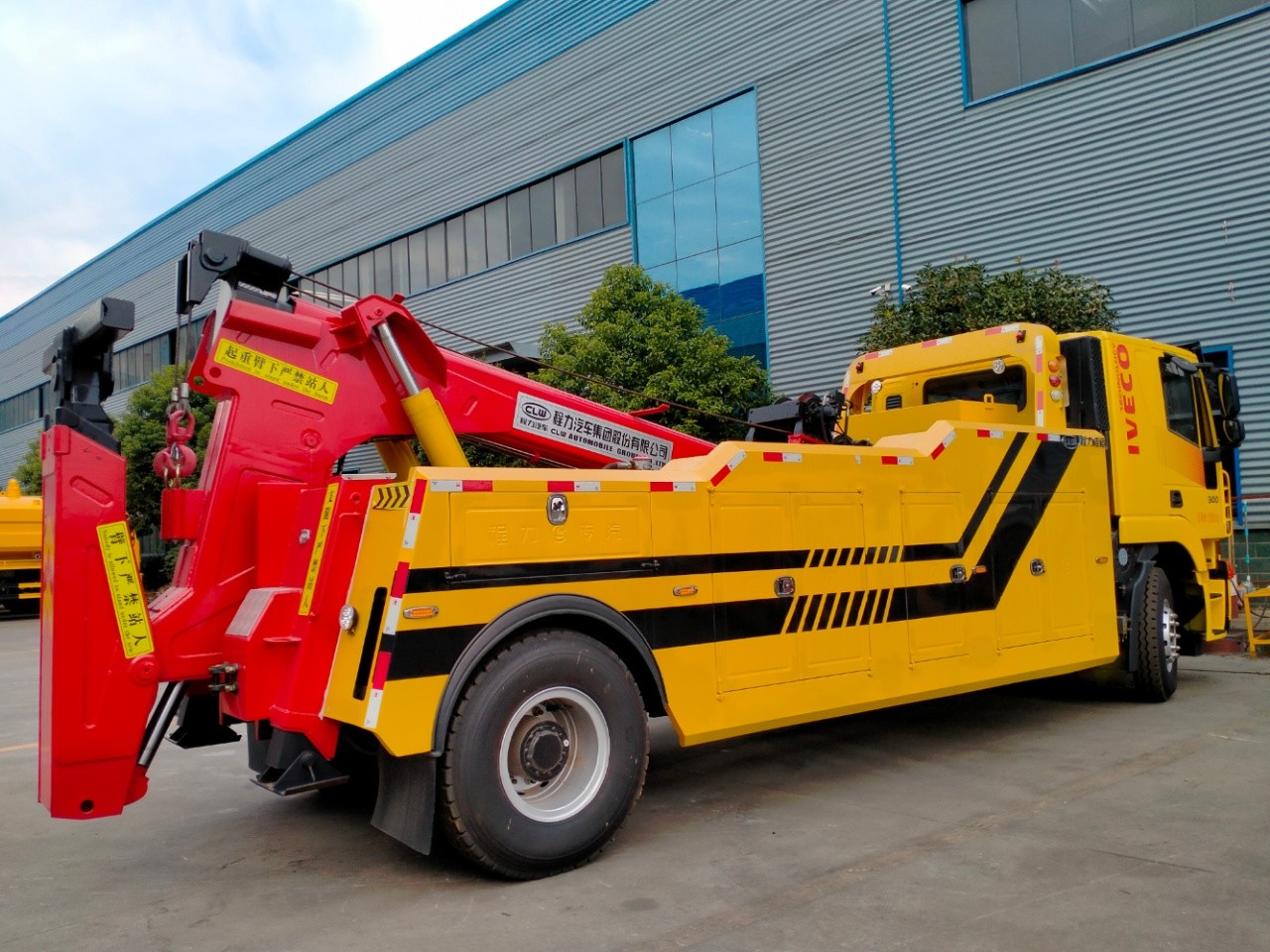

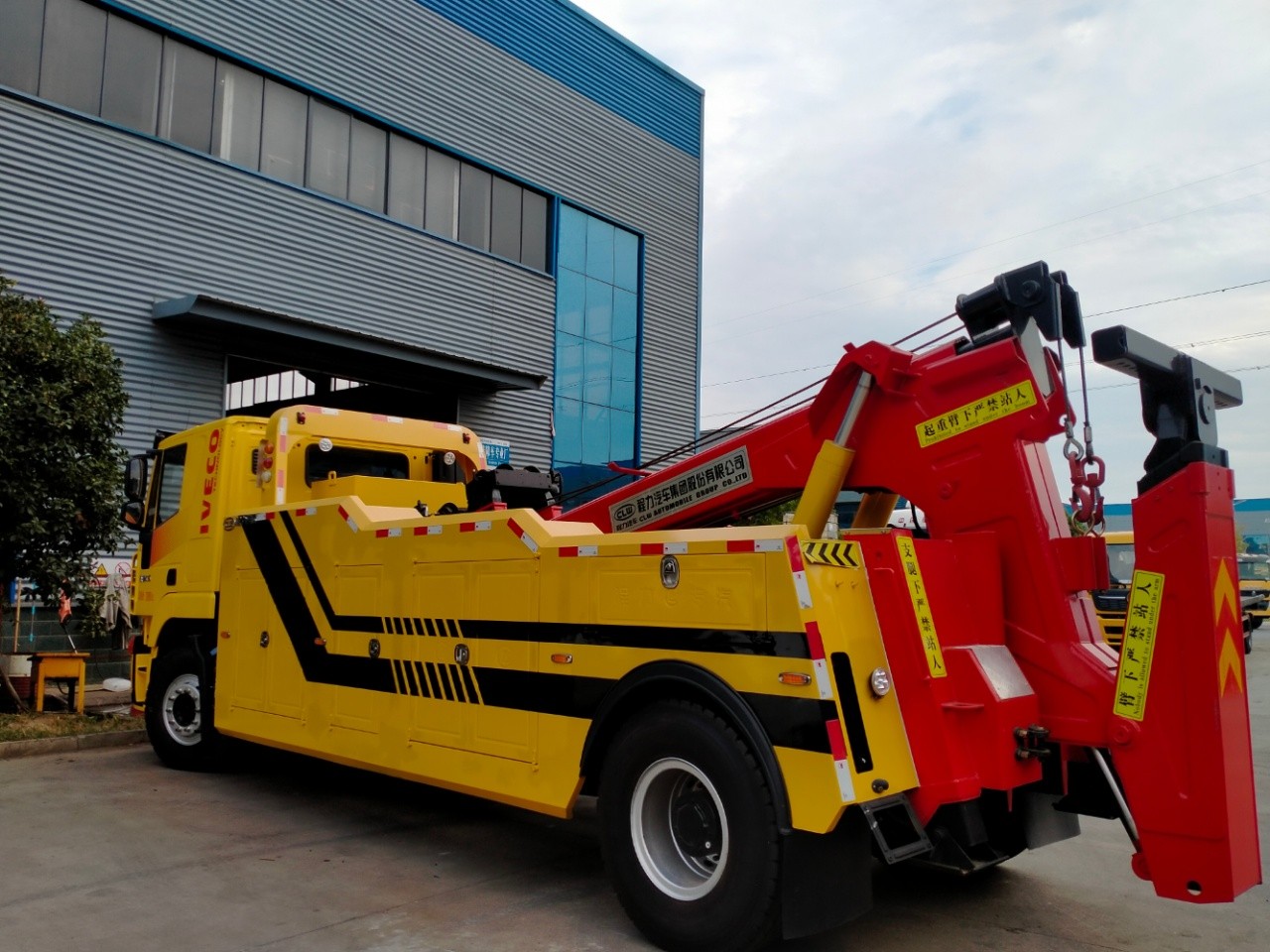

IVECO lifting and towing integrated wrecker truck upper body configuration: 16T one-piece upper body, two sections of hexagonal boom, three sections of towing arm, reinforced support arm, reinforced lowering arm. Split-type compartment, dual-side linkage operation device, 8-ton dual hydraulic winch, 35-meter steel wire rope, equipped with 4 pairs of Y-shaped steel forks, one pair of movable steel forks, 2 sets of support fork bases, tire holding device, warning light, front bumper with added counterweight, auxiliary braking air pipe assembly 1 set, with three-way wireless remote control, Italian Heide imported valve, Anhui liquid dual pump. Reinforced structural stress areas. Compartment undergoes electroplating. Work lights are installed inside the box.
