Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

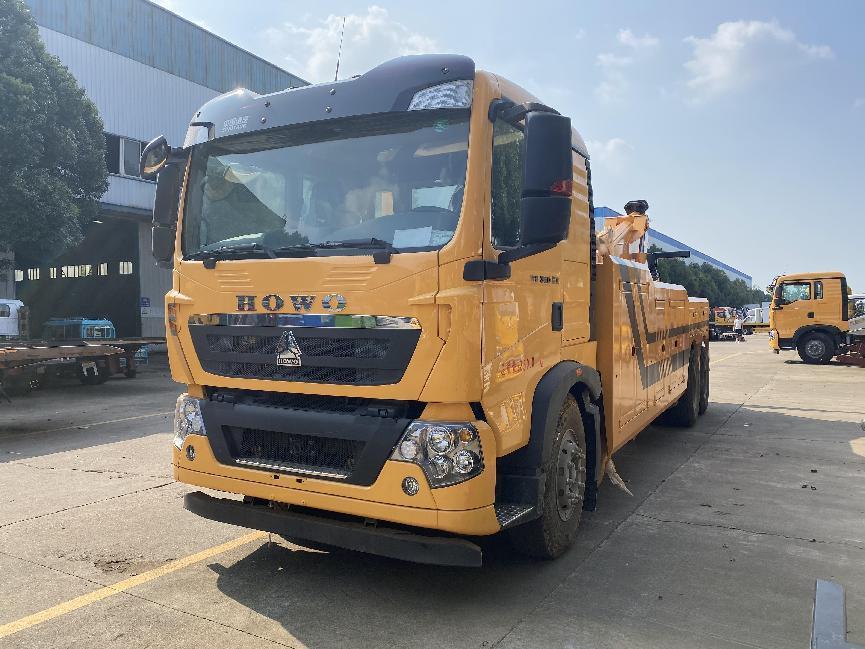

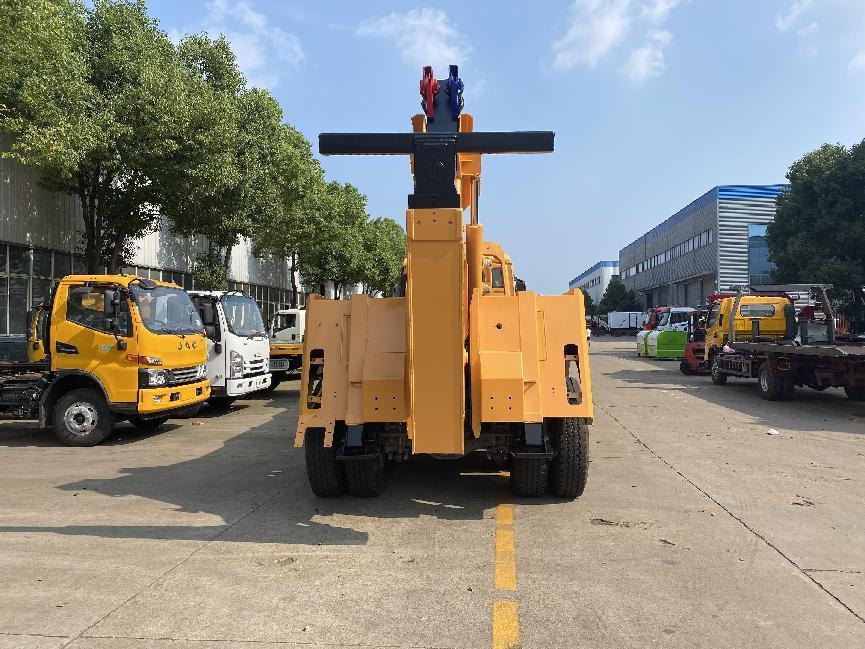

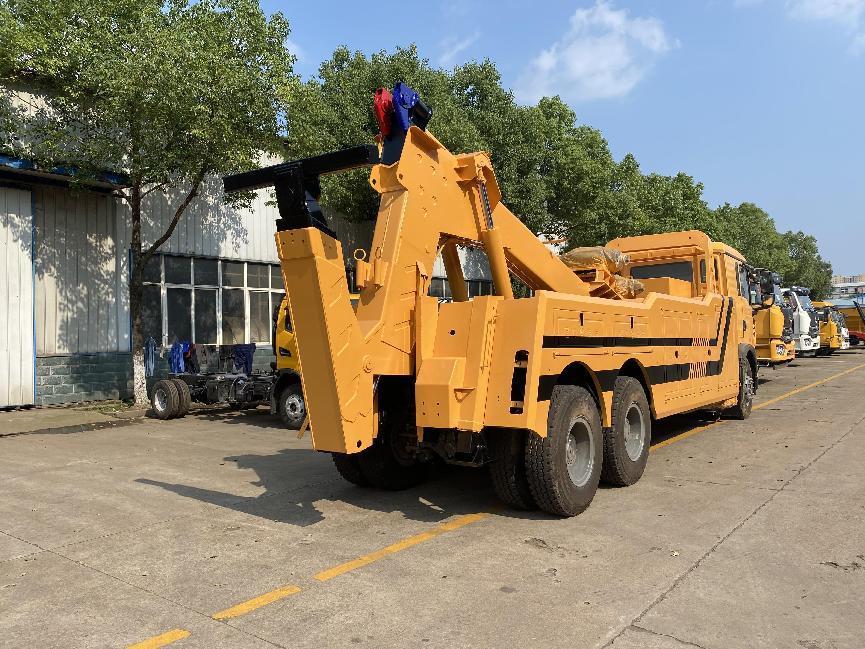

Chassis parameters of the HOWO 6*4 towing and lifting integrated wrecker truck:
chassis model | ZZ1257N464GF | wheelbase | 5800+1350mm |
engine model | MC07H.35-60 | engine power | 350hp |
transmission | HW1971 | tyre size | 12.00R20 |
tyre number | 10 | oil tank size | 400L |
GVW | 25000kg | curb weight | 21000kg |
Upper body configuration: 20D upper body, one-piece upper body, imported valve, two-section hexagonal boom, three-section support arm, split-type compartment, dual-side linkage operation device, two ten-ton hydraulic winches, 45m steel wire rope, 18mm diameter, equipped with four sets of steel forks, one set of drag fork sleeve, one set of steel plate lifting hook drag fork, one tire holding device. One long row engineering warning light. One auxiliary light, one auxiliary air pipe assembly, two binding chains.
