FOTON wrecker truck

The main components of a wrecker truck are: chassis, lifting device, lifting and towing device, hydraulic system, electronic control system, vehicle body and tool box, etc. It has multiple functions such as lifting, pulling and towing, and is suitable for debris removal operations on highways and urban roads.

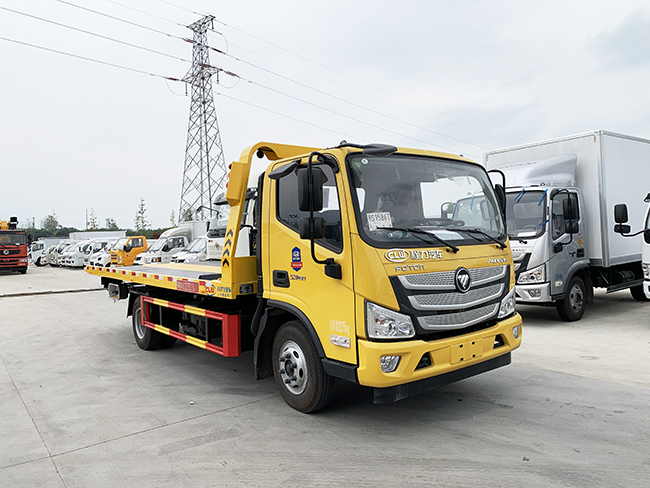

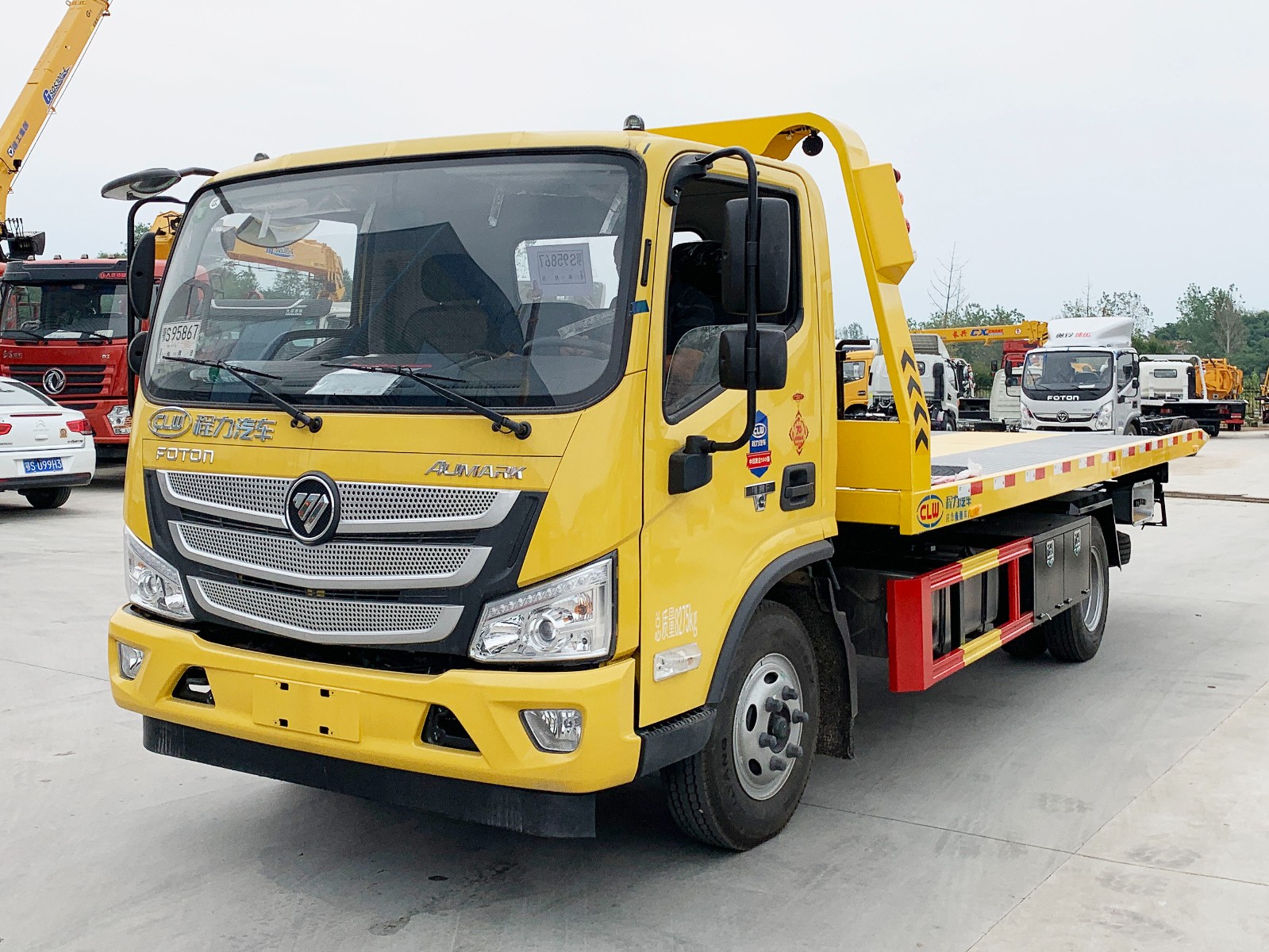

The FOTON wrecker truck adopts single-row 1900mm new cab, 3360mm wheelbase, Cummins 130-horsepower engine, 5-speed gearbox, 7.00R16 steel wire tires, power steering, anti-lock braking system, air conditioning, electric windows, cruise control, central locking, remote key, anti-lock braking system, adjustable headlights, exhaust brake, 4.5T rear axle.

FOTON wrecker truck body configurations:

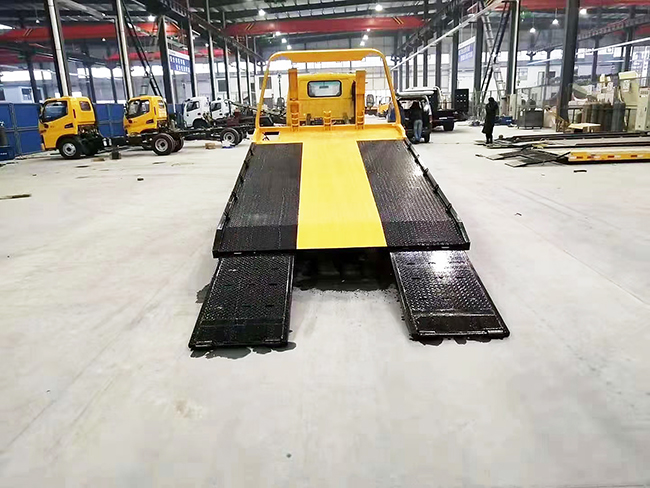

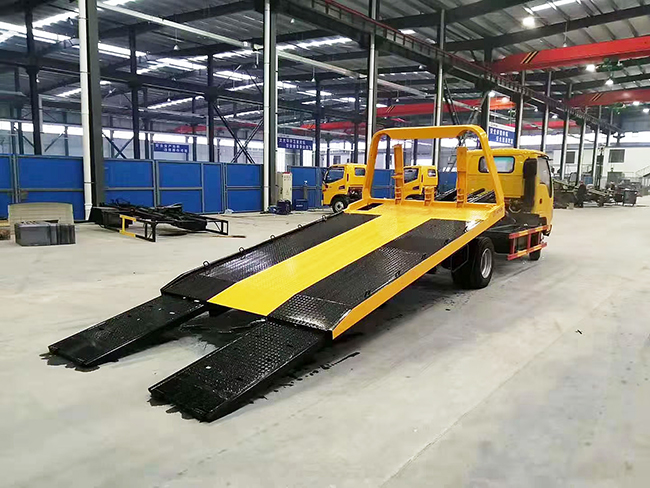

Tailboard options include telescopic plate, integral plate, mid-section extended plate, ordinary flip plate, and full-floor plate:

① Telescopic plate dimensions: (Mainboard length 4.2 meters + tailboard extension plate 1.2 meters) × Plate width 2.3 meters

② Integral plate dimensions: (Mainboard length 4.2 meters + tailboard integral plate 1.2 meters) × Plate width 2.3 meters

③ Mid-section extended plate dimensions: (Mainboard length 4.2 meters + mid-section extended plate 0.6 meters + tailboard 0.9 meters) × Plate width 2.3 meters

④ Ordinary flip plate dimensions: (Mainboard length 4.2 meters + tailboard 0.9 meters) × Plate width 2.3 meters

⑤ Full-floor plate dimensions: (Mainboard length 4.2 meters + tailboard extension plate 1.2 meters) × Plate width 2.3 meters

The flat plate adopts 3PL folding stamping type, one-drag-two type, and dual-side linkage operation device. It can support 3 tons on the back, drag 3 tons, and the rear support arm can lift 2 tons. The multi-way valve and balance valve use imported hydraulic components (Italian Heid). There are 3 working lights, 1 40KN hydraulic winch (25-meter steel wire rope), 1 toolbox, 2 trolleys, 1 L-shaped tire support frame pair, 6 binding straps, 1 pair of fork lift forks, 1 pair of fork lift seat, and 1 chain hook. The rear support mechanism (detachable), mainboard length 4.2 meters.
