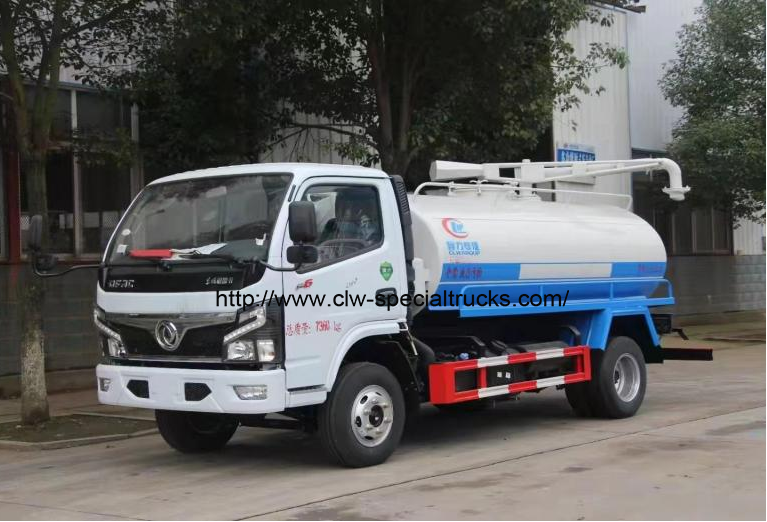

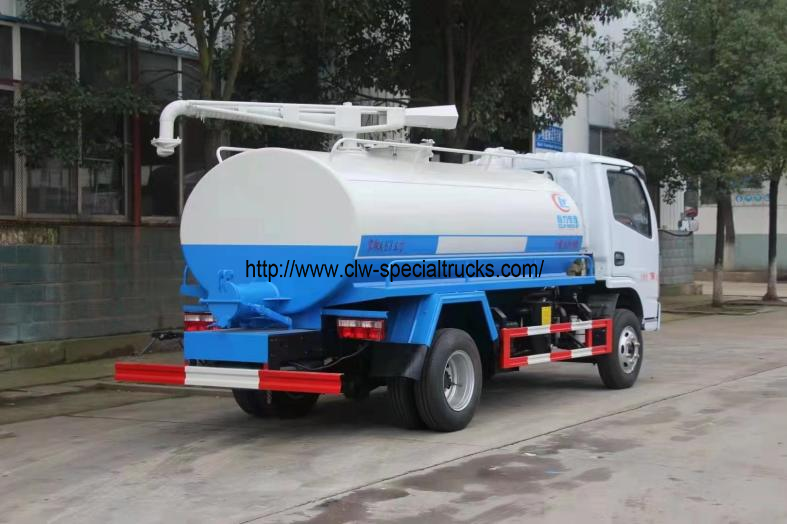

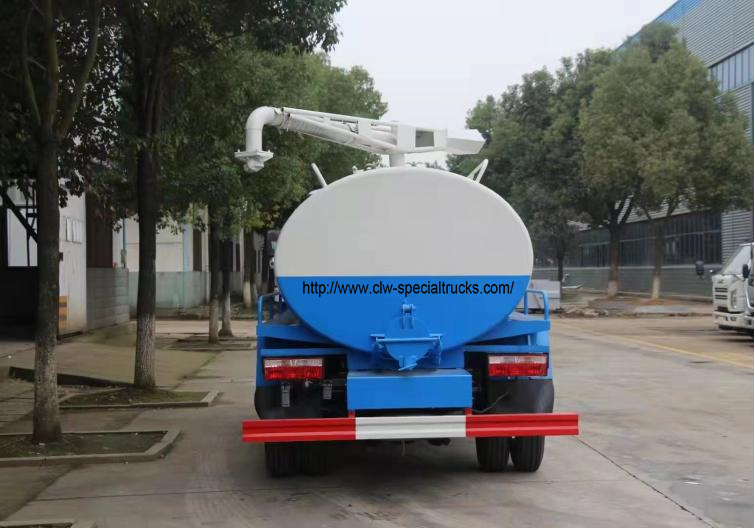

Dongfeng chassis 4.5m3 vacuum truck

Origin: Suizhou China

Brand: CLW

Emission standard: EURO 2/3/4/5/6

Steering wheel: LHD/RHD

Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

Inquire Now Next Product

Phone：

+86 13329890945

+86 19813830308

ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Center

contant us

Phone：

+86 13329890945

+86 19813830308

Email：info@clw-specialtrucks.com
ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Details

Whole truck parammeters
Brand		CLW	Announcement batch	369
Product name		CLW5070GXED6 vacuum truck	product number	FB536900310
GVW(Kg)		7360	Tank volume(m3)	4.63
rated capacity(Kg)		3530	outer dimensions(mm)	5995×2010×2500
curb weight(Kg)		3700	cargo dimensions(mm)	××
passengers			towing capacity(Kg)
passengers		2	loading capacity utilization coefficient
approach/depature angle(°)		27.7/12	front/rear suspension(mm)	1055/1632
axle number		2	wheelbase(mm)	3308
axle loading capacity(Kg)		2640/4720	max speed(Km/h)	110
others		1. The vehicle only uses 3308mm wheelbase, the total capacity of the tank is 4.63 cubic meters, the effective volume of the tank is 4.41 cubic meters, and the size of the tank is (mm):3500×1650×1200. 2, protective material :Q235B carbon steel, connection mode: left and right sides and lower protection are welded connection, rear protection section size (mm):120×50, rear protection height (mm):430. 3, ABS model/manufacturer :ABS/ASR-12V-4S/4M/ Xiangyang Dongfeng Longcheng Machinery Co., LTD. 4, special device: tank, mainly used for pumping water, feces, oil, mud and other fluids. 5. Optional cab with chassis. 6, select the appearance of the coat. 7. Select the installation position of chassis accessories.
Chassis parameters
brand		EQ1075SJ3CDF	name	Truck chassis (Class II)
Trade name		Dongfeng	manufacturer	Dongfeng Motor Co., LTD
fuel type		diesel	tyre number	6
approach/departure ange (°)		27.7/15	tyre size	7.00R16
fuel type		diesel	emission standard	GB17691-2018 EURO 6
engine model	engine manufacturer		displacement(ml)	power（kw）
CA4DB1-11E6 D20TCIF1 Q28-130E60 CA4DB1-13E6 YCY24140-60	Faw Group Co., LTD Kunming Yunnei Power Co.,Ltd Anhui Quanchai power Co., LTD Faw Group Co., LTD Guangxi Yuchai machinery Co., LTD		2207 1999 2800 2207 2360	81 93 96 95 103

Vacuum truck features:

1. The chassis adopts Dongfeng class-II chassis EQ1075SJ3CDF series mature products, 3308 wheelbase, Dorica D6S1730/ single row cab; A variety of engine models are available for reference, Wan Liyang 6-speed transmission, 700R16 steel tires, 190 mm frame, original air conditioning, power Windows, ABS air brake.

2. Vacuum truck structure: It is mainly composed of vacuum sealed sewage tank, vacuum suction pump (water ring pump or oil ring pump), inlet and exhaust pipe system, water supply system (water ring pump), hydraulic system, control system, overflow valve, vacuum pressure gauge, fecal tube, hand washing tank, 270 degree rotating boom and other parts.

3. Vacuum truck tank: the effective volume of the tank is 4.5 cubic meters; The thickness of the tank body is 5mm, the thickness of the head is 5mm, and the head of the tank body is die-cast in one time. The structure of the tank body is elliptical or rectangular round. The tank body is made of national standard Q235 steel carbon plate, which is resistant to pressure and corrosion and durable.

4. Vacuum system: SK-9 liquid ring vacuum pump, speed 970r/min; Air flow: 540m³/Min, vertical suction ≥10m; Horizontal suction distance is not less than 50m.

5. The Discharge method of vacuum truck: gravity discharge.

6. Special suction pipe: high quality PVC synthetic material suction pipe, light and tough. Inner diameter 102mm, length 7m.

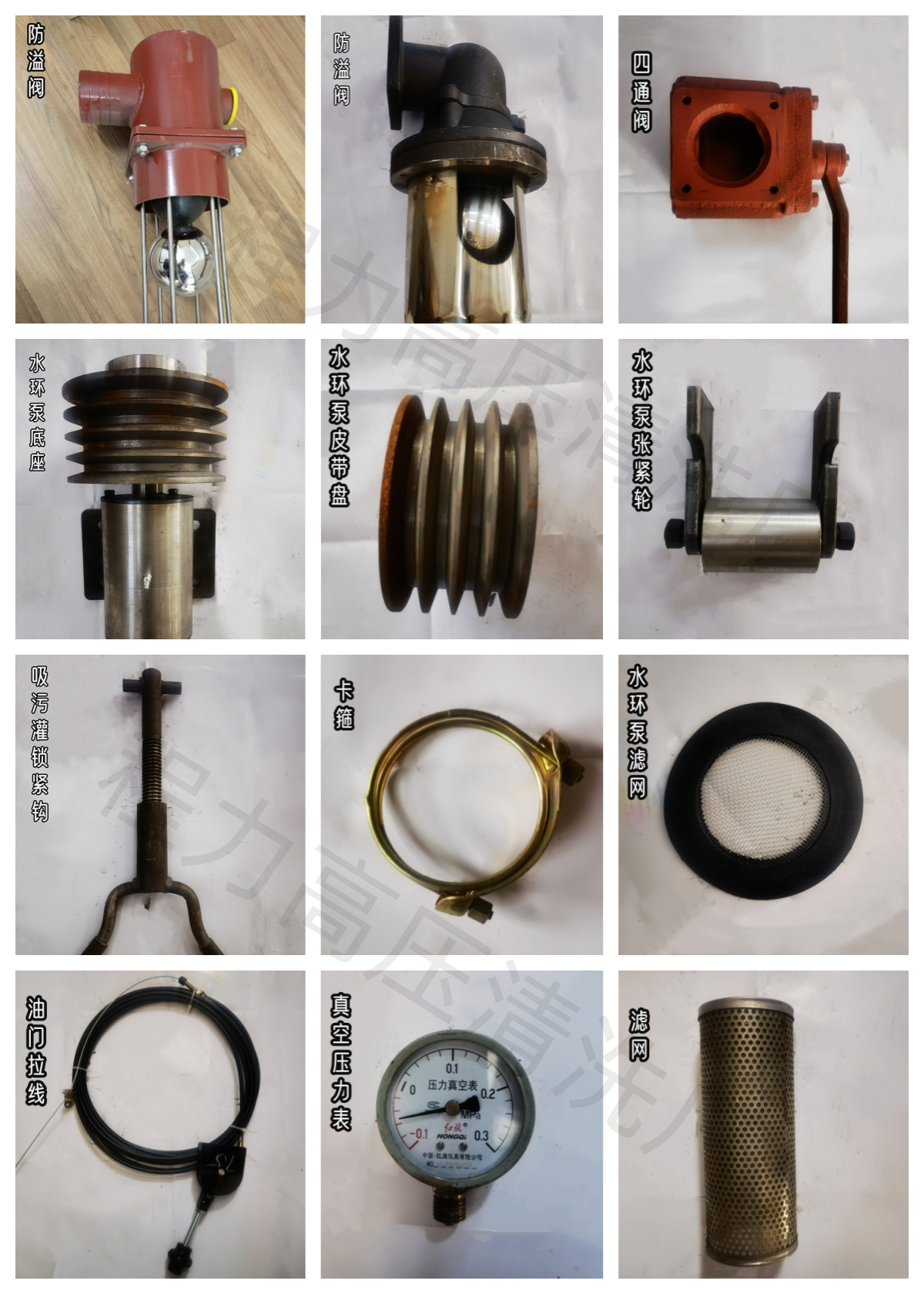

Vacuum truck vulnerable parts:
