Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

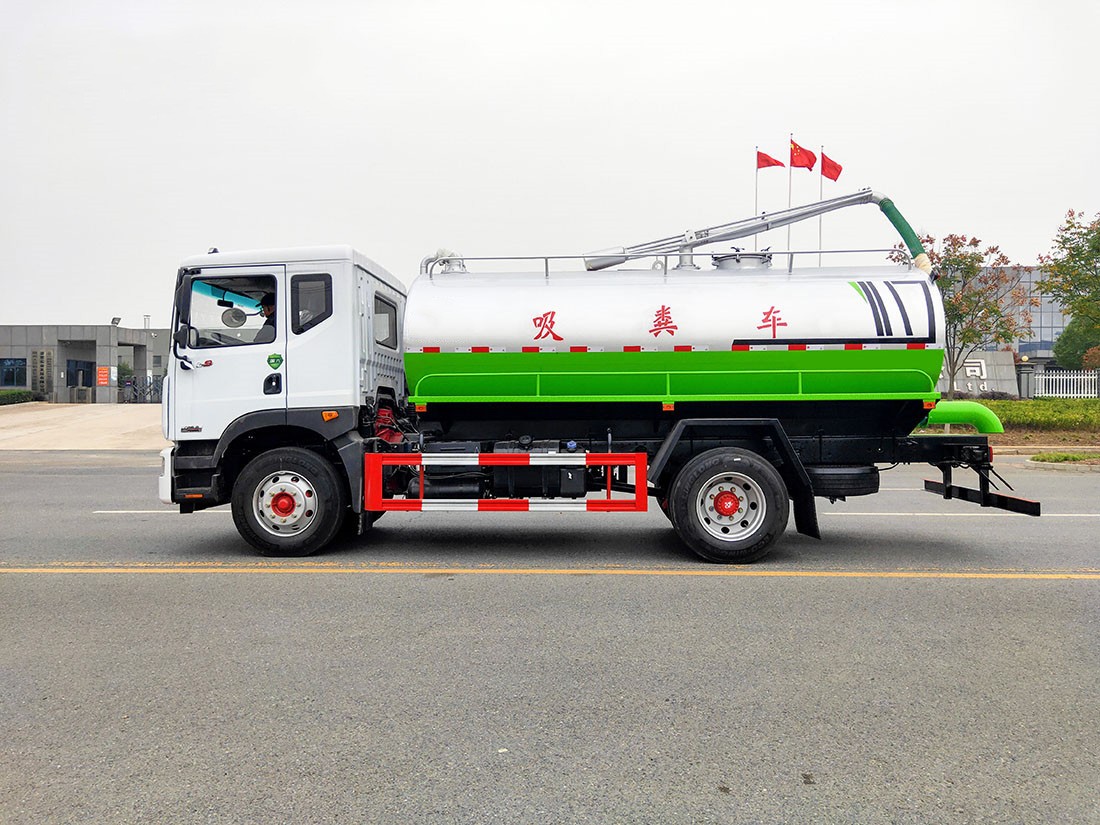

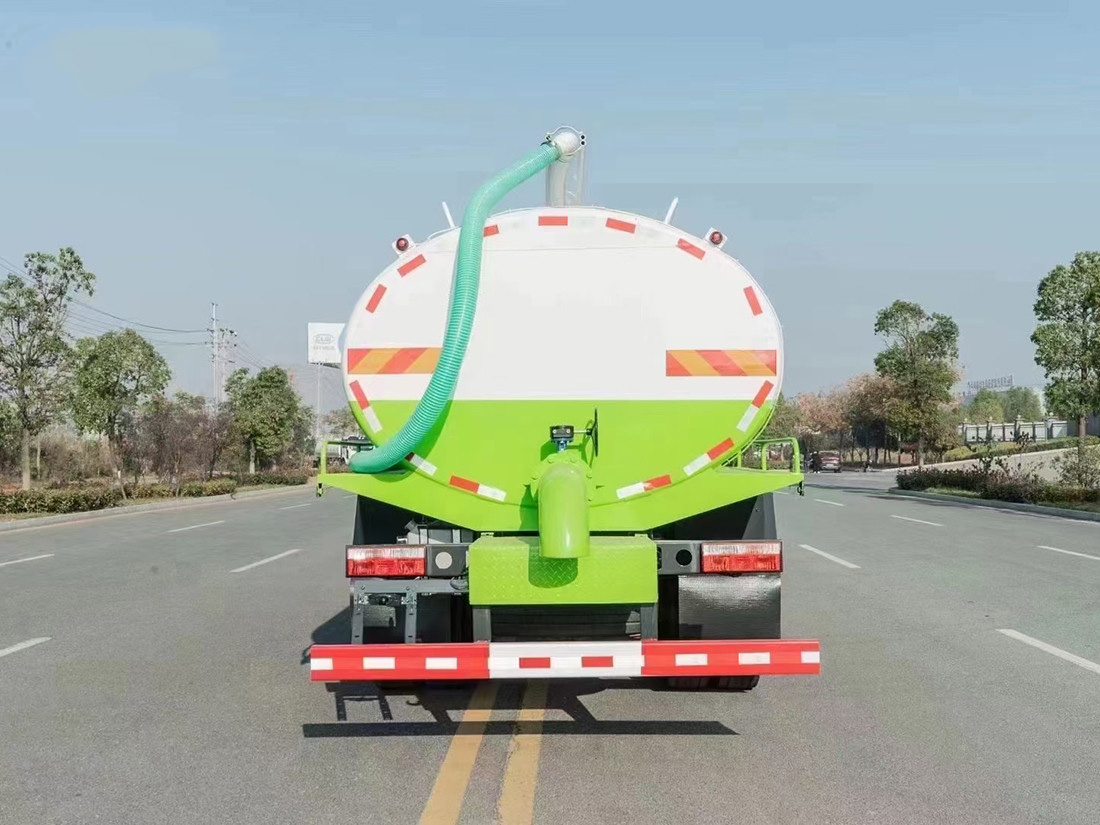

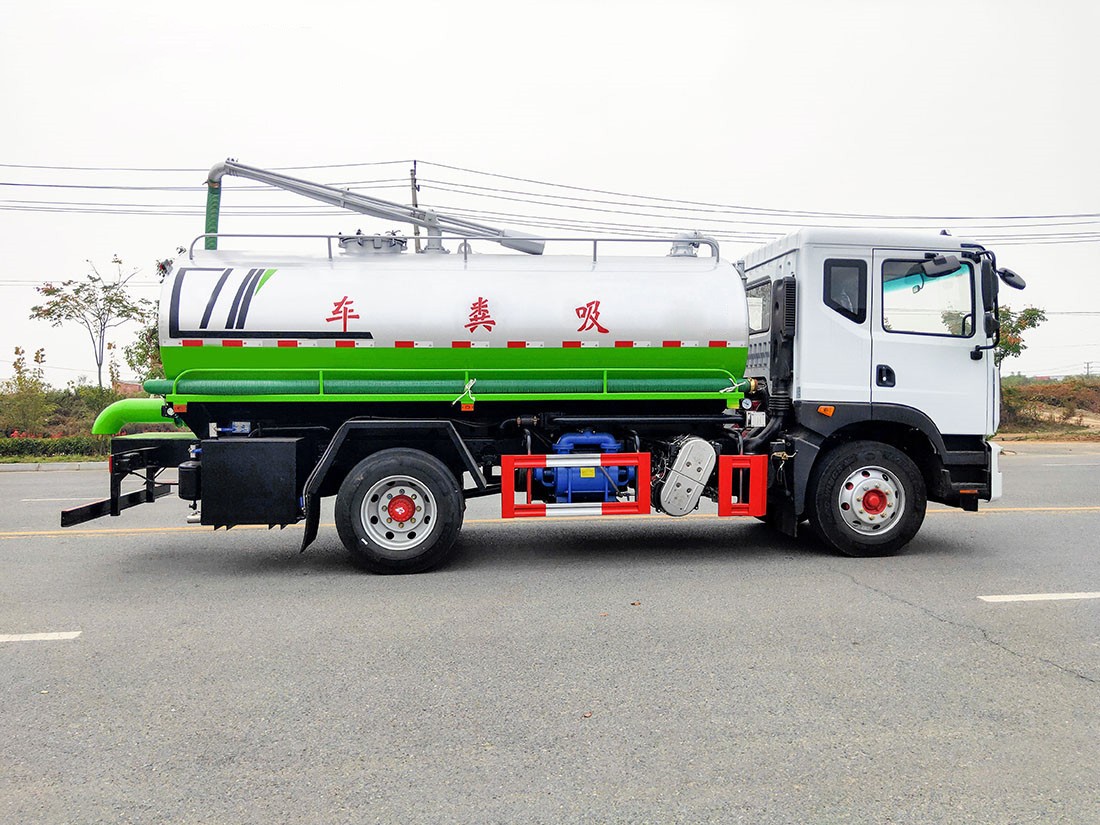

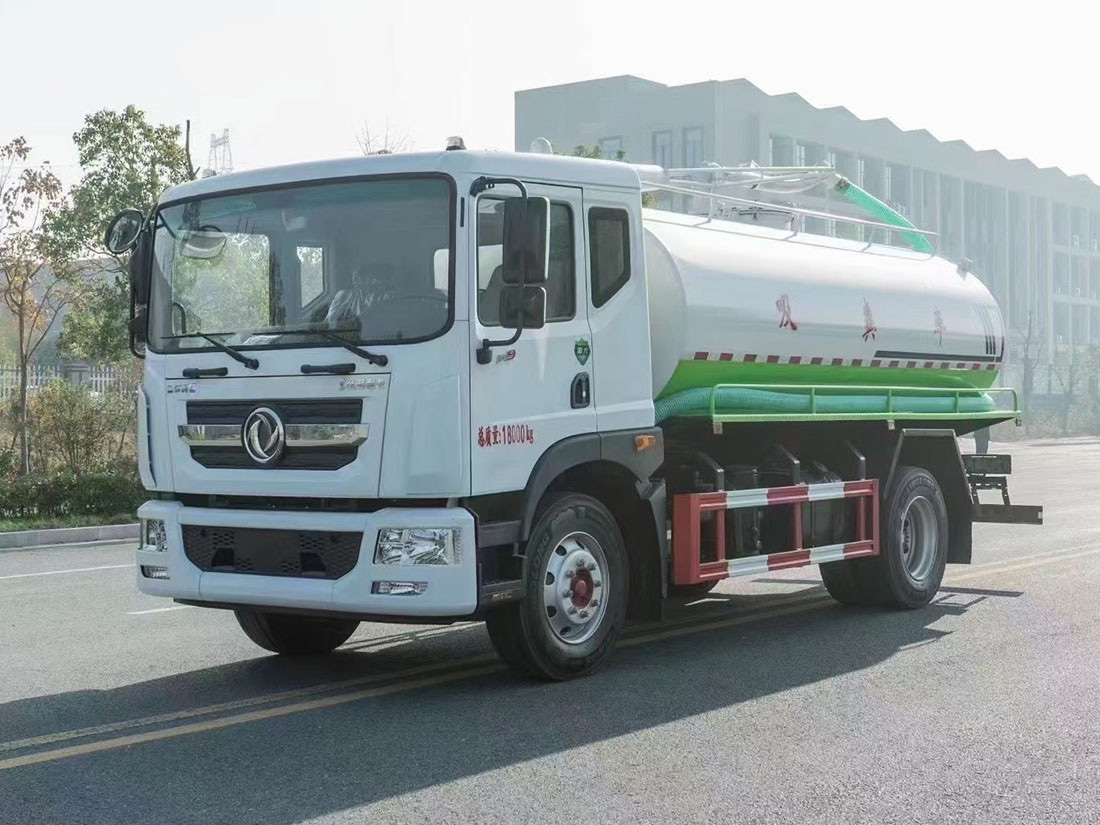

The sewage suction truck is composed of force extractor, transmission shaft, vacuum suction pump, pressure tank body, hydraulic part, pipe network system, vacuum pressure gauge, fecal window, hand washing device, etc., equipped with high-power vacuum suction pump and high-quality hydraulic system, the tank head is die-cast, the tank body can be opened back, and the double top self-unloading. The dirt in the tank can be dumped directly through the back cover, and it has the characteristics of high vacuum (greater suction than the suction truck), large tonnage, high efficiency and wider use.
Whole sewage suction truck parameters:
| model | CLW5180GXE6 | brand | CLW |
| GVW | 18000kg | rated loading capacity | 9770kg |
| curb weight | 8100kg | outer dimensions | 9650×2500×3300mm |
| axle number | 2 | wheelbase | 3950mm |
| axle lodaing capacity | 6500/11500kg | max speed | 105km/h |
others: 1, the effective volume of the sewage suction truck tank :12.8m3, the overall size of the tank (long × long × short axis)(mm):4700×2250×1550; The corresponding relation of vehicle length/wheelbase for (mm) : 8000/3950855 0/4500875 0/4700905 0/5000935 0/5300965 0/5600; 2, the side protection and the rear lower protection device are made of Q23** material, the side protection is welded connection, the rear lower protection is bolted connection, the rear lower protection size :150×50(mm), the height from the ground 450mm.3,ABS system manufacturer, Model: Jiaozuo Boruike ** Technology Co., LTD.,J ABS. This vehicle is a special operation vehicle for excreting, and the special device is a vacuum pump. Optional side protection structure. Optional cab with chassis. Optional chassis accessories, optional different shape styles. | |||
Chassis parameters of the sewage suction truck:
| model | EQ1185LJ9CDE | brand | Dongfeng |
| outer dimensions | 5950×2380×2845mm | tyre size | 295/80R22.5 18PR |
| tyre number | 6 | leaf spring number | 8/10+7 |
| front/rear track | 1862/1806mm | fuel type | diesel |
| emission standard | EURO VI | ||
| engine model | manufacturer | displacement | power |
| D4.5NS6B220 | Dongfeng Cummins Engine Co., LTD | 6200ml | 220hp |
