Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

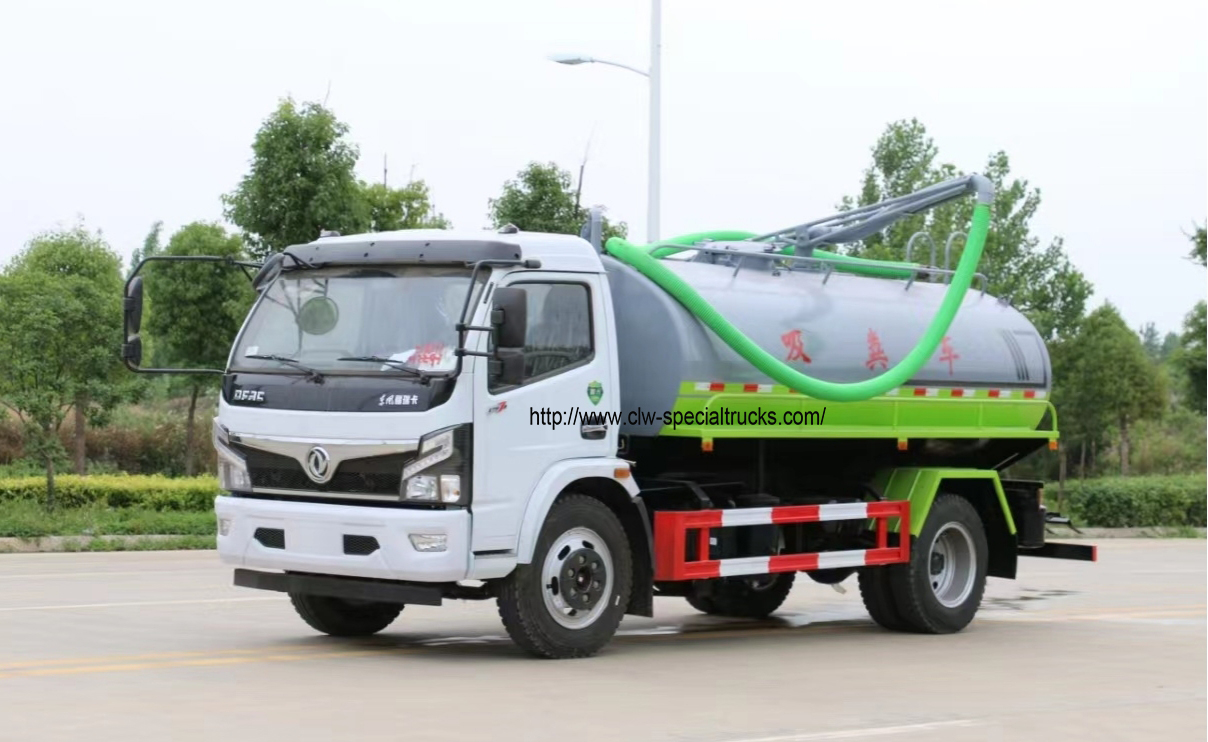

Picture of the 8m3 vacuum truck
2. Parameters of the 8m3 vacuum truck
| No. | Item | Main parameters |
| 1 | wheelbase | 3800mm |
| GVW | 11995kg | |
| rated capacity | 6200kg | |
| curb weight | 5600kg | |
| vacuum truck outer dimensions | 6900×2350×2850mm | |
| 2 | engine power | 120kw |
| 3 | power output | PTO |
| 4 | tank volume | 8.5m3 |
| tank material | Q235 | |
| tank thickness | ≥5mm | |
| rear door opening | hydraulic opening | |
| discharge port | 100~150mm | |
| safety protection | 1) Physical overflow protection, 2) Electronic overflow alarm can be installed | |
| 5 | vacuum pump type | Liquid ring suction pump SK-12 |
| Vertical suction | 8m | |
| Horizontal suction distance | 10m | |
| air flow | 720m³/h | |
| safety protection | 1) vacuum protection; 2) Air particle size filtration protection | |
| 6 | vacumm truck discharge system | The filtered sewage is discharged back to the sewer pipe through the suction port |
