1.13m3 vacuum truck brief introduction.
The13m3 vacuum truck adopts Dongfeng chassis. GVW 16200kg, wheelbase 3950mm, engine power 143kw, tank volume 13m3, tank thickness 6mm, matched with SK-15 vacuum pump,rotation speed 970r/min, air flow 900m3/h,vertical suction ≥10m; Horizontal suction ≥50m.

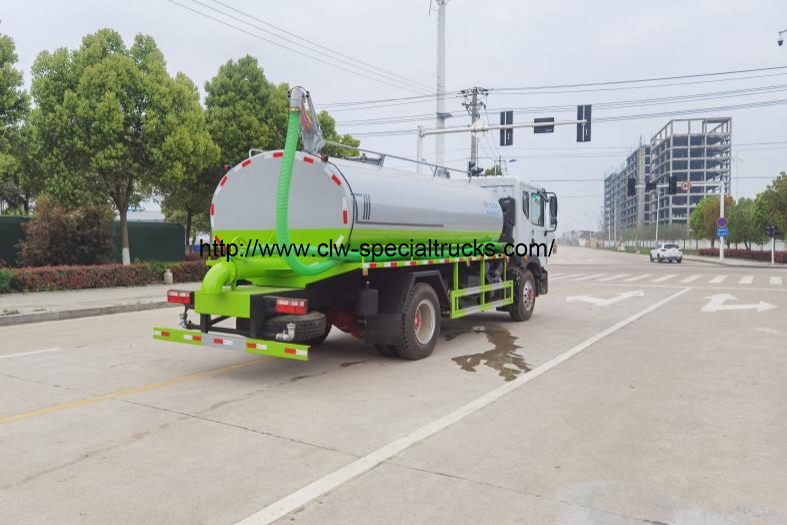

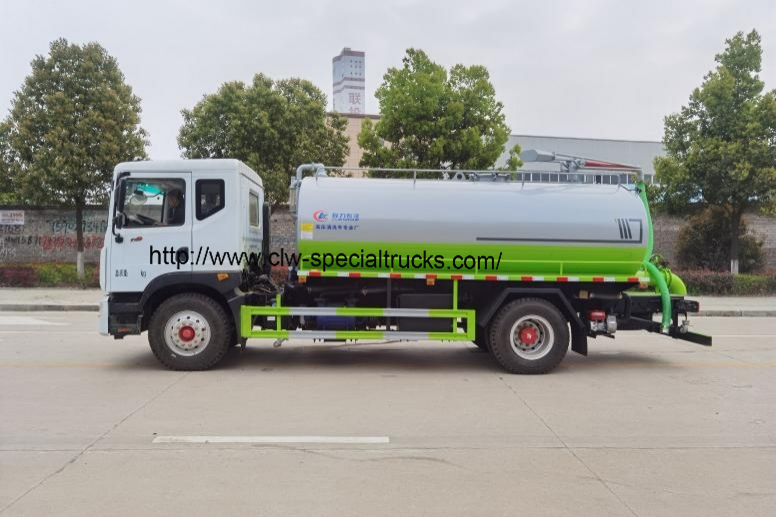

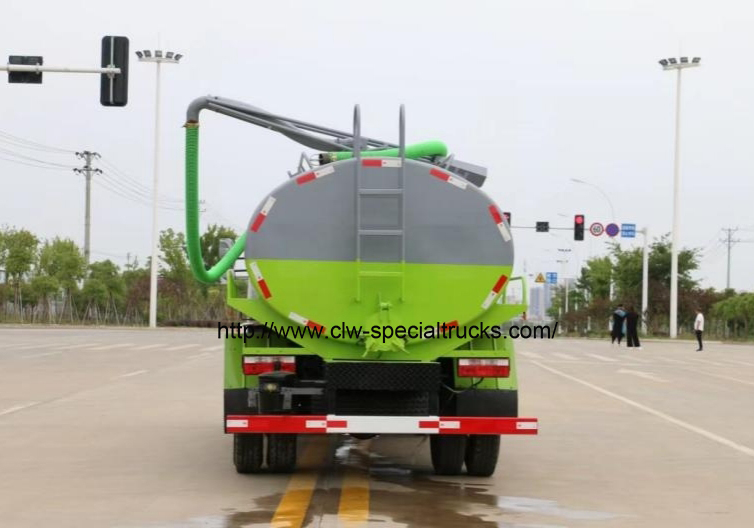

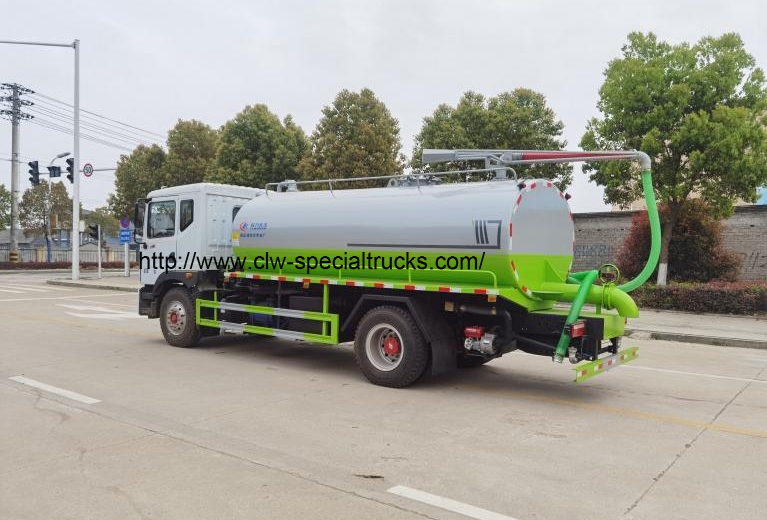

2. picture of the vacuum truck
3. Main parameters of the vacuum truck
| Whole vaccum truck parameters | |||
| Brand | Dongfeng | GVW | 16200kg |
| rated capacity | 8760/8695kg | curb weight | 7310kg |
| outer dimension | 7700×2500×3150mm | passenger | 2/3 |
| approach/departure angle | 19/10° | front/rear suspension | 1260/2490mm |
| axle number | 2 | wheelbase | 3950mm |
| axle load | 5600/10600kg | max speed | 89km/h |
| Vacuum truck chassis parameters | |||
| chassis brand | Dongfeng | Chassis model | EQ1165LJ9CDE |
| fuel type | diesel | Emission standard | EURO 6 |
| engine power | 143kw | displacement | 4000ml |
| Vacuum truck body parameter | |||
| tank volume | 13m3 | tank material | Q235 carbon steel |
| tank thickness | 6mm | tank head thickness | 6mm |
| tank shape | Ellipse or rectangular | vacuum pump | SK-15 |
4. Vacuum truck more information
Vacuum truck is mainly used to clean the sewer, also can be equipped with high-pressure cleaning function.The vacuum cleaner truck is mostly used in sanitation truck fleets to protect the environment.
