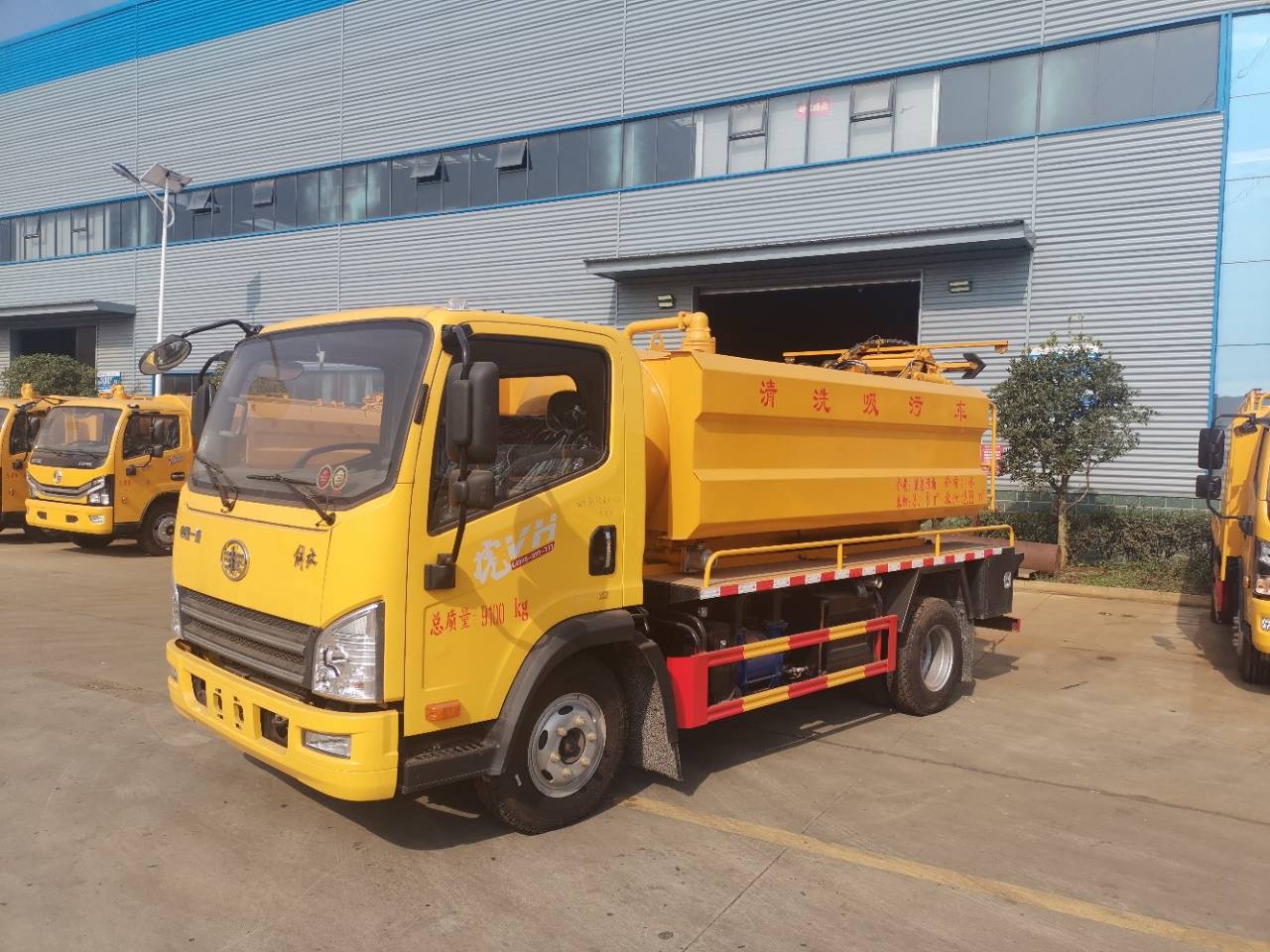

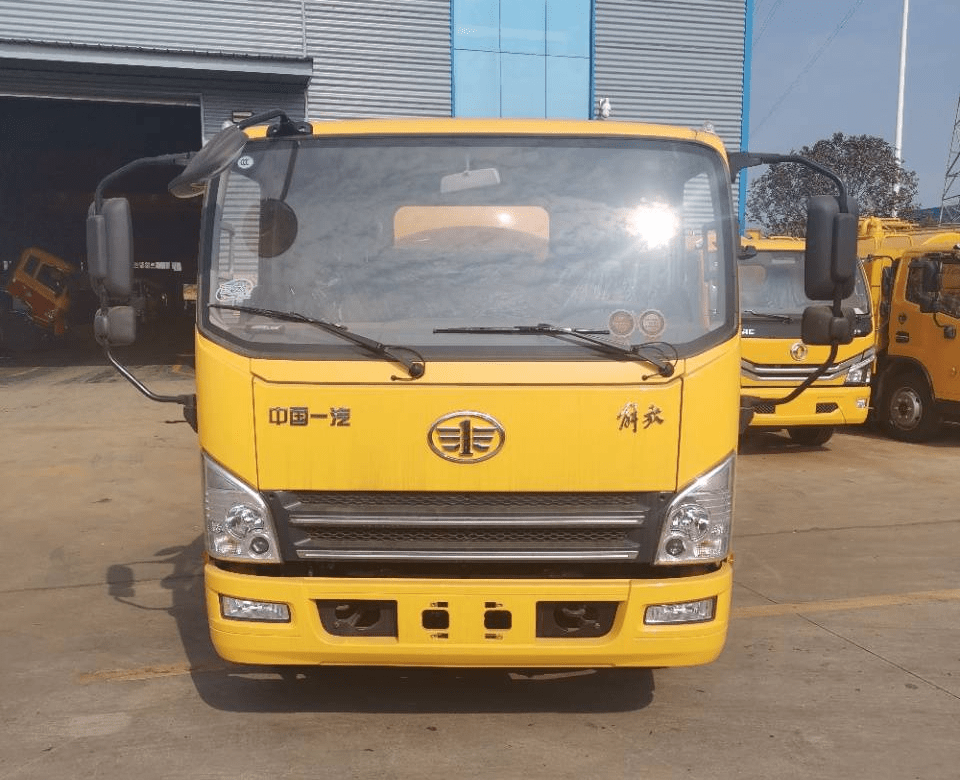

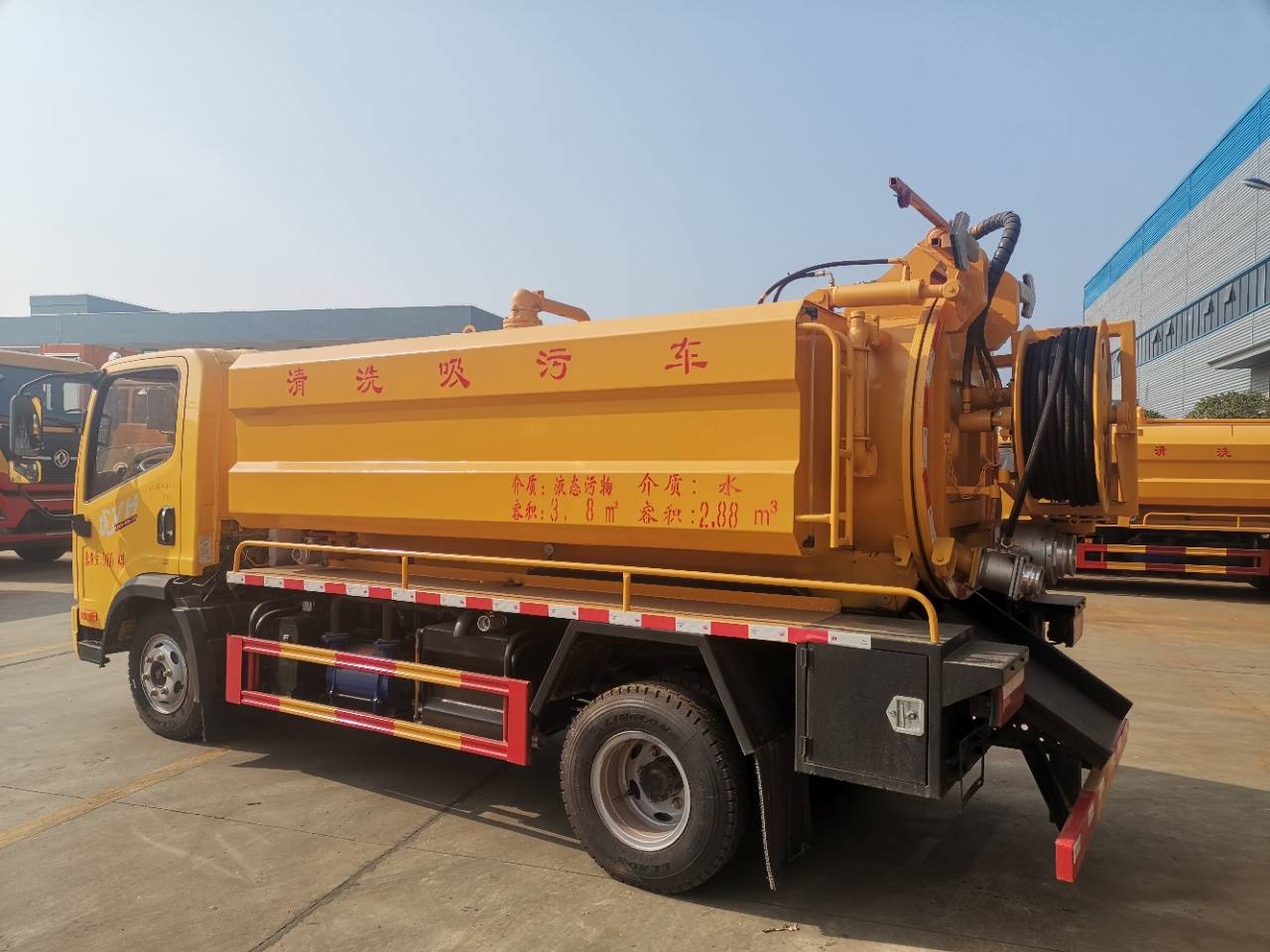

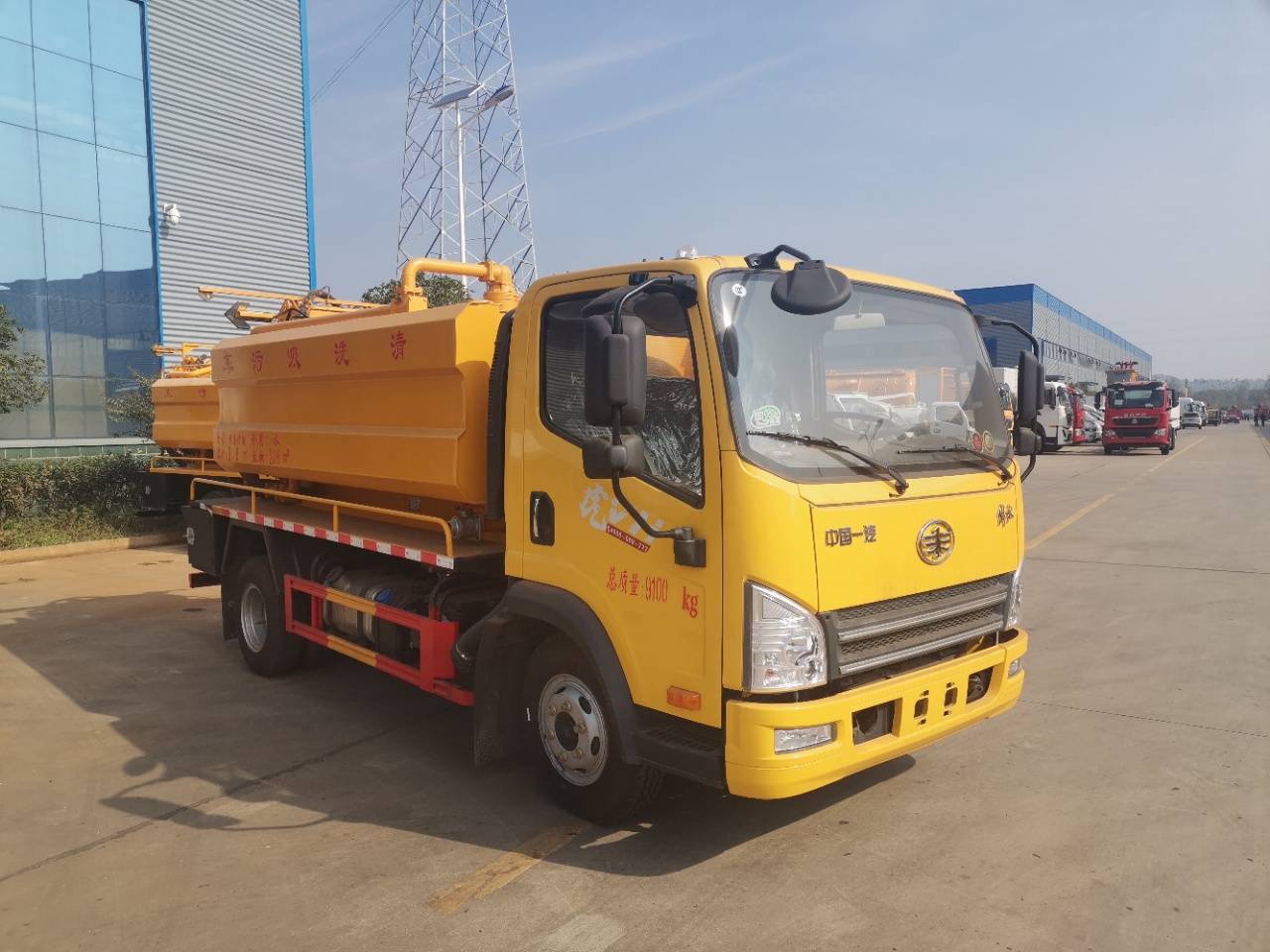

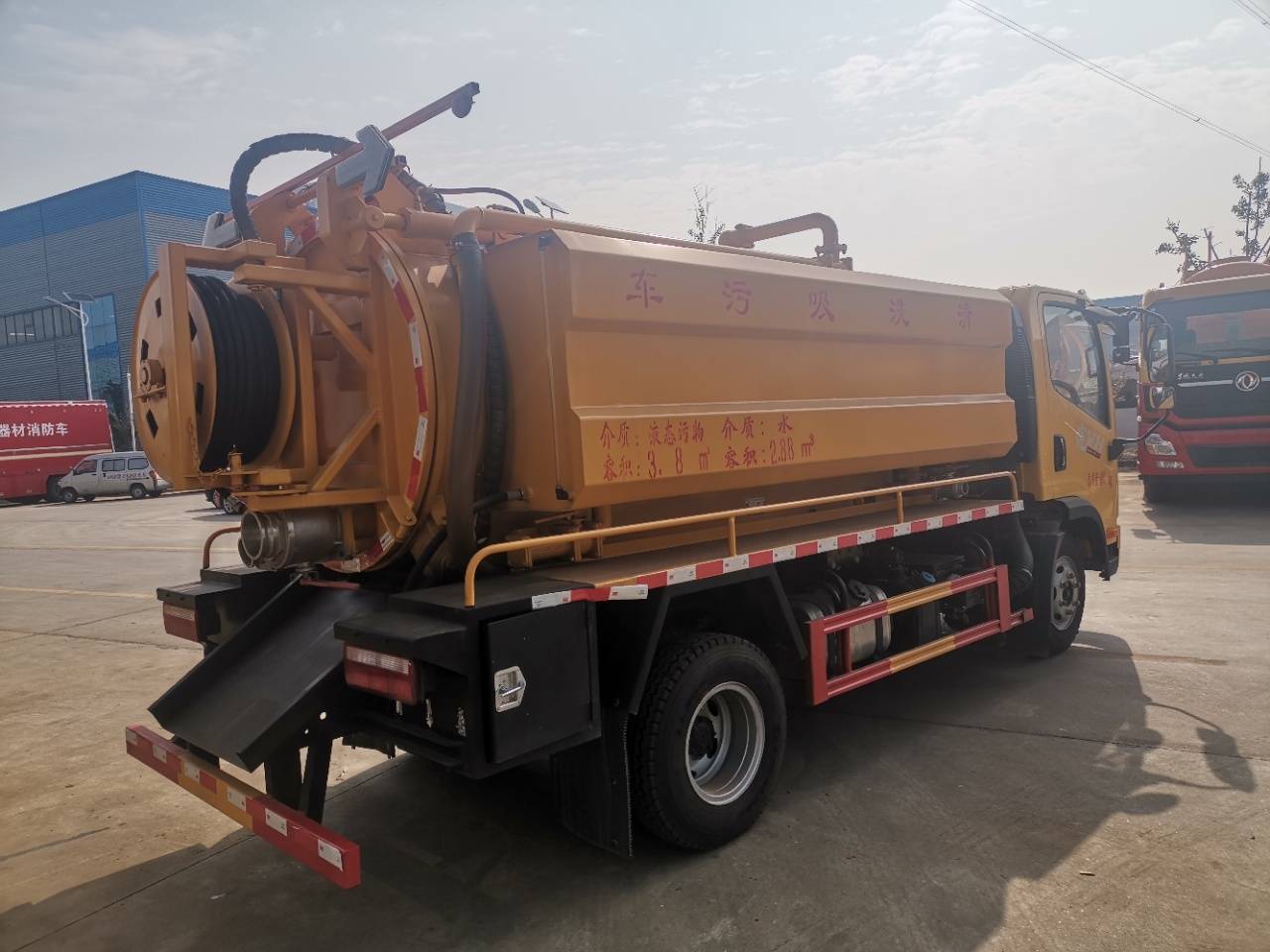

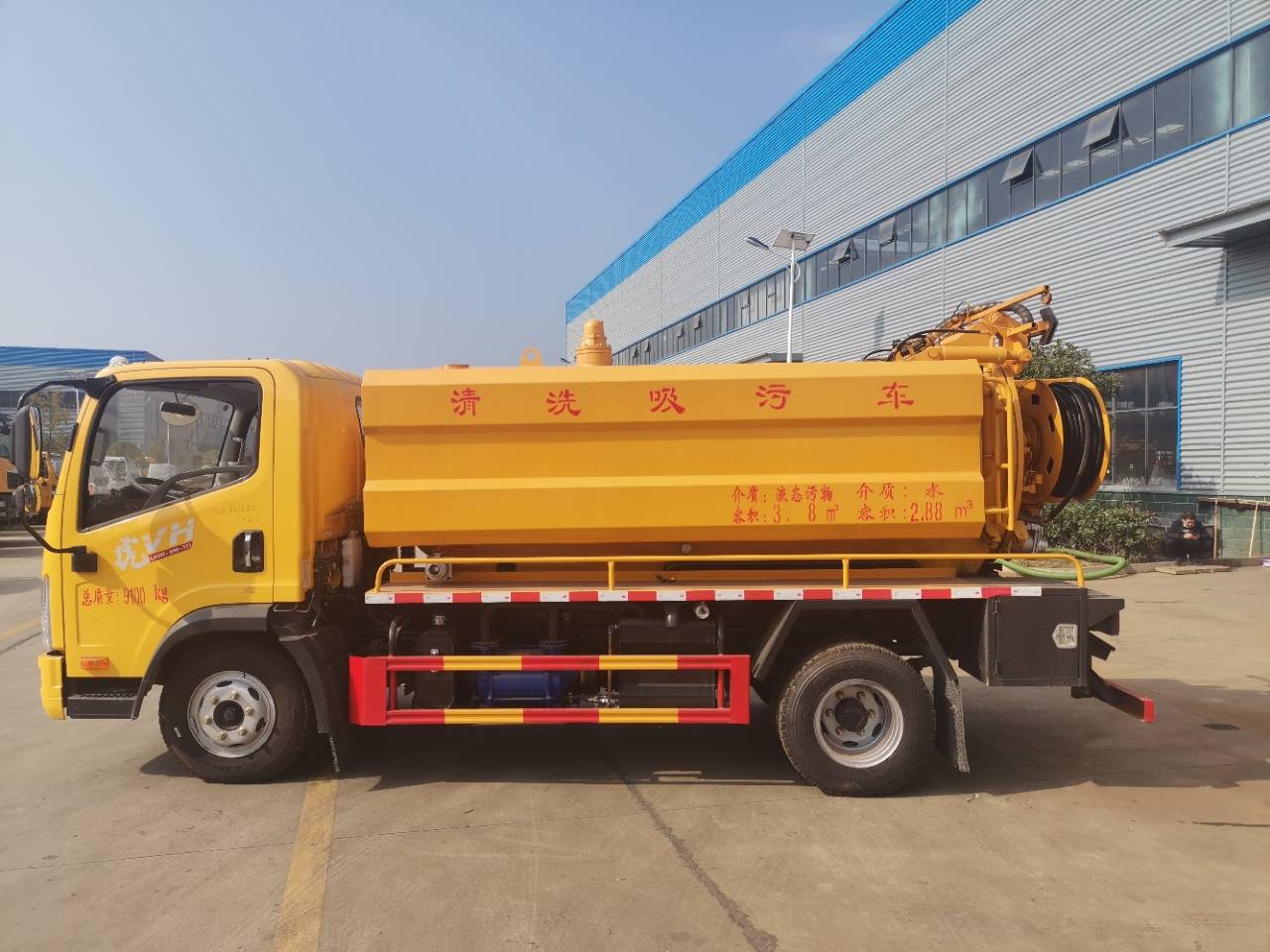

FAW 7m3 cleaning and vacuum truck

The FAW cleaning and vacuum truck chassis information:

The cleaning and vacuum truck body parameters:

1. The sewage suction tank is 4m3, tank thickness 5mm, tank head 5mm, with anti-wave plate inside.

2.  The clean water tank is 3m3, on both side of the sewage suction tank, thickness 4mm.

3. The water tank inlet is a ball valve fire hydrant (easy to switch, durable), with a fire interface.

4, the high pressure pump adopts the German Pinfu 170L model.

5, suction pump using Shandong SK-9 water circulation vacuum pump, high precision, large suction

6, the top of the sewage tank is installed with anti-overflow valve, and the vacuum pump inlet is installed with two stainless steel filters (to prevent dirt from entering the pump).

7, vacuum pump with drainage valve

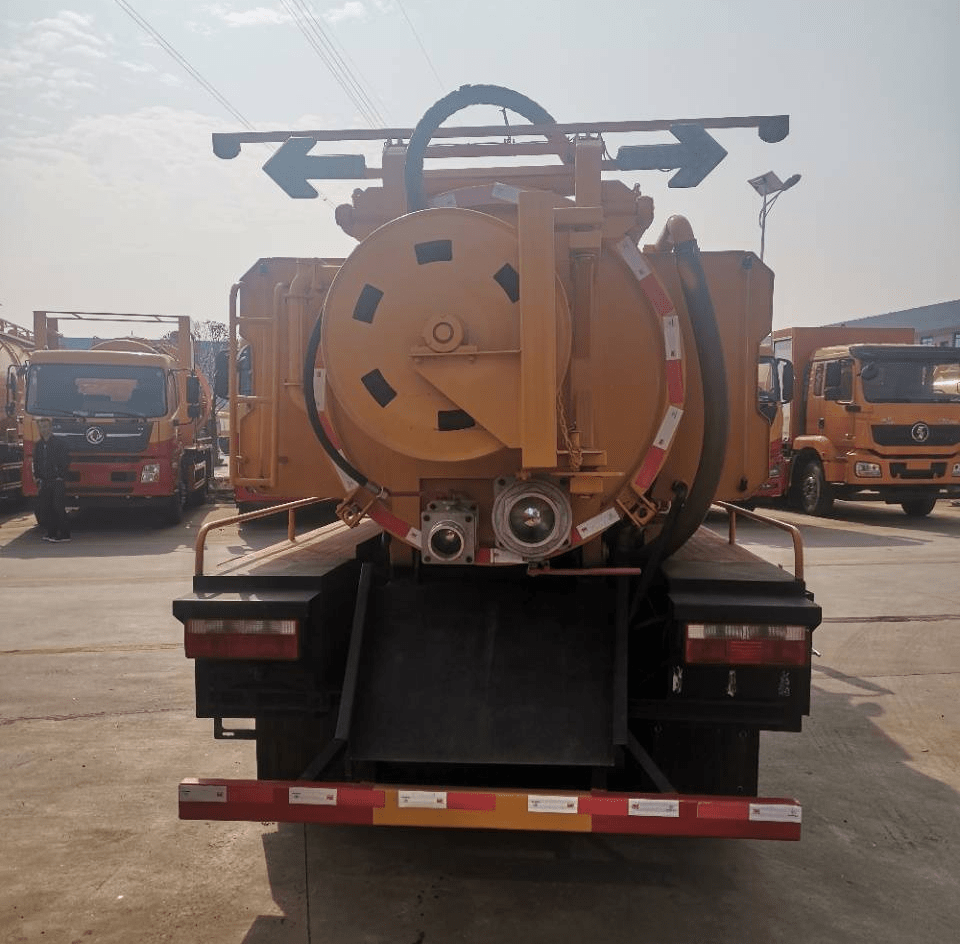

8, after the high pressure reel triangle type double plug fixed, stable and reliable.

9, both sides of the flat pattern plate pipe platform, with guardrail

10. The operating system is arranged neatly in the operation box, with operation instructions and precautions

11, standard with a toolbox, a 100 suction or sewage outlet, a 150 sewage outlet
