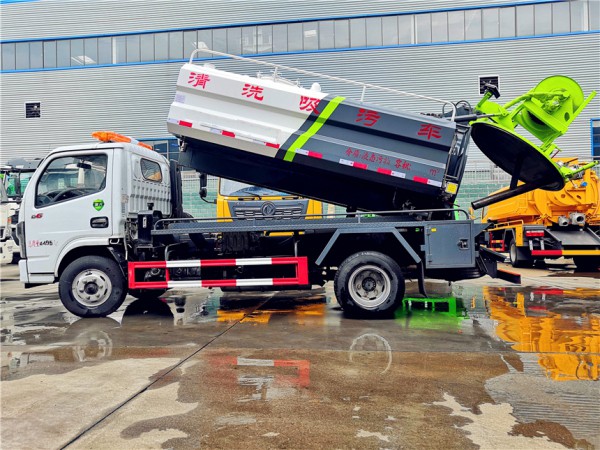

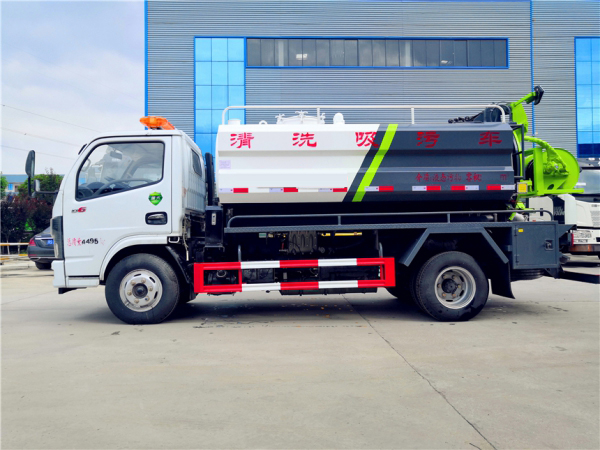

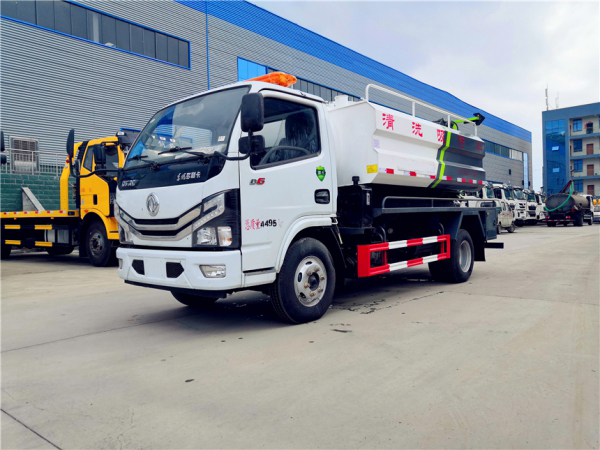

Dongfeng Doric 6m3 high pressure cleaning and suction truck

The high pressure cleaning and suction truck chassis uses Yuchai 140 horsepower, wheelbase 3308mm, National VI emission standards, with intercooler and supercharger, original ABS anti-lock braking system, original power steering, original air conditioning, electric doors and windows, remote control key, 7.00R16 steel tire, and new interior.

Upper body configuration of the high-pressure cleaning and vacuum truck:

Sewage suction part of the high pressure cleaning and suction truck: 3.8 cubic sewage tank, tank body 5mmQ235 high-quality carbon steel,

equipped with Zibo SK-9 water circulation pump, 8-meter sewage suction pipe, air inlet pipe with filter, anti-overflow valve heightened, rear cover buckle locked, front sewage bright pipe, 1 Rio Tinto brand 100mm ball valve installed at the rear tail, all with outlets, tank body

with lifting function, rear door with hydraulic opening.

Cleaning part of the high pressure cleaning and suction truck: 1.8 cubic water tank, using 4mmQ235 high-quality carbon steel plate, water

inlet from fire-fighting interfaces on both sides of the water tank, and a tool box. It uses a German Pinfu high-pressure pump with a flowrate of 170 liters and 24 MPa, equipped with a 60-meter inner diameter 19# high-pressure pipe, a set of 10 nozzles of different sizes, a

rear-mounted cleaning reel, with a shower pipe device (used to rinse the dirt remaining on the high-pressure pipe after the pipe is cleared),

and an air-blowing function (used to blow out the water stains remaining inside the high-pressure pipe after each work to prevent ice from

affecting the next use in cold weather)
