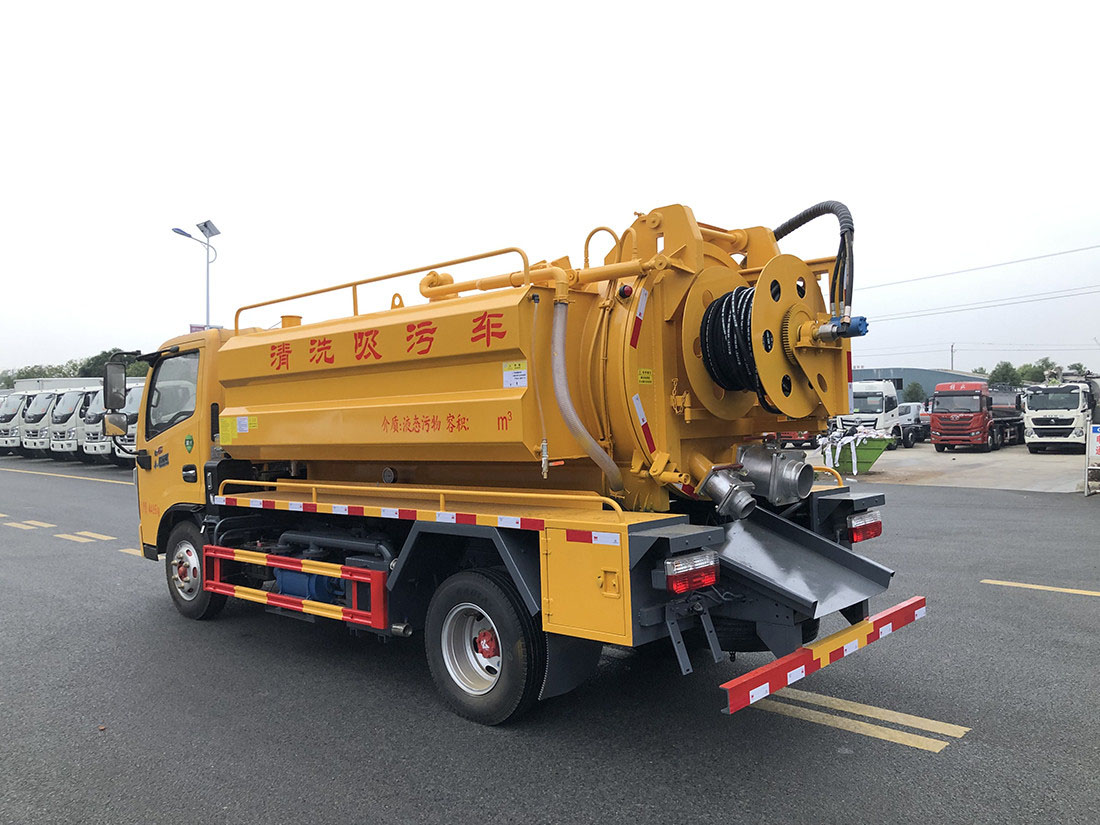

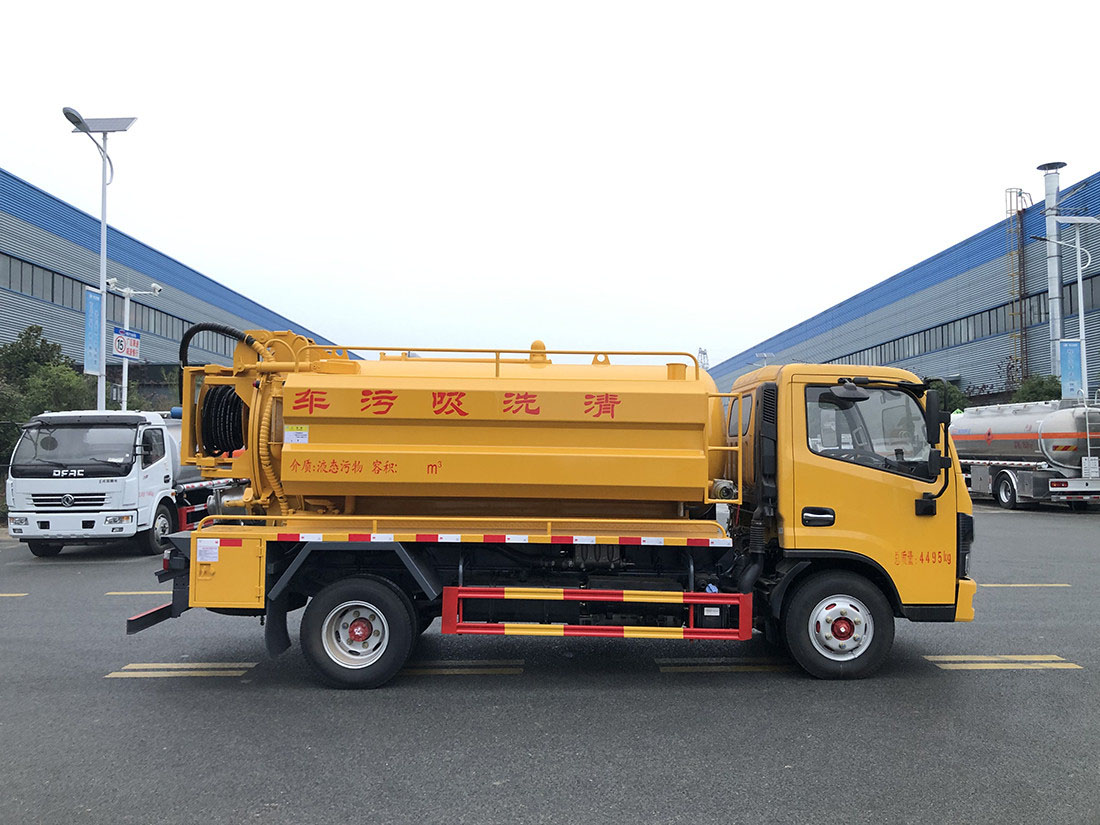

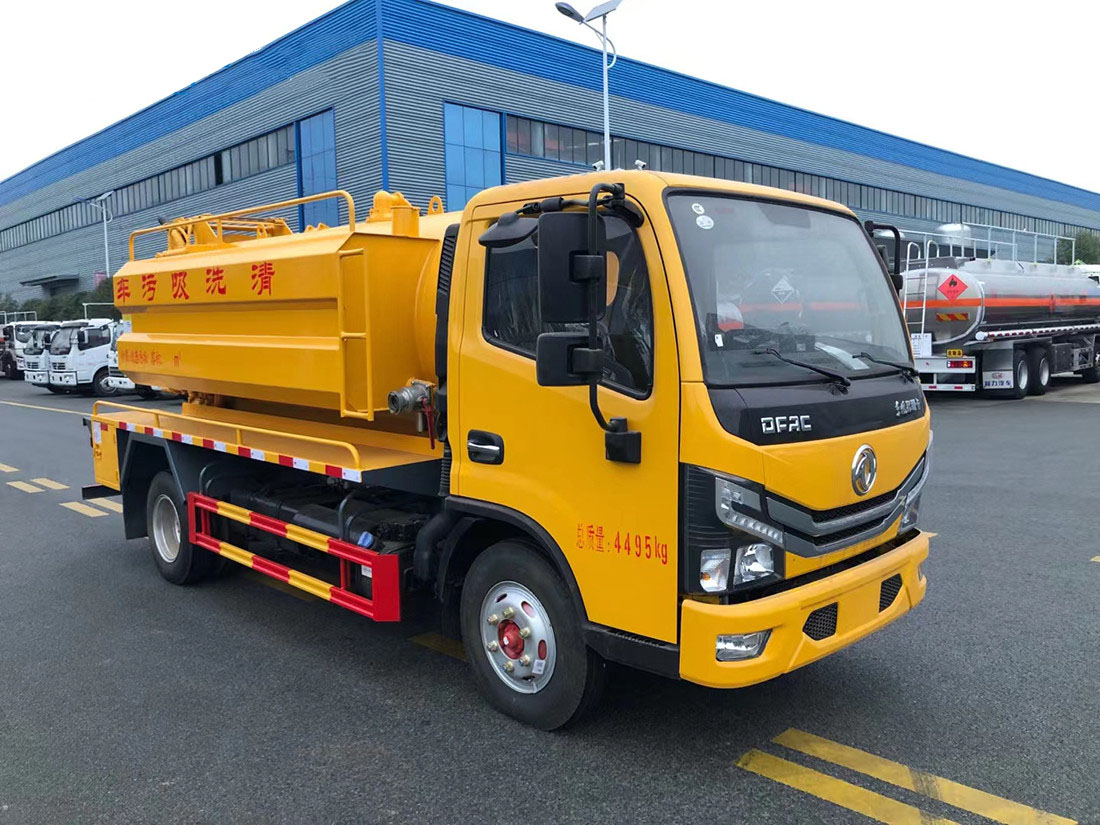

Dongfeng Doric 6m3 high pressure cleaning and vacuum truck

Origin: Suizhou China

Brand: CLW

Emission standard: EURO 2/3/4/5/6

Steering wheel: LHD/RHD

Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

Inquire Now Next Product

Phone：

+86 13329890945

+86 19813830308

ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Center

contant us

Phone：

+86 13329890945

+86 19813830308

Email：info@clw-specialtrucks.com
ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Details

High-pressure cleaning and vacuum truck are also called pipe dredging truck. They use the strong pressure generated by high-pressure water flow to flush blocked pipes. The main components are tanks, high-pressure pumps, hydraulic systems, etc. High-pressure cleaning vehicles are mainly used to clean urban sewers, sediments in pipes, and dredge dead corner mud ditches. They can also be used to clean industrial drainage pipes, walls, etc., and to clean roads and squares.

High-pressure cleaning and vacuum truck can also be equipped with sprinklers, greening sprinkler cannons, front flushing, rear sprinkling, and side spraying. They can be used for greening sprinkling, spraying, dust suppression, high-pressure road washing, etc., and can be used for firefighting in emergencies.

Parameters of the Dongfeng Doric 6m3 high pressure cleaning and vacuum truck

whole high-pressure cleaning and vacuum truck parameters
brand	CLW	model	EQ1045SJ3CDF
GVW	4495kg	rated loading capacity	1495kg
curb weight	2870kg	outer dimensions	599520902650mm
chassis parameters of the high-pressure cleaning and vacuum truck
brand	Dongfeng	wheelbase	3308mm
tyre size	7.00R16	engine model	YCY24140-60
engine power	103Kw	fuel type	diesel
emission standard	EURO VI

The high pressure cleaning and vacuum truck chassis adopts Yuchai 140 horsepower, wheelbase 3308mm, National VI emission standard, with intercooler and supercharger, original ABS anti-lock braking system, original power steering, original air conditioning, electric doors and windows, remote control key, 7.00R16 wire tire, air brake, and new interior.

The high pressure cleaning and vacuum truck body parameters：

clean water tank volume	2m3
vacuum tank volume	4m3
tank thickness	5mm
tank head thickness	6mm
high pressure water pump	German Pinfu 170L/min 24 MPa high pressure pump (1 φ700mm reel, 60M high pressure cleaning hose, 10 high pressure punches)
vacuum pump	SK-9 water cooling pump
rear cover	The rear cover is hydraulically opened, with a Rio Tinto φ100mm ball valve suction port and a Rio Tinto φ150mm drain valve
drive method	Sandwich PTO
vacuum pipe system	The vacuum pipe system mainly consists of a vacuum pump, a four-way rotary valve, a ball valve and pipelines, etc. It has functions such as vacuum suction, pressure discharge and gravity discharge.
high pressure pipeline system	The high-pressure flushing pipe system is mainly composed of a high-pressure water pump, an overflow valve, a high-pressure three-way valve, a reel, a flushing nozzle, etc.
hydraulic system	The hydraulic system is powered by a hydraulic pump to achieve the lifting and lowering of the tank.
