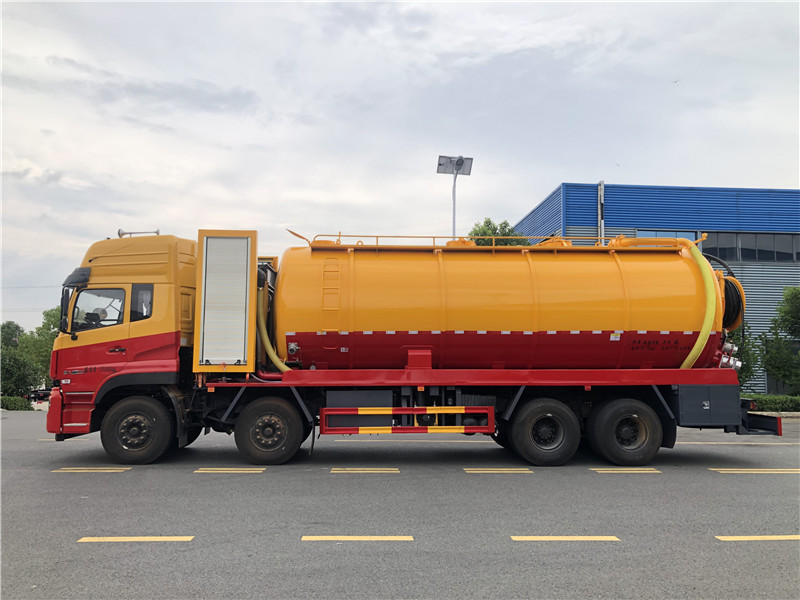

Dongfeng 33m3 high pressure cleaning and vacuum truck

High-pressure cleaning truck are also called pipe dredging truck. They use the strong pressure generated by high-pressure water flow to flush blocked pipes. The main components are tanks, high-pressure pumps, hydraulic systems, etc. High-pressure cleaning vehicles are mainly used to clean urban sewers, sediments in pipes, and dredge dead corner mud ditches. They can also be used to clean industrial drainage pipes, walls, etc., and to clean roads and squares.

High-pressure cleaning truck can also be equipped with sprinklers, greening sprinkler cannons, front flushing, rear sprinkling, and side spraying. They can be used for greening sprinkling, spraying, dust suppression, high-pressure road washing, etc., and can be used for firefighting in emergencies.

The Dongfeng 33m3 high pressure and cleaning truck adopt Dongfeng Tianlong chassis, Dongfeng 465 horsepower engine, Fast 9-speed gearbox, wheelbase 2050+4400+1350mm, 11.00 steel tire, with air conditioning, power steering, clutch booster, air brake.

Truck body parameters of the Dongfeng 33m3 high pressure cleaning and vacuum truck:

The high pressure cleaning and vacuum truck tank has a capacity of 33m3 and is equipped with a Tianjin Tongjie 350 flow high-pressure pump, a 100-meter diameter 22 high-pressure pipe, a 9-kilogram mine, an 800 straight-handled nozzle, a hydraulic reel, and a Weichai 420-horsepower auxiliary engine with a Zibo 258 water circulation pump for the sewage suction part. There are two 8-meter sewage suction pipes with male and female quick connectors. The water tank and the sewage tank of the high pressure cleaning and vacuum truck are interconnected and switched with a 100 ball valve. A guardrail platform (widened) and a ladder are added to the top of the tank. A 600mm quick-opening is added to the tail, and the tail is a sewage pipe. There is a 150 sewage discharge ball valve with an outlet plate, and two 1 00 sewage suction ball valve with outlet plate, a 150 ball valve discharge port is installed at the bottom of the sewage tank, a 1.2-meter stainless steel bottom plate is laid inside the tank, two wave-breaking plates are made inside the tank, a 65 fire joint is made on each side of the clean water tank operation, two 600-diameter cement tank ports are made on the top of the tank, there is a ladder inside the tank, a 50 drainage ball valve is installed at the bottom of the water tank, an arrow light, a feed pipe with a diameter of 120, a diameter of 220 elbow (thickened) is extended, the rear bumper is reinforced, and an earthquake-resistant pressure gauge is installed.
