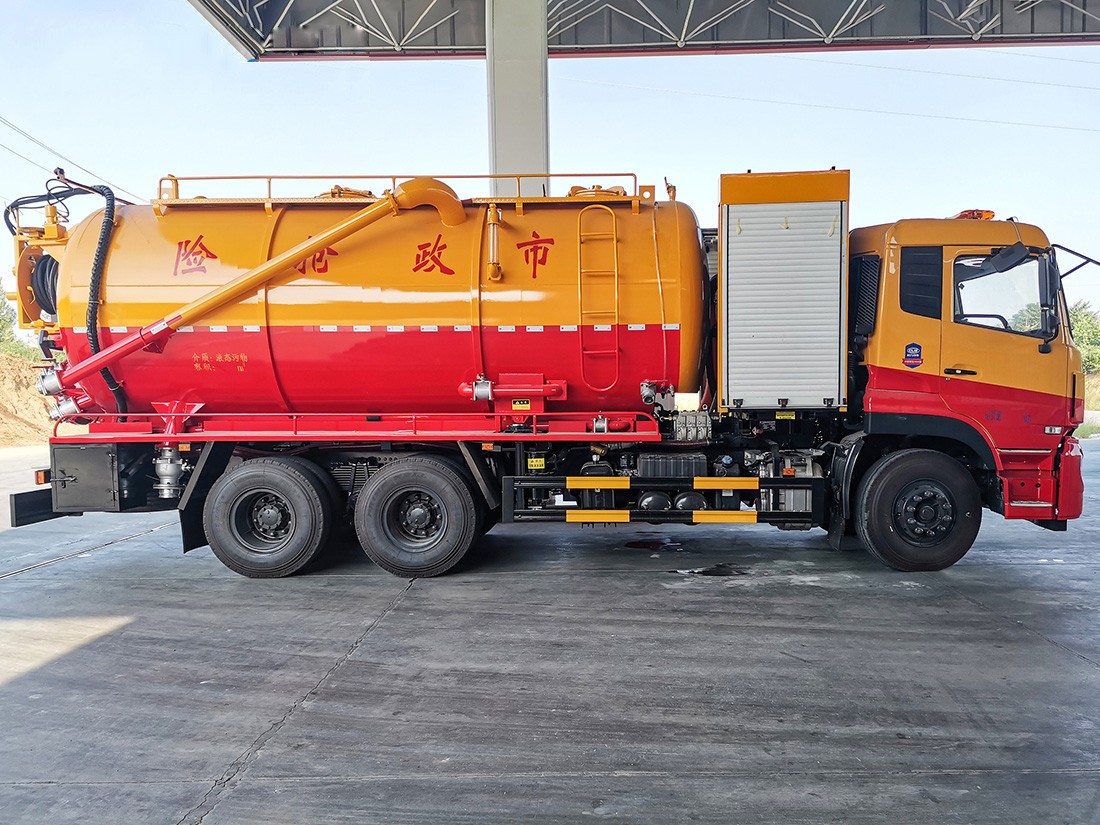

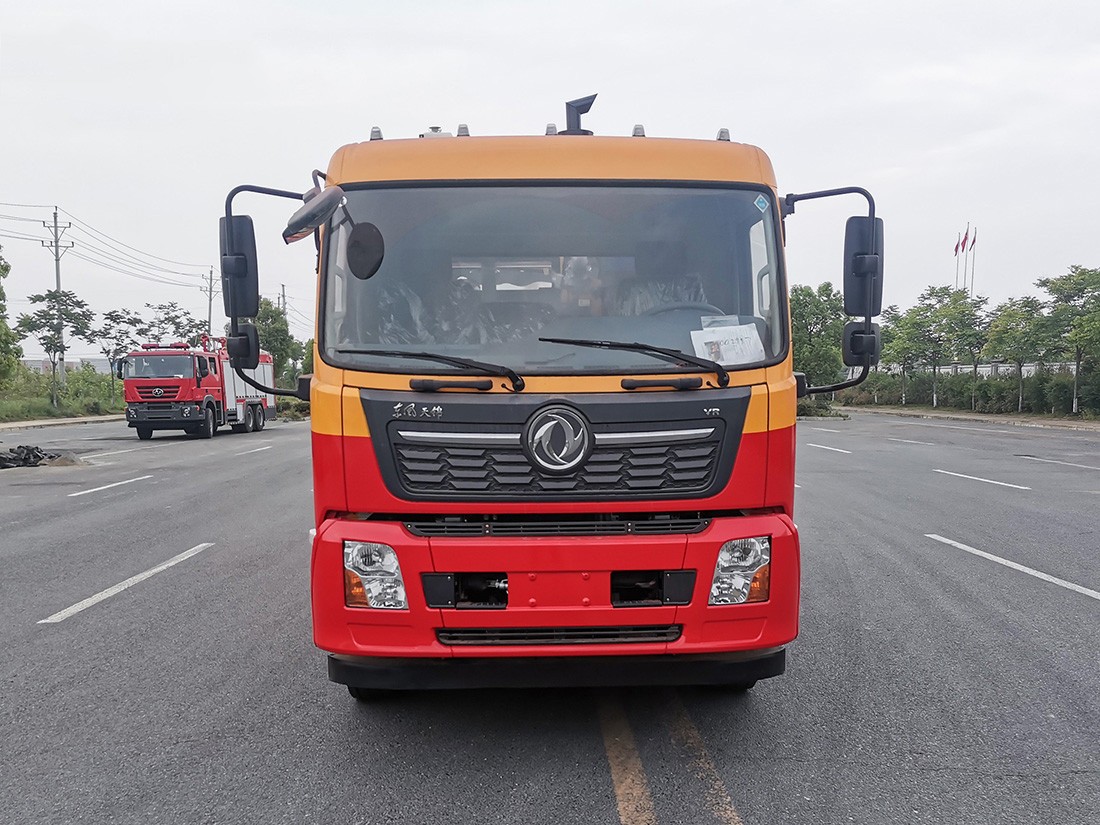

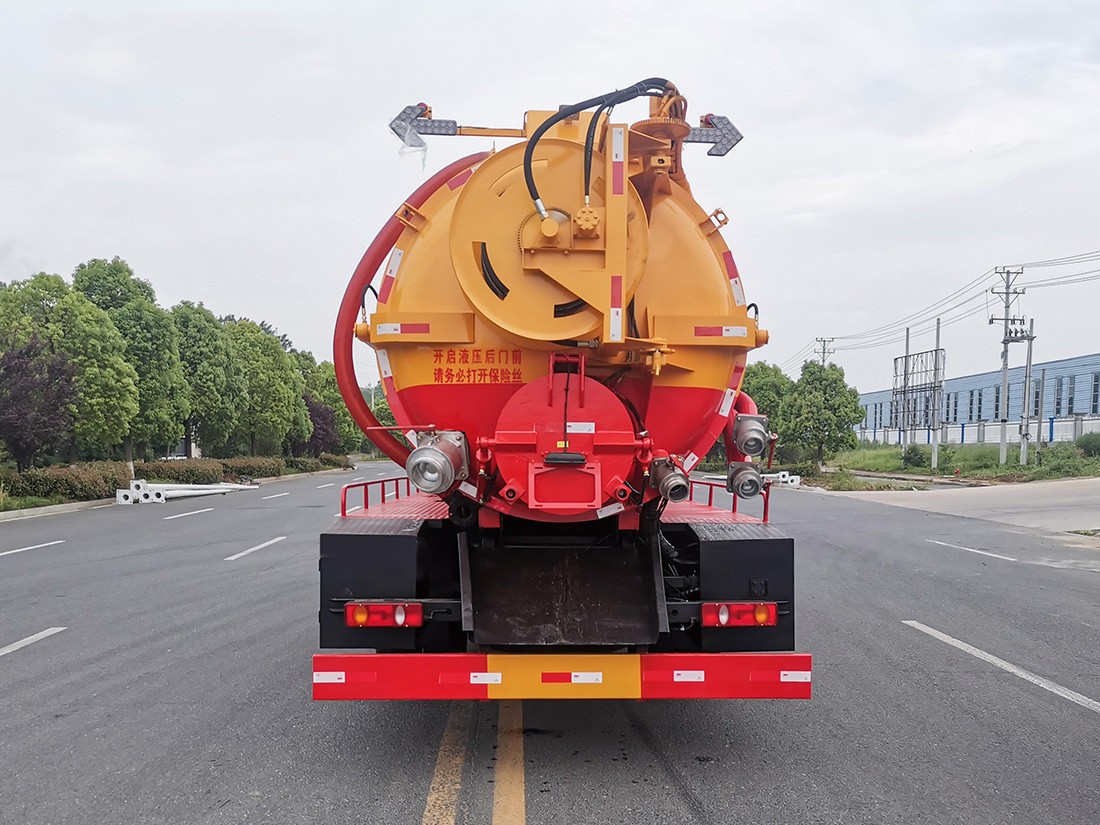

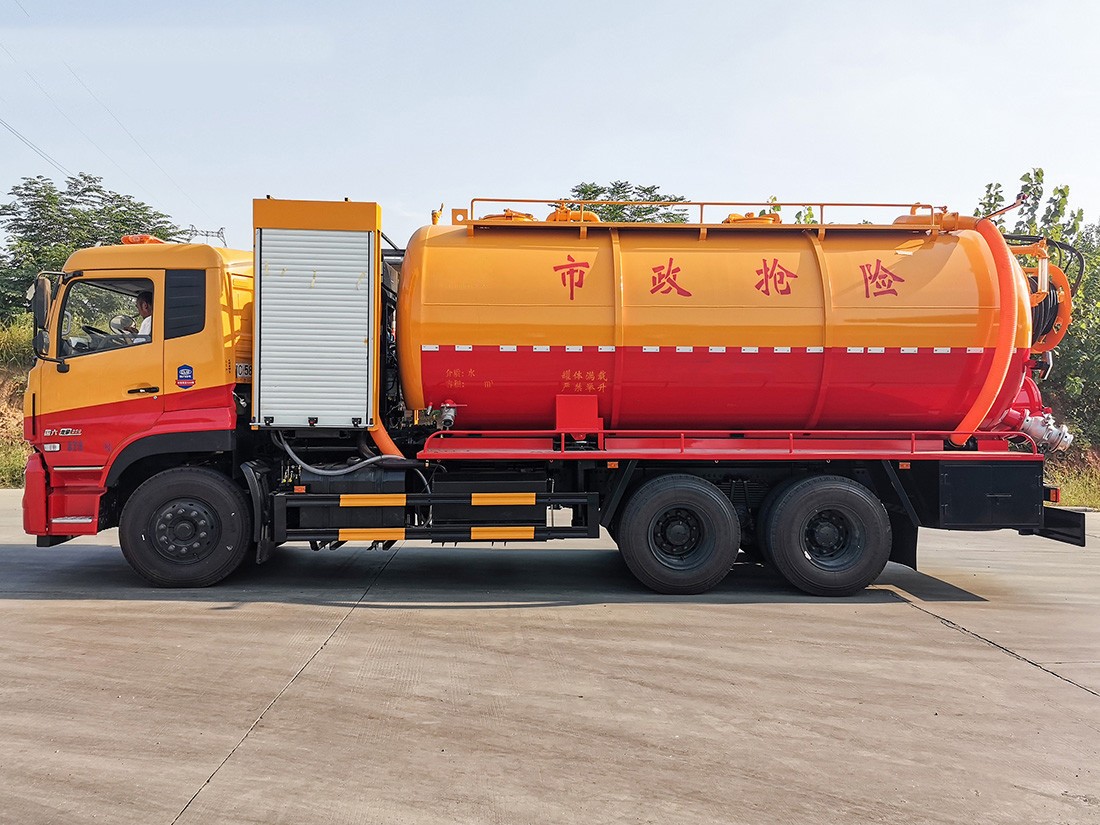

Dongfeng Tianlong 23m3 high pressure cleaning and vacuum truck

Origin: Suizhou China

Brand: CLW

Emission standard: EURO 2/3/4/5/6

Steering wheel: LHD/RHD

Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC

Inquire Now Next Product

Phone：

+86 13329890945

+86 19813830308

ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Center

contant us

Phone：

+86 13329890945

+86 19813830308

Email：info@clw-specialtrucks.com
ADD：South Suburb Chengli Automobile Industry Park, Suizhou city, Hubei province,China

Product Details

The Dongfeng Tianlong 23m3 high pressure cleaning and vacuum truck chassis adopts a Cummins 290 horsepower engine (optional Longqing 350 horsepower), wheelbase 4350+1350mm, National VI emission standards, with intercooler and supercharger, original ABS anti-lock braking system, original power steering, original air conditioning, electric doors and windows, remote control key, 295/80R22.5 18PR, 11.00R20 18PR steel tire, air brake, and new interior.

Parameters of the Dongfeng Tianlong 23m3 high pressure cleaning and vacuum truck:

whole high pressure cleaning and vacuum truck parameters
brand	CLW	model	CL5250GQW6CC
GVW	25000kg	rated loading capacity	7370kg
curb weight	17500kg	outer dimensions	910025503850mm
passengers	2	approach/departure angle	20/11 °
front/rear suspension	1480/2520	axle number	3
wheelbase	4350+1350mm	axle loading capacity	7000/18000(rear double axle)
Others: the high pressure cleaning and vacuum truck is mainly used for sewer cleaning and sewage suction. The main special devices are vacuum pumps and tanks. The overall dimensions of the tank are (straight section length × diameter) (mm): 5400 × 2150, of which the front section of the tank is a clean water tank (straight section length 2400mm); the rear section is a sewage tank (straight section length 3000mm). The two tanks are not interoperable, and they cannot be fully loaded at the same time. The clean water tank is used for cleaning function, and the sewage tank is used for sewage suction function. The effective volume of the clean water tank is 7.67 cubic meters, the medium is water, and the density is 1000 kg/cubic meter; the effective volume of the sewage tank is 9.58 cubic meters, the medium is liquid sewage, and the density is 800 kg/cubic meter. The tank has a lifting function; 2. Only the wheelbase (mm): 4350+1350 is used. The corresponding relationship of the exterior length/front overhang/rear overhang is (mm): 9700/1480/2520, 9700/1500/2500, 10100/1480/2920, 10100/1500/2900. The side/rear protection materials are all Q235, the side protection is bolted, the rear protection is welded, the cross-sectional size is 320mm×50mm, and the lower edge is 500mm above the ground. 3. The front corner spoiler of the cab is optional with the chassis; the front cover, front bumper, front lamps and rearview mirrors of the cab are optional, the three decorative lights in the middle of the top of the cab are optional, the front fog lamp is optional, and the resin decorative panels are optional for the side windows of the cab. ABS model/manufacturer: 3631010-C2000/Dongke Knoll Commercial Vehicle Braking System (Shiyan) Co., Ltd., ABS 8/Dongke Knoll Commercial Vehicle Braking System (Shiyan) Co., Ltd., 4460046450/Wabco Automotive System () Co., Ltd. Optional water tank installed at the front of the tank, hydraulic opening of the rear cover at the top, no reel structure at the rear of the tank, no opening structure of the rear cover of the tank, upper walkway structure style. The rear arrow light is optional. Optional tank without rolling door at the front.

Parameters of the high pressure cleaning and vacuum truck chassis:

brand	Dongfeng	model	DFH1250D4
outer dimensions	927025003075mm	tyre number	10
tyre size	295/80R22.5 18PR 11.00R20 18PR	fuel type	diesel
emission standard	EURO VI	leaf spring number	3/10
engine model	engine manufacturer	displacement	power
D6.7NS6B290	Dongfeng Cummins Engine Co., Ltd.	6700ml	213Kw
DDi75E350-60	Dongfeng Commercial Vehicle Co., Ltd.	7500ml	257Kw
DDi75E300-60	Dongfeng Commercial Vehicle Co., Ltd.	7500ml	220Kw

Configurations of the high pressure cleaning and vacuum truck body:

Suction part of the high-pressure cleaning and vacuum truck: 16m3 sewage tank, tank body 8mmQ235 high-quality carbon steel, equipped with Weichai 420 auxiliary engine with Zibo

SK-42/258 water circulation pump, 1.2-meter stainless steel bottom plate laid flat inside the tank body, a 10-meter sewage suction pipe,

an air inlet pipe with a filter, an anti-overflow valve raised, a rear cover buckle locked, a front-view sewage volume pipe, 3 100mm ball valve

sewage suction ports at the rear, a 600mm sewage outlet hydraulically opened, a 150mm sewage ball valve, and a tank body with lifting

function.

Cleaning part of the high-pressure cleaning and vacuum truck: 7m3 water tank, made of 8mmQ235 high-quality carbon steel plate, water

inlet from fire interfaces on both sides of the water tank, and a tool box. It uses a German Pinfu high-pressure pump with a flow rate of

330 liters, equipped with a 100-meter inner diameter 22# high-pressure pipe, a set of 10 nozzles of different sizes, a rear-mounted

cleaning reel, a spray pipe device (used to rinse the dirt remaining on the high-pressure pipe after the pipe is cleared), and an air-blowing

function (used to blow out the water stains remaining inside the high-pressure pipe after each work is completed to prevent ice from

affecting the next use in cold weather)

The volume of the high-pressure cleaning and vacuum truck's sewage tank and clean water tank can be freely allocated.
