Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks......
Origin: Suizhou China
Brand: CLW
Emission standard: EURO 2/3/4/5/6
Steering wheel: LHD/RHD
Chassis: Isuzu/ Sinotruck/Shacman/Dongfeng/CLW/JAC/Foton/JMC
+86 13329890945
+86 19813830308
+86 13329890945
+86 19813830308

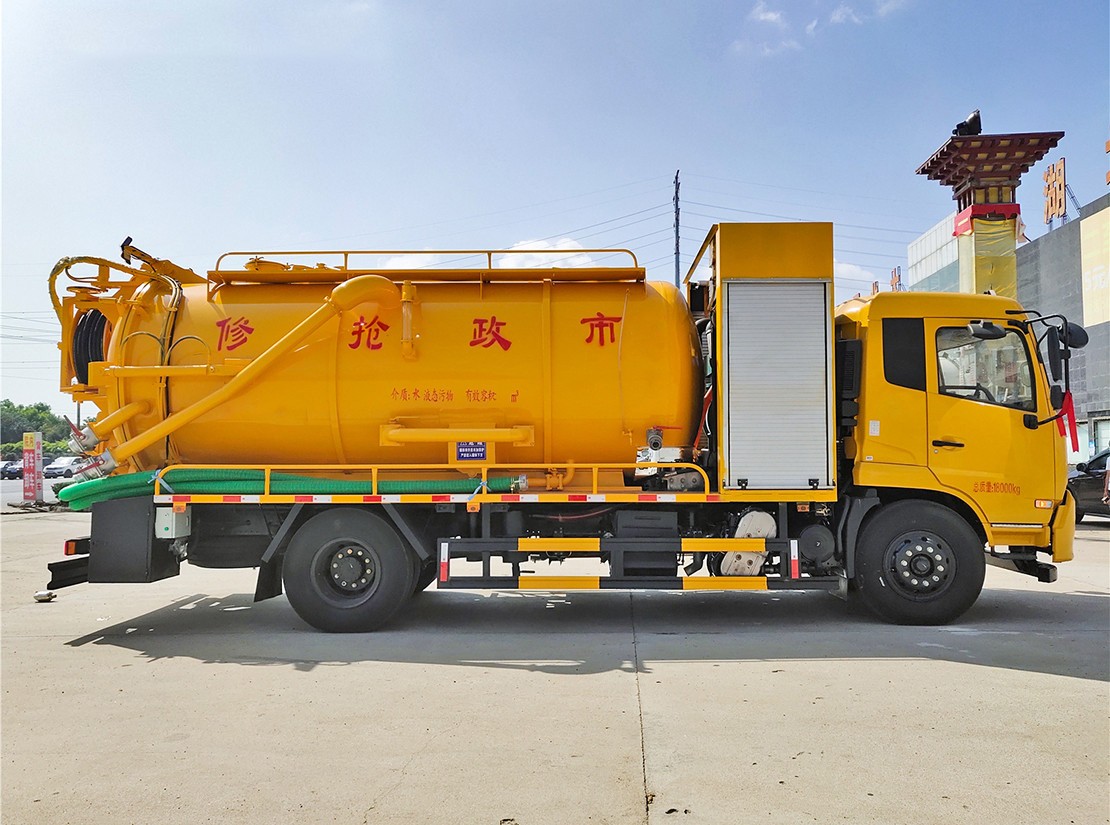

The 15m3 high pressure cleaning and vacuum truck chassis uses a Cummins 210 horsepower (optional 230 horsepower) engine, a wheelbase of 4700mm, National VI emission standards, with intercooler and supercharger, original ABS anti-lock braking system, original power steering, original air conditioning, electric doors and windows, remote control key, 11.00R20 18PR steel tire, air brake, and new interior.
Parameters of the 15m3 high-pressure cleaning and vacuum truck:
| whole high-pressure cleaning and vacuum truck | |||
| brand | CLW | model | CL5181GQW6HQ |
| GVW | 18000kg | rated loading capacity | 4470kg |
| curb weight | 13400kg | outer dimensions | 9150*2550*3550mm |
| passengers | 2 | approach/departure angle | 17/13° |
| front/rear suspension | 1400/2900mm | axle number | 2 |
| wheelbase | 4700mm | axle loading capacity | 6500/11500mm |
| max speed | 89km/h | ||
Others: The optional cab is installed with the chassis, the optional tank body without auxiliary engine in the front, the optional rear reel structure, and the optional auxiliary engine hood. The special device of the vehicle consists of a clean water tank and a suction tank for sewage discharge and dredging in the sewer; the vehicle size length × width × height (mm): 8850, 9000, 9150, 9450 × 2550 × 3550, 3650, 8850, 9000mm corresponds to no auxiliary engine installed, the tank size is (straight section length × diameter) (mm): 5200 × 1850, the clean water tank size (straight section length × diameter) (mm): 2300 × 1850, the suction tank (straight section length × diameter) (mm): 2900 × 1850; 9150, 9450 correspond to the installation of auxiliary engine, and the rear extension of 9450 is 300mm; the tank size is (straight section length × diameter) (mm): 4700 × 1950, the clean water tank size ( Straight section length × diameter) (mm): 2050 × 1950, suction tank (straight section length × diameter) (mm): 2650 × 1950, effective volume of clean water tank: 4.6 cubic meters, effective volume of suction tank: 5.78 cubic meters; clean water tank and suction tank are two ** tanks, clean water tank is used for cleaning function, suction tank is used for suction function, cleaning and suction functions are not used at the same time. The tank has lifting function; 4700mm wheelbase is selected. The side and rear protection materials are carbon steel Q235, connection method: left and right side protection is connected by bolts and welding, rear protection is connected by welding, rear protection device section size (width × height) 50 × 220 (mm), rear protection ground clearance: 470mm. ABS model/manufacturer: 3631010-C2000/Dongke Knoll Commercial Vehicle Braking System (Shiyan) Co., Ltd., ABS 8/Dongkok-Noel Commercial Vehicle Braking System (Shiyan) Co., Ltd., 4460046450/Wabco Automotive ** Systems (**) Co., Ltd. The curb weight without auxiliary engine is 12060kg, and the corresponding rated load is 5810kg, 5745kg, optional tank appearance, optional auxiliary engine style, and optional chassis accessory installation position. | |||
Body configuration of the 15m3 high-pressure cleaning and vacuum truck:
Suction part of the high-pressure cleaning and vacuum truck: 10m3 sewage tank, tank body 8mmQ235 high-quality carbon steel, equipped
with Weichai 375 auxiliary engine with Zibo SK-30 water circulation pump, and Roots pump can also be selected. A 10-meter sewage
suction pipe, an air inlet pipe with a filter, an anti-overflow valve heightened, a rear cover buckle locked, a front-view sewage bright pipe,
3 Rio Tinto brand 100mm ball valve sewage suction ports at the rear, a 150mm caliber sewage valve, a 600mm sewage outlet hydraulically
opened, the tank body with a lifting function, and the rear cover can be hydraulically opened.
Cleaning part of the high-pressure cleaning and vacuum truck: 5m3 water tank, using 8mmQ235 high-quality carbon steel plate, water inlet from fire interfaces on both sides of the water tank, and a tool box. It uses Tianjin Tongjie 250L flow high-pressure pump, equipped with 100-meter inner diameter 19# high-pressure pipe, a set of 10 nozzles of different sizes, a rear-mounted cleaning reel, a spray pipe device (used to rinse the dirt remaining on the high-pressure pipe after the pipe is cleared), and an air-blowing function (used to blow out the water stains remaining inside the high-pressure pipe after each work is completed to prevent ice from affecting the next use in cold weather)
